ECU Pinout SIM2K-260 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU SIM2K-260 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

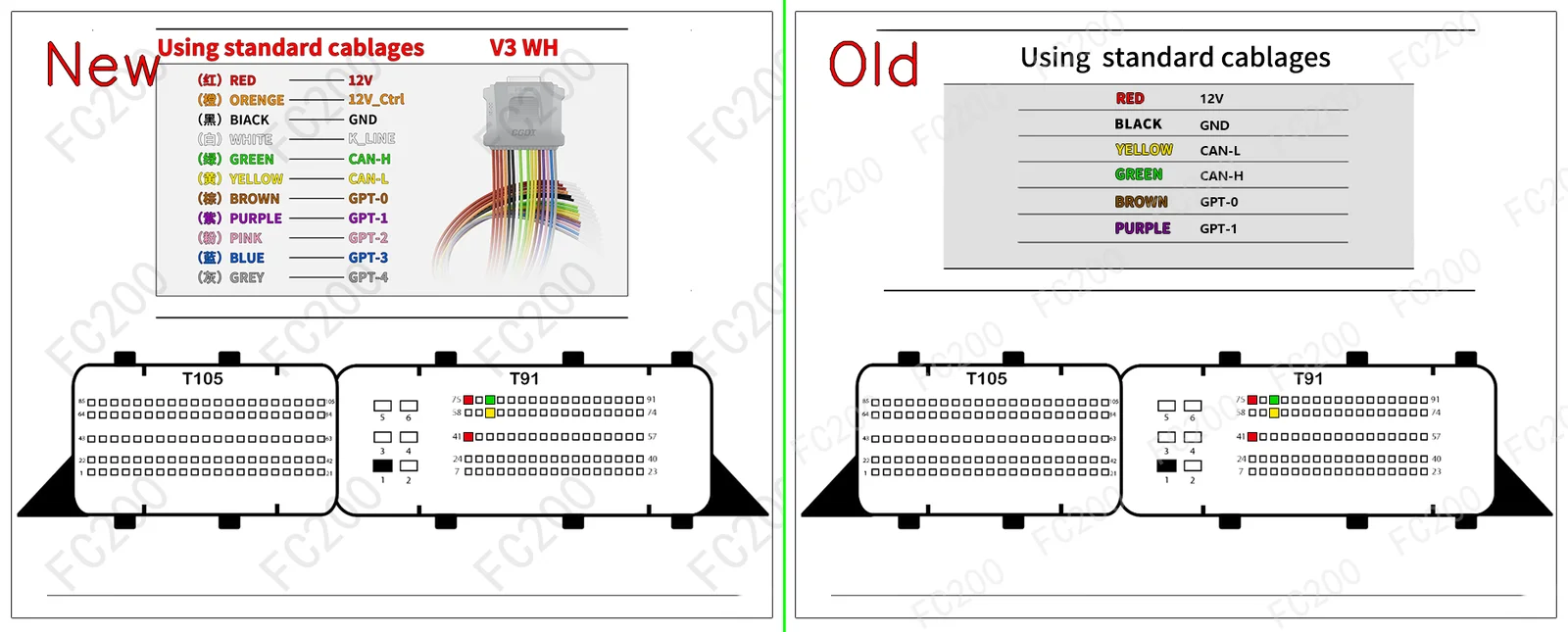

OFFICIAL PINOUT DIAGRAM: SIM2K_260.png (Platform / Bench)518,235 bytes

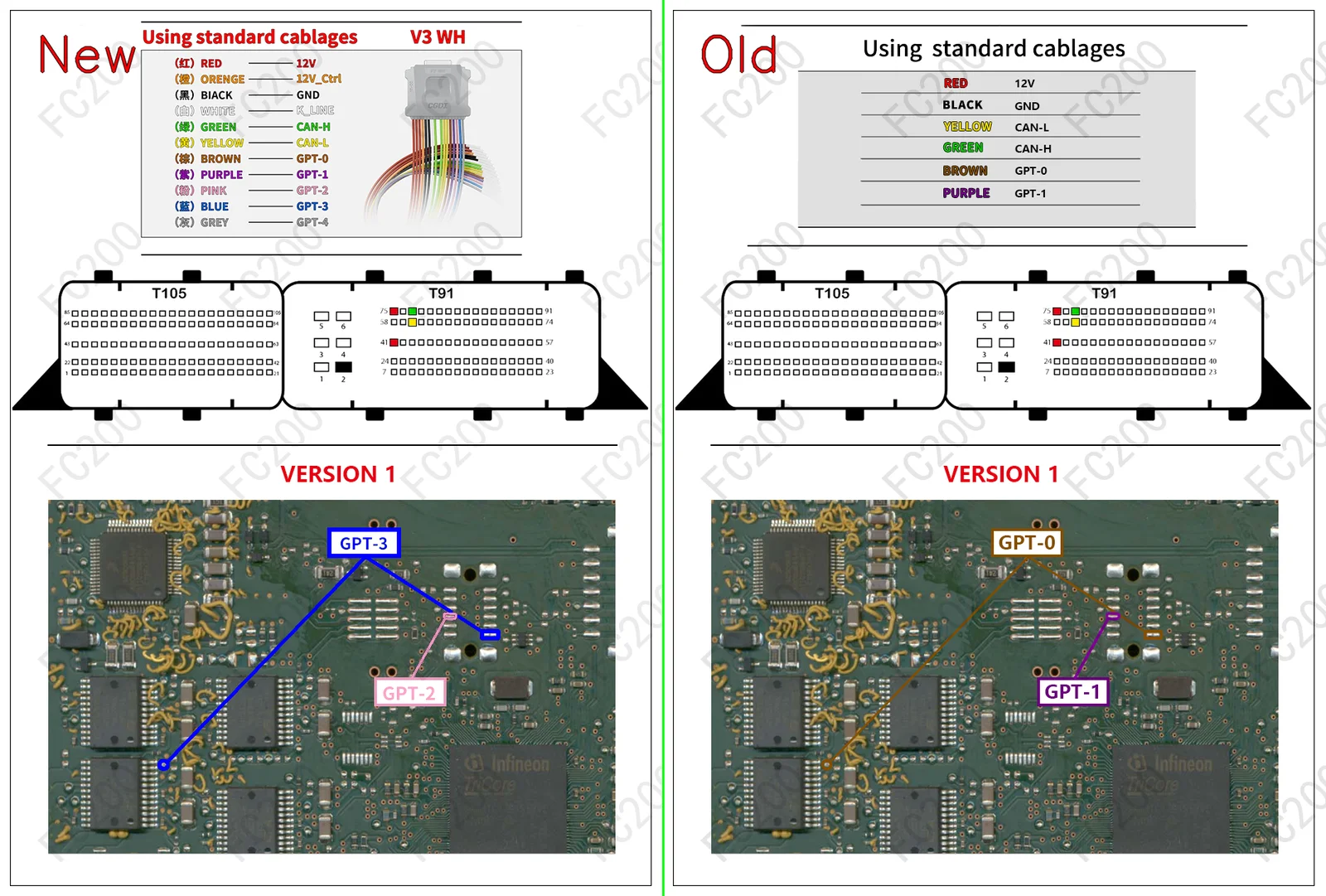

OFFICIAL PINOUT DIAGRAM: SIM2K_260_BOOT.png (Boot)1,962,805 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU SIM2K-260 (13)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Genesis G70I (IK) (3300 G6DP 370) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Genesis G70I (IK) (3800 G6DN 315) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Genesis G80II (DH) (3300 G6DP 370) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Genesis G80II (DH) (3800 G6DN 315) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Genesis G90II (HI) (3300 G6DP 370) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Genesis G90II (HI) (3800 G6DN 315) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Kia K7II (YG) (3300 G6DP 370) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Kia K9II (RJ) (3300 G6DP 370) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Kia K9II (RJ) (3800 G6DN 315) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Kia K9I (KH) (3800 G6DN 315) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Kia StingerI (CK) (3300 G6DP 370) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Genesis All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, Recover VIN) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
Kia All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, Recover VIN) CONTINENTAL SIM2K-260 (TC1791) Open Vehicle →
