ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout MB112700 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MB112700 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

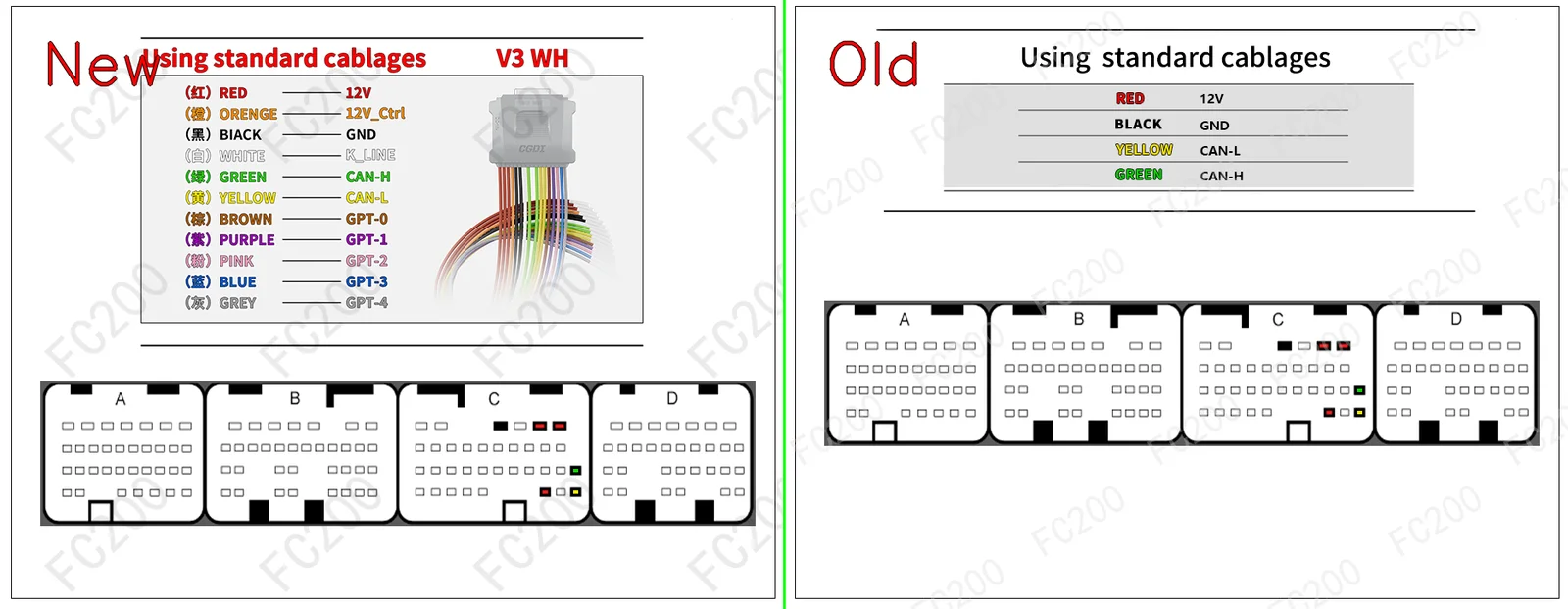

OFFICIAL PINOUT DIAGRAM: DENSO MB112700 SH72543.png (Platform / Bench)488,700 bytes
DENSO MB112700 SH72543.png

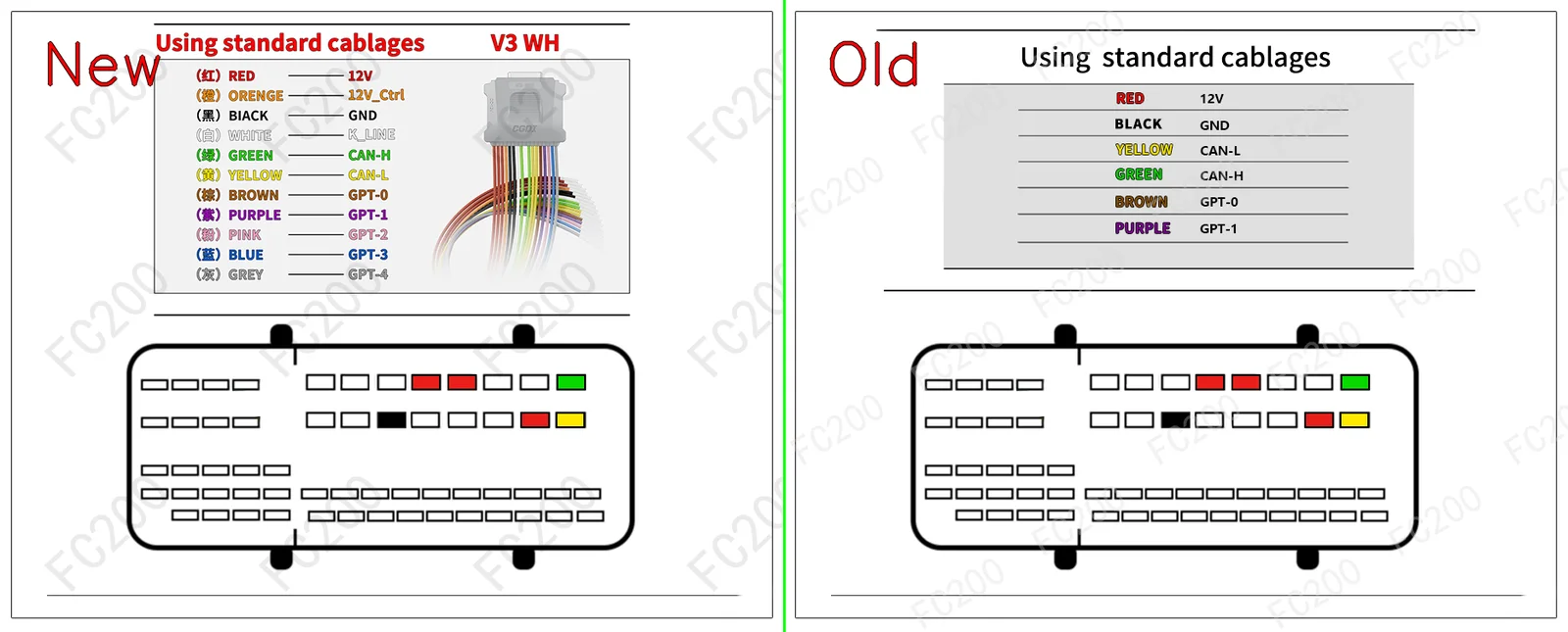

OFFICIAL PINOUT DIAGRAM: DENSO MITSUBISHI_L200 SH72543.png (Platform / Bench)453,025 bytes
DENSO MITSUBISHI_L200 SH72543.png

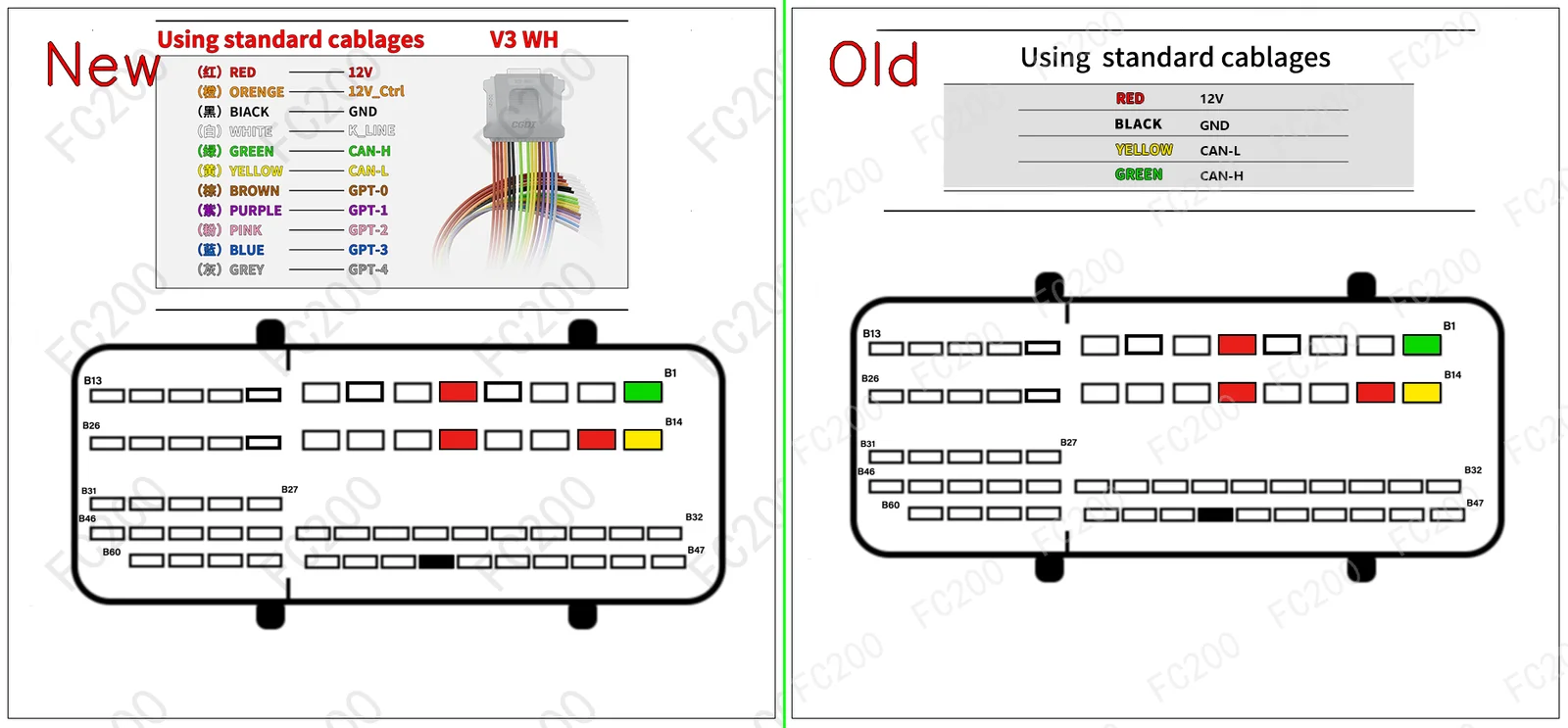

OFFICIAL PINOUT DIAGRAM: DENSO SUBARU SH72543.png (Platform / Bench)521,129 bytes
DENSO SUBARU SH72543.png
OFFICIAL PINOUT DIAGRAM: KEIHIN 37820-50W-B52 SH72543.png (Platform / Bench)409,304 bytes
KEIHIN 37820-50W-B52 SH72543.png
OFFICIAL PINOUT DIAGRAM: KEIHIN 37820-5R3-B51 SH72543.png (Platform / Bench)410,982 bytes
KEIHIN 37820-5R3-B51 SH72543.png
OFFICIAL PINOUT DIAGRAM: KEIHIN 37820-5R3-B52 SH72543.png (Platform / Bench)411,419 bytes
KEIHIN 37820-5R3-B52 SH72543.png
OFFICIAL PINOUT DIAGRAM: KEIHIN 37820-RLH-H53 SH72543.png (Platform / Bench)546,612 bytes
KEIHIN 37820-RLH-H53 SH72543.png
OFFICIAL PINOUT DIAGRAM: KEIHIN 37820-RLH-H62 SH72543.png (Platform / Bench)546,830 bytes
KEIHIN 37820-RLH-H62 SH72543.png
OFFICIAL PINOUT DIAGRAM: KEIHIN 37820-RLH-H63 SH72543.png (Platform / Bench)547,140 bytes
KEIHIN 37820-RLH-H63 SH72543.png
OFFICIAL PINOUT DIAGRAM: KEIHIN 37820-xxx-xxx SH72543.png (Platform / Bench)408,829 bytes
KEIHIN 37820-xxx-xxx SH72543.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MB112700 (20)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Subaru B9 Tribeca (3000 EZ30H6 253) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Forester(SH) (1995 EJ204 150) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Forester(SH) (1994 EJ20 230) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Forester(SH) (2457 EJ255 230) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Forester(SH) (2457 EJ25 263) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Impreza(IV) (T Z1 Turbo 170) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Impreza(IV) (1600 • 1) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Impreza (T Z1 Turbo 170) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Impreza (1995 FB20 150) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Impreza WRX (2457 EJ25 265) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Legacy (2457 EJ255 286) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Legacy (2457 EJ255 270) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru LevorgVM (1600 FB16 170) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Liberty (2457 EJ255 286) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru Liberty (2457 EJ255 270) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru WRX STi (1995 EJ207 308) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru WRX STi (1995 308) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru WRX STi (2457 EJ25 300) DENSO MB112700 SH72543 (test) Open Vehicle →
Subaru All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/MAPS/PFLASH, CheckSum) DENSO MB112700 SH72543 (test) Open Vehicle →
Universal ECU Protocol Aziatskie ECU Denso / Mitsubishi Melco / Delphi DCM (Platform / Bench) (Direct Bench / Boot ECU Connector Pinout) DENSO MB112700 SH72543 (test) Open Vehicle →
