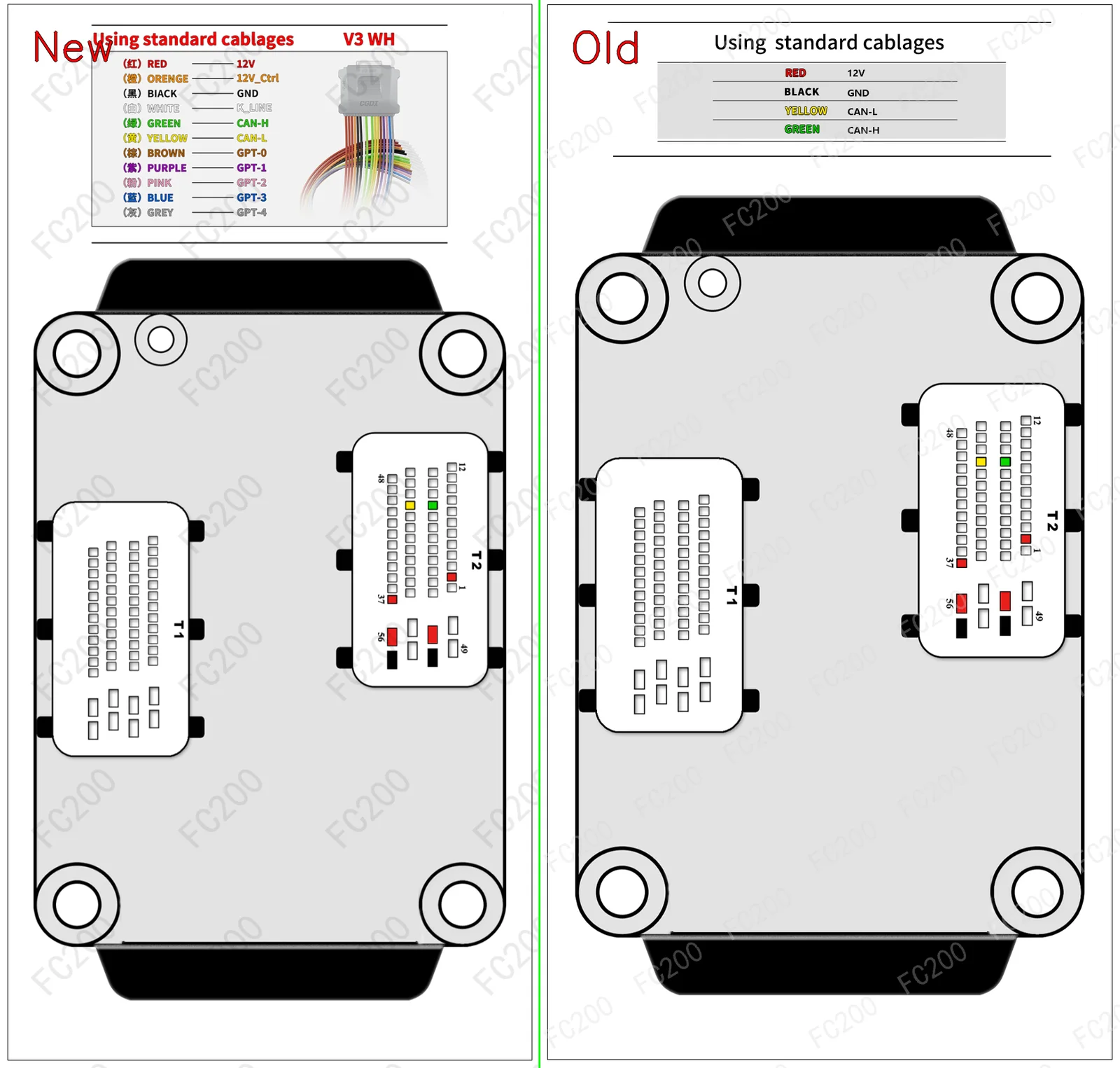

OFFICIAL PINOUT DIAGRAM: DENSO GM SH7055.png (Platform / Bench)1,109,267 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU SH7055 (24)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Opel	Astra(H) (1700 CDTI Z17DTR 92)	`DENSO GM SH7055` (test)	Open Vehicle →
Opel	Astra(H) (1700 CDTI A17DTJ 81)	`DENSO GM SH7055` (test)	Open Vehicle →
Opel	Astra(J) (1700 CDTI A17DTJ 81)	`DENSO GM SH7055` (test)	Open Vehicle →
Opel	Corsa(C) (1700 CDTI Z17DTH 101)	`DENSO GM SH7055` (test)	Open Vehicle →
Opel	Meriva(B) (1700 CDTI A17DTJ 81)	`DENSO GM SH7055` (test)	Open Vehicle →
Opel	Meriva(A) (1700 CDTI Y17DTR 92)	`DENSO GM SH7055` (test)	Open Vehicle →
Opel	Zafira(B) (1700 CDTI A17DTR 92)	`DENSO GM SH7055` (test)	Open Vehicle →
Opel	Zafira(B) (1700 CDTI A17DTJ 81)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Astra(H) (1700 CDTI Z17DTR 92)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Astra(H) (1700 CDTI Z17DTJ 81)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Astra(H) (1700 CDTI A17DTR 92)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Astra(H) (1700 CDTI A17DTJ 81)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Astra(J) (1700 CDTI A17DTR 92)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Astra(J) (1700 CDTI A17DTJ 81)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Corsa(C) (1700 CDTI Z17DTH 101)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Corsa(D) (1700 CDTI Z17DTR 92)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Meriva(B) (1700 CDTI A17DTJ 81)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Meriva(A) (1700 CDTI Z17DTH 101)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Meriva(A) (1700 CDTI Y17DTR 92)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Zafira(B) (1700 CDTI Z17DTJ 81)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Zafira(B) (1700 CDTI A17DTR 92)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	Zafira(B) (1700 CDTI A17DTJ 81)	`DENSO GM SH7055` (test)	Open Vehicle →
Opel	All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/MAPS/PFLASH, CheckSum)	`DENSO GM SH7055` (test)	Open Vehicle →
Vauxhall	All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/MAPS/PFLASH, CheckSum)	`DENSO GM SH7055` (test)	Open Vehicle →

ECU Pinout SH7055 Bench / Boot / GPT Pinout — Wiring Diagram
