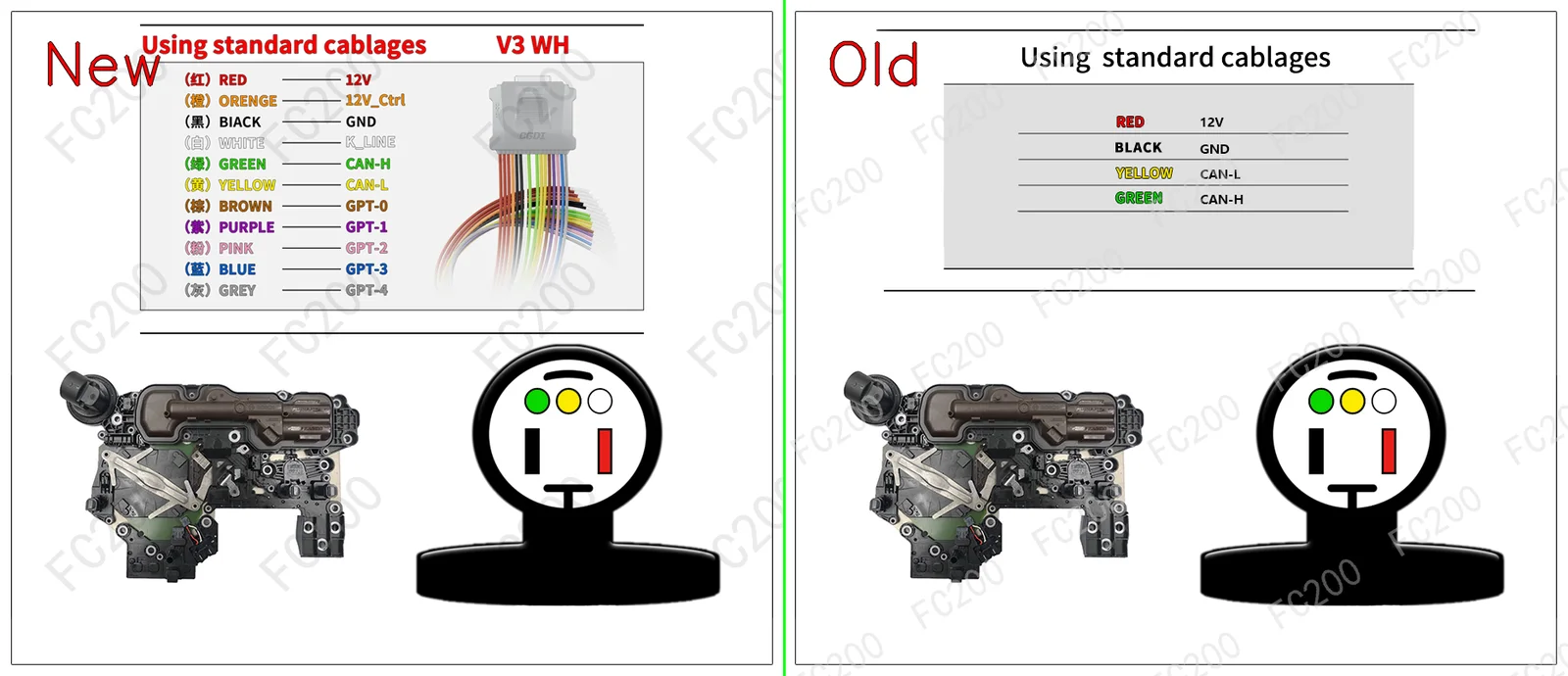

OFFICIAL PINOUT DIAGRAM: BOSCH 9GTronic-VGS NAG3.png (Platform / Bench)720,631 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU NAG3 (24)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Mercedes-Benz | C180(W205) (1497 M274.920 184) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (1991 M274.920 258) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(C205) (1991 OM 651.921 170) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(C205) (1991 M274.920 207) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(A205) (1991 M274.920 207) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(C205) (1497 • 129) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(C205) (1595 M274.910 156) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (1598 • 116) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (1991 M274.920 207) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (1598 OM626.951 136) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (1950 OM654.920 194) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (1991 • 320) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (1950 OM654.920 245) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (1950 • 306) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (2996 M276.823 333) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (2996 M276.823 390) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (3982 M177.980 476) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | C180(W205) (3982 M177.980 510) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | CLS(C257) (2925 OM642.855 286) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | CLS(C257) (1950 OM654.920 245) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | CLS(C257) (2925 OM654.929 286) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | CLS(C257) (2925 OM654.929 340) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | CLS(C257) (2999 • 367) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
| Mercedes-Benz | E(W213) (1991 M274.920 299) | BOSCH 9GTronic-VGS NAG3 (SH725xx) |
Open Vehicle → |
