ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout MT80 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MT80 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

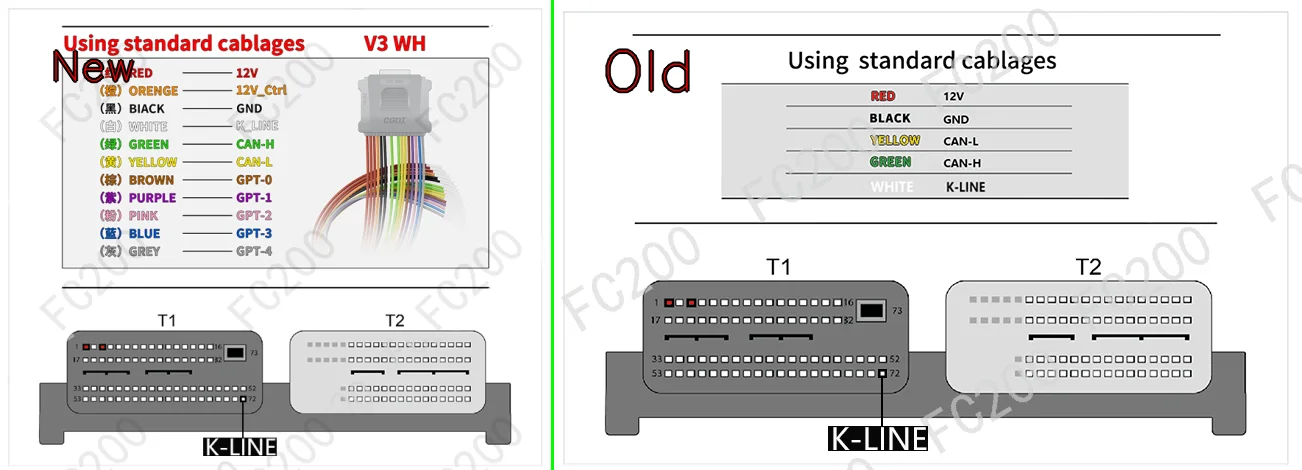

OFFICIAL PINOUT DIAGRAM: BENCH_DELPHI MT80.png (Platform / Bench)317,885 bytes
BENCH_DELPHI MT80.png

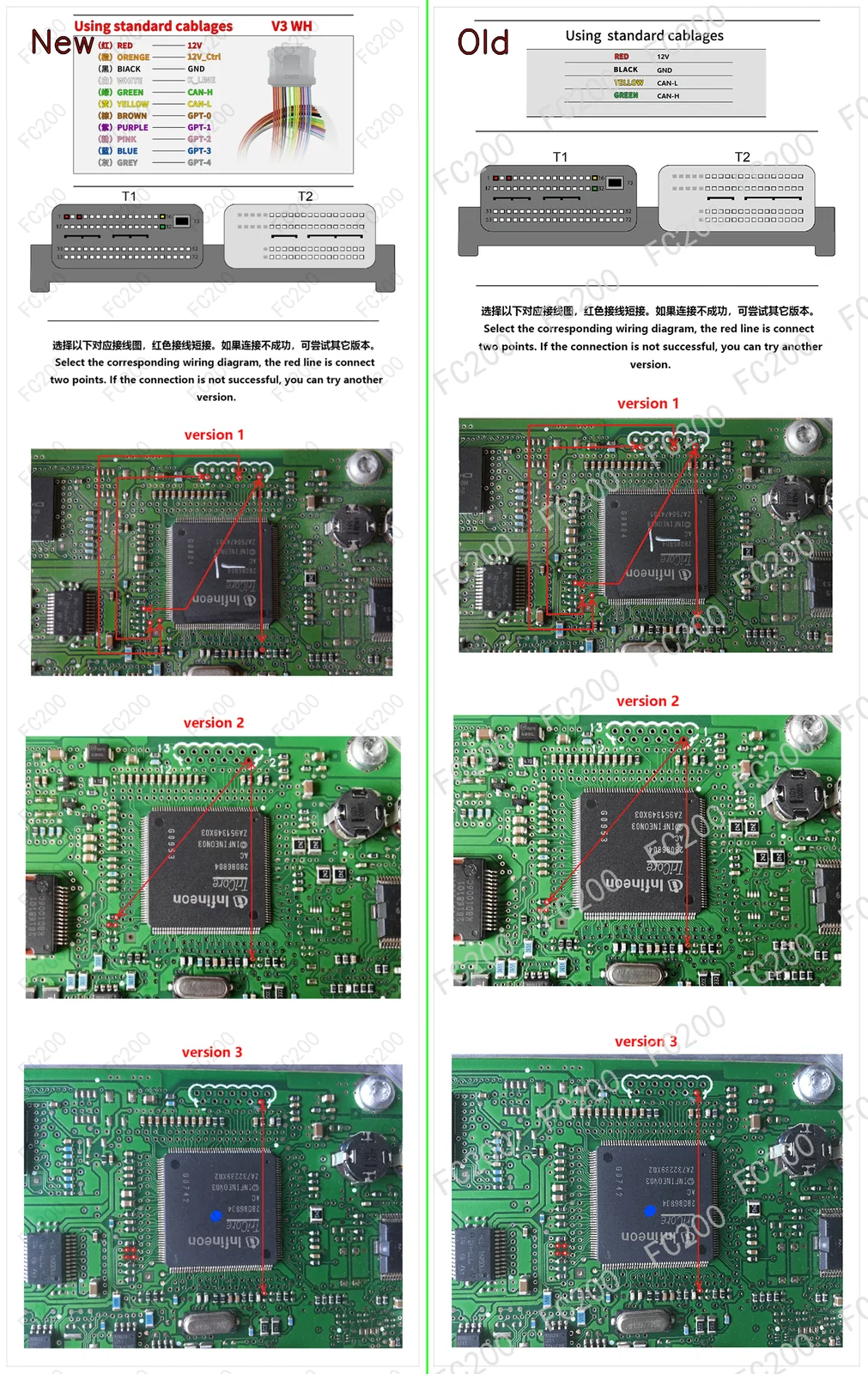

OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI MT80.1.png (Boot)4,562,960 bytes
BOOT_DELPHI MT80.1.png
OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI MT80.png (Boot)4,560,862 bytes
BOOT_DELPHI MT80.png

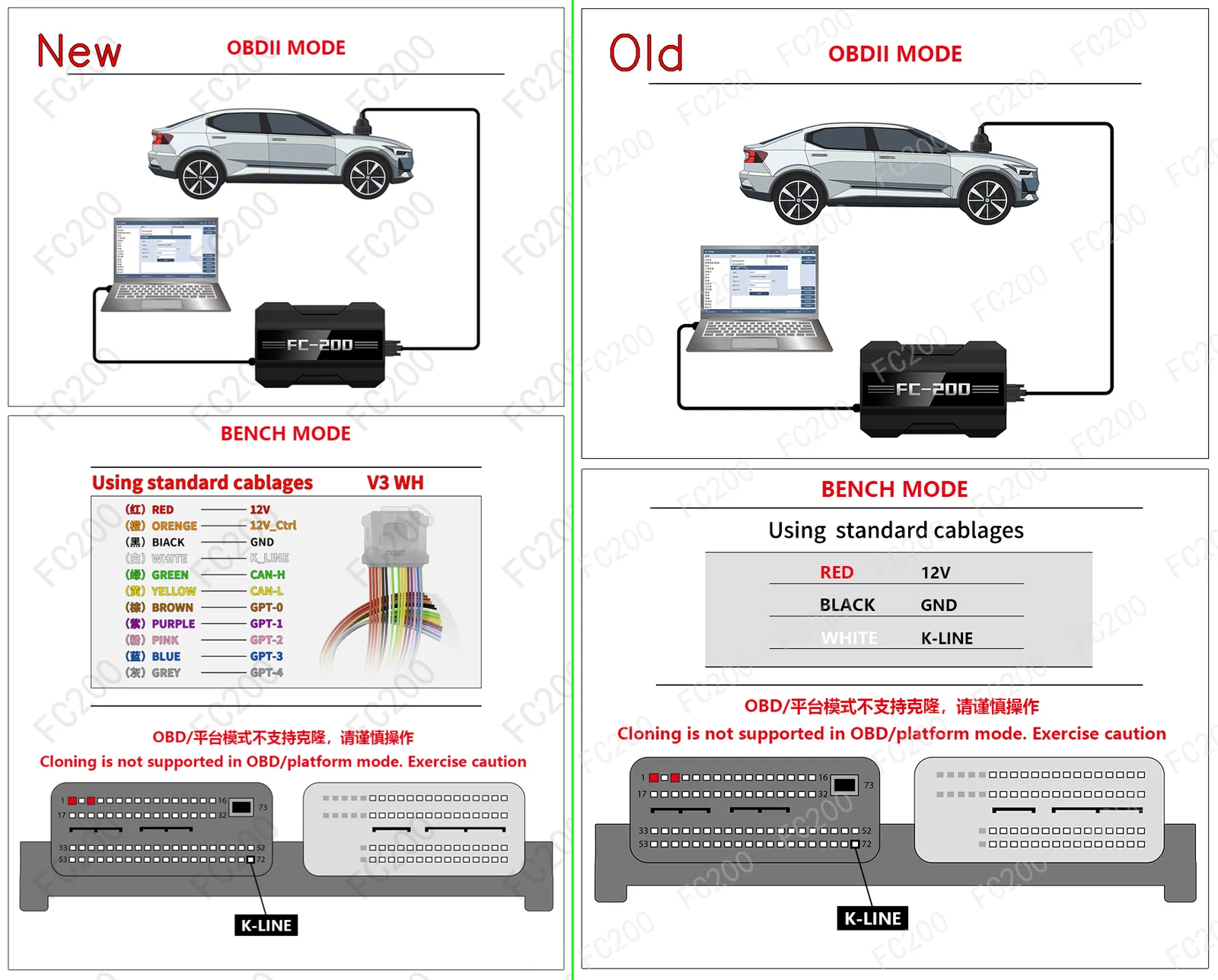

OFFICIAL PINOUT DIAGRAM: DELPHI MT80.png (Platform / Bench)993,491 bytes
DELPHI MT80.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MT80 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
BYD All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
BAIC Senova X65 (2000 16v Turbo • 177) DELPHI MT80 (TC1766) Open Vehicle →
BAIC All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
Chery All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
Chevrolet Aveo(T250) (1598 B16SHT 116) DELPHI MT80 (TC1766) Open Vehicle →
Chevrolet Cruze(J300) (1598 B16SHT 116) DELPHI MT80 (TC1766) Open Vehicle →
Chevrolet Cruze(J305) (1598 B16SHT 116) DELPHI MT80 (TC1766) Open Vehicle →
Chevrolet Cruze(J308) (1598 B16SHT 116) DELPHI MT80 (TC1766) Open Vehicle →
Dongfeng All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
FAW / Jiefang / Xichai All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
Geely / Lynk&Co TX4 (2400 16V NA 4G69S4N 129) DELPHI MT80 (TC1766) Open Vehicle →
Geely / Lynk&Co All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
Great Wall / Haval / Tank All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
JAC All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
JMC All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
Lifan All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
Luxgen M 7 (2200 Turbo • 175) DELPHI MT80 (TC1766) Open Vehicle →
Luxgen S 5 (1800 Turbo • 150) DELPHI MT80 (TC1766) Open Vehicle →
Luxgen S 5 (2000 Turbo • 175) DELPHI MT80 (TC1766) Open Vehicle →
Luxgen U 6 (1800 Turbo • 150) DELPHI MT80 (TC1766) Open Vehicle →
Luxgen U 6 (2000 Turbo • 175) DELPHI MT80 (TC1766) Open Vehicle →
Luxgen U 7 (2200 Turbo • 175) DELPHI MT80 (TC1766) Open Vehicle →
MG All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
ROEWE All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) ChinaDelphi MT80 (TC1766) Open Vehicle →
