ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout MPC5566 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MPC5566 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

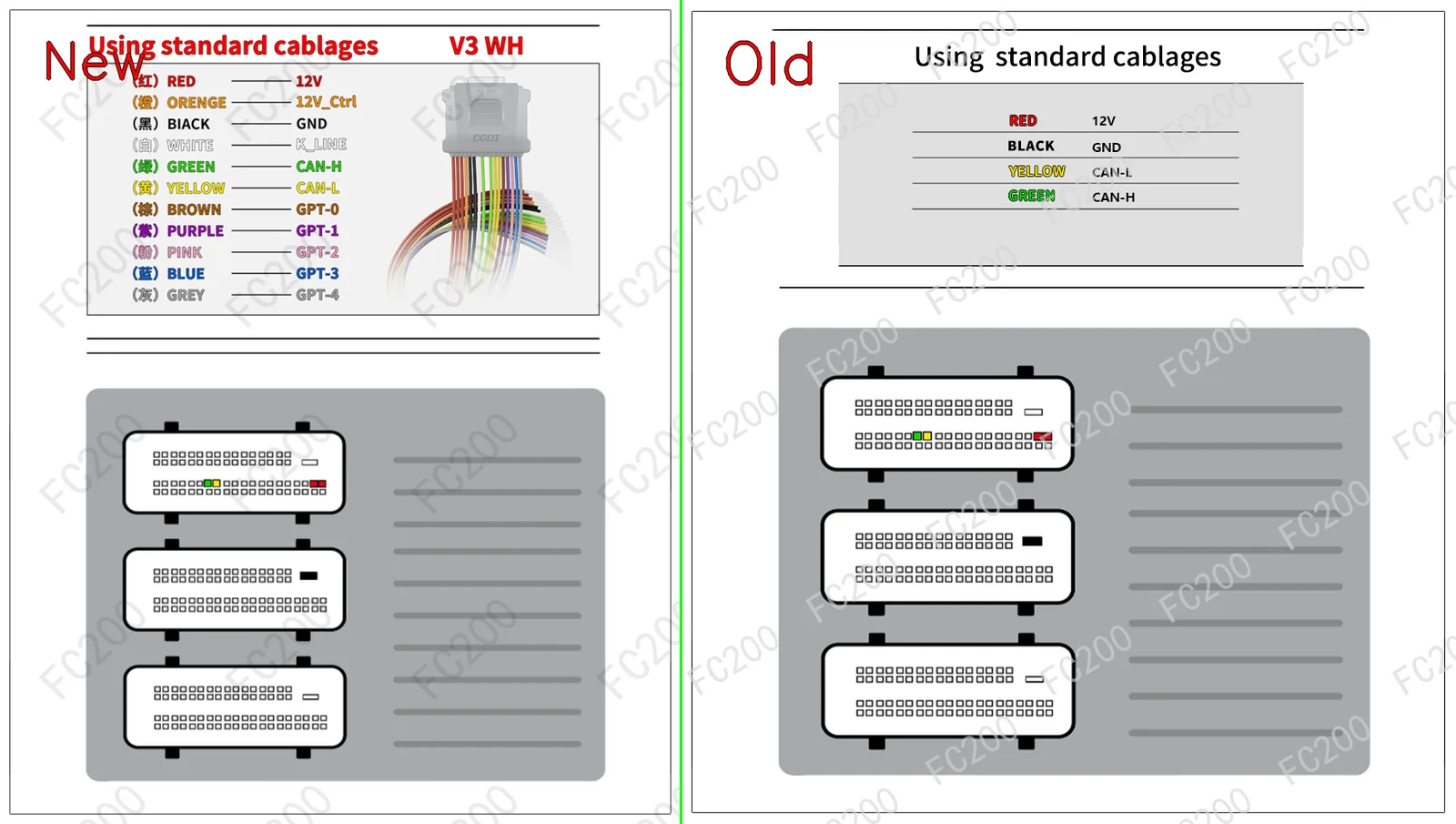

OFFICIAL PINOUT DIAGRAM: AcDelco E39 MPC5566.png (Platform / Bench)642,465 bytes
AcDelco E39 MPC5566.png

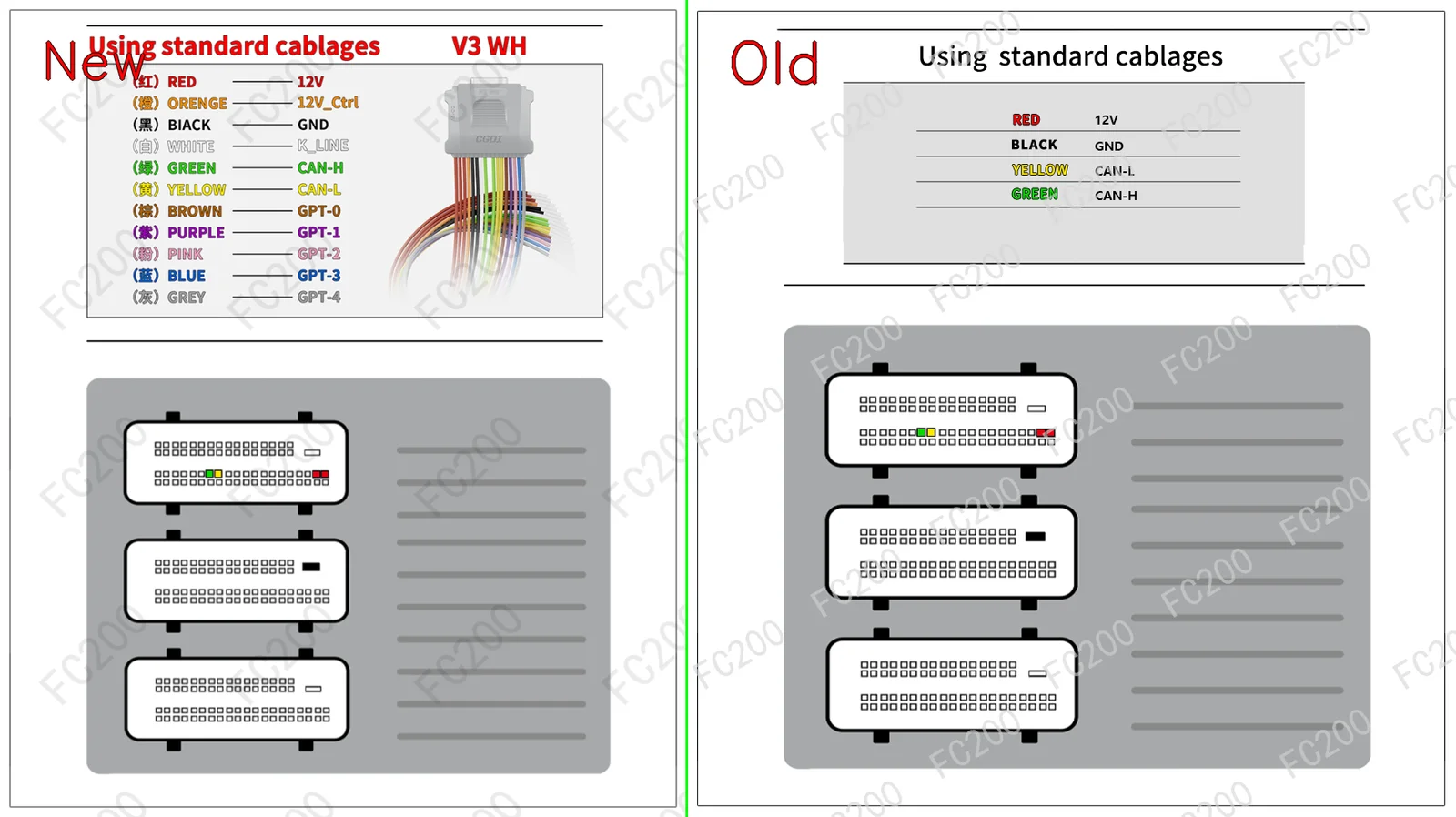

OFFICIAL PINOUT DIAGRAM: AcDelco E39A MPC5566.png (Platform / Bench)649,236 bytes
AcDelco E39A MPC5566.png

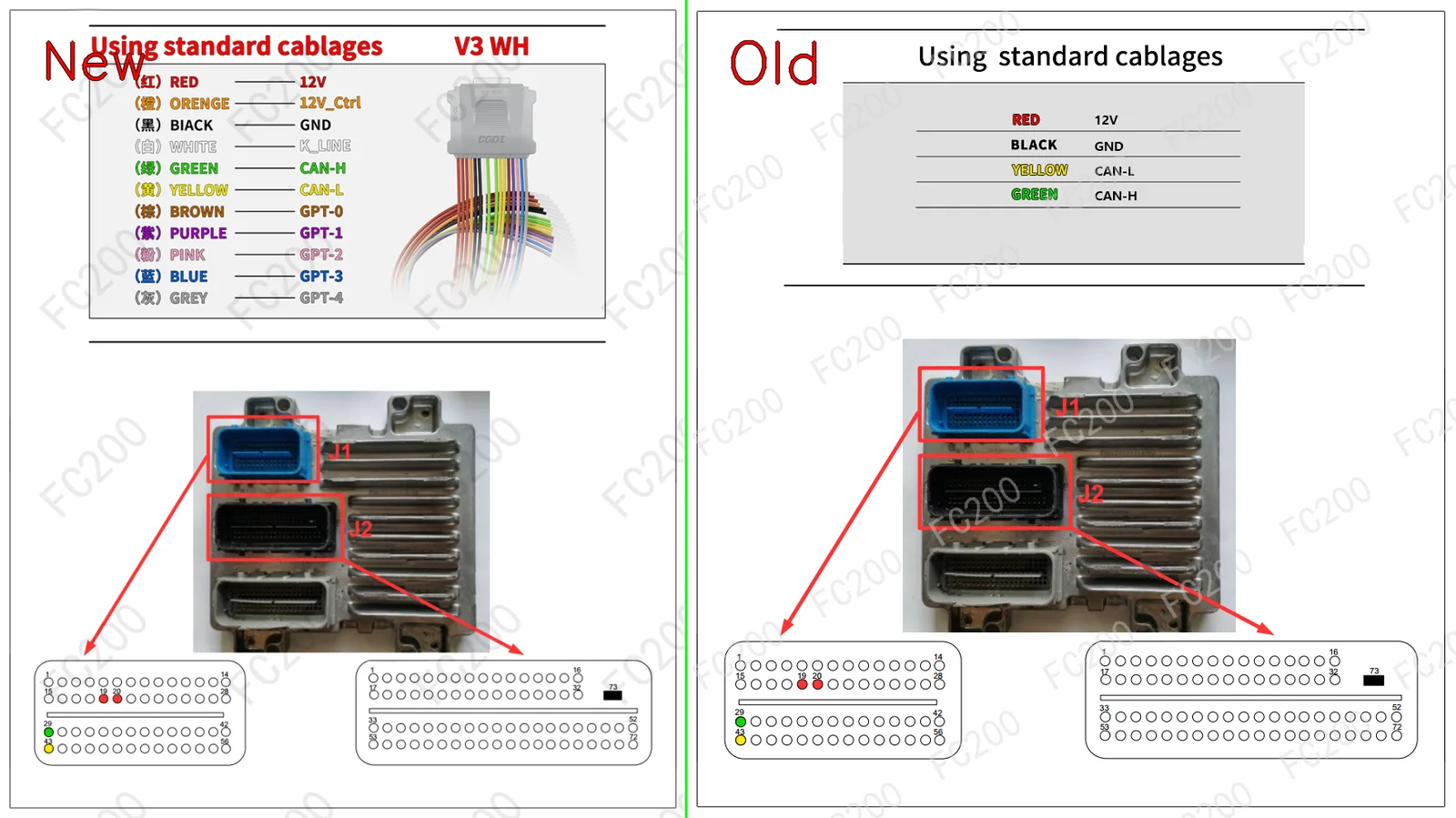

OFFICIAL PINOUT DIAGRAM: AcDelco E78 MPC5566.png (Platform / Bench)971,404 bytes
AcDelco E78 MPC5566.png

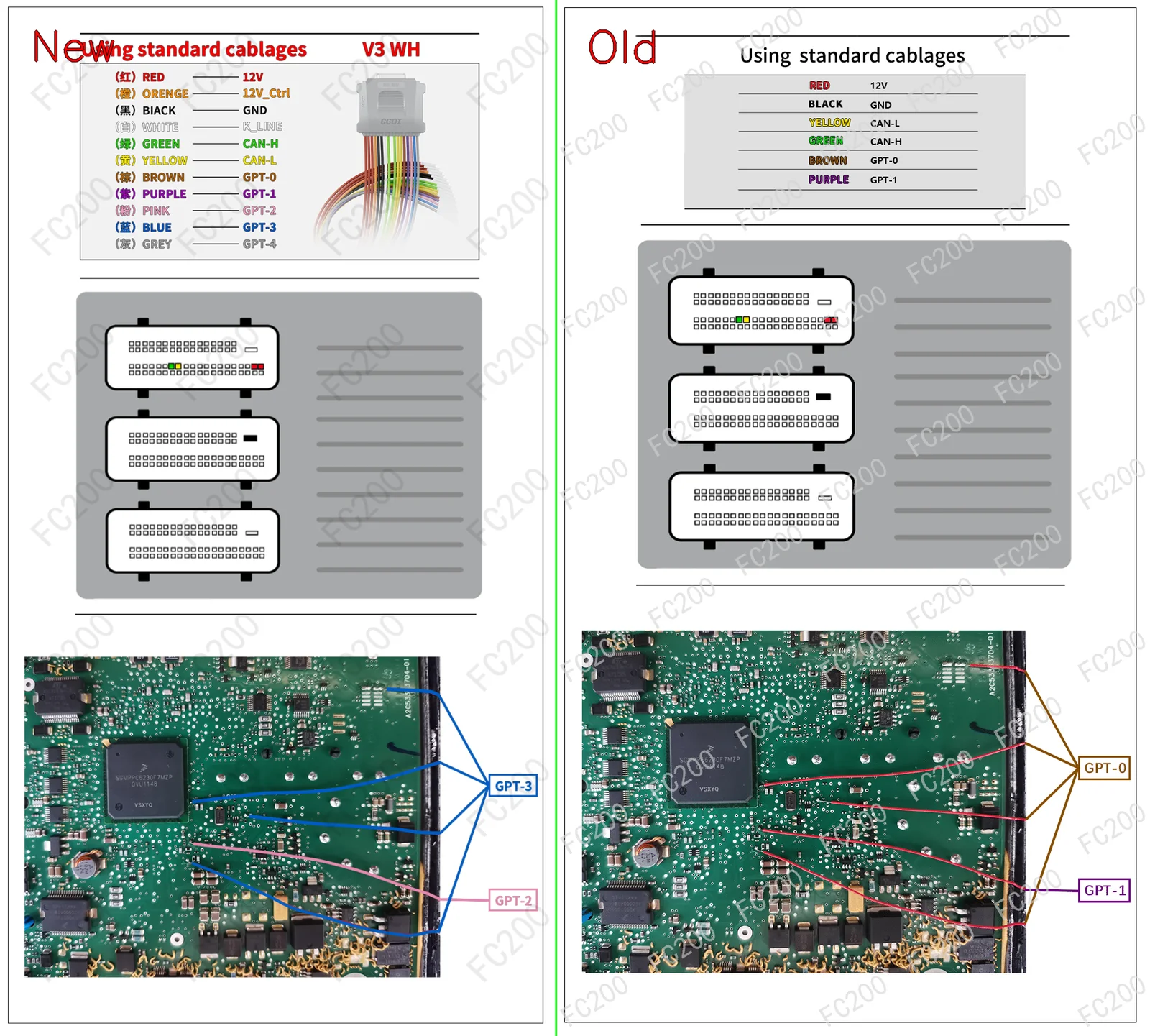

OFFICIAL PINOUT DIAGRAM: BOOT_ACDelco E39 MPC5566.png (Boot)2,490,434 bytes
BOOT_ACDelco E39 MPC5566.png

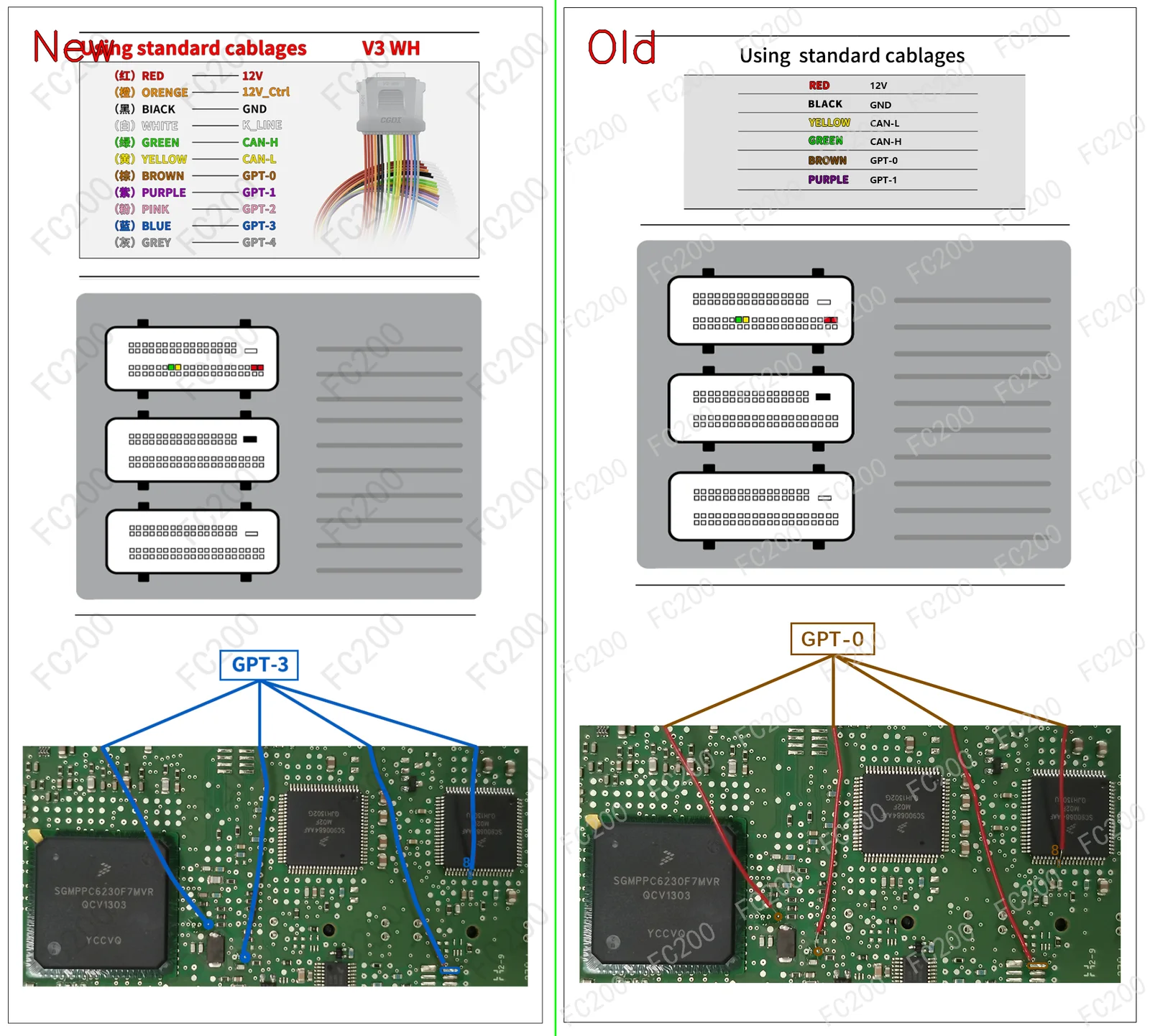

OFFICIAL PINOUT DIAGRAM: BOOT_ACDelco E39A MPC5566.png (Boot)2,189,293 bytes
BOOT_ACDelco E39A MPC5566.png

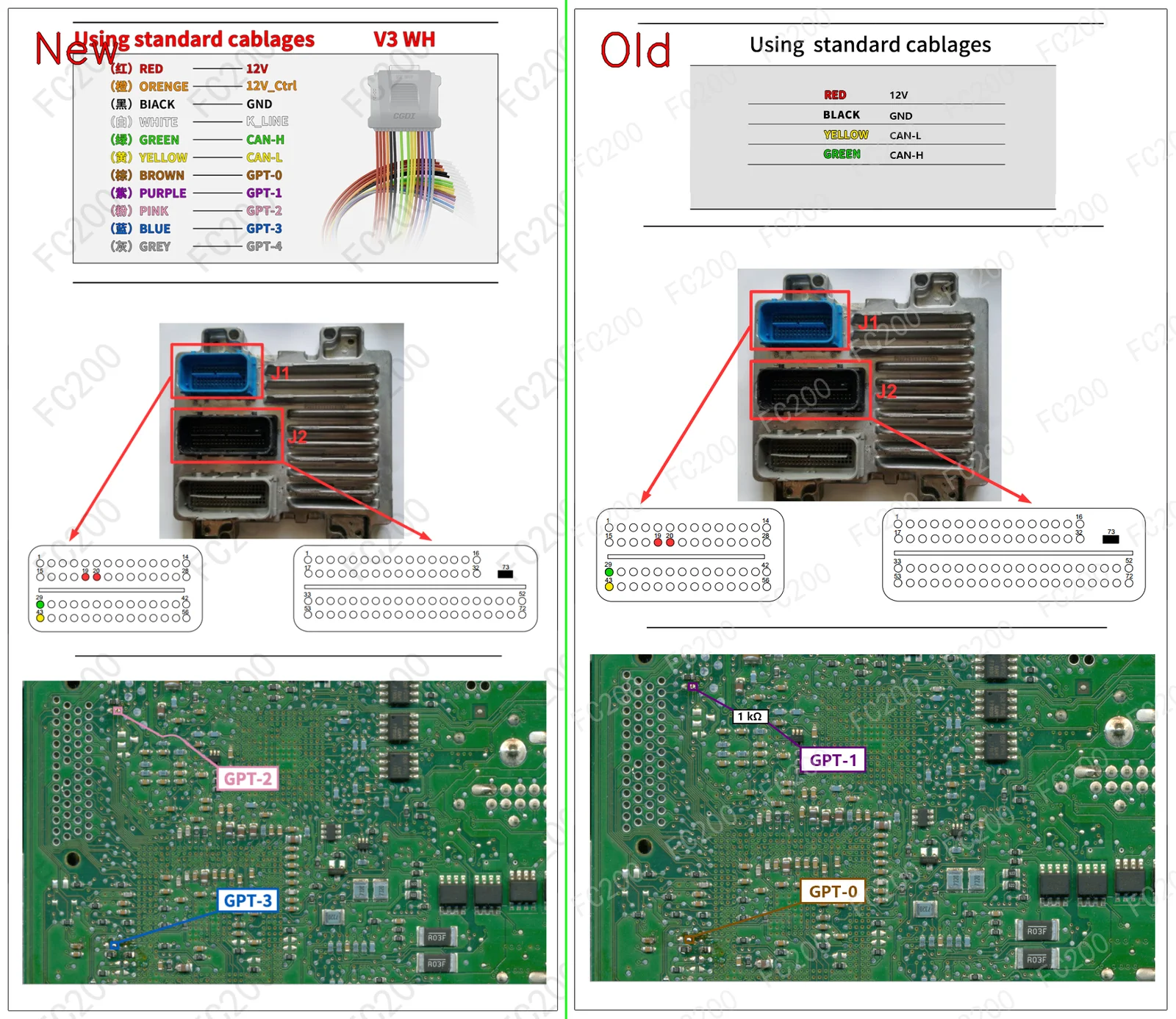

OFFICIAL PINOUT DIAGRAM: BOOT_ACDelco E78 MPC5566.png (Boot)2,800,880 bytes
BOOT_ACDelco E78 MPC5566.png
OFFICIAL PINOUT DIAGRAM: KEIHIN 37820-R5G-H61 MPC5566.png (Platform / Bench)220,495 bytes
KEIHIN 37820-R5G-H61 MPC5566.png

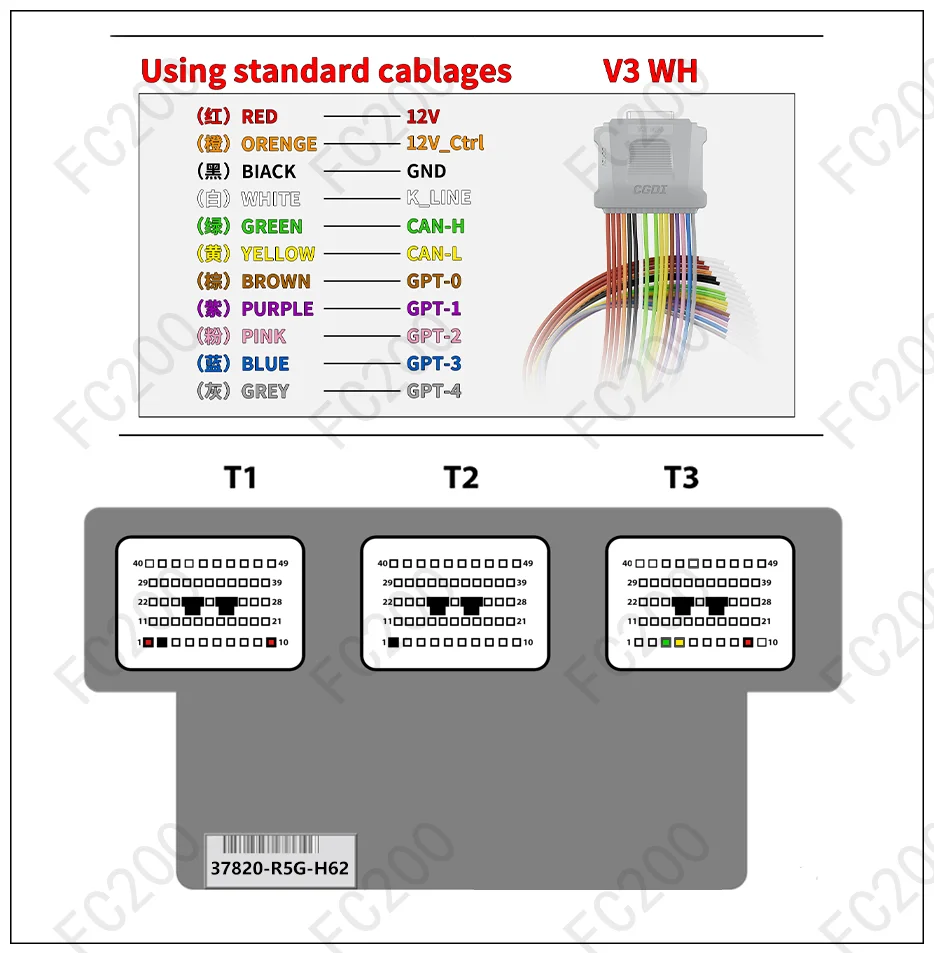

OFFICIAL PINOUT DIAGRAM: KEIHIN 37820-R5G-H62 MPC5566.png (Platform / Bench)220,565 bytes
KEIHIN 37820-R5G-H62 MPC5566.png

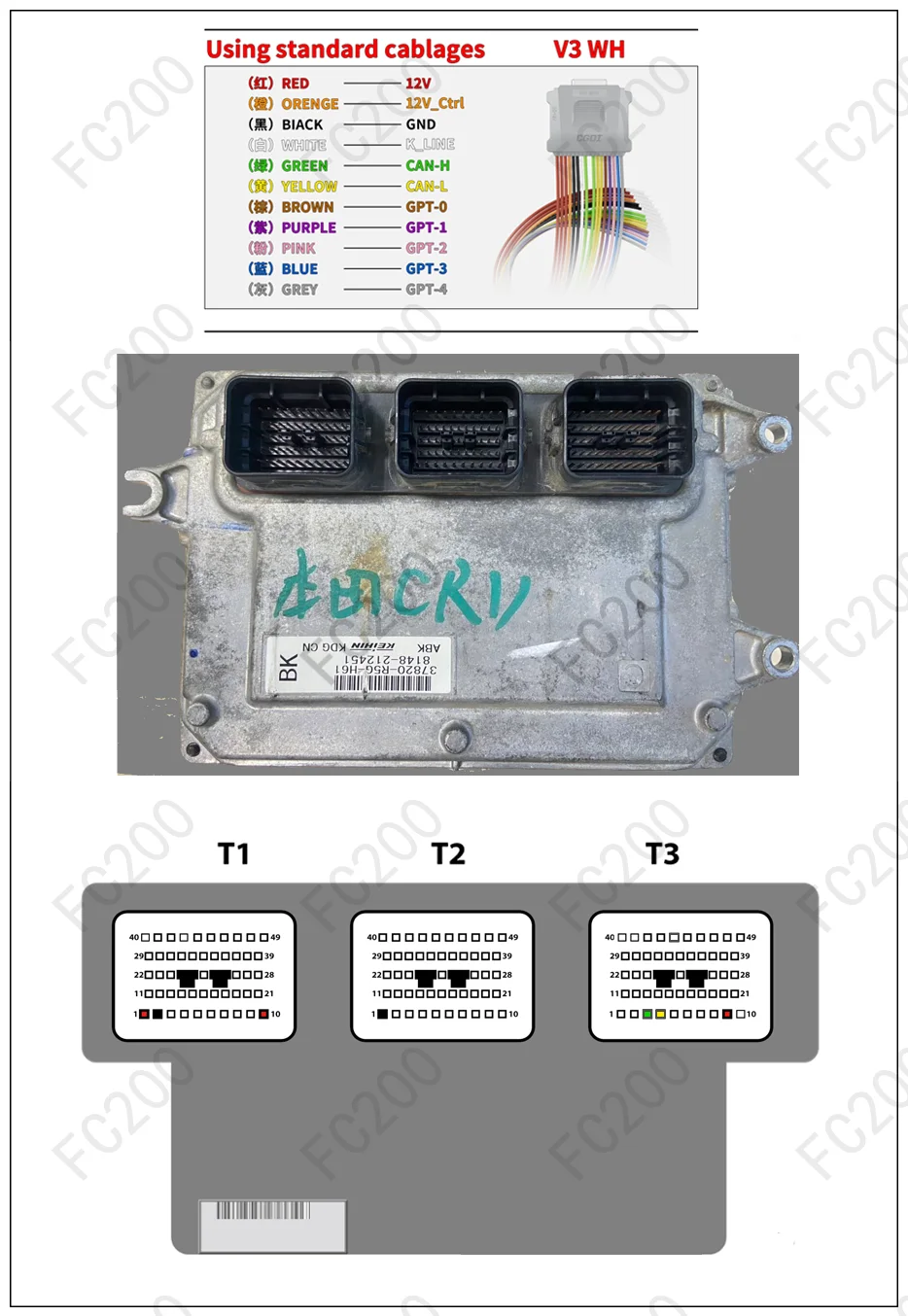

OFFICIAL PINOUT DIAGRAM: KEIHIN 37820-Rxx-xxx MPC5566.png (Platform / Bench)673,297 bytes
KEIHIN 37820-Rxx-xxx MPC5566.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MPC5566 (9)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Fiat Freemont(345) (3600 Pentastar 286) CONTINENTAL GPEC2 MPC5566 (test) Open Vehicle →
Fiat Freemont(345) (2400 • 170) CONTINENTAL GPEC2 MPC5566 (test) Open Vehicle →
Volkswagen (VW) Routan(I) (3600 Pentastar 286) CONTINENTAL GPEC2 MPC5566 (test) Open Vehicle →
Chrysler All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM) CONTINENTAL GPEC2 MPC5566 (test) Open Vehicle →
Dodge All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM) CONTINENTAL GPEC2 MPC5566 (test) Open Vehicle →
Fiat All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM) CONTINENTAL GPEC2 MPC5566 (test) Open Vehicle →
Jeep All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM) CONTINENTAL GPEC2 MPC5566 (test) Open Vehicle →
Lancia All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM) CONTINENTAL GPEC2 MPC5566 (test) Open Vehicle →
Volkswagen (VW) All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH/ExtEEPROM) CONTINENTAL GPEC2 MPC5566 (test) Open Vehicle →
