ECU Pinout MG1CS031 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MG1CS031 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

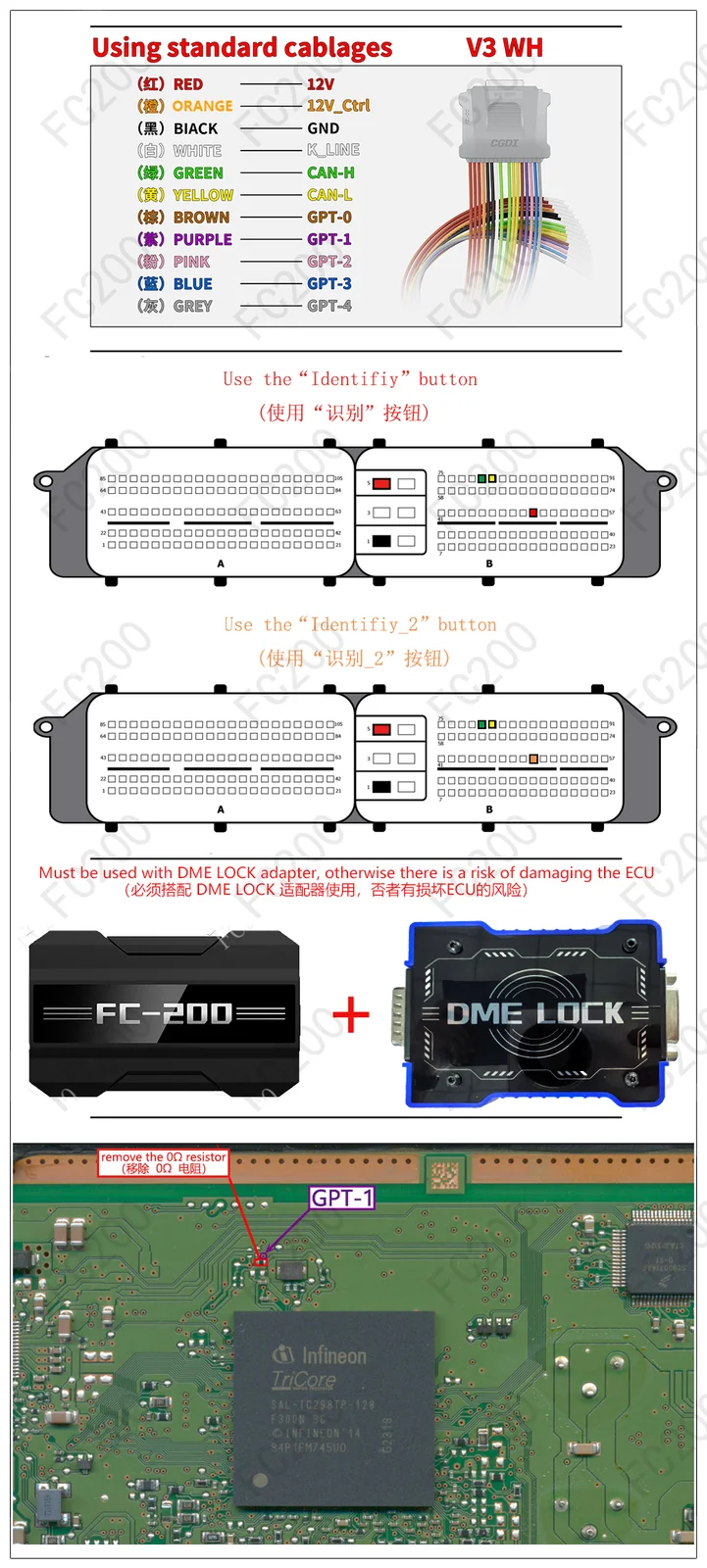

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MG1CS031.png (Locked Boot/Bench)1,353,945 bytes
Locked_BOSCH MG1CS031.png

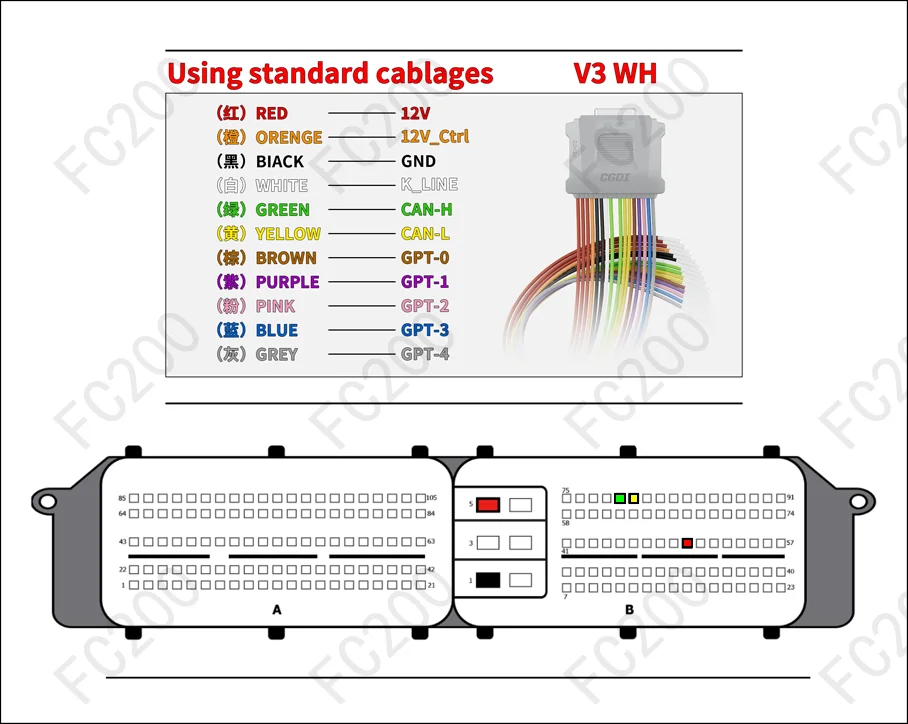

OFFICIAL PINOUT DIAGRAM: Locked_Bench BOSCH MG1CS031.png (Locked Boot/Bench)204,093 bytes
Locked_Bench BOSCH MG1CS031.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MG1CS031 (13)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Audi A1(II) GB (1984 DNND 207) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Audi A3(IV) 8Y (1984 DNNA 190) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Audi A4(V) B9 (1984 DLVB 150) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Audi A4(V) B9 (1984 DNNA 190) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Audi A5(II) F5 (1984 DMSB 150) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Audi A5(II) F5 (1984 DMSA 204) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Audi Q2(I) GA (1984 DNNA 190) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Audi Q3(II) F3 (1984 DMSA 204) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Audi Q5(II) FY (1984 DMSA 204) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Audi TT(III) FV (1984 DNNB 197) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Audi All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum,Unlock) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 na stole (DME Unlock Bench) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 so vskrytiem (DME Unlock Boot) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MG1CS031 TC298 (test) Open Vehicle →
