ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout MG1CS024 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MG1CS024 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

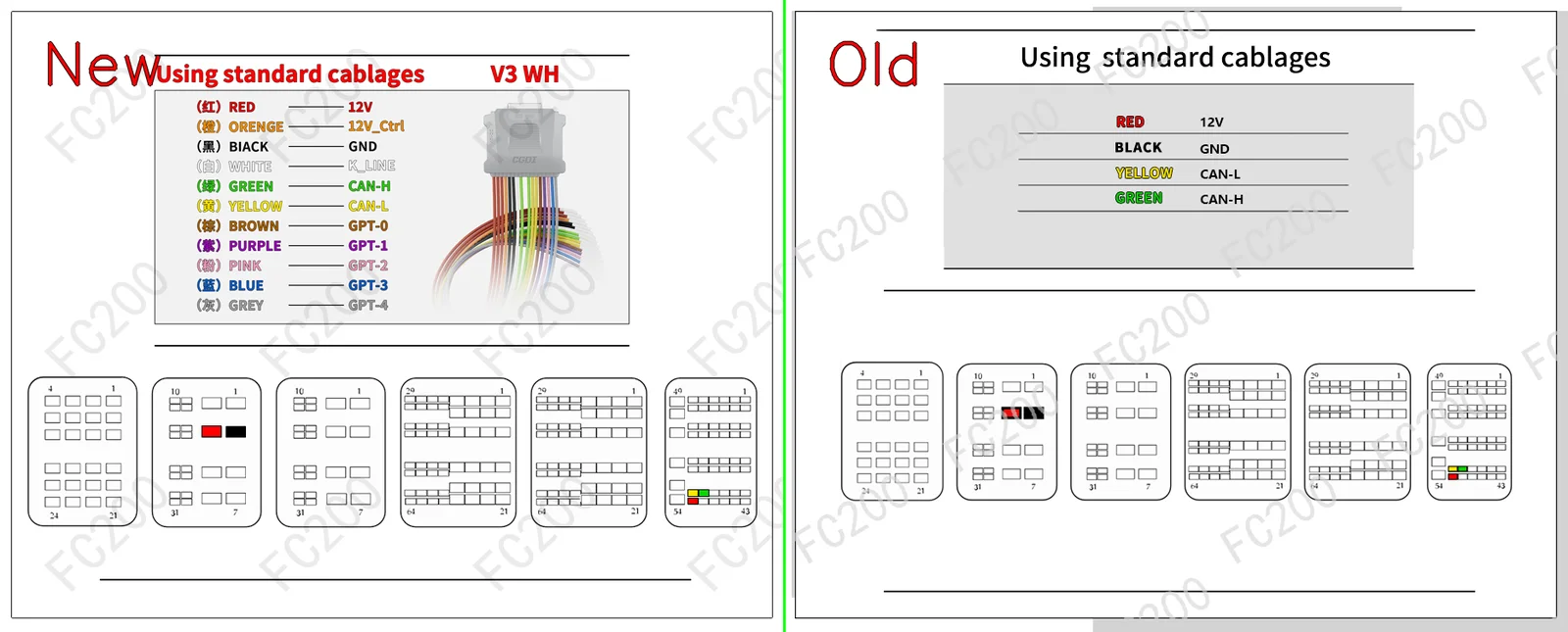

OFFICIAL PINOUT DIAGRAM: BOSCH MG1CS024.png (Platform / Bench)534,117 bytes
BOSCH MG1CS024.png

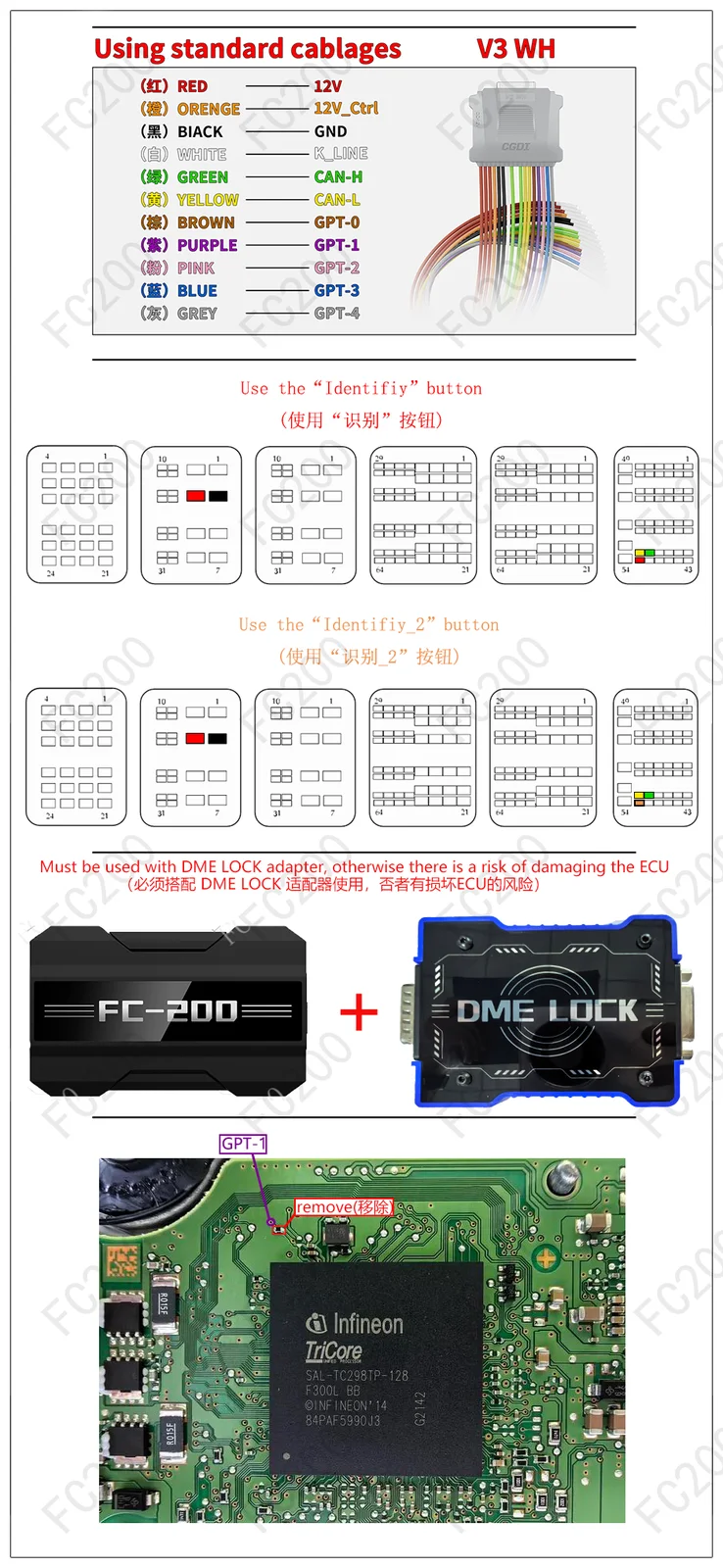

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MG1CS024.png (Locked Boot/Bench)1,303,753 bytes
Locked_BOSCH MG1CS024.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MG1CS024 (22)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Alpina B3 SS (2998 N52B30 416) BOSCH MG1CS024 (TC298TP_B48/B58) Open Vehicle →
BMW 3 Series(G20) (3000 B58B30 387) BOSCH MG1CS024 (TC298TP_B48/B58) Open Vehicle →
BMW 3 Series(G21) (3000 B58B30 387) BOSCH MG1CS024 (TC298TP_B48/B58) Open Vehicle →
BMW X3 (G01) (3000 B58B30) BOSCH MG1CS024 (TC298TP_B48/B58) Open Vehicle →
BMW X3 (G01) (3000 B58B30O1 387) BOSCH MG1CS024 (TC298TP_B48/B58) Open Vehicle →
BMW X4 (G02) (3000 B58B30O1 387) BOSCH MG1CS024 (TC298TP_B48/B58) Open Vehicle →
BMW Z4 (G29) (3000 B58B30O1 387) BOSCH MG1CS024 (TC298TP_B48/B58) Open Vehicle →
BMW 1-Series(F40) (1998 B48A20M1 265) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
BMW 1-Series(F40) (1998 B48A20U1 178) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
BMW 1-Series(F40) (1998 B48A20T1 306) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
BMW 2-Series(I) F44 (1998 B46A20 231) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
BMW 2-Series Gran Coupe(I) F44 (1998 B48B20 310) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
BMW X2-Series(I) F39 (1998 B48A20M1 306) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
Mini ClubmanClubman F54 (2000 B48A20T1 306) BOSCH MG1CS024 (TC298TP_B48/B58) Open Vehicle →
Mini Cooper S Clubman(F54) (1998 B46A20A 178) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
Mini Cooper S Clubman ALL4(F54) (1998 B46A20A 178) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
Alpina All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MG1CS024 (TC298TP) Open Vehicle →
BMW All Brand Models (Direct ECU Label Lookup) (Read/write DFLASH/PFLASH/ISN, CheckSum) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
BMW All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, Read ISN, CheckSum) BOSCH MG1CS024 (TC298TP) Open Vehicle →
Toyota All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MG1CS024 (TC298TP) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 na stole (DME Unlock Bench) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 so vskrytiem (DME Unlock Boot) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MG1CS024 (TC298) Open Vehicle →
