ECU Pinout MG1CP007 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MG1CP007 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

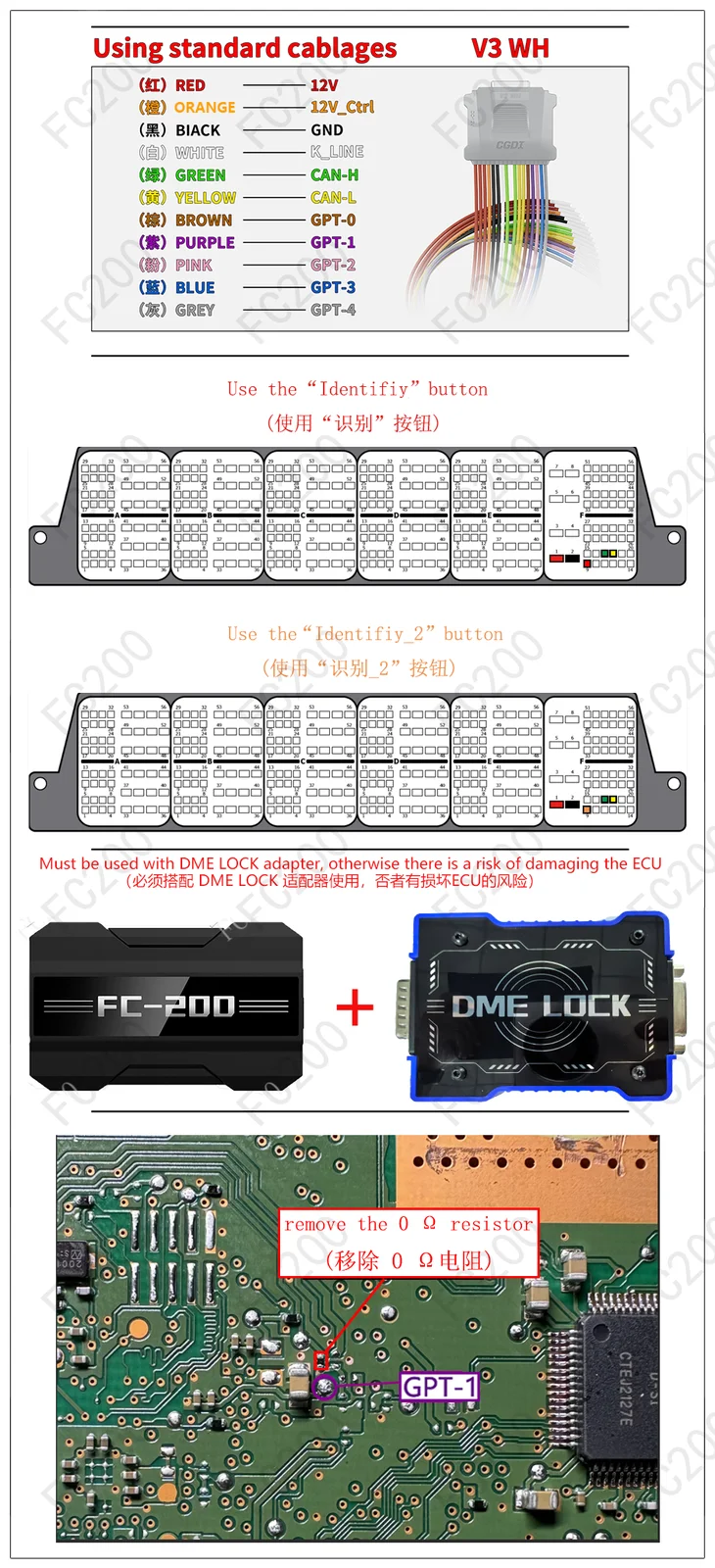

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MG1CP007.png (Locked Boot/Bench)1,469,170 bytes
Locked_BOSCH MG1CP007.png

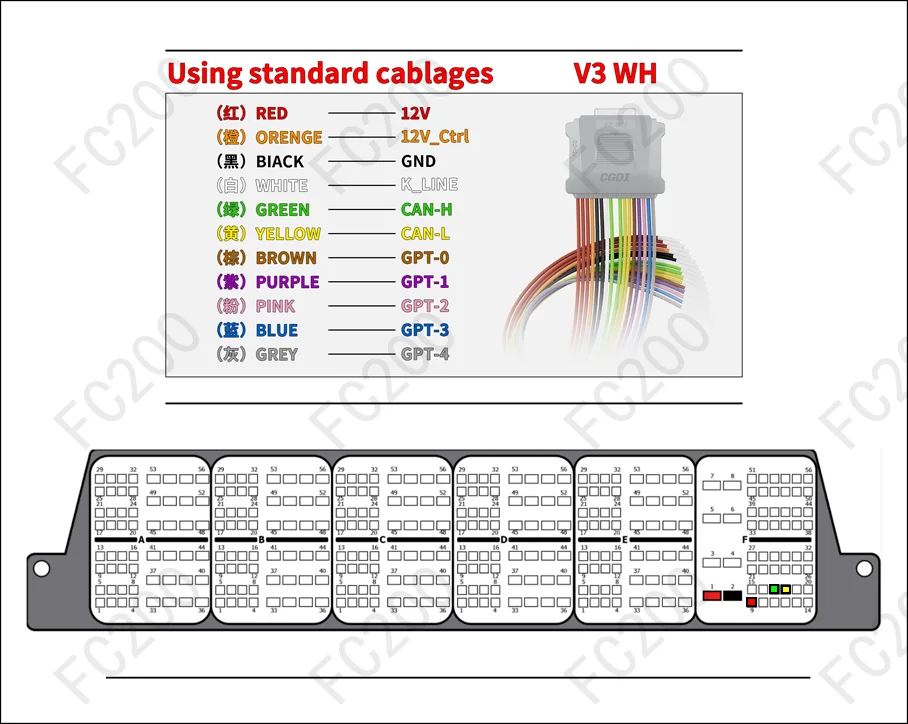

OFFICIAL PINOUT DIAGRAM: Locked_Bench BOSCH MG1CP007.png (Locked Boot/Bench)242,123 bytes
Locked_Bench BOSCH MG1CP007.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MG1CP007 (17)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Porsche 718 Boxster GTS 4.0(IV) 982 (3996 DKDC 400) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 718 Boxster Spyder(IV) 982 (3996 DKDA 420) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 718 Cayman GTS 4.0(IV) 982 (3996 DKDC 400) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 718 Cayman Spyder(IV) 982 (3996 DKDA 420) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 911 Carrera(IV) 992.1 (2981 DKCA 385) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 911 Carrera 4(IV) 992.1 (2981 DKCA 385) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 911 Carrera 4 GTS(IV) 992.1 (2981 DKKB 480) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 911 Carrera 4S(IV) 992.1 (2981 DKKA 450) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 911 Carrera GTS(IV) 992.1 (2981 DKKB 480) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 911 Carrera S(IV) 992.1 (2981 DKKA 450) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 911 Carrera T(IV) 992.1 (2981 DKCA 385) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 911 Sport Classic(IV) 992.1 (3745 DKEB 550) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 911 Turbo(IV) 992.1 (3745 DKEA 580) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche 911 Turbo S(IV) 992.1 (3745 DKHA 650) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Porsche All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum, Unlock) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 na stole (DME Unlock Bench) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 so vskrytiem (DME Unlock Boot) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MG1CP007 TC299 (test) Open Vehicle →
