ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout MEVD17.2.H Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MEVD17.2.H (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MEVD17.2.H.png (Boot)2,364,022 bytes
BOOT_BOSCH MEVD17.2.H.png

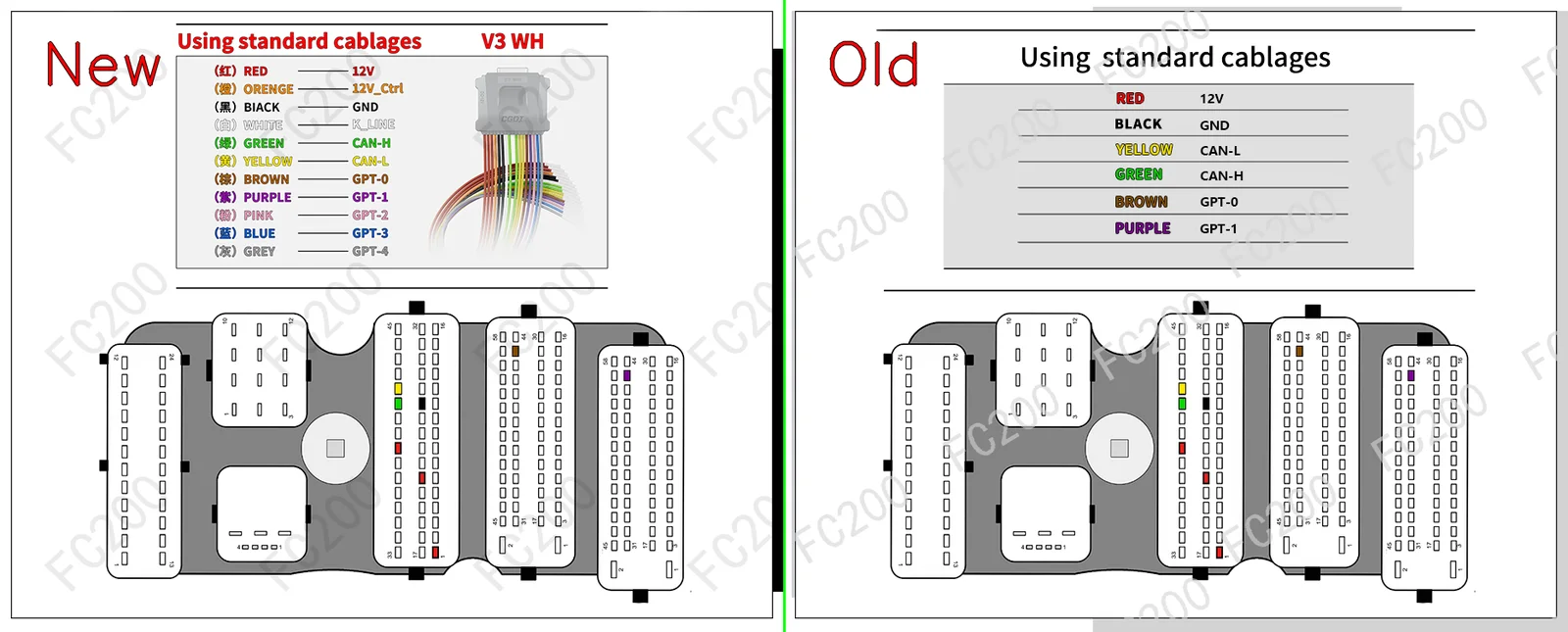

OFFICIAL PINOUT DIAGRAM: BOSCH MEVD17.2.H.png (Platform / Bench)637,554 bytes
BOSCH MEVD17.2.H.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MEVD17.2.H (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
BMW 5 Series(F07) (530d N57D30A 245) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 5 Series(F07) (550i N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 5 Series(F07) (550i xDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 5 Series(F10) (550i N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 5 Series(F10) (550i xDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 5 Series(F10) (4400 S63B44B 560) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 5 Series(F11) (550i N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 5 Series(F11) (550i xDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 5 Series(F18) (50i xDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 6 Series(F06) (650i N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 6 Series(F06) (650i xDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 6 Series(F06) (M6 S63B44B 560) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 6 Series(F12) (650i N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 6 Series(F12) (650i xDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 6 Series(F12) (M6 S63B44B 560) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 6 Series(F13) (650i N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 6 Series(F13) (650i xDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 6 Series(F13) (M6 S63B44B 560) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 7 Series(F01) (750Li xDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW 7 Series(F02) (750Li xDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW X5 Series(F15) (50i sDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW X5 Series(F85) (X5M S63B44B 575) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW X6 Series(F86) (X6M S63B44B 575) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
BMW X6 Series(F16) (50i xDrive N63B44B 449) BOSCH MEVD17.2.H (TC1797) Open Vehicle →
