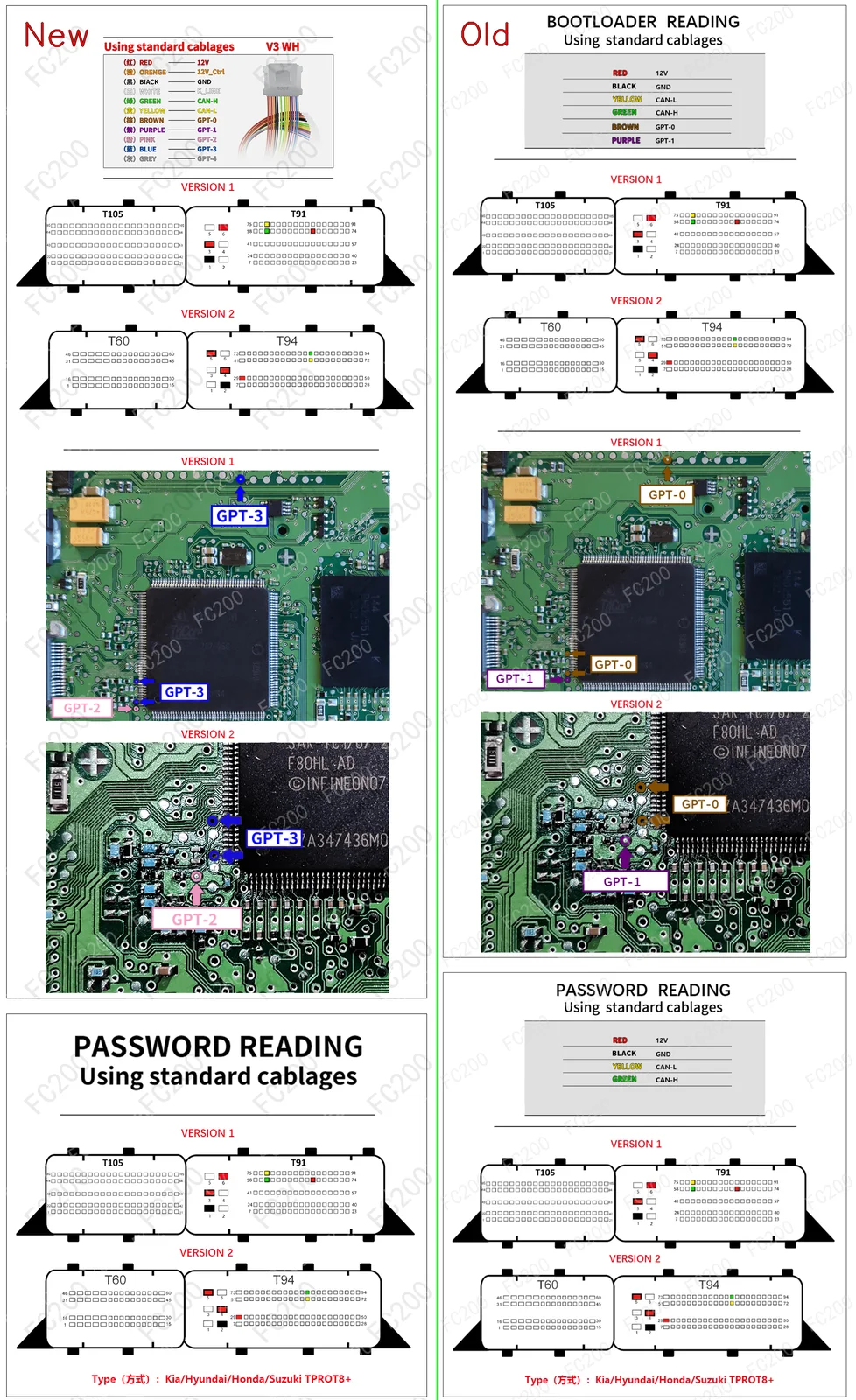

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MEDG17.9.8.png (Boot)5,192,851 bytes

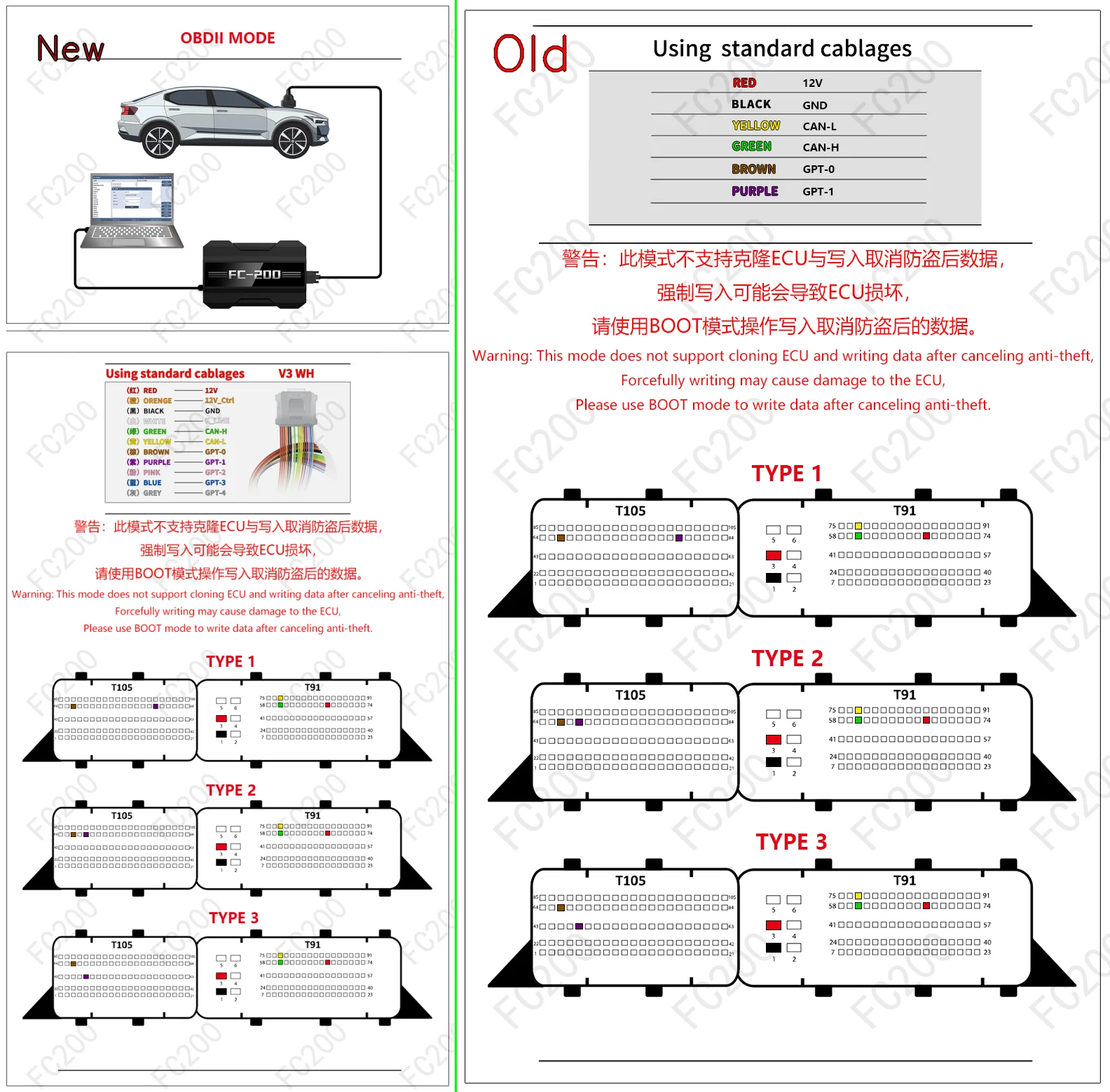

OFFICIAL PINOUT DIAGRAM: BOSCH MEDG17.9.8.png (Platform / Bench)1,062,456 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MEDG17.9.8 (9)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Hyundai | Veloster (-al-) | BOSCH MEDG17.9.8 (TC1767) |
Open Vehicle → |
| Hyundai | Tucson (-al-) | BOSCH MEDG17.9.8 (TC1767) |
Open Vehicle → |
| Kia | K4(I) (-al-) | BOSCH MEDG17.9.8 (TC1767) |
Open Vehicle → |
| Kia | KX3(I) (-al-) | BOSCH MEDG17.9.8 (TC1767) |
Open Vehicle → |
| Kia | Ceed (-al-) | BOSCH MEDG17.9.8 (TC1767) |
Open Vehicle → |
| Kia | K5 (-al-) | BOSCH MEDG17.9.8 (TC1767) |
Open Vehicle → |
| Universal ECU Protocol | Pryamoy protokol chteniya ECU na stole (Platform Bench Mode 2) (Direct Bench / Boot ECU Connector Pinout) | BOSCH MEDG17.9.8 (TC1767) |
Open Vehicle → |
| Hyundai | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Recover VIN) | BOSCH MEDG17.9.8 (TC1767) |
Open Vehicle → |
| Kia | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Recover VIN) | BOSCH MEDG17.9.8 (TC1767) |
Open Vehicle → |
