ECU Pinout MED17.7.3.1 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MED17.7.3.1 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.7.3.1.png (Boot)2,289,525 bytes
BOOT_BOSCH MED17.7.3.1.png

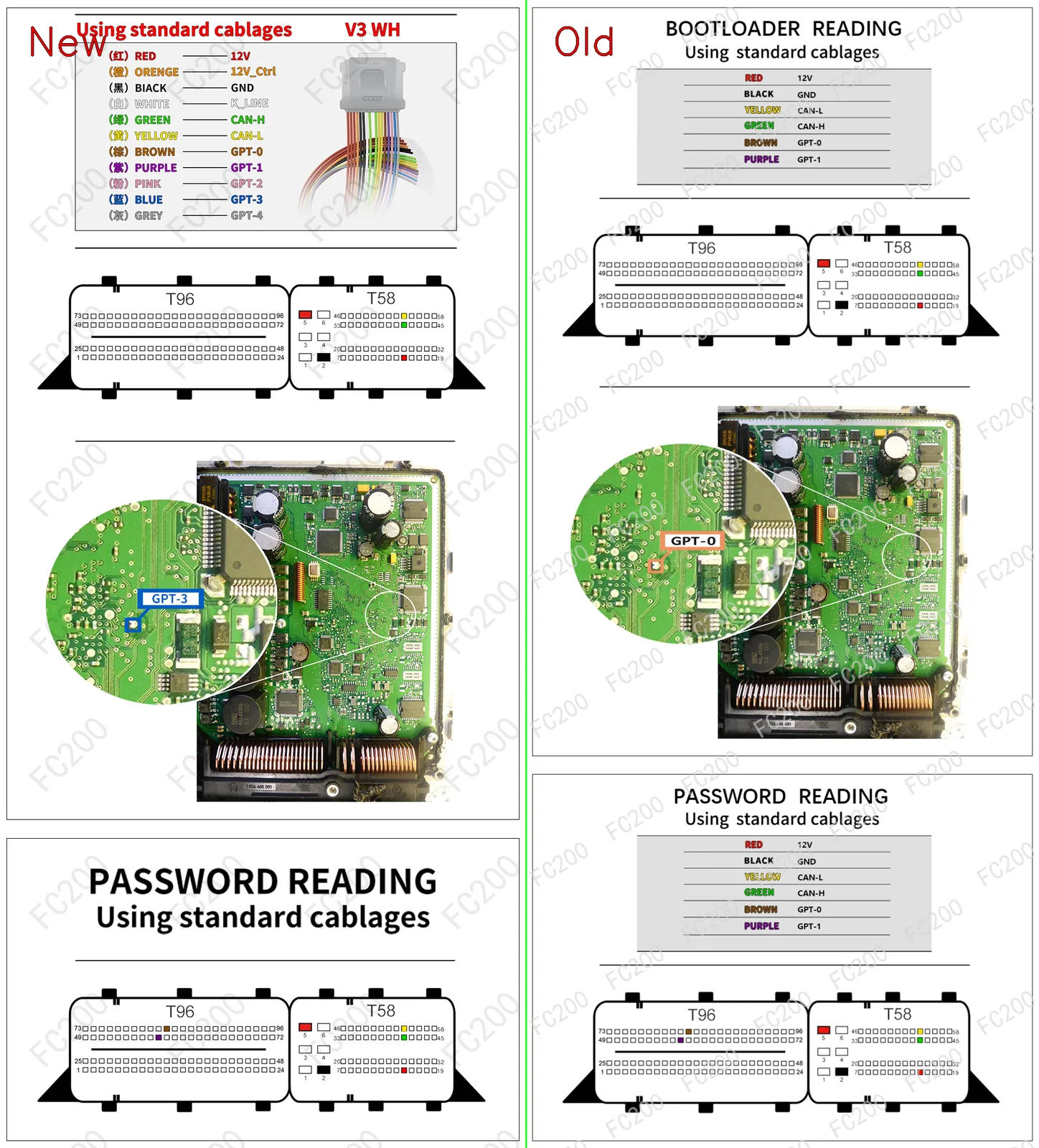

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.7.3.png (Boot)3,105,467 bytes
BOOT_BOSCH MED17.7.3.png
OFFICIAL PINOUT DIAGRAM: BOSCH MED17.7.3.1.png (Platform / Bench)491,061 bytes
BOSCH MED17.7.3.1.png

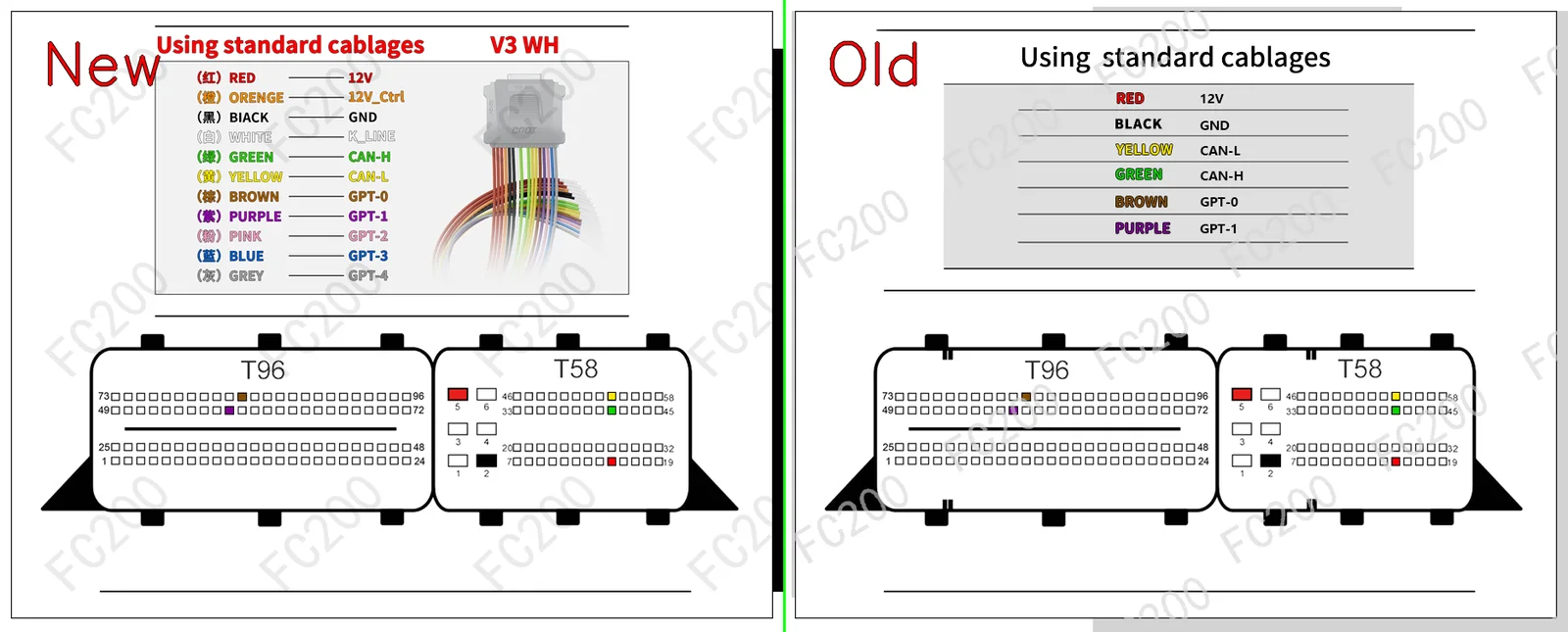

OFFICIAL PINOUT DIAGRAM: BOSCH MED17.7.3.png (Platform / Bench)494,217 bytes
BOSCH MED17.7.3.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MED17.7.3.1 (18)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Mercedes-Benz C(W205) (2996 M276.823 333) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz C(W205) (450 AMG 4MATIC M276.823 367) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz C(C205) (3000 AMG 367) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz E(W212) (400 276 820 333) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz E(W212) (320 3000 V6 276 820 272) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz E(W212) (400 4MATIC 276 820 333) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz E(W212) (400L 276 820 333) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz E(W212) (400 3500 V6 276 850 333) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz E(W212) (400 4MATIC 276 850 333) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz GL(W166) (450 4MATIC M276.821 333) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz GLE(W166) (320 4MATIC M276.821 272) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz GLE(W166) (2996 M276.821 258) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz GLE(W166) (2996 M276.821 367) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz GLS(X166) (2996 M276.821 333) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz ML(W166) (400 4MATIC M276.821 333) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz S(W222) (1991 M272.824 299) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz S(W222) (320 V6 BiTurbo • ) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
Mercedes-Benz All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH MED17.7.3.1 (TC1797) Open Vehicle →
