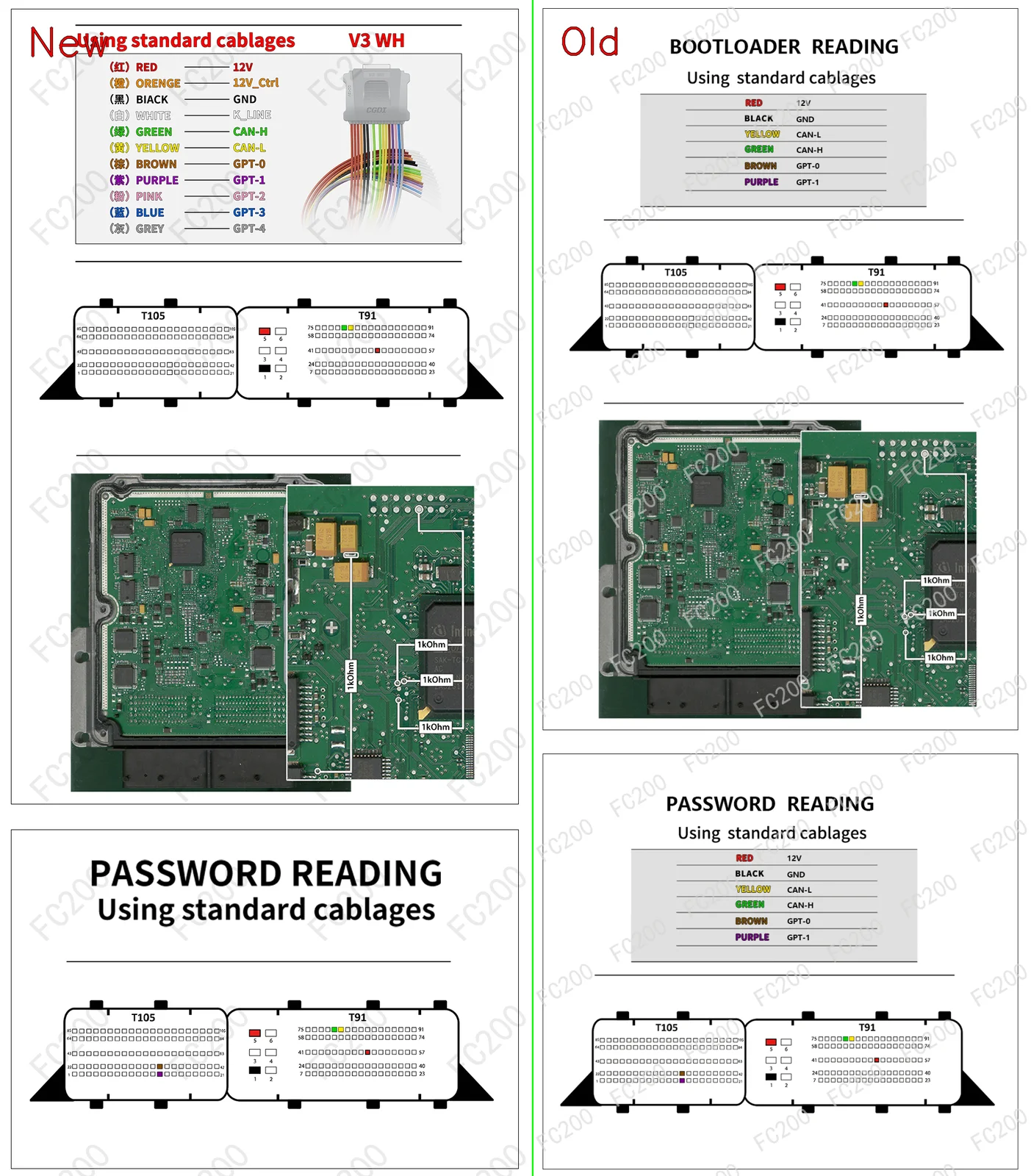

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH MED17.3.4.png (Boot)3,008,834 bytes

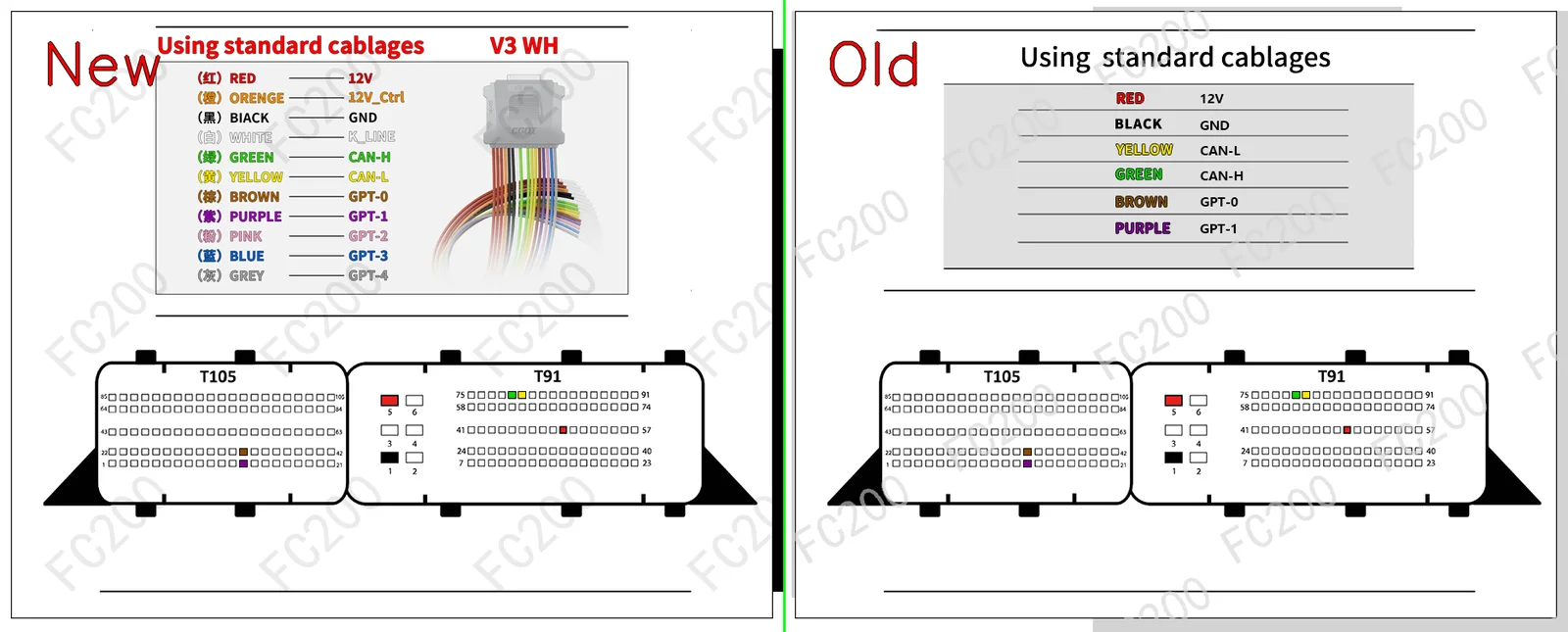

OFFICIAL PINOUT DIAGRAM: BOSCH MED17.3.4.png (Platform / Bench)482,591 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU MED17.3.4 (10)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Maserati	Ghibli(M157) (3000 BiTurbo M156B 330)	`BOSCH MED17.3.4` (TC1797)	Open Vehicle →
Maserati	Ghibli(M157) (3000 BiTurbo M156B 409)	`BOSCH MED17.3.4` (TC1797)	Open Vehicle →
Maserati	Ghibli(M157) (S Q4 3000 BiTurbo M156B 409)	`BOSCH MED17.3.4` (TC1797)	Open Vehicle →
Maserati	Ghibli(M157) (3000 BiTurbo M156D 349)	`BOSCH MED17.3.4` (TC1797)	Open Vehicle →
Maserati	Quattroporte(M156) (GT S 3800 M156A 530)	`BOSCH MED17.3.4` (TC1797)	Open Vehicle →
Maserati	Quattroporte(M156) (3000 BiTurbo • 330)	`BOSCH MED17.3.4` (TC1797)	Open Vehicle →
Maserati	Quattroporte(M156) (3000 BiTurbo • 409)	`BOSCH MED17.3.4` (TC1797)	Open Vehicle →
Maserati	Quattroporte(M156) (3000 BiTurbo • )	`BOSCH MED17.3.4` (TC1797)	Open Vehicle →
Maserati	Quattroporte(M156) (S Q4 3000 BiTurbo • 409)	`BOSCH MED17.3.4` (TC1797)	Open Vehicle →
Maserati	All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum)	`BOSCH MED17.3.4` (TC1797)	Open Vehicle →

ECU Pinout MED17.3.4 Bench / Boot / GPT Pinout — Wiring Diagram
