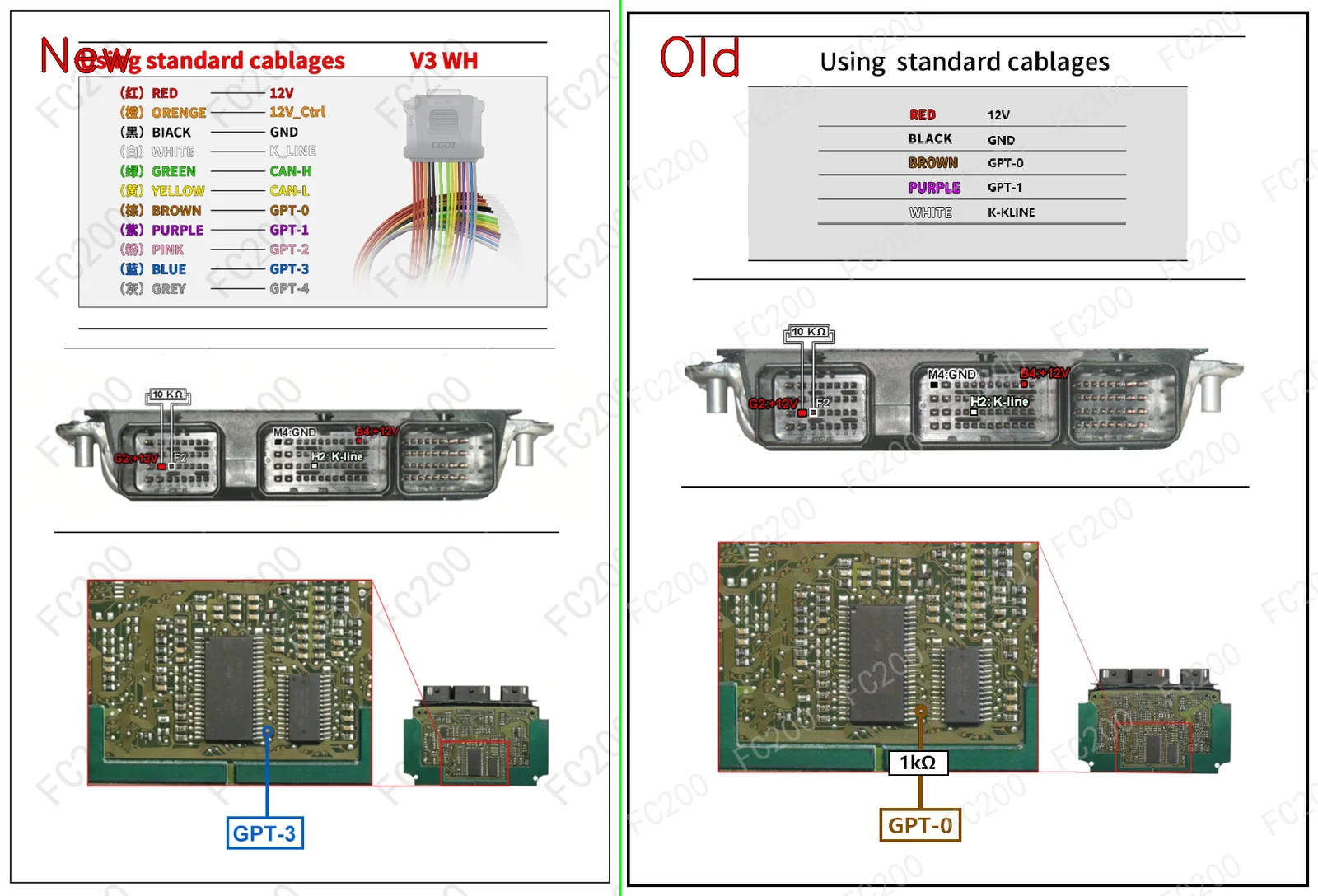

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.4.4 Polaris.png (Platform / Bench)1,511,682 bytes

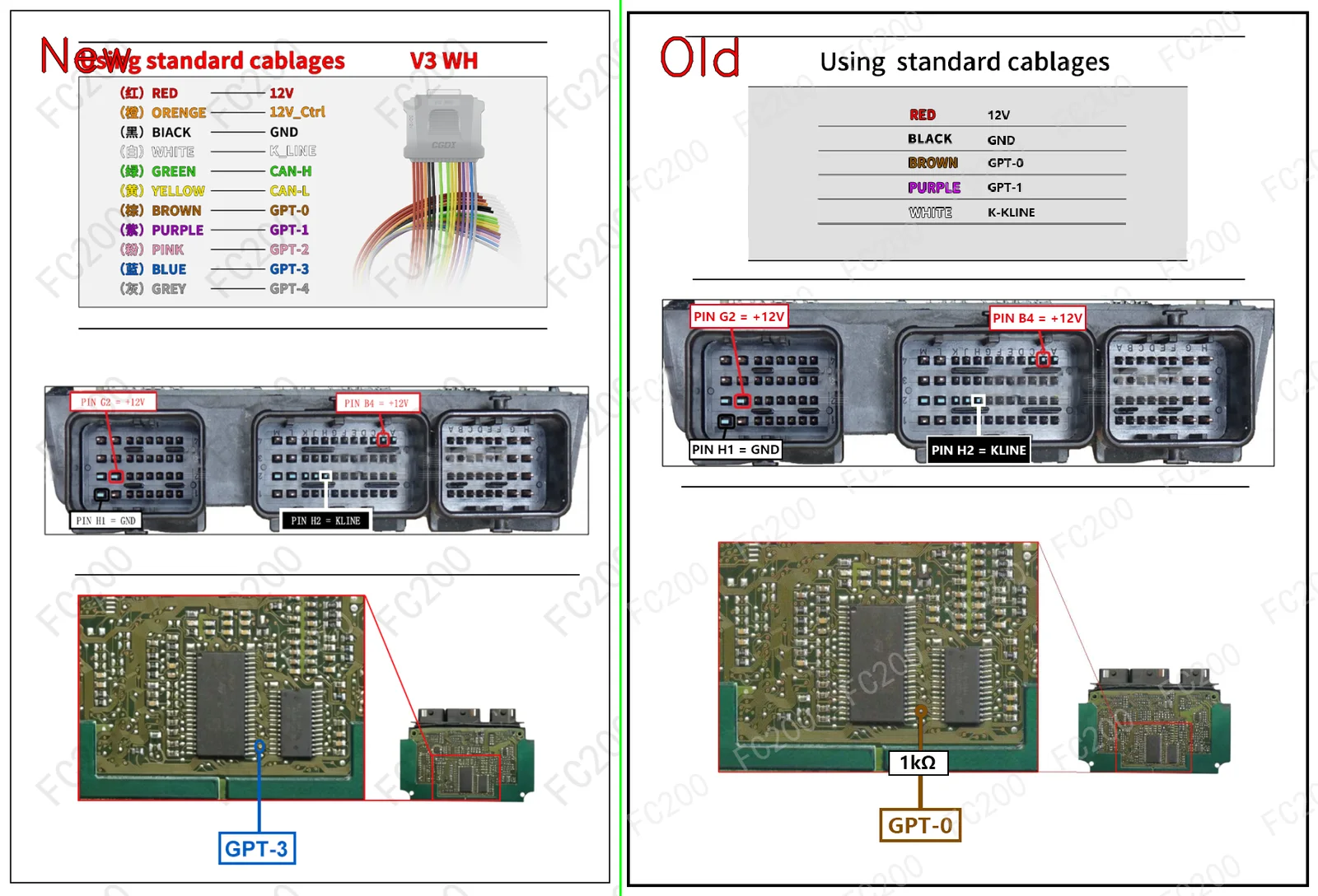

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.4.4.png (Platform / Bench)1,651,990 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU ME7.4.4 (24)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Citroen	Berlingo(B9) (1600 NFR TU5JP4B 90)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Citroen	Berlingo(M59) (1600 NFU TU5JP4 109)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Citroen	C2(A6) (1600 NFU TU5JP4 109)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Citroen	C3(A8) (1600 NFU TU5JP4 109)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Citroen	C3(A8) (1600 Flex N6A/FF 110)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Citroen	C3 Pluriel(A42) (1600 NFU TU5JP4 109)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Citroen	C4(B5) (1600 NFU TU5JP4 109)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Citroen	C5(X4) (3000 V6 XFX ES9J4S 204)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Citroen	C8(V3) (3000 V6 XFX ES9J4S 204)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Citroen	Saxo(S8) (1600 VTR NFT TU5 98)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Citroen	Saxo(S8) (1100 HDZ TU1M 60)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Dongfeng	All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	1007(A08) (1600 NFU <TU5JP4> 110)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	106(S2) (1100 HDZ <TU1M> 60)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	306(T5) (1600 NFT <TU5> 98)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	307(T5) (1600 NFU <TU5JP4> 110)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	308(T7) (1600 BioFlex NFU <TU5JP4> 109)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	406(D9) (3000 V6 XFX <ES9J4S> 206)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	407(D2) (3000 V6 XFV <ES9A> 211)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	607(Z9) (3000 V6 XFV <ES9A> 211)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	607(Z8) (3000 V6 XFX <ES9J4S> 207)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	807(V2) (3000 V6 XFX <ES9J4S> 207)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	Partner(B9) (1600 NFR <TU5JP4B> 90)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →
Peugeot	Partner(B9) (1600 NFU <TU5JP4> 110)	`BOSCH ME7.4.4 ST10C167` (test)	Open Vehicle →

ECU Pinout ME7.4.4 Bench / Boot / GPT Pinout — Wiring Diagram
