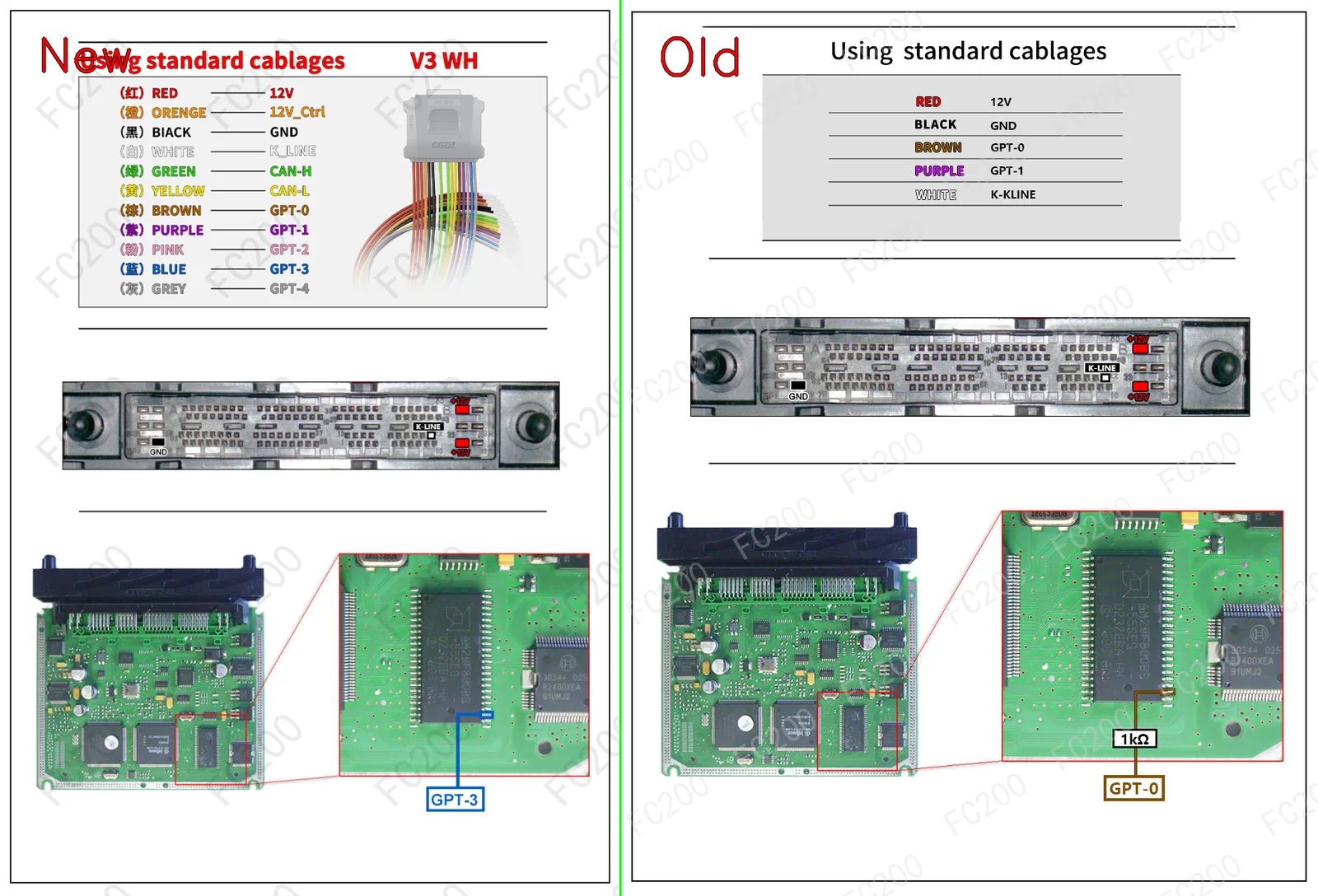

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.0.1.png (Platform / Bench)1,763,384 bytes

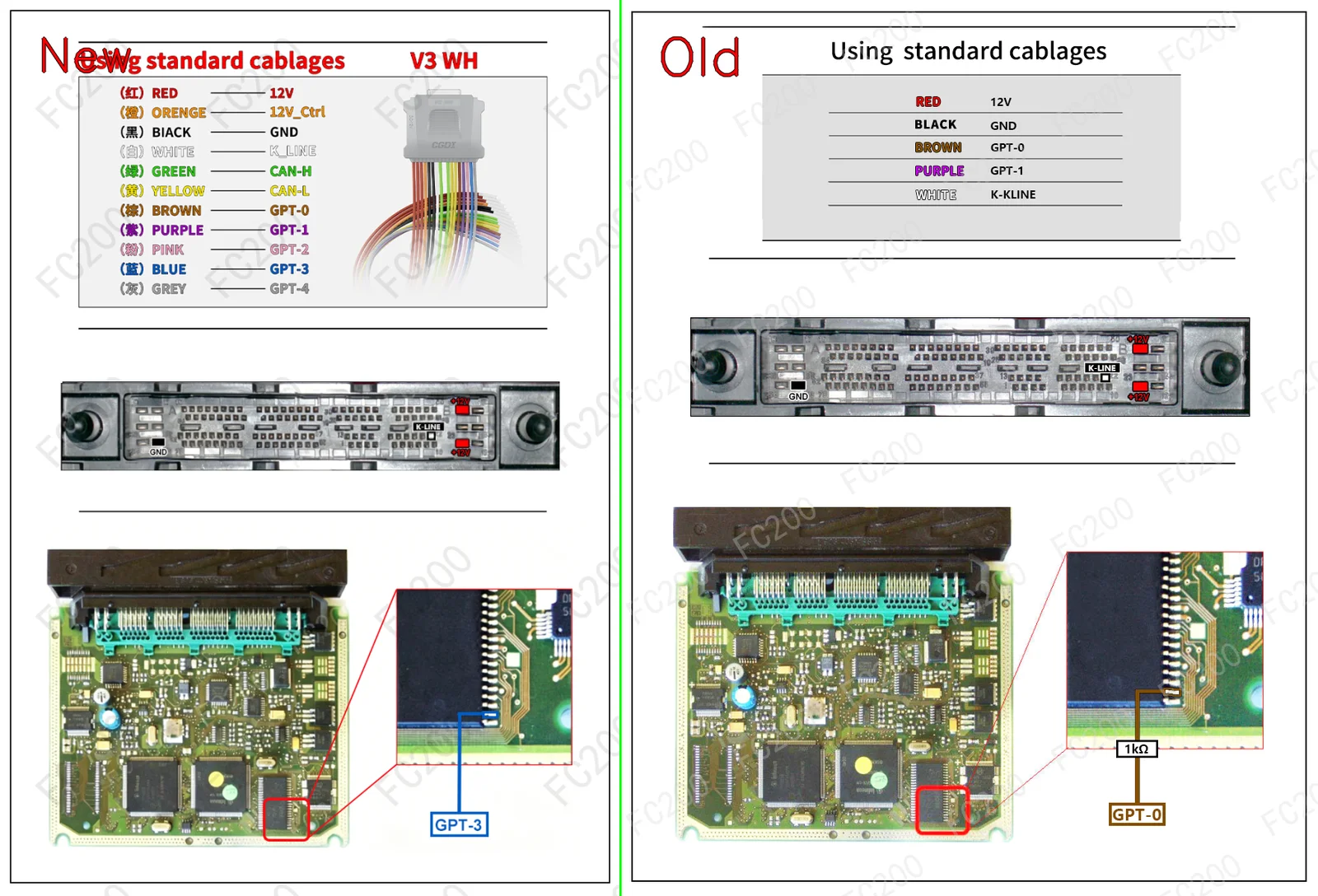

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.0.png (Platform / Bench)1,961,751 bytes

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.1.1_400.png (Platform / Bench)1,809,334 bytes

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.1.1_800.png (Platform / Bench)1,775,017 bytes

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.5.10.png (Platform / Bench)1,876,084 bytes

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.5.20.png (Platform / Bench)2,133,449 bytes

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.5.30.png (Platform / Bench)1,672,764 bytes

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.5_400.png (Platform / Bench)1,947,188 bytes

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.5_800.png (Platform / Bench)2,014,296 bytes

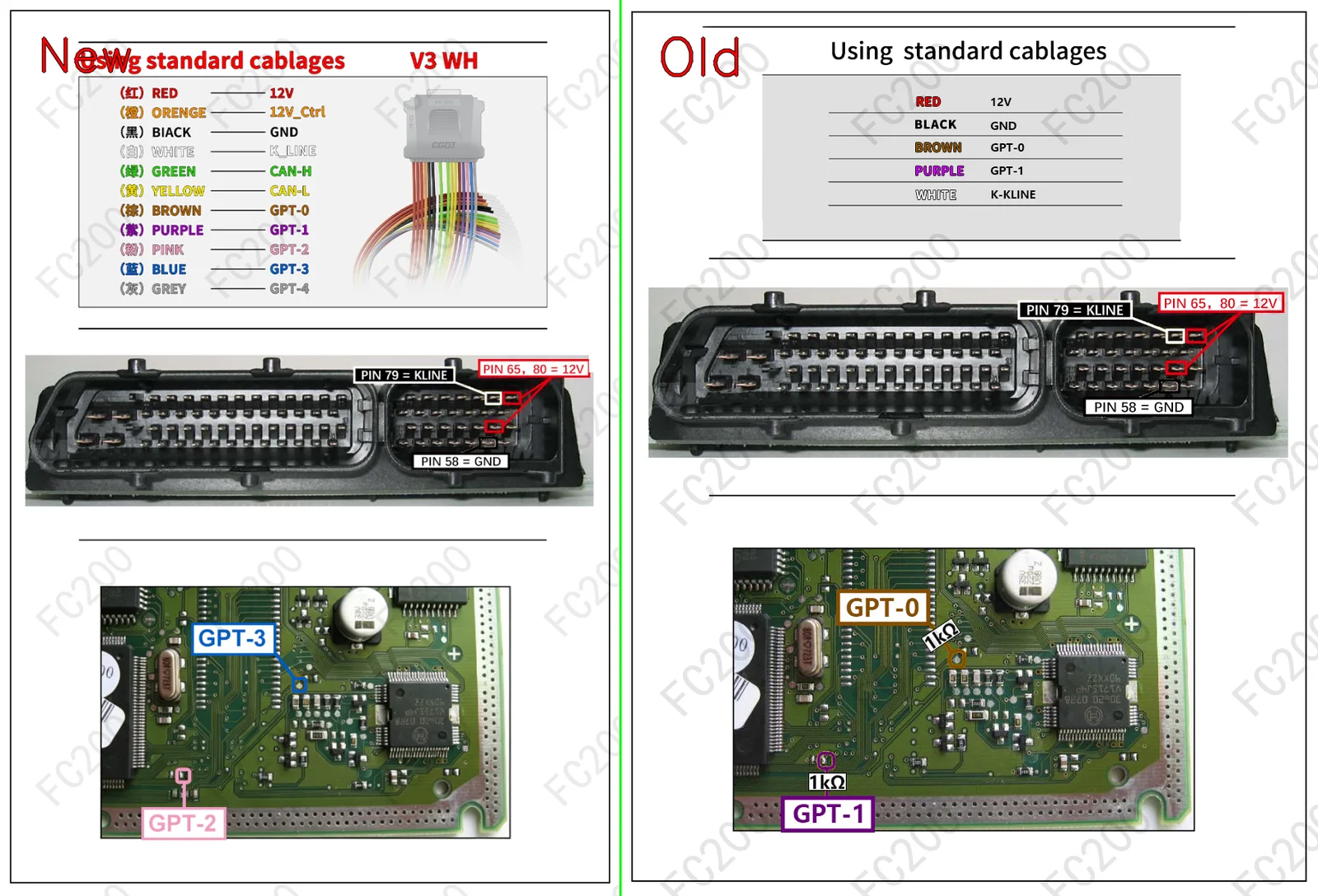

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.7.0.png (Platform / Bench)1,826,908 bytes

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.9.10.png (Platform / Bench)1,712,239 bytes

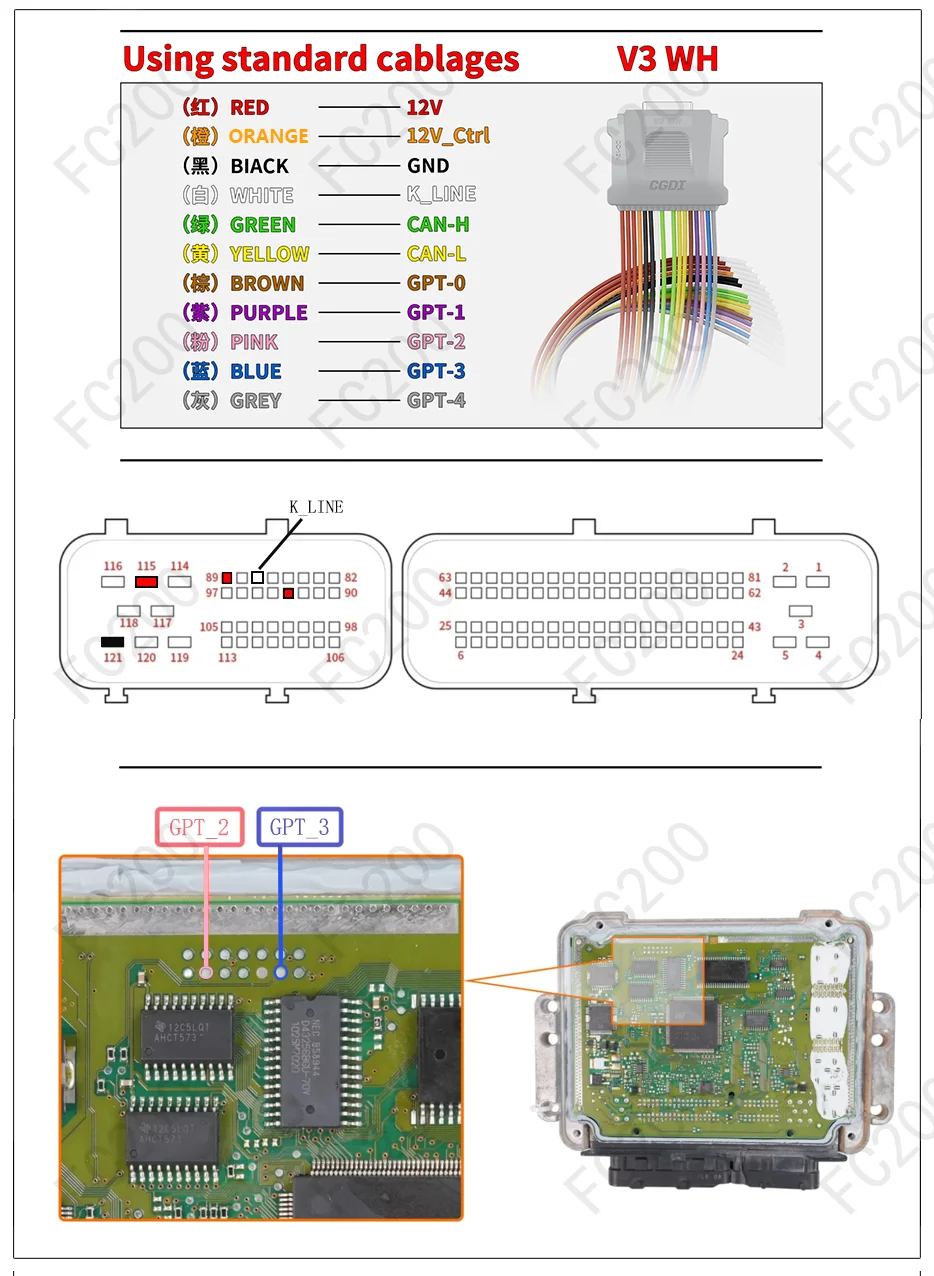

OFFICIAL PINOUT DIAGRAM: BOSCH ME7.9.20.png (Platform / Bench)775,458 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU ME7.0.1 (24)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Volvo	S60(I) (2000 Turbo B5204T5 180)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	S60(I) (2400 Turbo AWD B5244T3 200)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	S60(I) (2400 Turbo B5244T3 200)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	S60(I) (2300 Turbo T5 B5234T3 200)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	S60(I) (2500 Turbo AWD B5254T2 209)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	S60(I) (2500 R AWD B5254T4 299)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	S60(I) (2400 Turbo B5244T4 180)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	S60(I) (2400 Turbo B5244T4 220)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	S60(I) (2400 Turbo AWD B5244T4 220)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	S60(I) (2500 Turbo B5254T2 209)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	S60(I) (2400 Turbo T5 B5244T5 250)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	V70(II) (2000 Turbo B5204T5 180)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	V70(II) (2300 Turbo T5 B5234T3 250)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	V70(II) (2300 Turbo B5234T7 265)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	V70(II) (2400 Turbo XC AWD B5244T3 200)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	V70(II) (2400 Turbo AWD B5244T3 200)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	V70(II) (2400 Turbo B5244T3 200)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	V70(II) (2500 Turbo AWD B5254T2 209)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	V70(II) (2500 R AWD B5254T4 299)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	XC70(I) (2300 Turbo AWD B5234T7 209)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	XC70(I) (2500 Turbo AWD B5254T7 209)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	XC70(I) (2400 Turbo AWD B5244T7 200)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	XC90(I) (2500 Turbo AWD B5254T2 209)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →
Volvo	XC90(I) (2500 Turbo T5 AWD B5254T9 209)	`BOSCH ME7.0.1 ST10C167` (test)	Open Vehicle →

ECU Pinout ME7.0.1 Bench / Boot / GPT Pinout — Wiring Diagram
