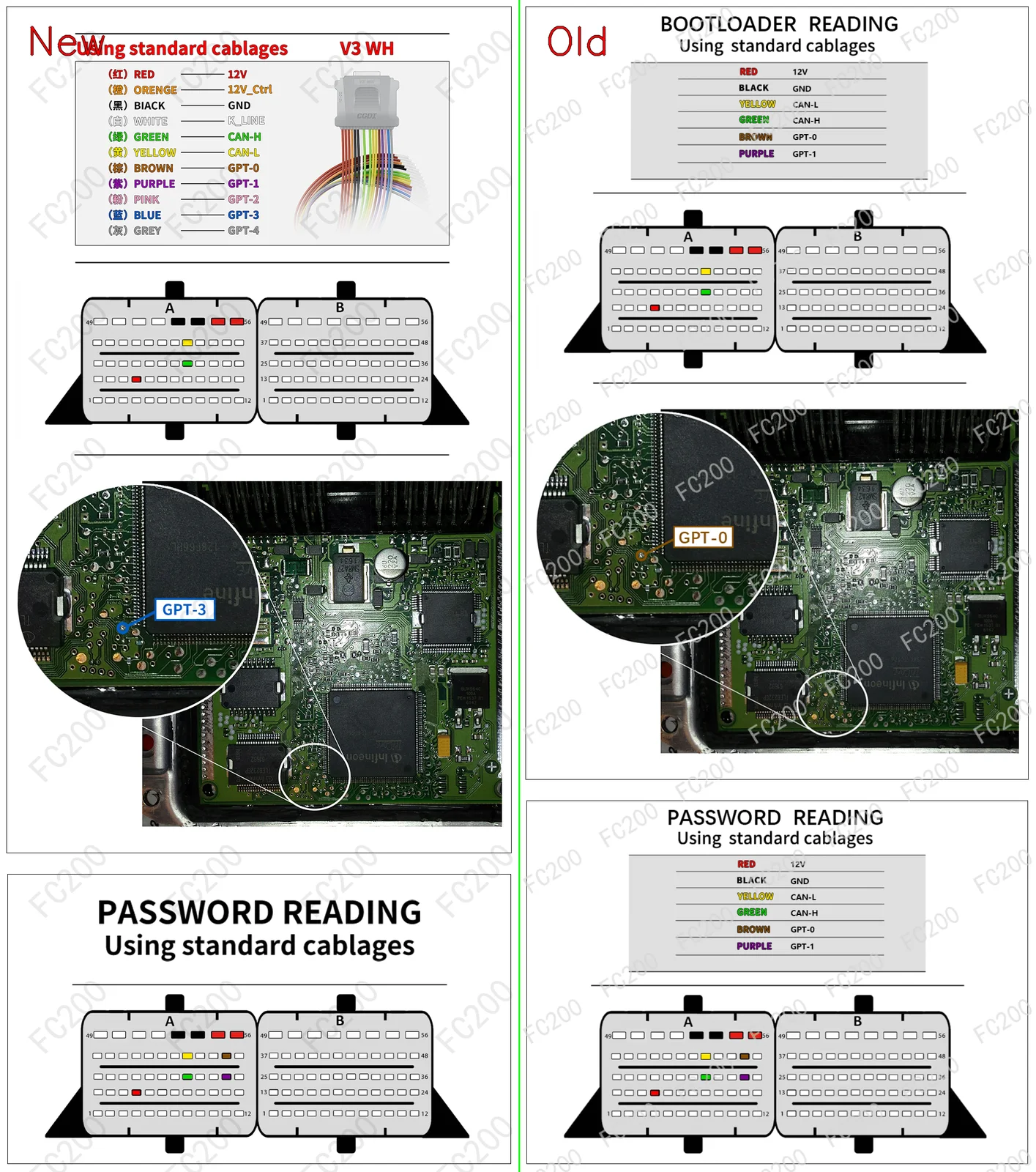

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.74.png (Boot)3,884,204 bytes

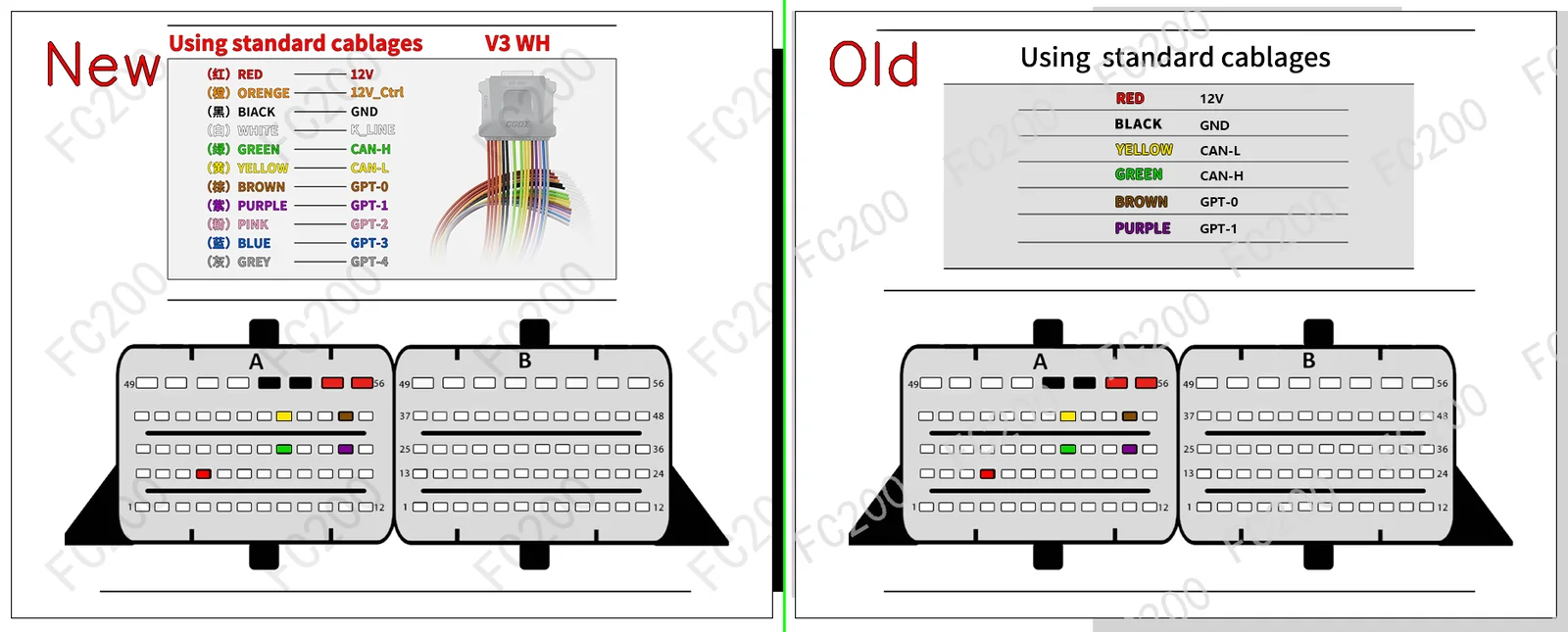

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.74.png (Platform / Bench)504,971 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU ME17.9.74 (12)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Indian	Chief (1800 • 73)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Indian	Chieftain (1800 • 73)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Indian	Scout (1100 • 85)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Polaris	ACE(I) (SP 900 • 60)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Polaris	RZR(I) (1000 TURBO EPS • 144)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Polaris	RZR(I) (900 EPS • 75)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Polaris	RZR(I) (RAZOR RZR XP 900 • 93)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Polaris	RZR(I) (XP High Lifter Edition • 110)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Polaris	Ranger(I) (RZR XP 1000 • 107)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Polaris	Ranger(I) (XP 900 • 60)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Indian	All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →
Polaris	All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum)	`BOSCH ME17.9.74` (TC1766)	Open Vehicle →

ECU Pinout ME17.9.74 Bench / Boot / GPT Pinout — Wiring Diagram
