ECU Pinout ME17.8.5 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU ME17.8.5 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

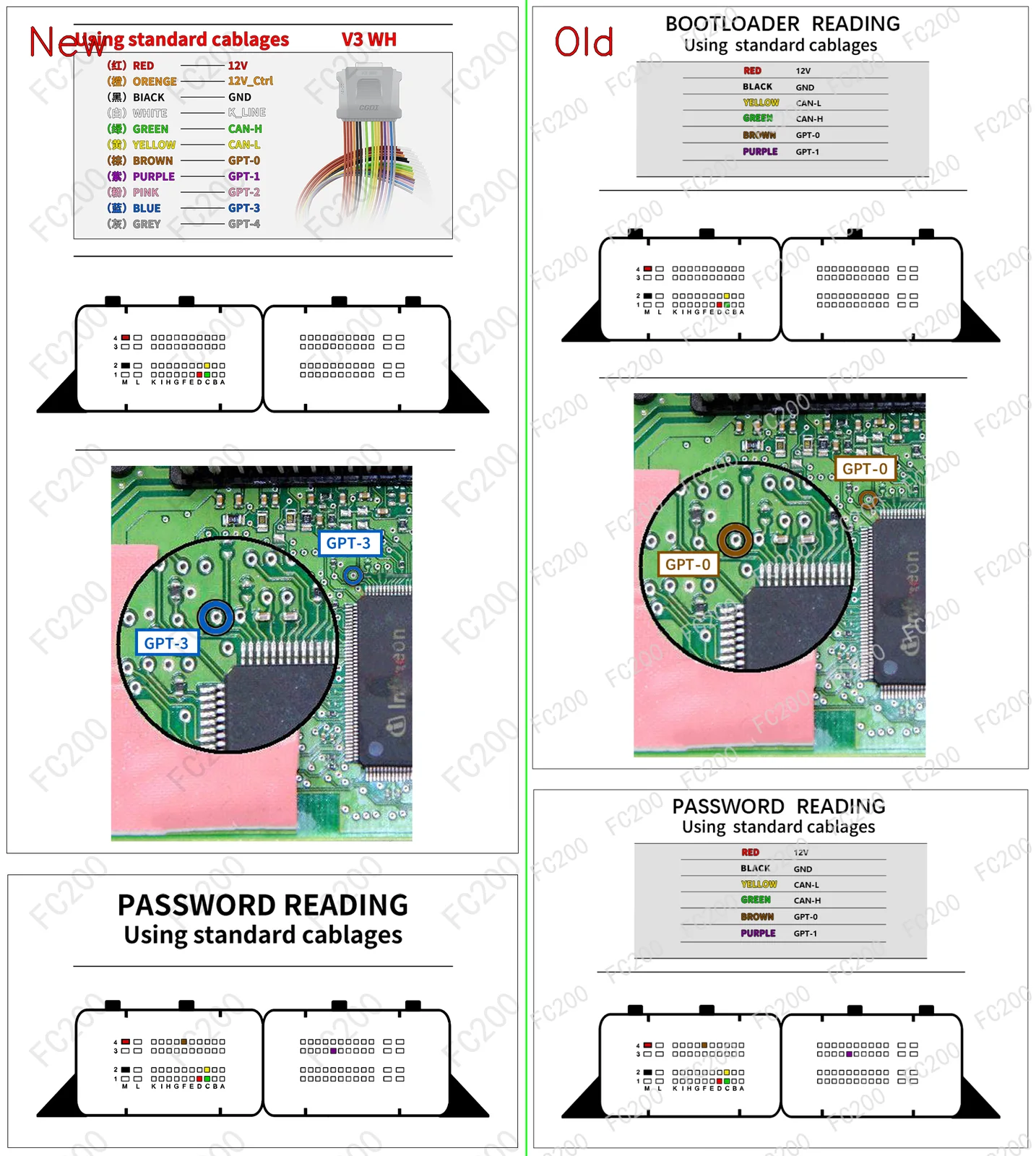

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.8.5.png (Boot)2,722,760 bytes
BOOT_BOSCH ME17.8.5.png

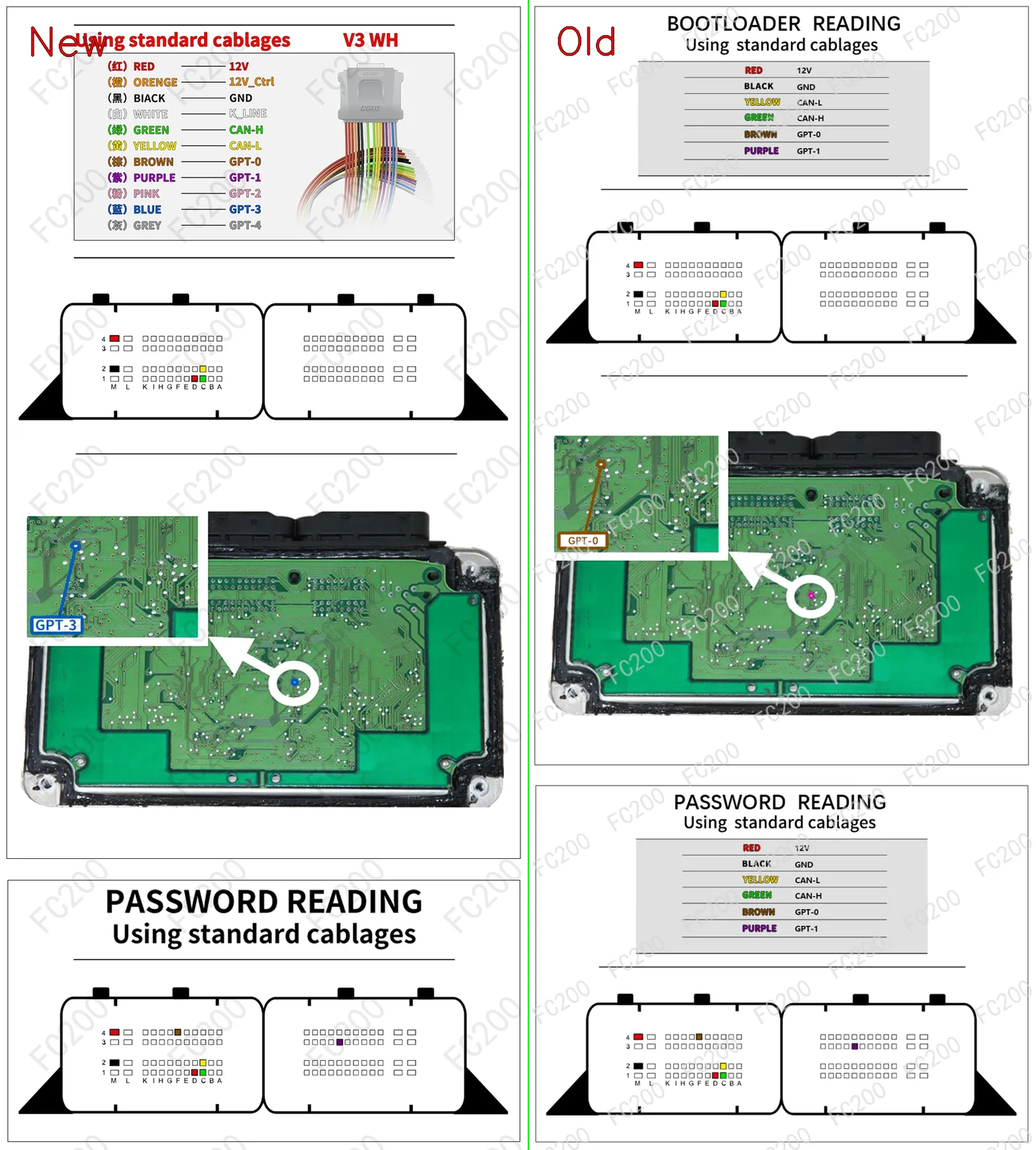

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.8.5_.png (Boot)2,834,143 bytes
BOOT_BOSCH ME17.8.5_.png

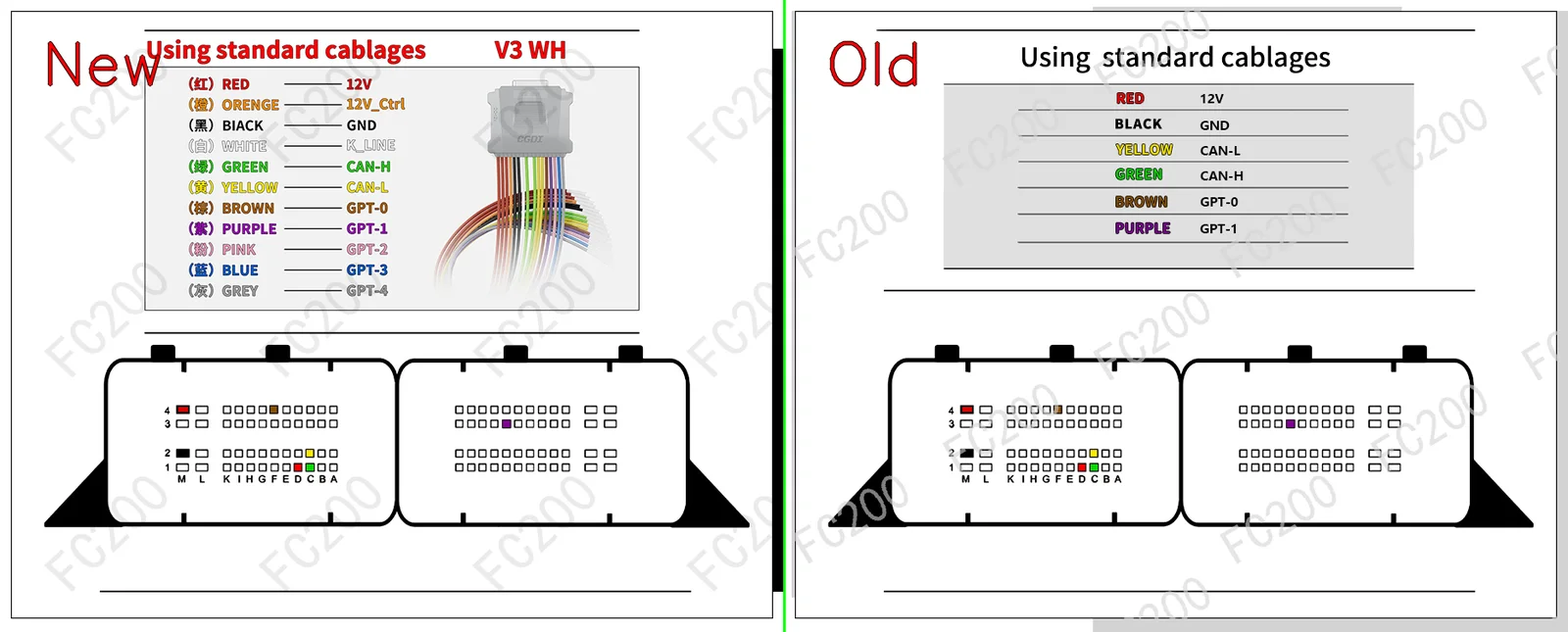

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.8.5.png (Platform / Bench)457,814 bytes
BOSCH ME17.8.5.png

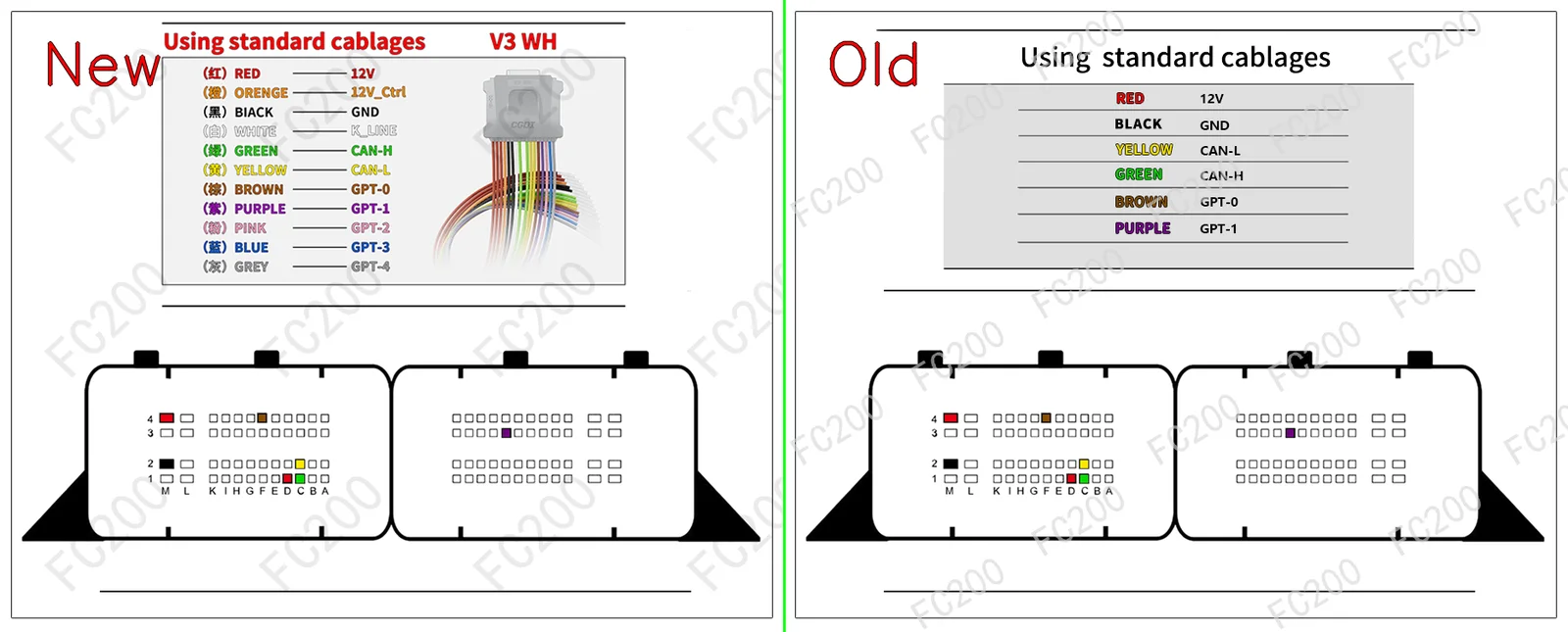

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.8.5_.png (Platform / Bench)496,770 bytes
BOSCH ME17.8.5_.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU ME17.8.5 (13)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Can-Am Commander (1000 Rotax 90) BOSCH ME17.8.5 (TC1766) Open Vehicle →
Ford Grand C-Max (1600 • 68) BOSCH ME17.8.5_ (TC1766) Open Vehicle →
Ford Fiesta(Jx8) (1600 • 109) BOSCH ME17.8.5_ (TC1766) Open Vehicle →
Ford Focus(DY) (2000 16V Ti-VCT • 138) BOSCH ME17.8.5_ (TC1766) Open Vehicle →
Ford Focus(DA3 / DB3) (1600 • 109) BOSCH ME17.8.5_ (TC1766) Open Vehicle →
Sea Doo Gti (1500 Rotax 130) BOSCH ME17.8.5 (TC1766) Open Vehicle →
Sea Doo Rx-t (1500 RS Rotax 260) BOSCH ME17.8.5 (TC1766) Open Vehicle →
Sea Doo Rxp-x (1500 RS Rotax 215) BOSCH ME17.8.5 (TC1766) Open Vehicle →
Sea Doo Rxp-x (1500 RS Rotax 255) BOSCH ME17.8.5 (TC1766) Open Vehicle →
Sea Doo Rxt-is (1500 Rotax 255) BOSCH ME17.8.5 (TC1766) Open Vehicle →
Can-Am All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH ME17.8.5 (TC1766) Open Vehicle →
Ford All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH ME17.8.5 (TC1766) Open Vehicle →
Sea Doo All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH ME17.8.5 (TC1766) Open Vehicle →
