ECU TECHNICAL ENCYCLOPEDIA (WIKI LAYER 1) • HOWTO & TECHARTICLE

ECU Pinout ME17.7 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU ME17.7 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

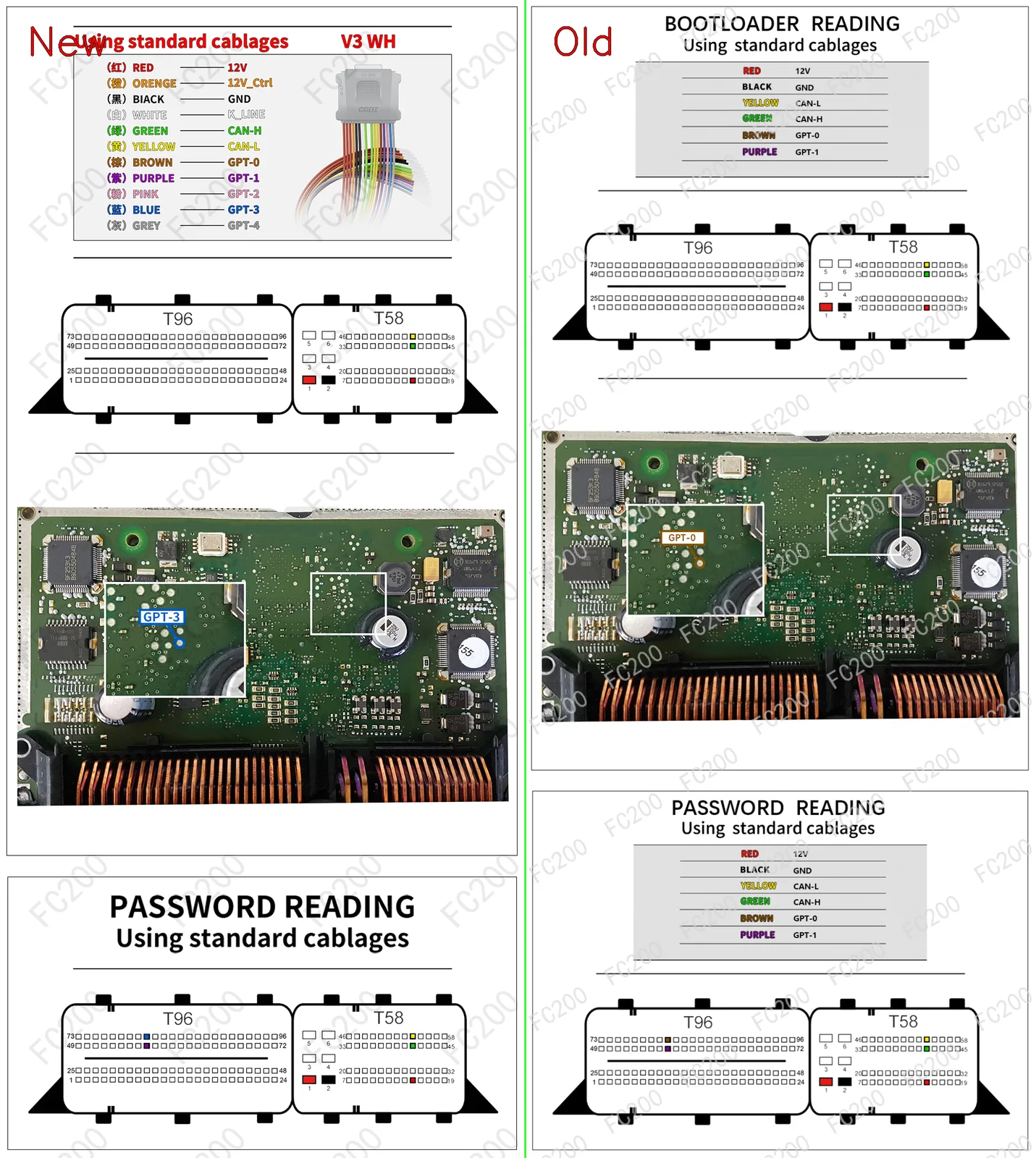

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.7.png (Boot)3,563,520 bytes
BOOT_BOSCH ME17.7.png

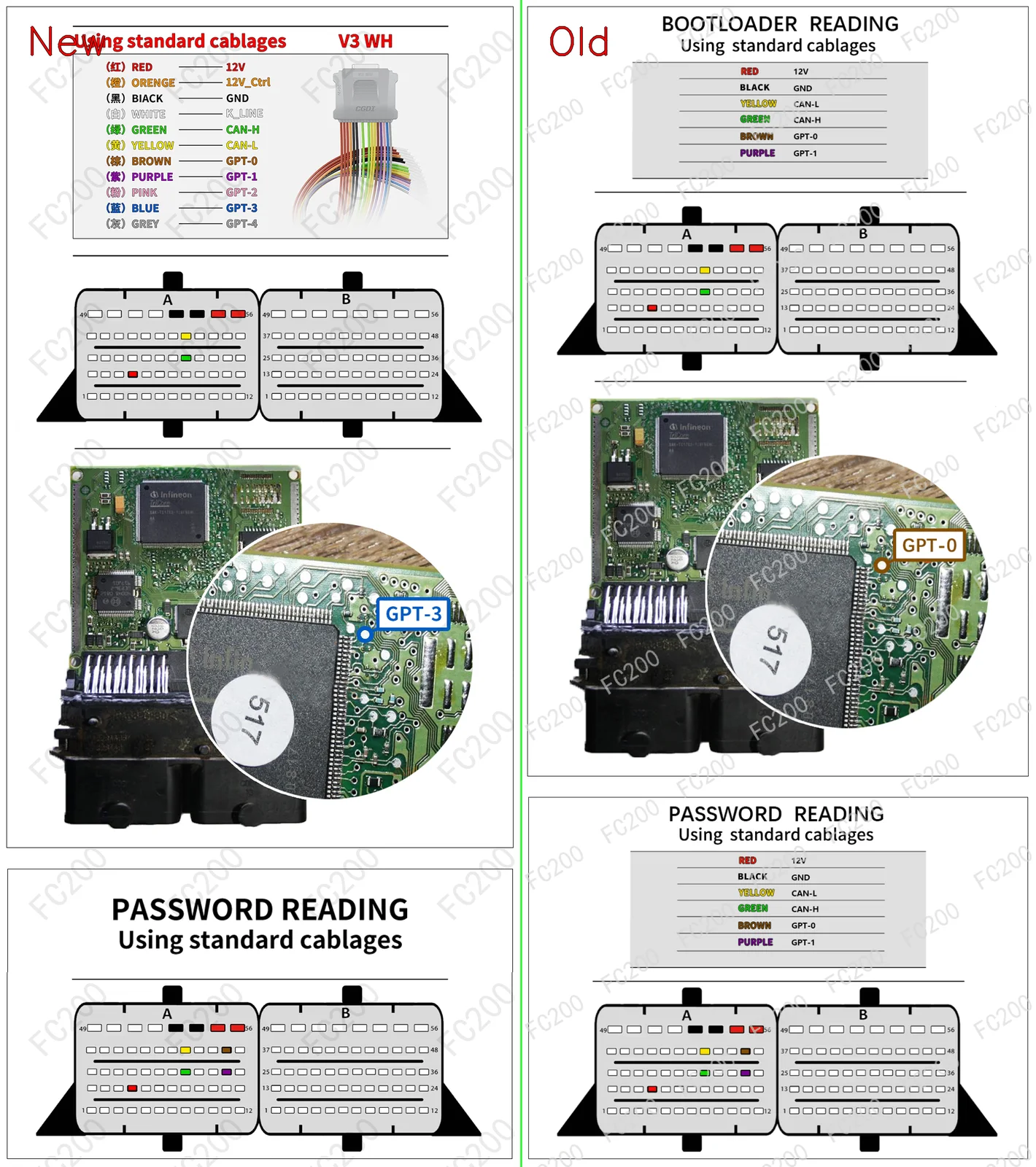

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.7.png (Boot)3,233,862 bytes
BOOT_BOSCH ME17.9.7.png

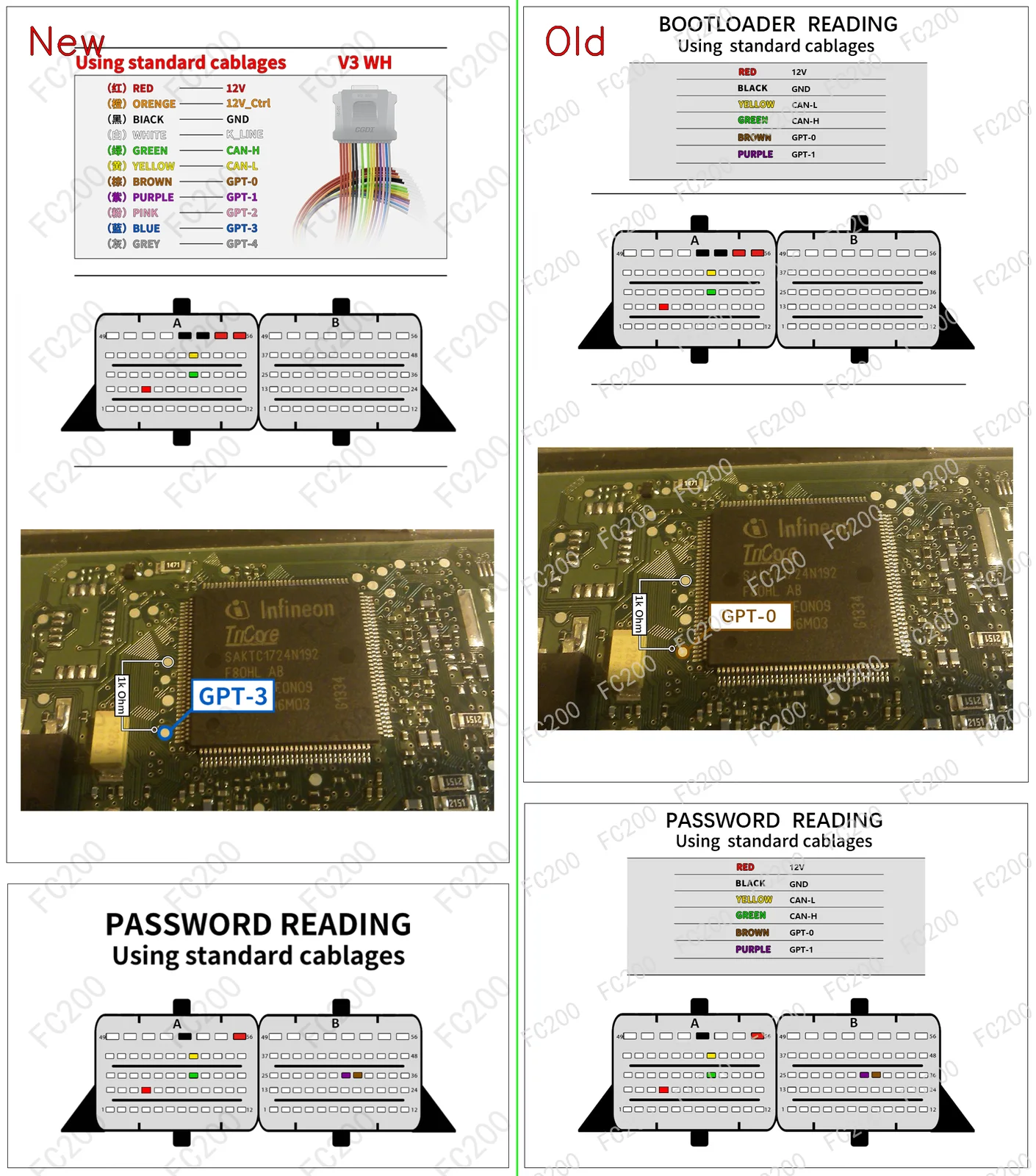

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.71.png (Boot)3,219,813 bytes
BOOT_BOSCH ME17.9.71.png

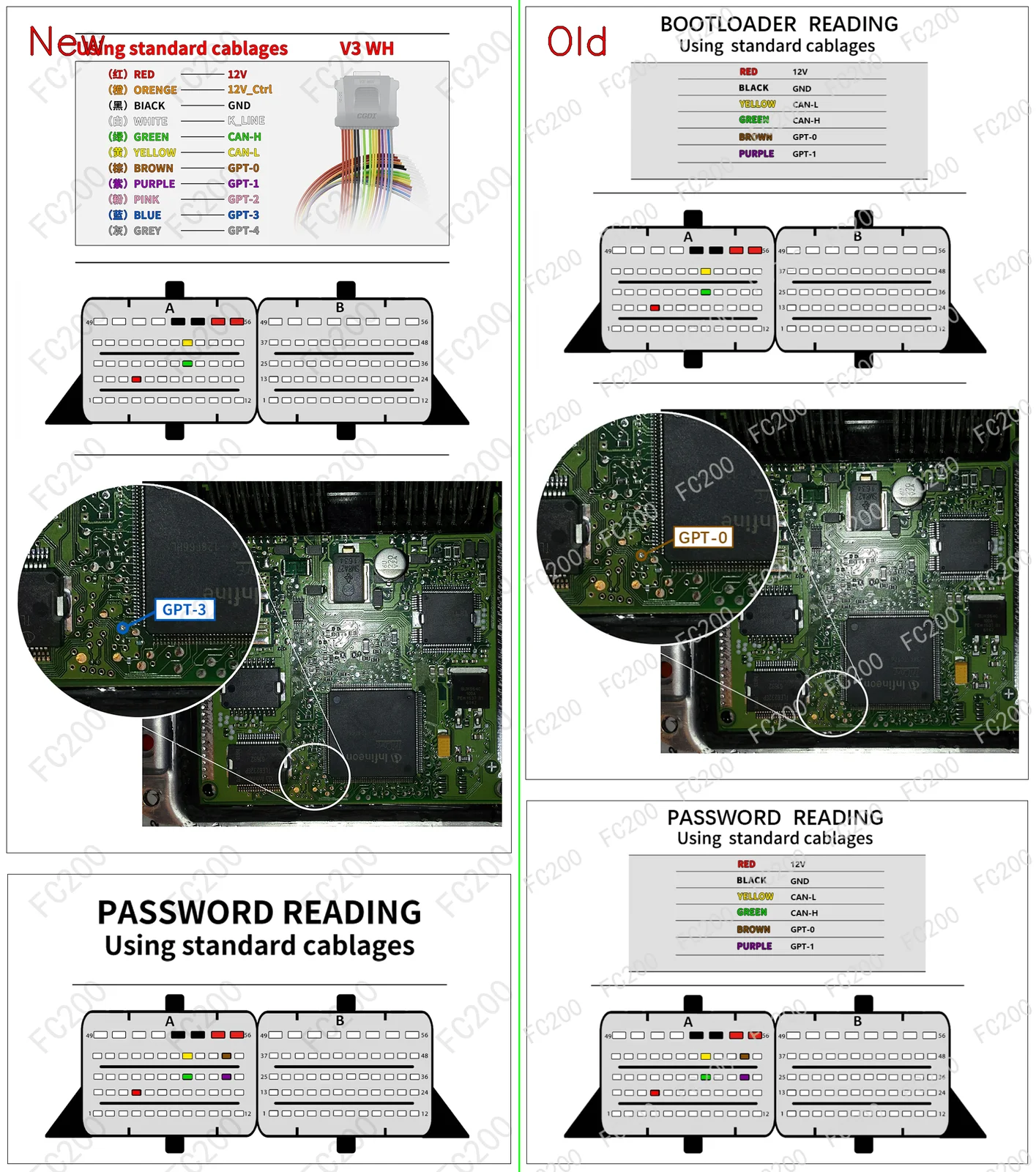

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.74.png (Boot)3,884,204 bytes
BOOT_BOSCH ME17.9.74.png

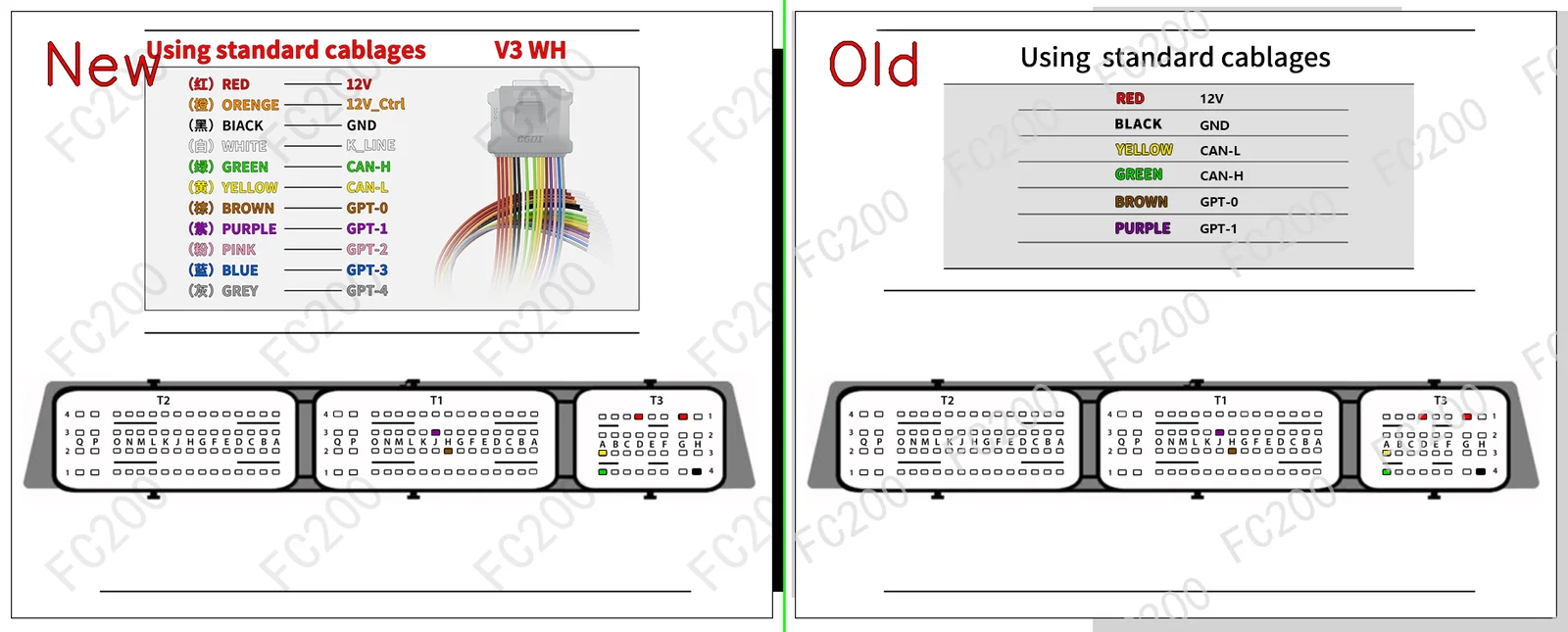

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.7.20.png (Platform / Bench)546,887 bytes
BOSCH ME17.7.20.png

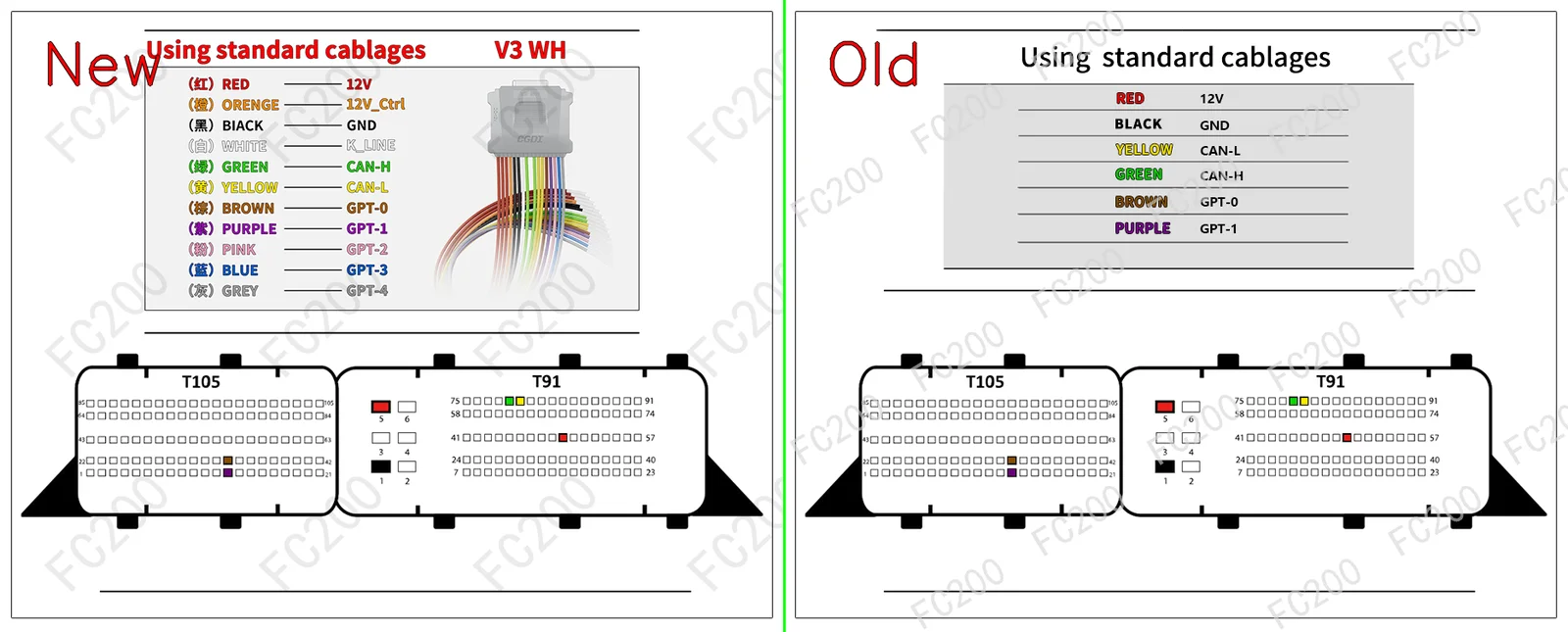

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.7.8.png (Platform / Bench)529,625 bytes
BOSCH ME17.7.8.png

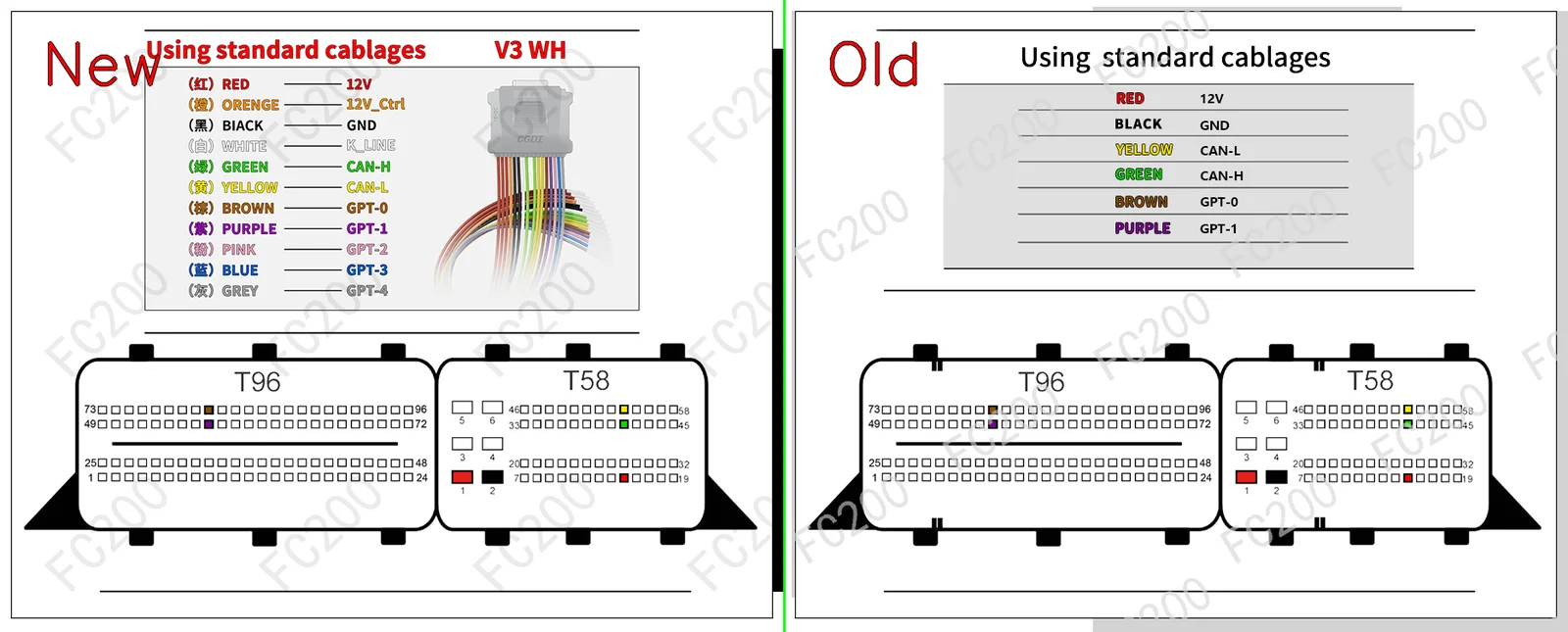

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.7.png (Platform / Bench)515,333 bytes
BOSCH ME17.7.png

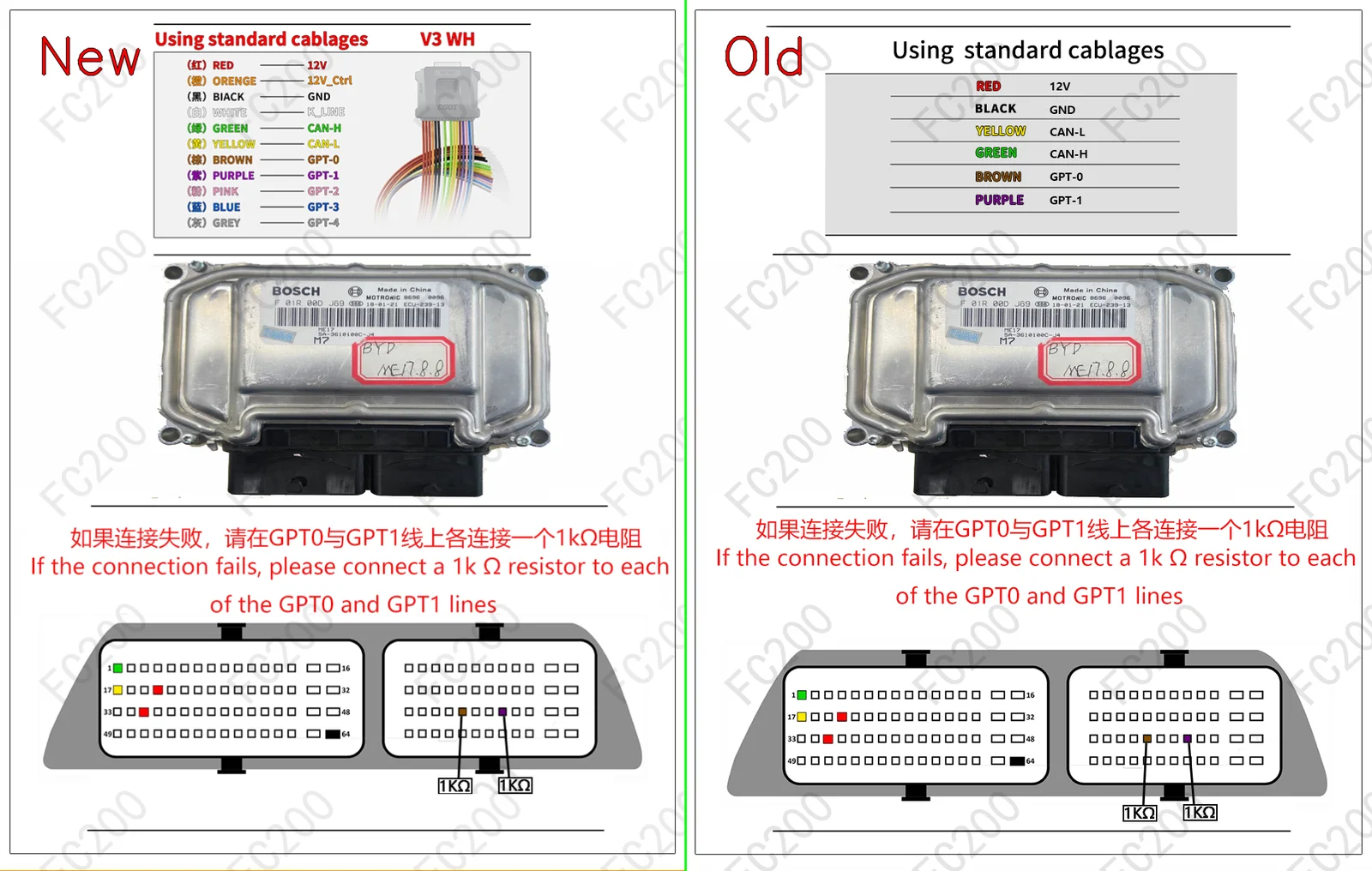

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.8.8 Second TC1767.png (Platform / Bench)1,330,402 bytes
BOSCH ME17.8.8 Second TC1767.png

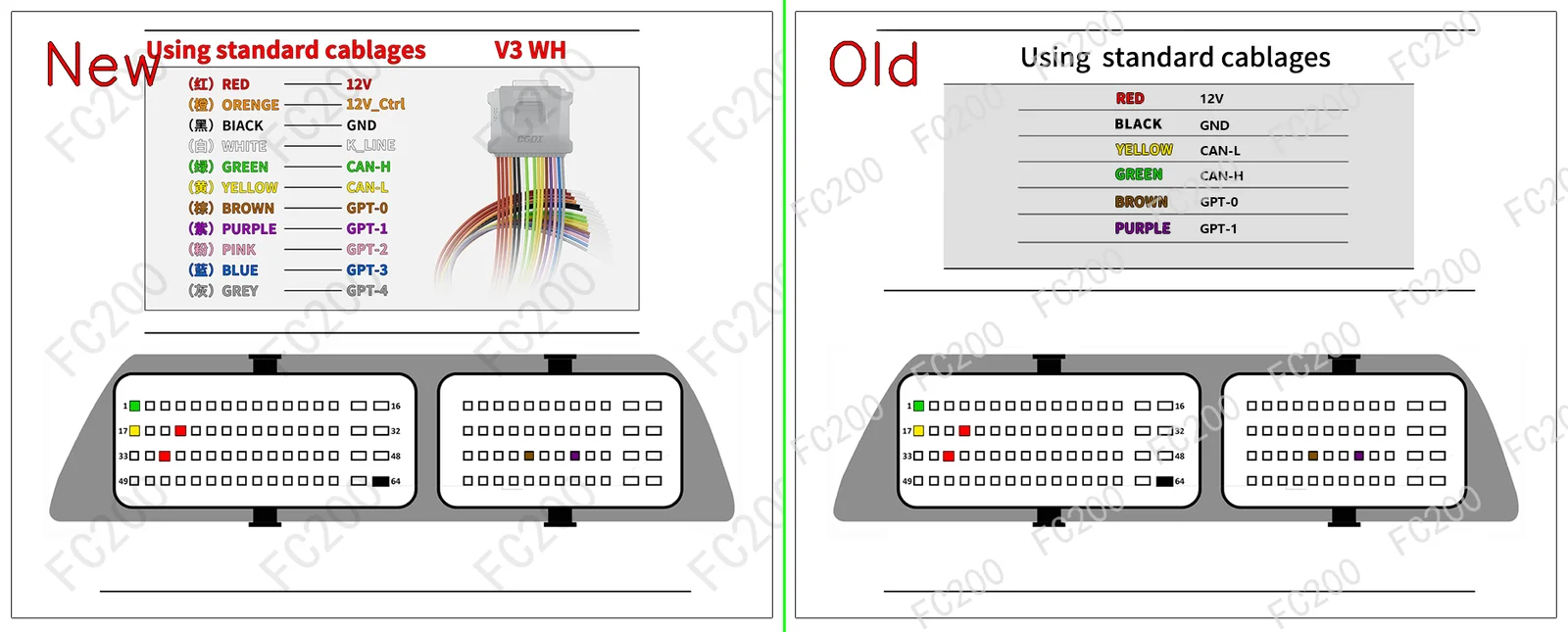

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.8.8 TC1728.png (Platform / Bench)507,777 bytes
BOSCH ME17.8.8 TC1728.png

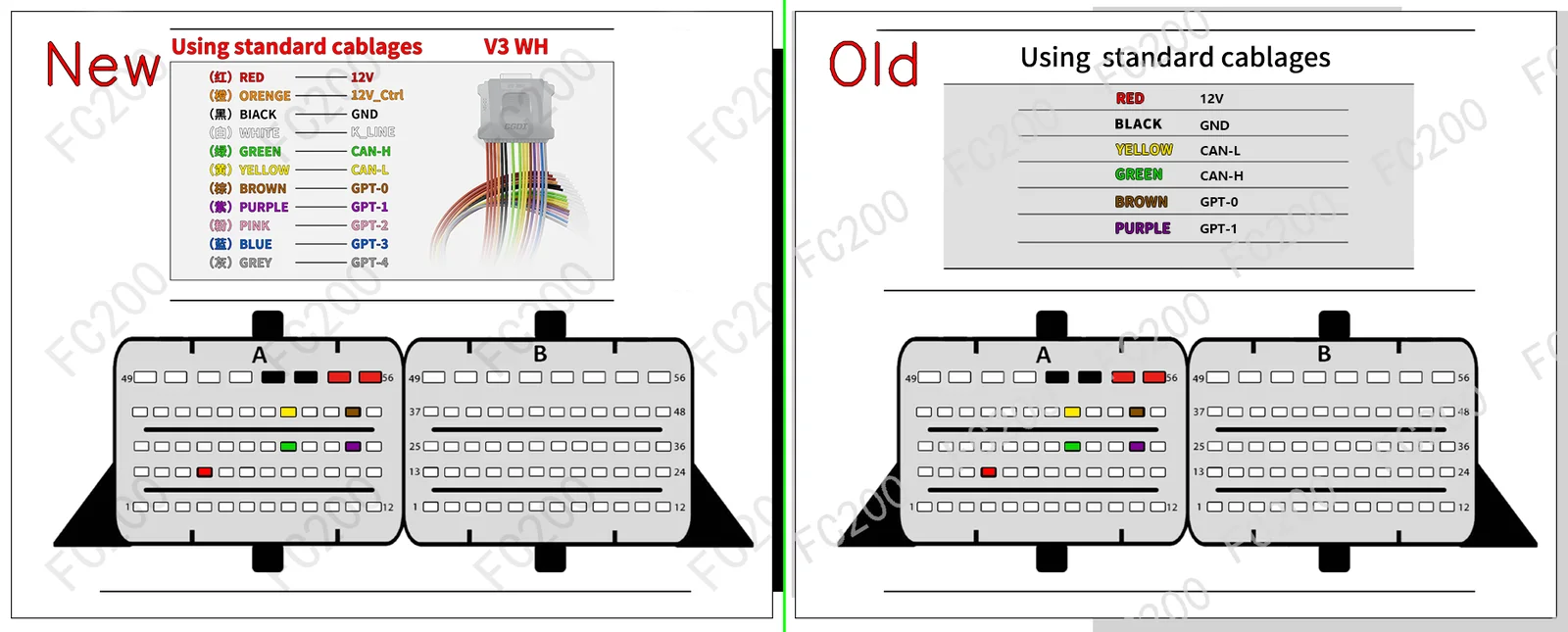

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.7.png (Platform / Bench)524,685 bytes
BOSCH ME17.9.7.png

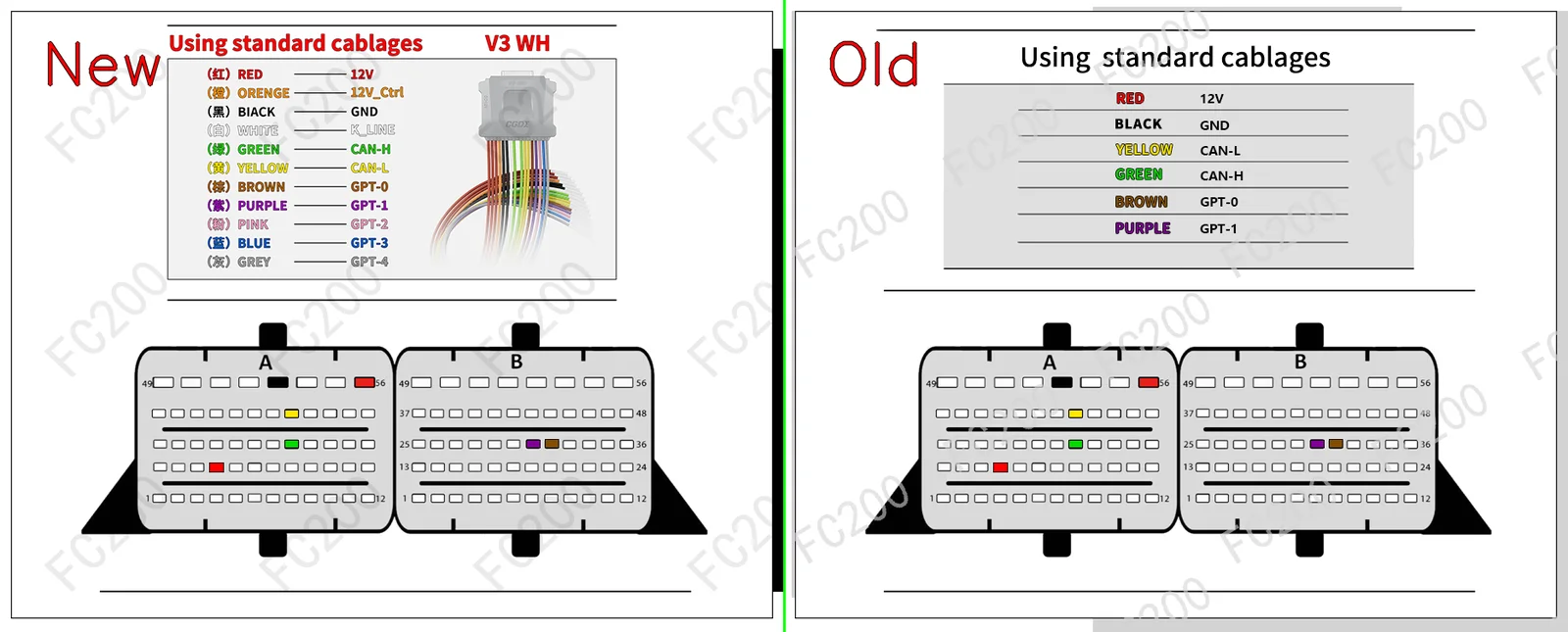

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.71.png (Platform / Bench)490,069 bytes
BOSCH ME17.9.71.png

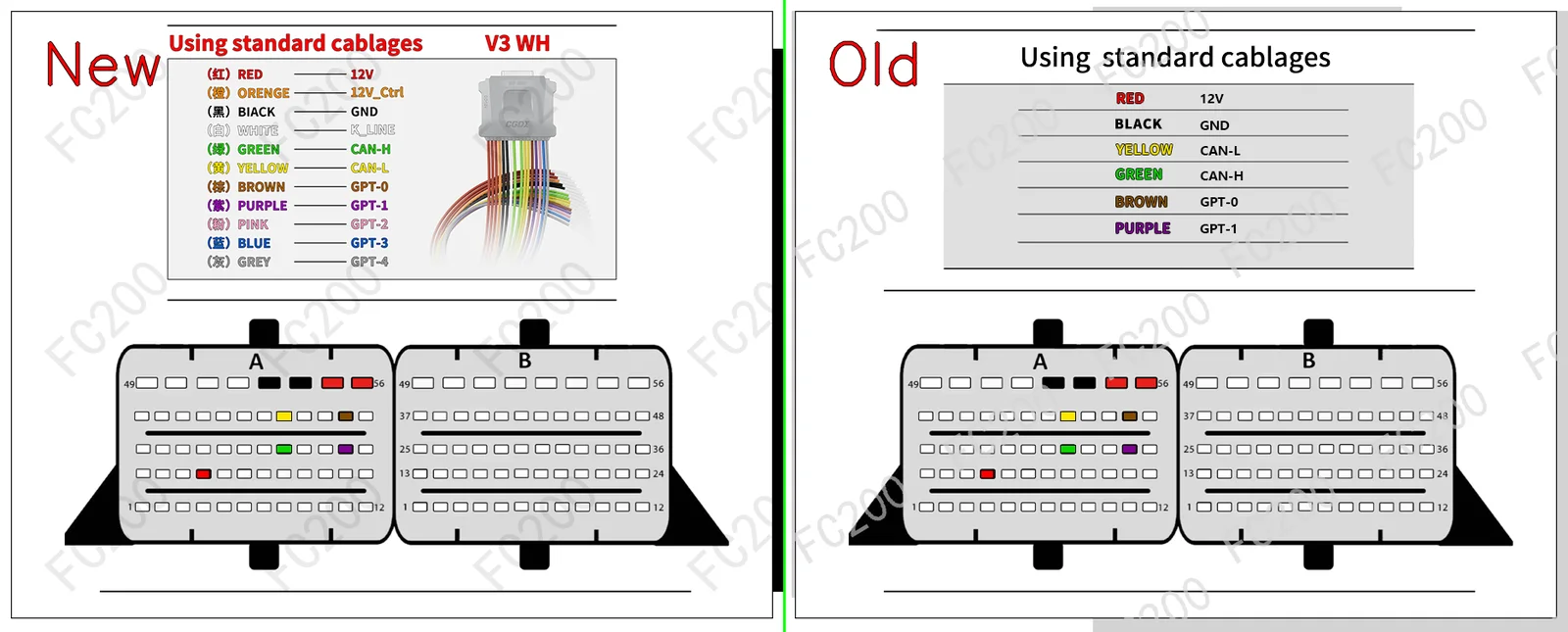

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.9.74.png (Platform / Bench)504,971 bytes
BOSCH ME17.9.74.png

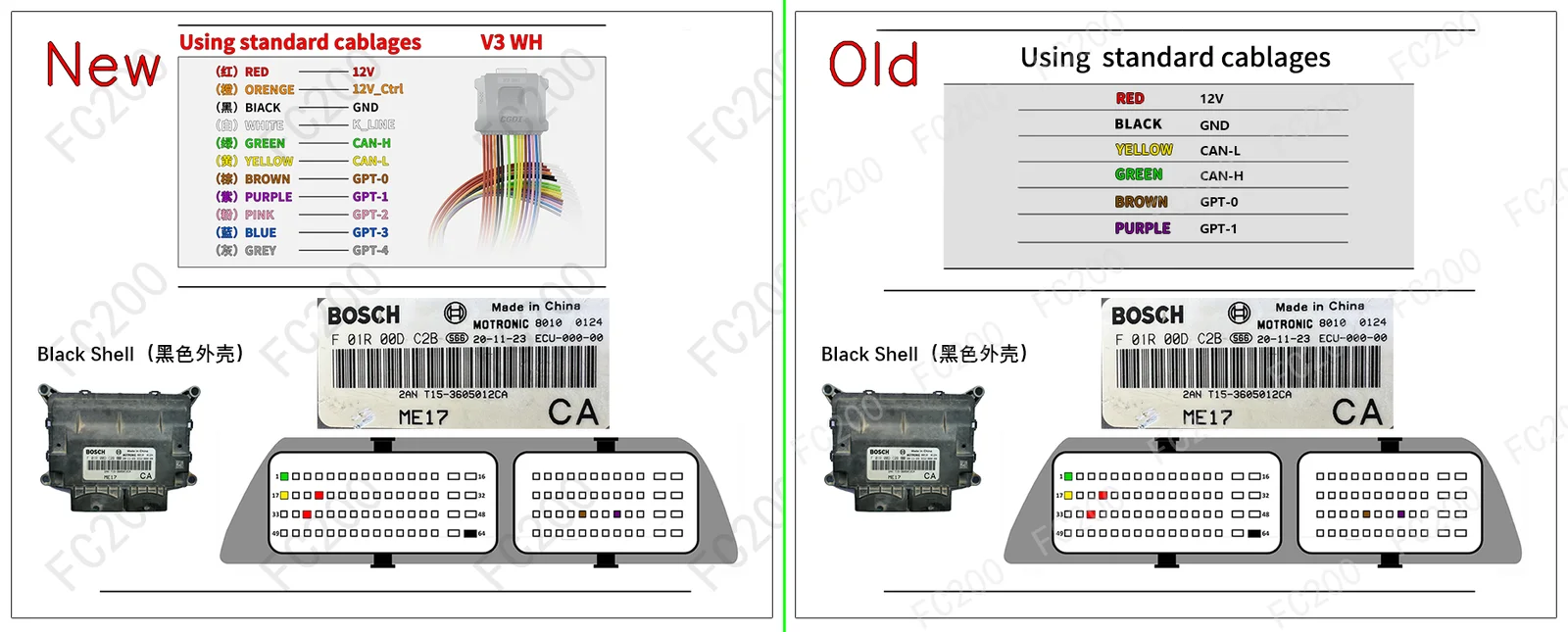

OFFICIAL PINOUT DIAGRAM: BOSCH ME17_Black TC1728.png (Platform / Bench)808,694 bytes
BOSCH ME17_Black TC1728.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU ME17.7 (13)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
McLaren MP4(12C) (3800 T • ) BOSCH ME17.7.8 (TC1797) Open Vehicle →
Mercedes-Benz S(W221) (400 Hybrid M272 299) BOSCH ME17.7 (TC1796) Open Vehicle →
Mercedes-Benz S(W221) (350 4MATIC M272 272) BOSCH ME17.7 (TC1796) Open Vehicle →
Mercedes-Benz S(W222) (65 V12 AMG M 279.870 630) BOSCH ME17.7.8 (TC1797) Open Vehicle →
Mercedes-Benz AMGS65 Final Edition (5980 M279 639) BOSCH ME17.7.8 (TC1797) Open Vehicle →
Renault Twingo(II) (898 90) BOSCH ME17.7.20 (TC1782) Open Vehicle →
Smart forfour(W453) (1499 M135E15 109) BOSCH ME17.7.20 (TC1782) Open Vehicle →
McLaren All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) BOSCH ME17.7.8 (TC1797) Open Vehicle →
Mercedes-Benz All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH ME17.7 (TC1796) Open Vehicle →
Mercedes-Benz All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) BOSCH ME17.7.8 (TC1797) Open Vehicle →
Renault All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) BOSCH ME17.7.20 (TC1782) Open Vehicle →
Smart All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, Recover VIN, CheckSum) BOSCH ME17.7.20 (TC1782) Open Vehicle →
Universal ECU Protocol Pryamoy protokol chteniya ECU na stole (Platform Bench Mode 2) (Direct Bench / Boot ECU Connector Pinout) BOSCH ME17.7 (TC1796) Open Vehicle →
