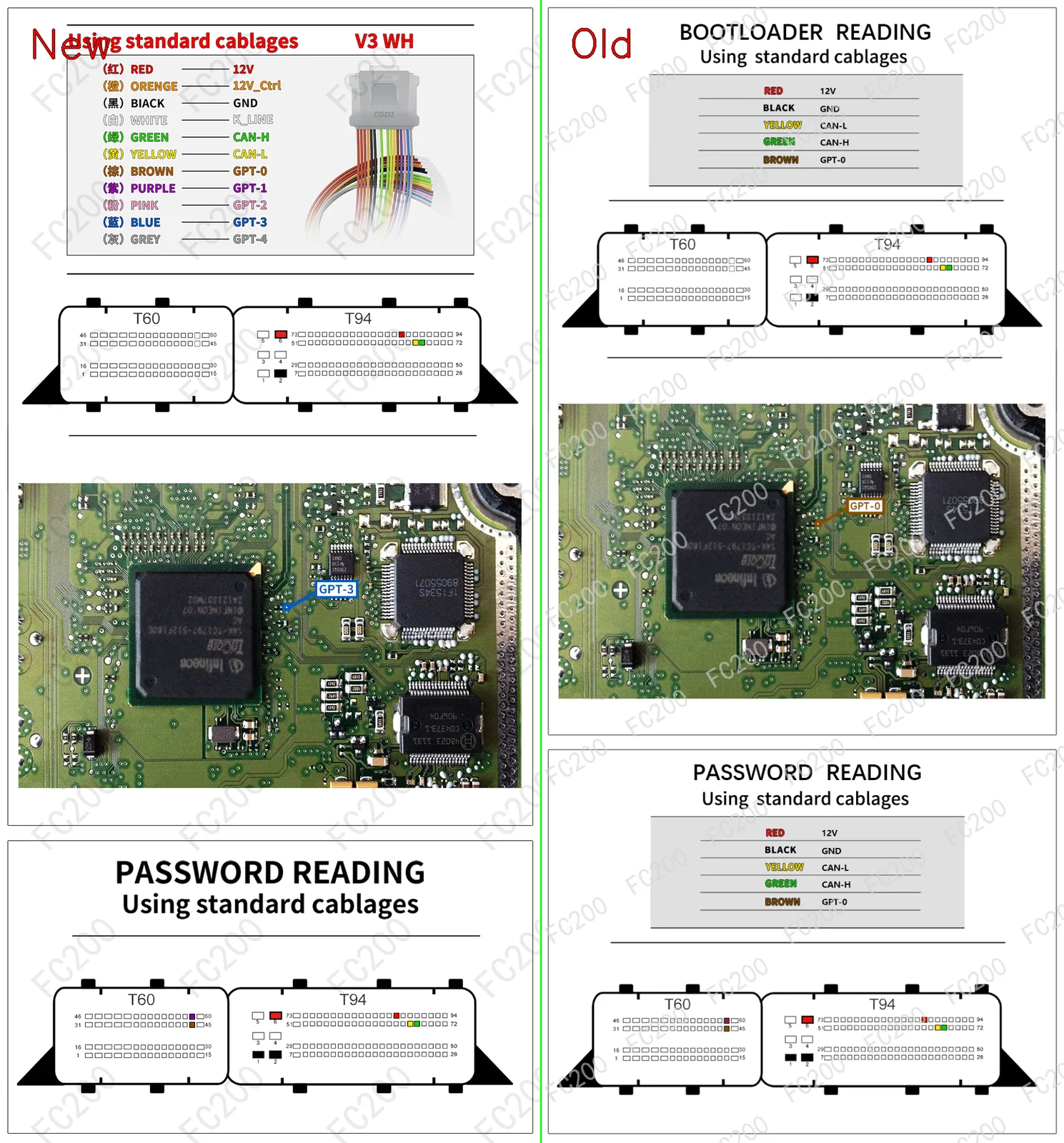

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.1.6 MASTER_SLAVE.png (Boot)3,329,207 bytes

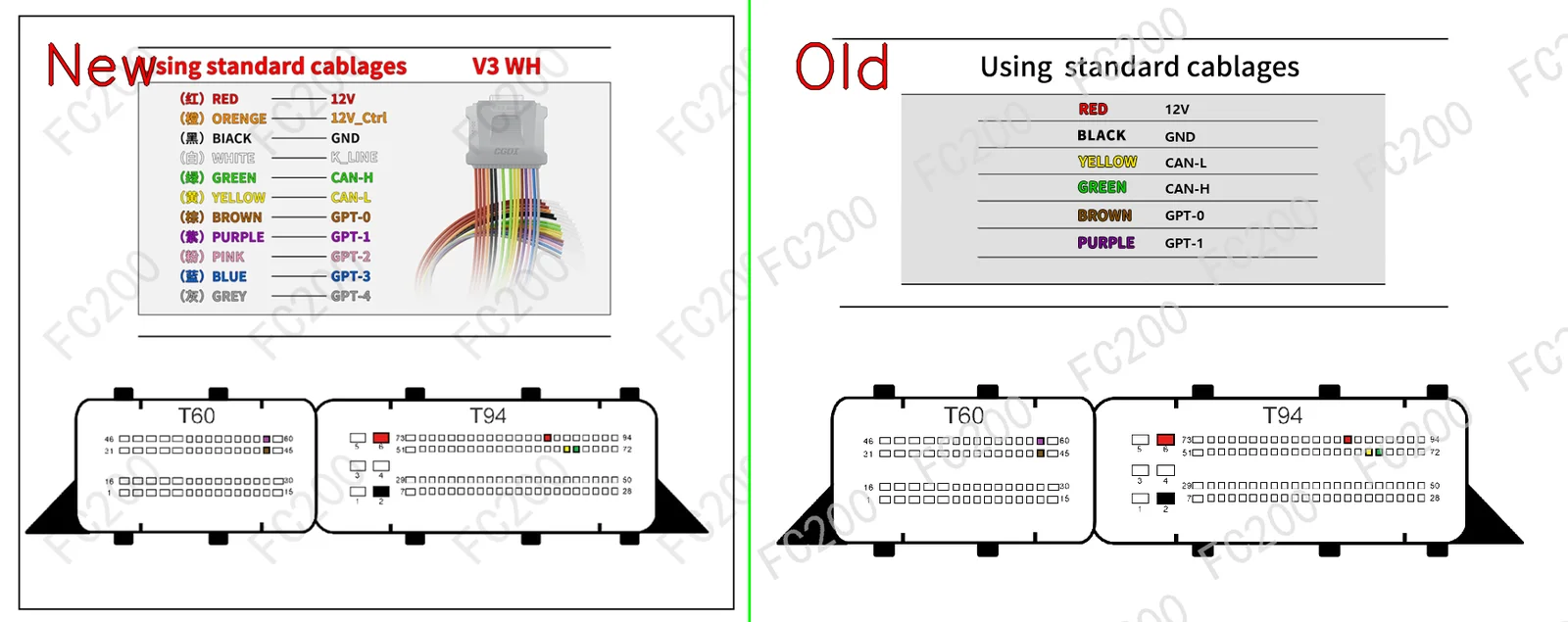

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.1.6 MASTER_SLAVE.png (Platform / Bench)441,874 bytes

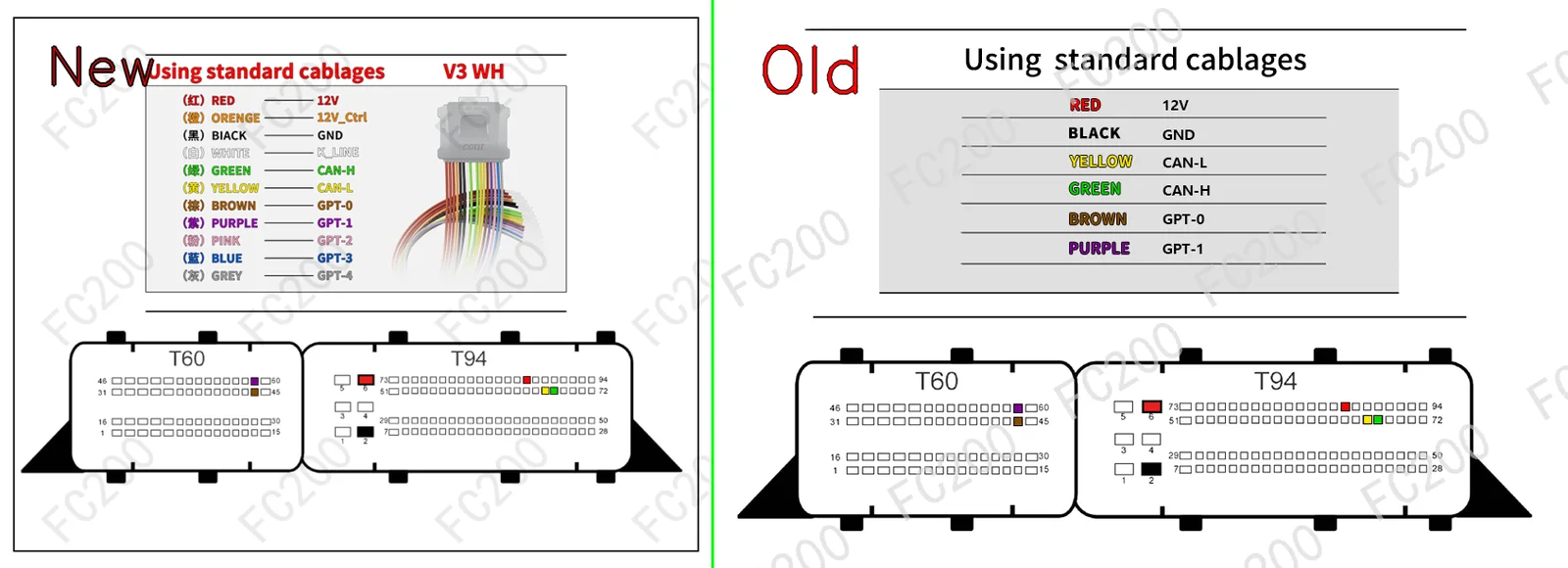

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.1.6 SLAVE.png (Platform / Bench)401,819 bytes

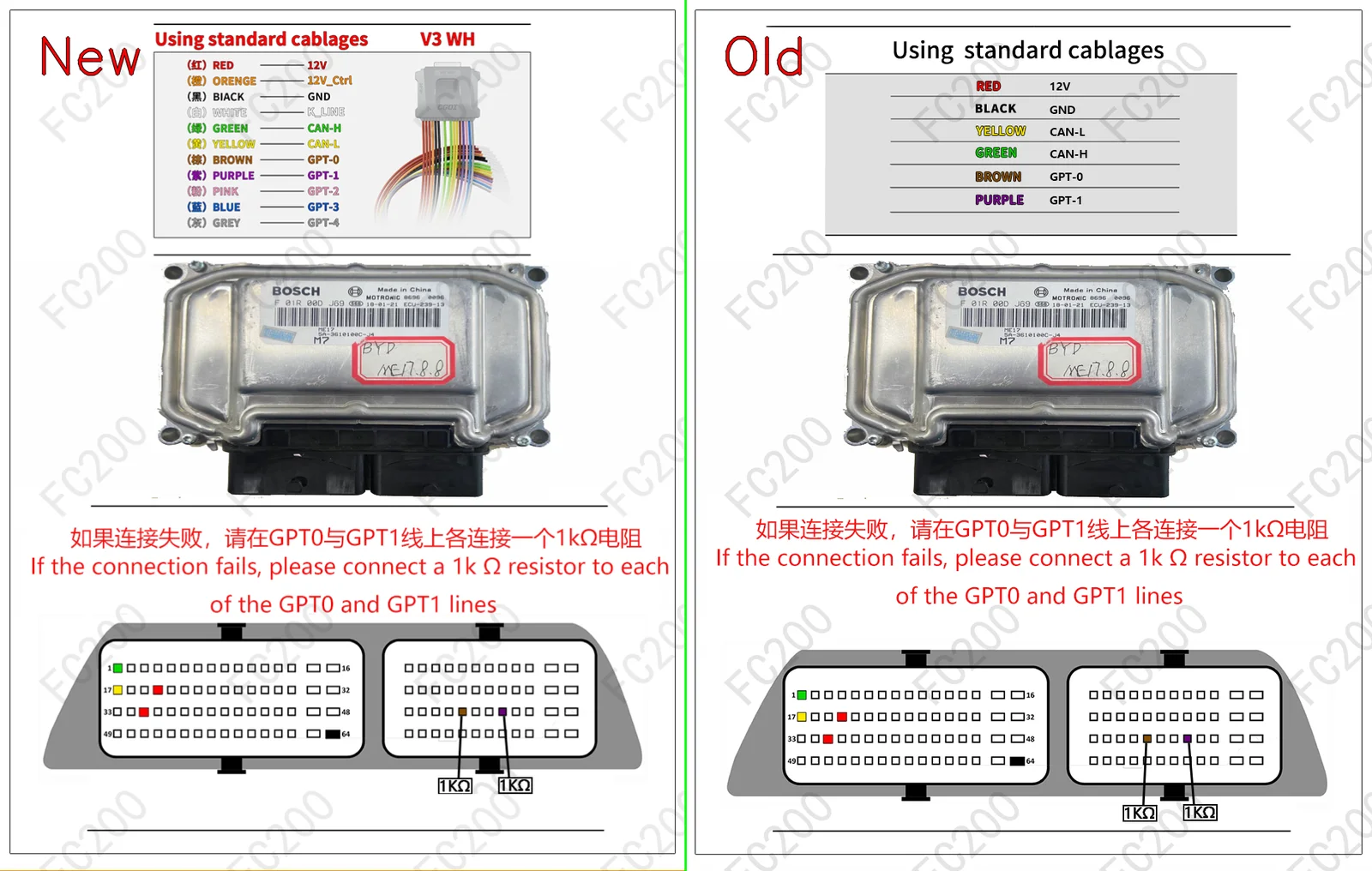

OFFICIAL PINOUT DIAGRAM: BOSCH ME17.8.8 Second TC1767.png (Platform / Bench)1,330,402 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU ME17.1.6 (7)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Bentley | Continental (6000 V12 TwinTurbo CKHB 590) | BOSCH ME17.1.6 MASTER_SLAVE (TC1797) |
Open Vehicle → |
| Bentley | Continental (6000 V12 TwinTurbo Flying Spur CKHB 590) | BOSCH ME17.1.6 MASTER_SLAVE (TC1797) |
Open Vehicle → |
| Bentley | Continental (6000 V12 TwinTurbo Speed GT • 625) | BOSCH ME17.1.6 MASTER_SLAVE (TC1797) |
Open Vehicle → |
| Bentley | Continental (6000 V12 TwinTurbo Speed GT • 635) | BOSCH ME17.1.6 MASTER_SLAVE (TC1797) |
Open Vehicle → |
| Bentley | Continental (6000 V12 TwinTurbo Speed GT • 642) | BOSCH ME17.1.6 MASTER_SLAVE (TC1797) |
Open Vehicle → |
| Bentley | Continental (6000 V12 TwinTurbo W12 GT • 590) | BOSCH ME17.1.6 MASTER_SLAVE (TC1797) |
Open Vehicle → |
| Bentley | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) | BOSCH ME17.1.6 MASTER_SLAVE (TC1797) |
Open Vehicle → |
