ECU Pinout ME17.0.3 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU ME17.0.3 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

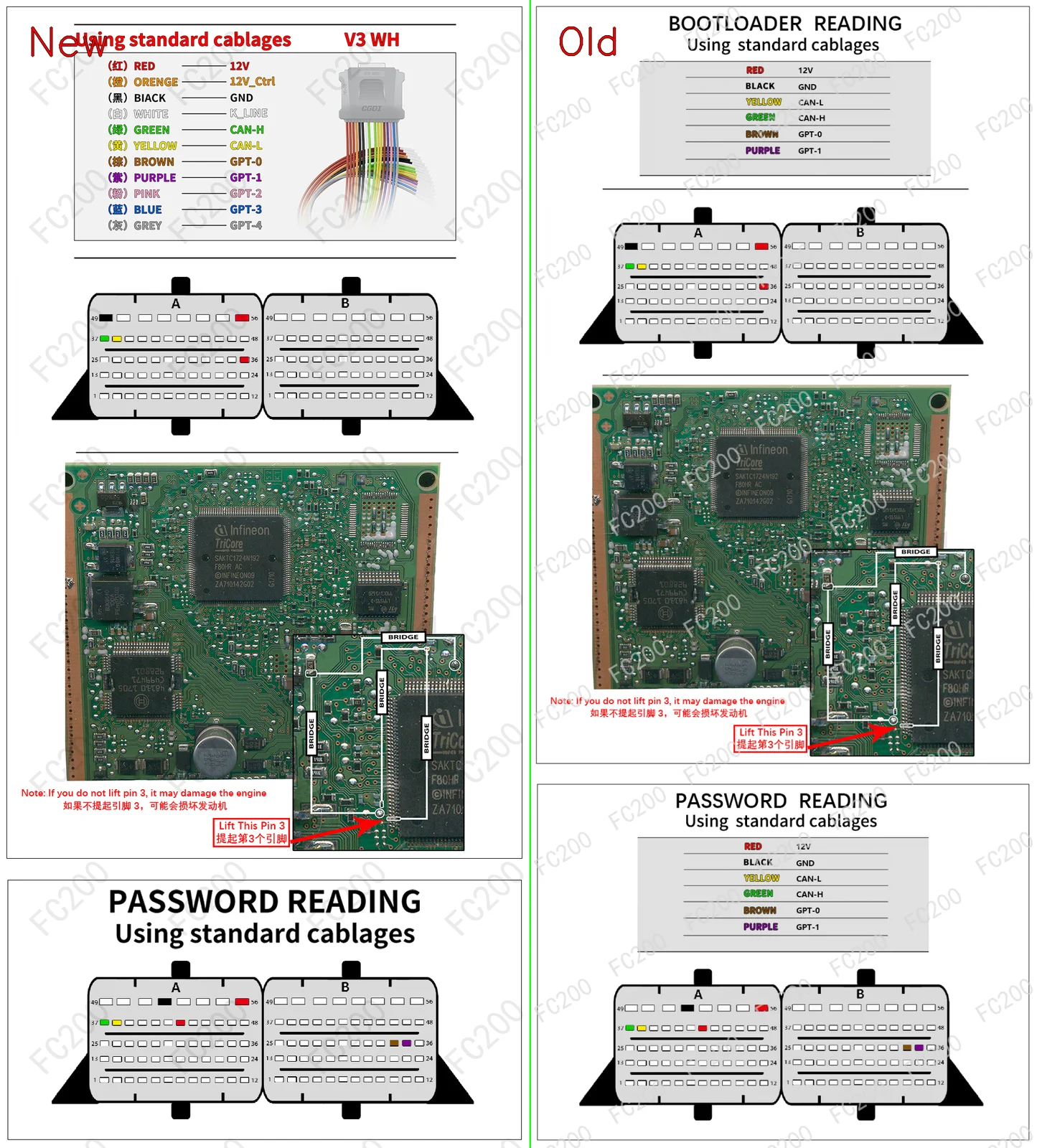

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.0.3.png (Boot)3,646,043 bytes
BOOT_BOSCH ME17.0.3.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.1.1 MASTER_SLAVE.png (Boot)3,481,890 bytes
BOOT_BOSCH ME17.1.1 MASTER_SLAVE.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.1.6 MASTER_SLAVE.png (Boot)3,329,207 bytes
BOOT_BOSCH ME17.1.6 MASTER_SLAVE.png

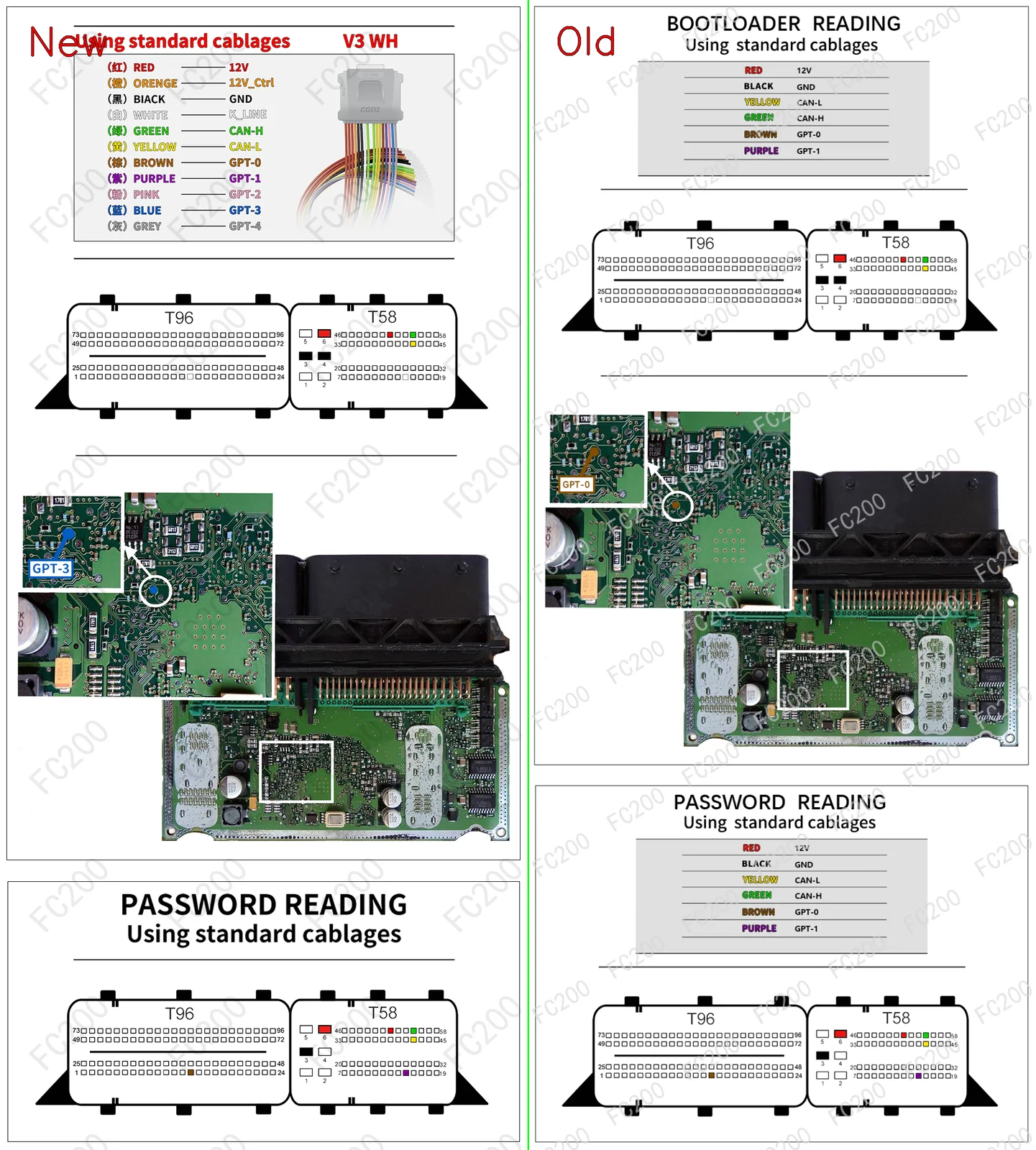

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.2 BMS-X.png (Boot)3,218,672 bytes
BOOT_BOSCH ME17.2 BMS-X.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.2.1.png (Boot)3,065,392 bytes
BOOT_BOSCH ME17.2.1.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.2.4.png (Boot)3,621,618 bytes
BOOT_BOSCH ME17.2.4.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.2.42.png (Boot)2,176,368 bytes
BOOT_BOSCH ME17.2.42.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.3.0.png (Boot)3,877,188 bytes
BOOT_BOSCH ME17.3.0.png

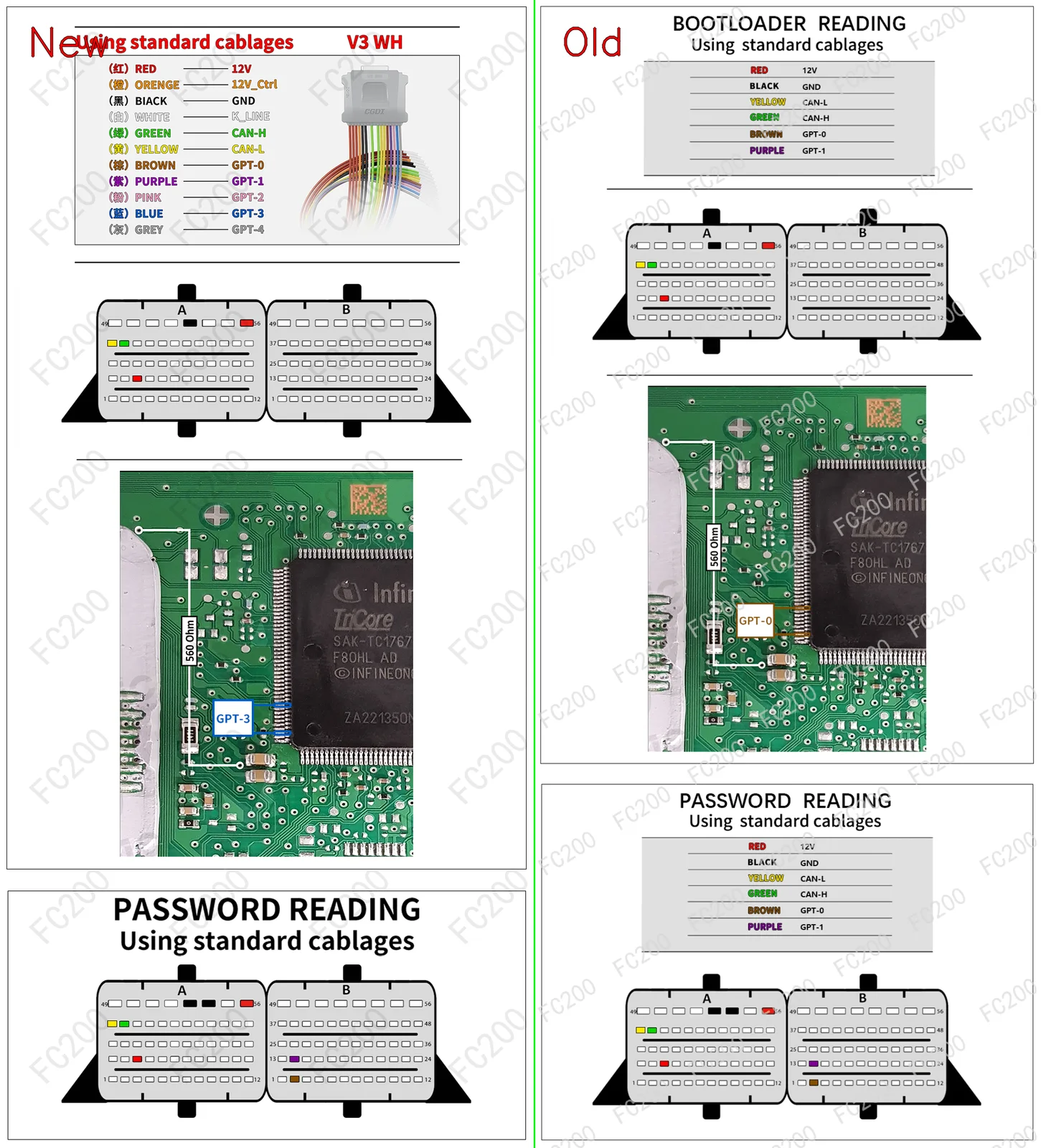

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.5.20.png (Boot)3,035,425 bytes
BOOT_BOSCH ME17.5.20.png

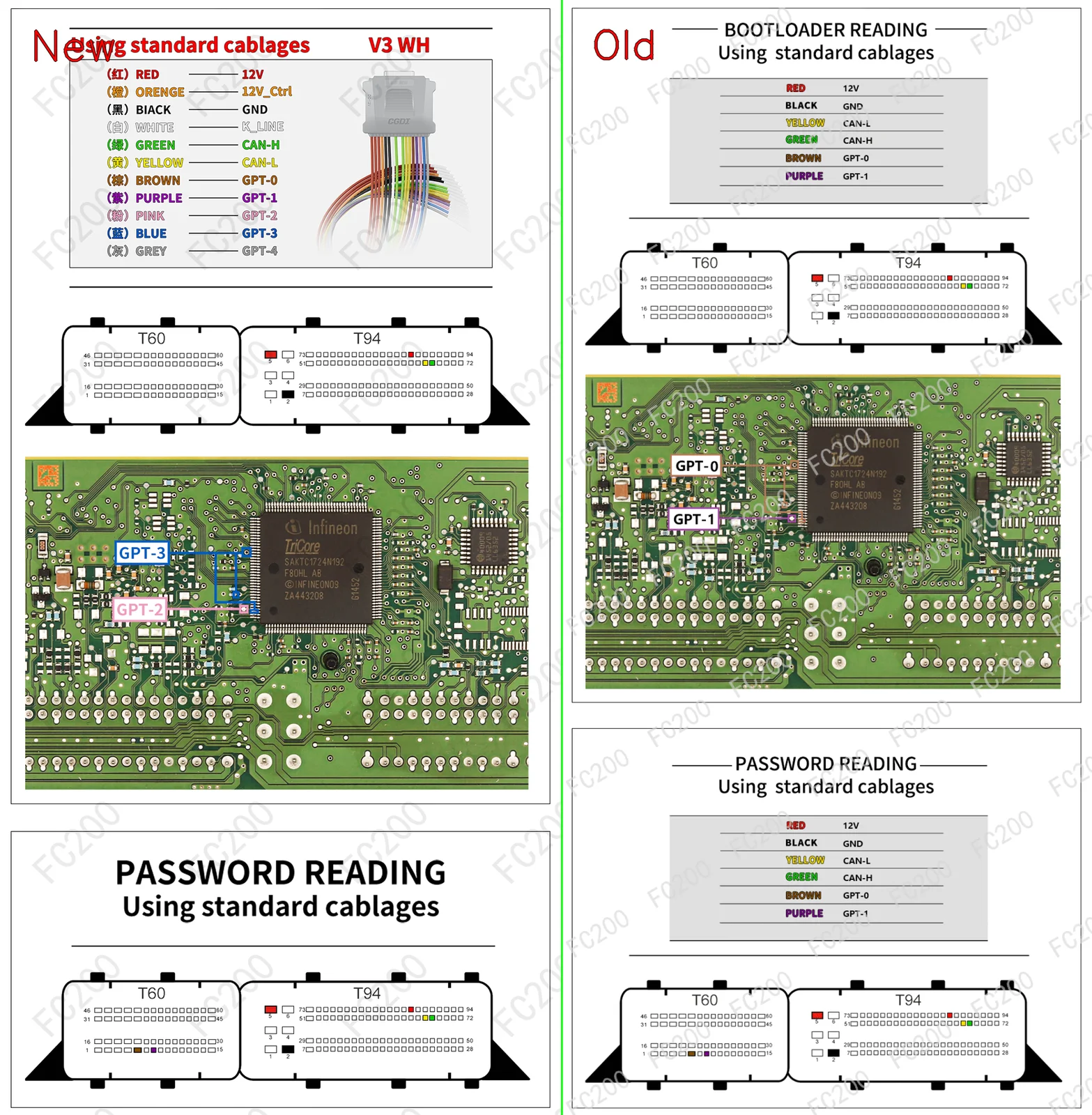

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.5.22.png (Boot)2,998,370 bytes
BOOT_BOSCH ME17.5.22.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.5.24.png (Boot)3,715,951 bytes
BOOT_BOSCH ME17.5.24.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.5.26.png (Boot)4,132,533 bytes
BOOT_BOSCH ME17.5.26.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.5.6.png (Boot)3,698,697 bytes
BOOT_BOSCH ME17.5.6.png

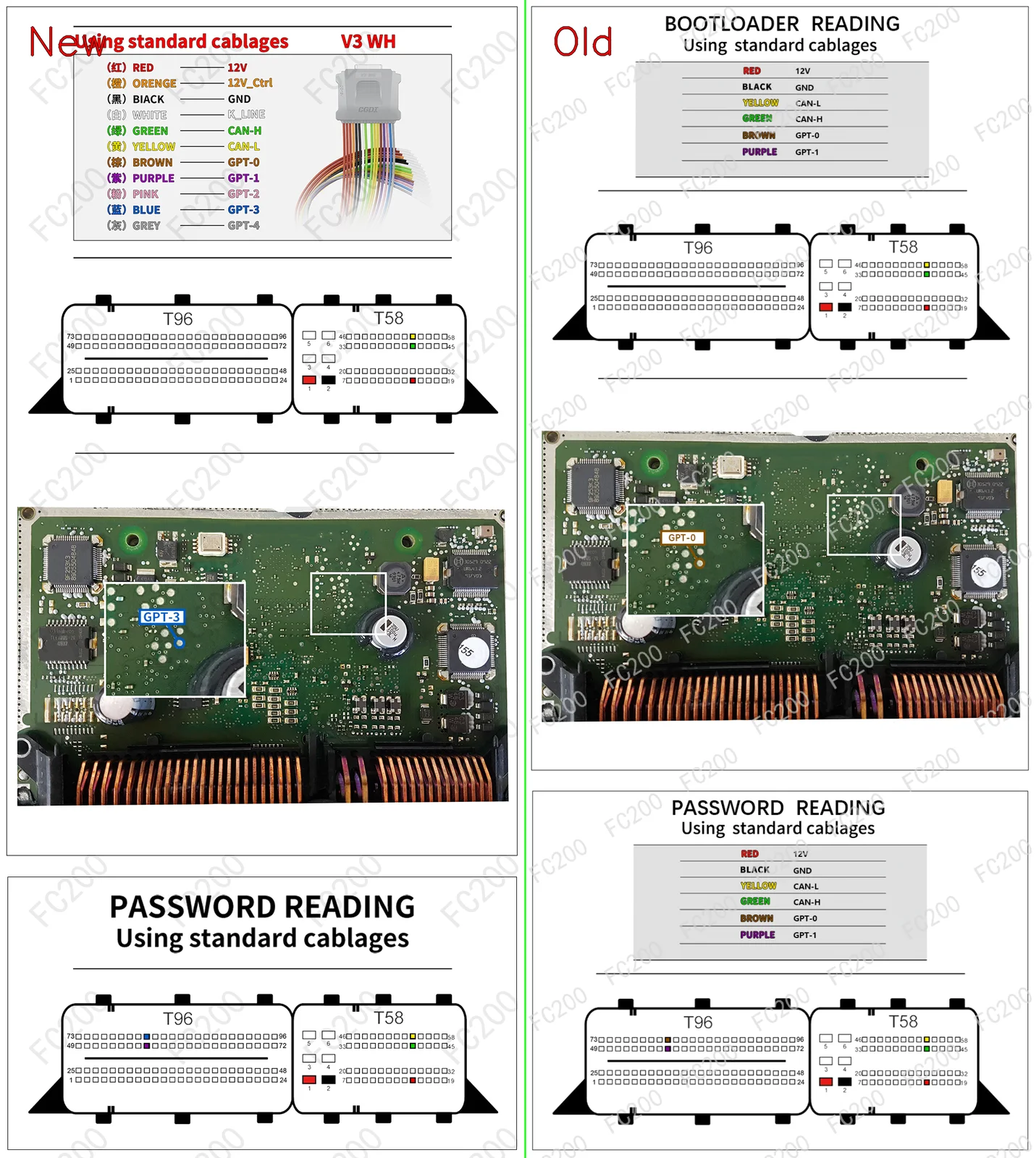

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.7.png (Boot)3,563,520 bytes
BOOT_BOSCH ME17.7.png

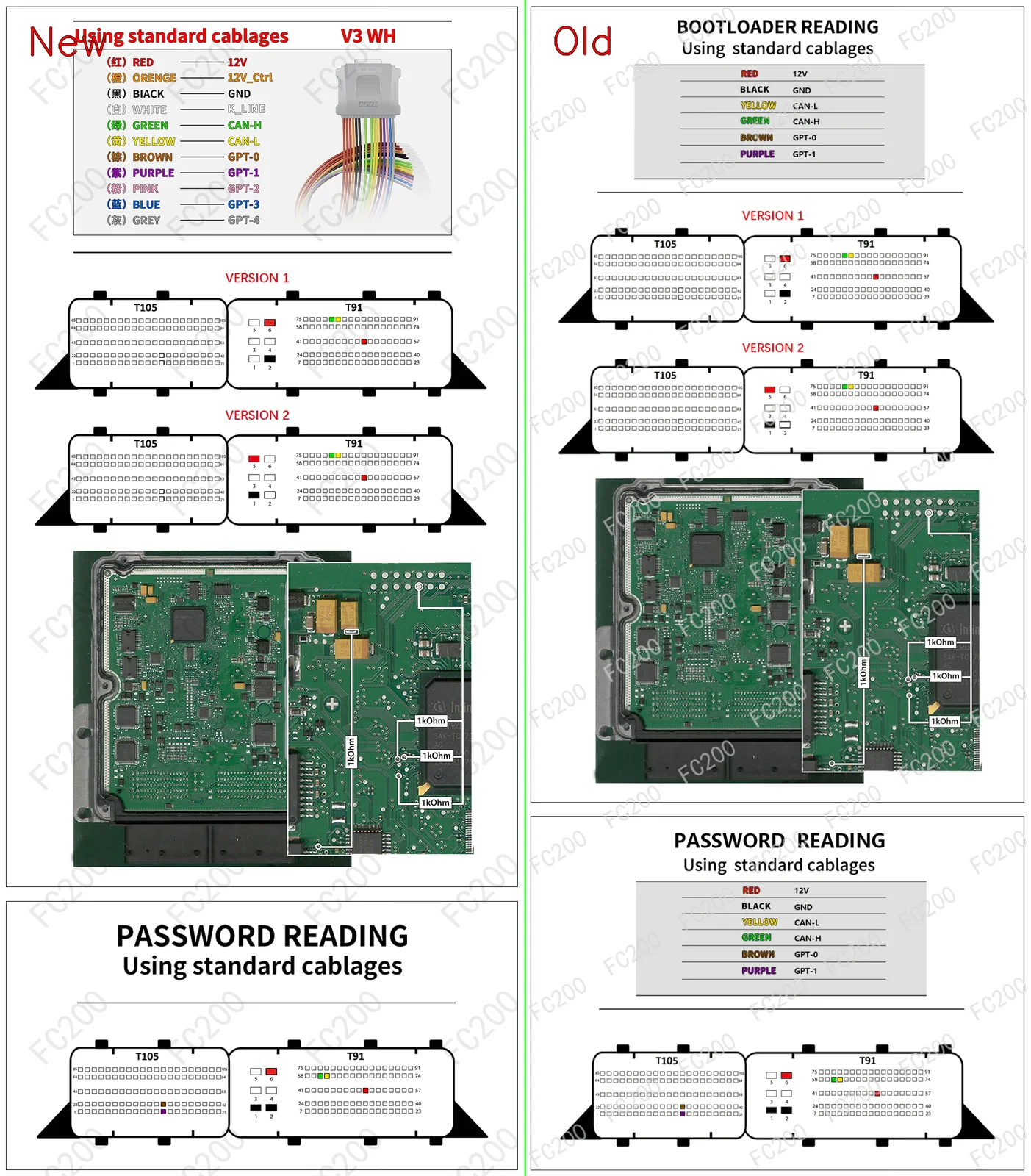

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.8.31.png (Boot)3,366,085 bytes
BOOT_BOSCH ME17.8.31.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.8.32.png (Boot)3,528,920 bytes
BOOT_BOSCH ME17.8.32.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.8.5.png (Boot)2,722,760 bytes
BOOT_BOSCH ME17.8.5.png
OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.8.5_.png (Boot)2,834,143 bytes
BOOT_BOSCH ME17.8.5_.png

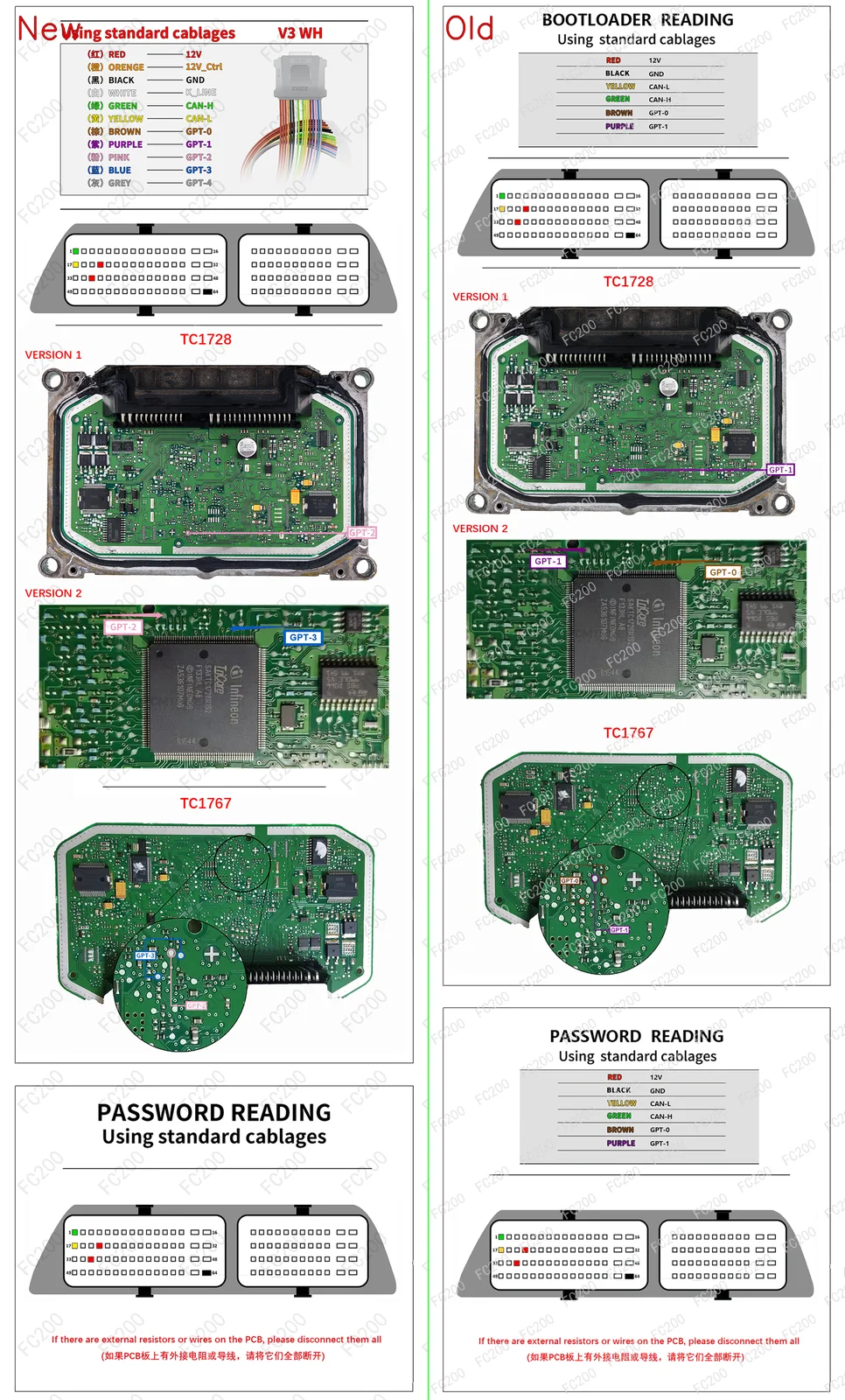

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.8.8.png (Boot)12,330,525 bytes
BOOT_BOSCH ME17.8.8.png

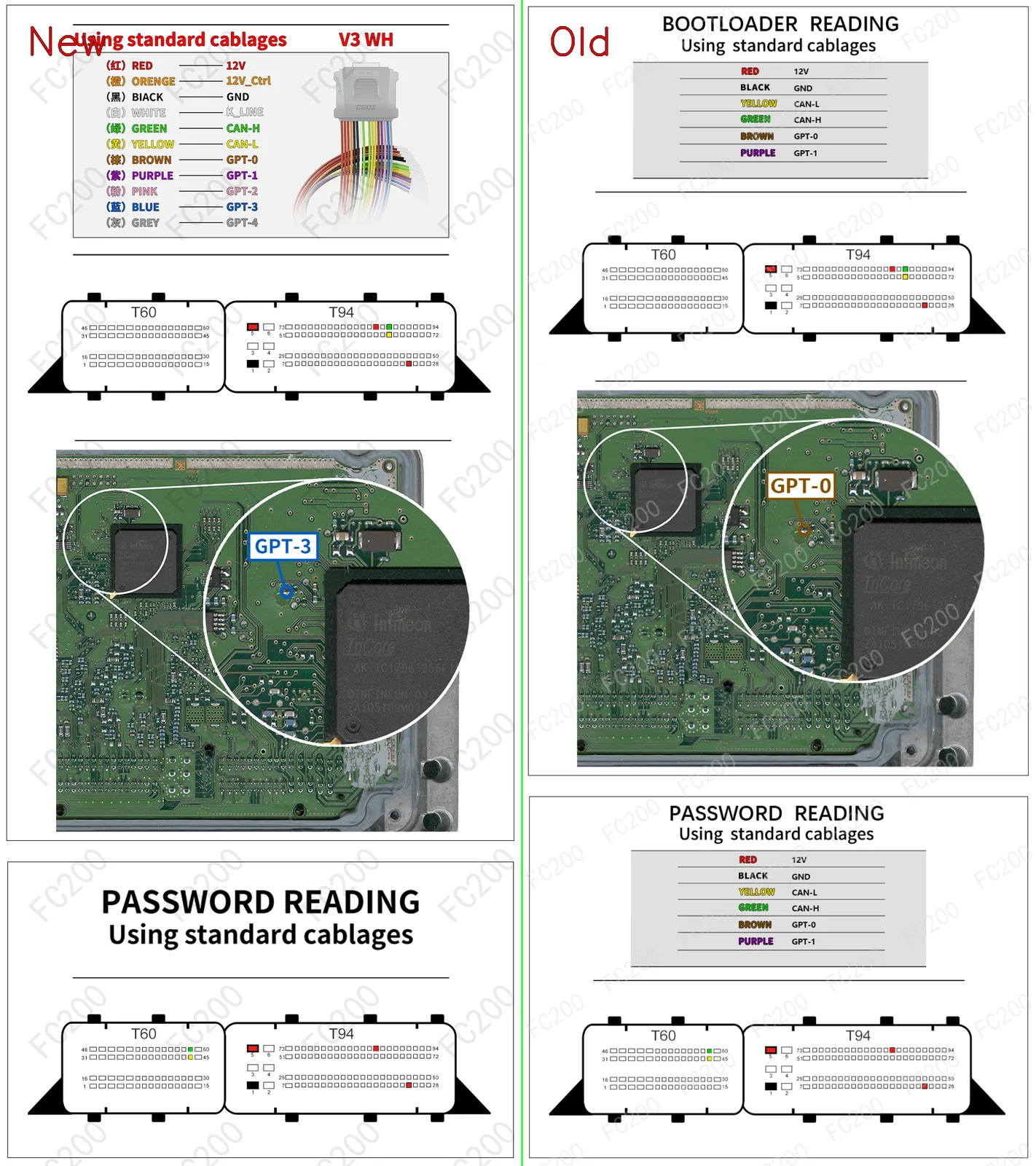

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH ME17.9.1.png (Boot)3,363,433 bytes
BOOT_BOSCH ME17.9.1.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU ME17.0.3 (4)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Ford Fiesta(JHH) (1100 Ti-VCT XYJB 86) BOSCH ME17.0.3 (TC1724) Open Vehicle →
Ford Fiesta(JHH) (1100 Ti-VCT XYJC 86) BOSCH ME17.0.3 (TC1724) Open Vehicle →
Ford Ka+(III) (1198 EV2 69) BOSCH ME17.0.3 (TC1724) Open Vehicle →
Ford All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH ME17.0.3 (TC1724) Open Vehicle →
