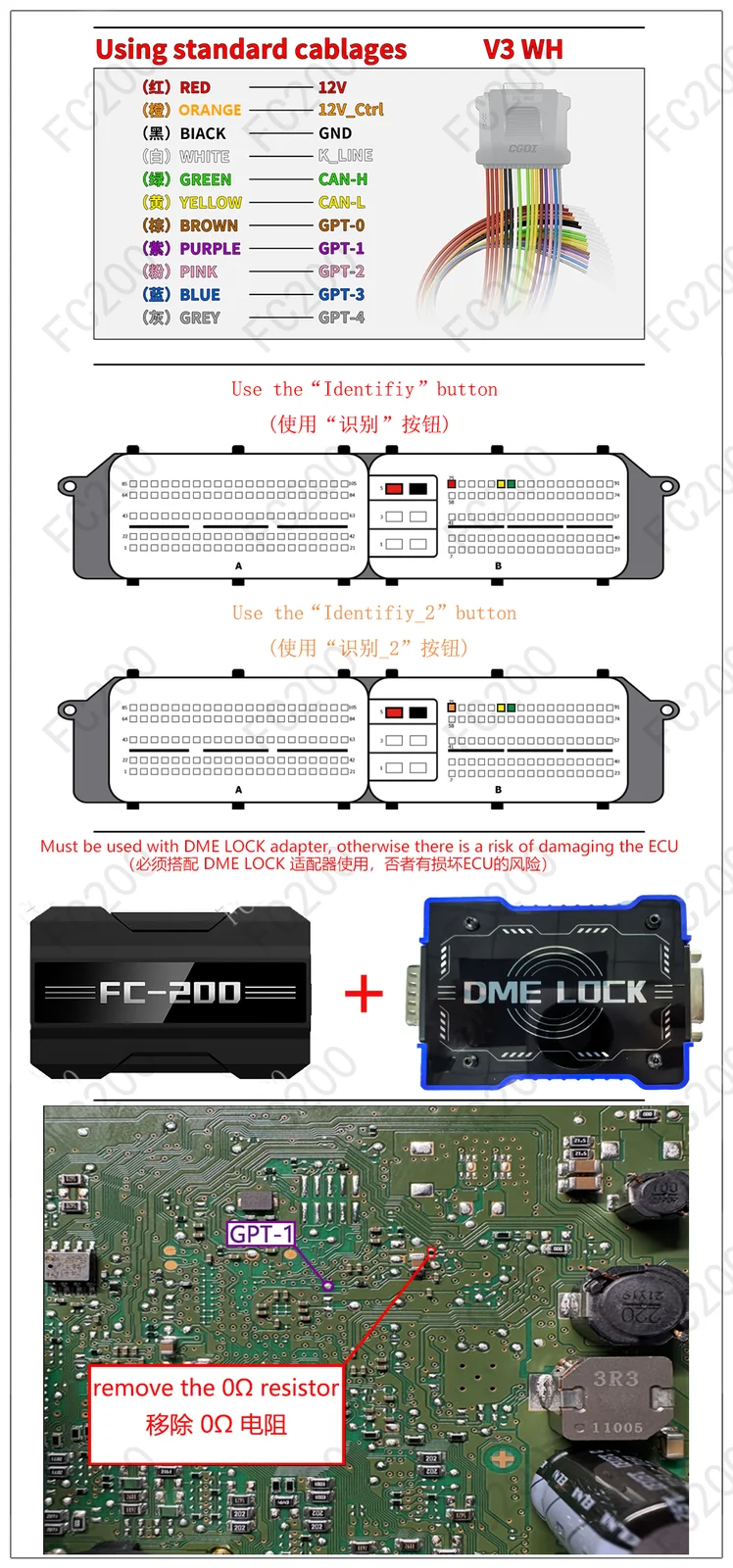

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MD1CS069.png (Locked Boot/Bench)1,550,681 bytes

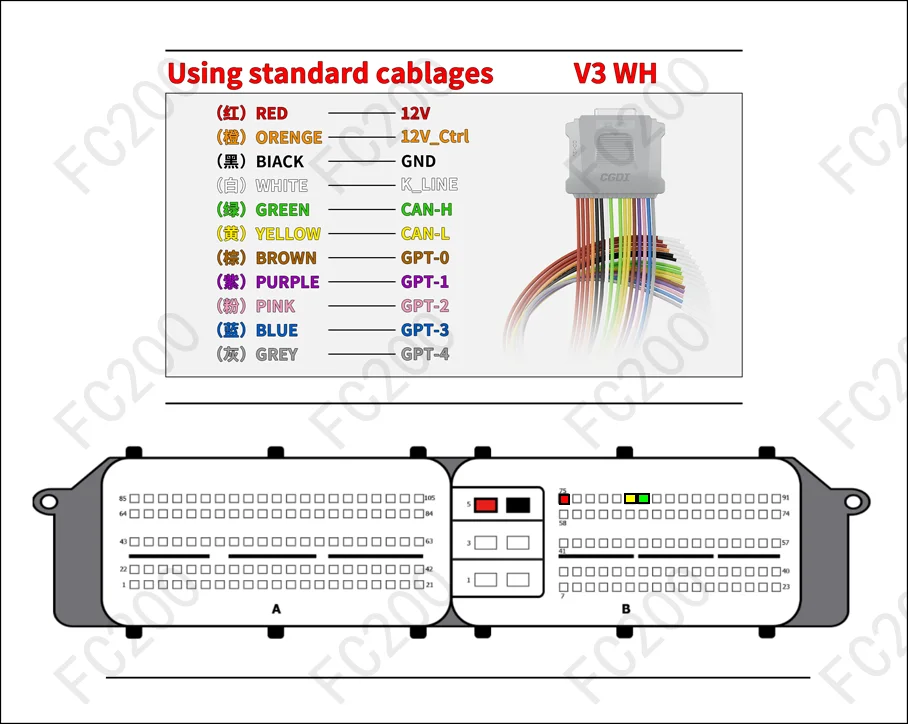

OFFICIAL PINOUT DIAGRAM: Locked_Bench BOSCH MD1CS069.png (Locked Boot/Bench)206,715 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CS069 (24)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Case IH | Farmall A Series55A (2900 55A 56) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Fiat | Ducato(V) (2184 F1A 120) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Fiat | Ducato(V) (2184 F1A 140) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Fiat | Ducato(V) (2184 F1A 180) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Iveco | Daily(IV) (2998 F1AE0481M 179) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Iveco | Daily(IV) (2998 F1CFL4117 179) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Iveco | Daily(IV) (2287 F1AGL411B 136) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| John Deere | 5G Series(5075G) (3400 F34 76) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| John Deere | 5G Series(5090G) (3600 F36 91) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| John Deere | 5G Series(5105G) (3600 F36 105) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| John Deere | 5G Series(5115G) (3600 F36 116) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Landini Tractors | 5-Series(085) (3400 F34 75) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Landini Tractors | 5-Series075 (3400 - 75) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Landini Tractors | 5-Series(100) (3600 F36 95) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Landini Tractors | 5-Series(110) (3600 F36 102) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Landini Tractors | 5-Series(120) (3600 F36 114) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Landini Tractors | 6 Series135H (3600 - 126) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Landini Tractors | 6 Series125H (3600 - 120) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Massey Ferguson | MF 3xx(I) (3600 F36 86) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Massey Ferguson | MF 3xx(I) (3600 F36 97) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Massey Ferguson | MF 3xx(I) (3600 F34 75) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| Massey Ferguson | MF 3xx(I) (3600 F36 105) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| McCormick | X5.085(I) (3400 F34 75) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
| McCormick | X5.100(I) (3600 F36 95) | Locked_BOSCH MD1CS069 TC299 (test) |
Open Vehicle → |
