ECU Pinout MD1CS014 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MD1CS014 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

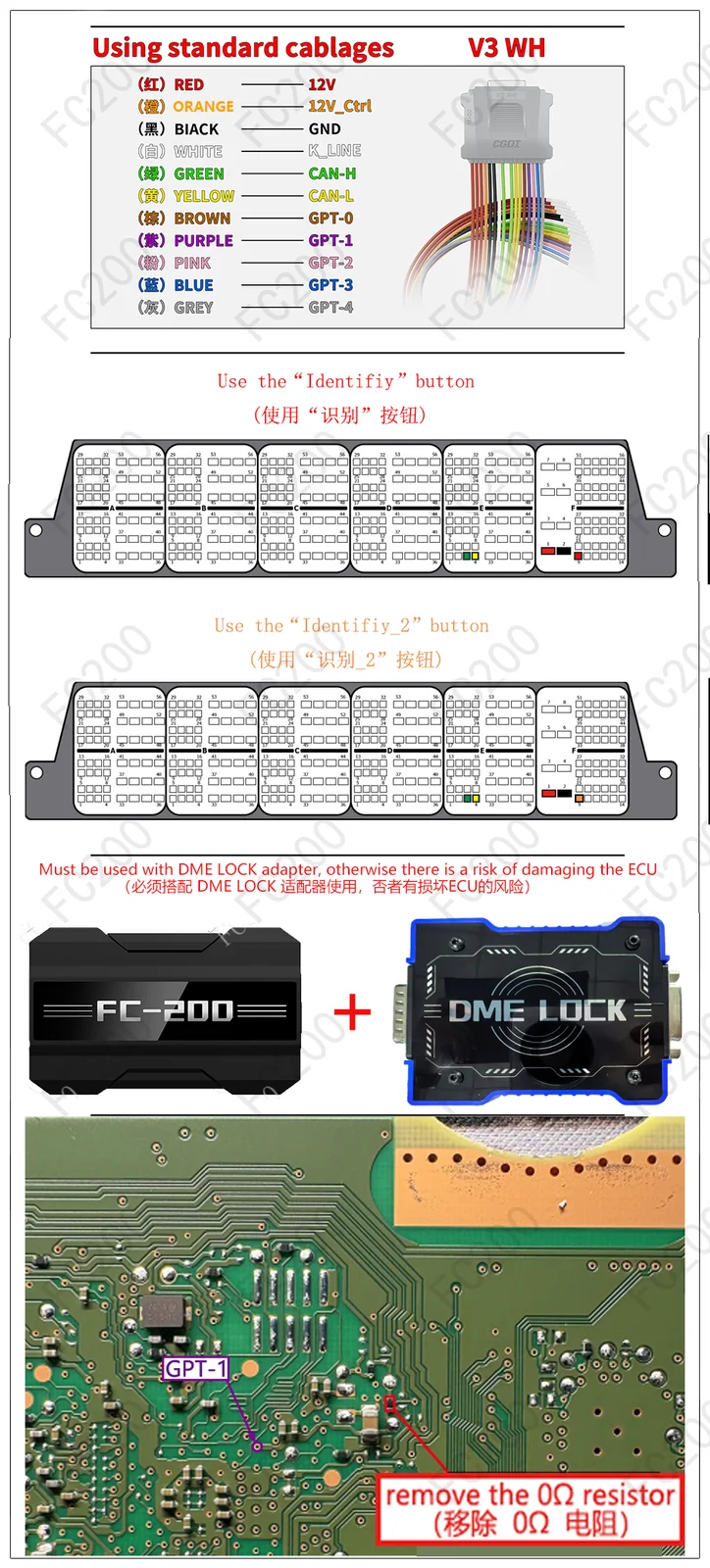

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MD1CS014.png (Locked Boot/Bench)1,509,287 bytes
Locked_BOSCH MD1CS014.png

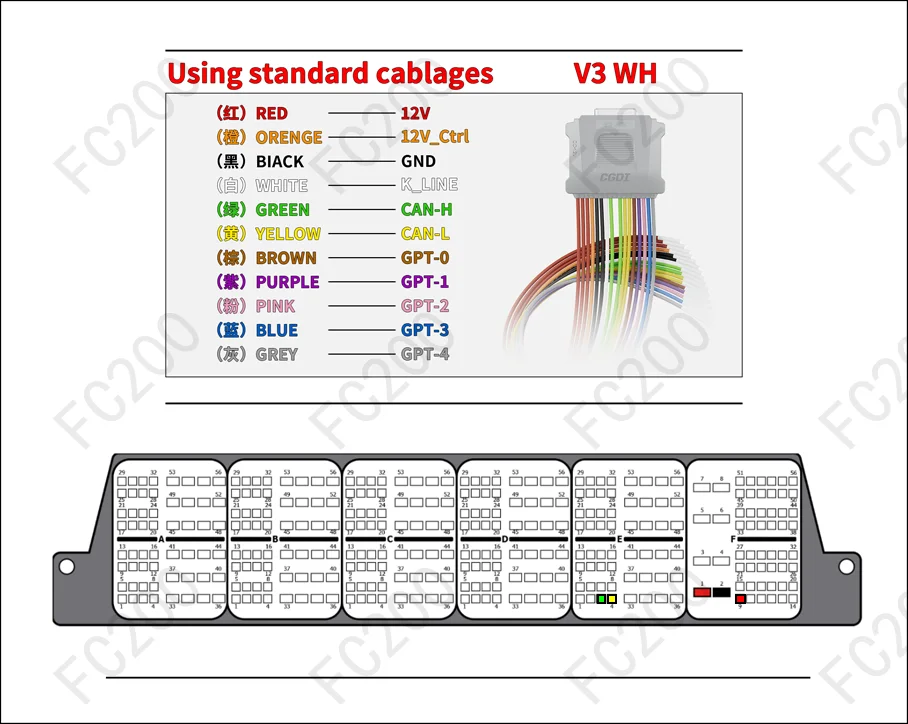

OFFICIAL PINOUT DIAGRAM: Locked_Bench BOSCH MD1CS014.png (Locked Boot/Bench)241,422 bytes
Locked_Bench BOSCH MD1CS014.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CS014 (21)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Audi A4(V) B9 (2967 DCPE 231) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi A4(V) B9 (2967 DHXA 286) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi A5(II) F5 (2967 DCPE 231) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi A5(II) F5 (2967 DHXA 286) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi A6(V) C8 (2967 DMGH 245) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi A6(V) C8 (2967 DPXA 286) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi A7(II) C8 (2967 DPXA 286) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi A7(II) C8 (2967 DPXB 231) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi A7(II) C8 (2967 DMGH 245) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi Q5(II) FY (2967 DPXA 286) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi Q7(II) 4M (2967 DPXA 286) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi Q7(II) 4M (2967 DPXB 231) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi Q8(I) 4M (2967 DPXA 286) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi Q8(I) 4M (2967 DPXB 231) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi S5(II) F5 (2967 DMKC 341) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi S6(V) C8 (2967 DKMD 344) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi S7(II) C8 (2967 DKMD 344) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi SQ5(II) FY (2967 DMKC 341) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Audi All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum,Unlock) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 na stole (DME Unlock Bench) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 so vskrytiem (DME Unlock Boot) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CS014 TC299 (test) Open Vehicle →
