ECU Pinout MD1CS012 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MD1CS012 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

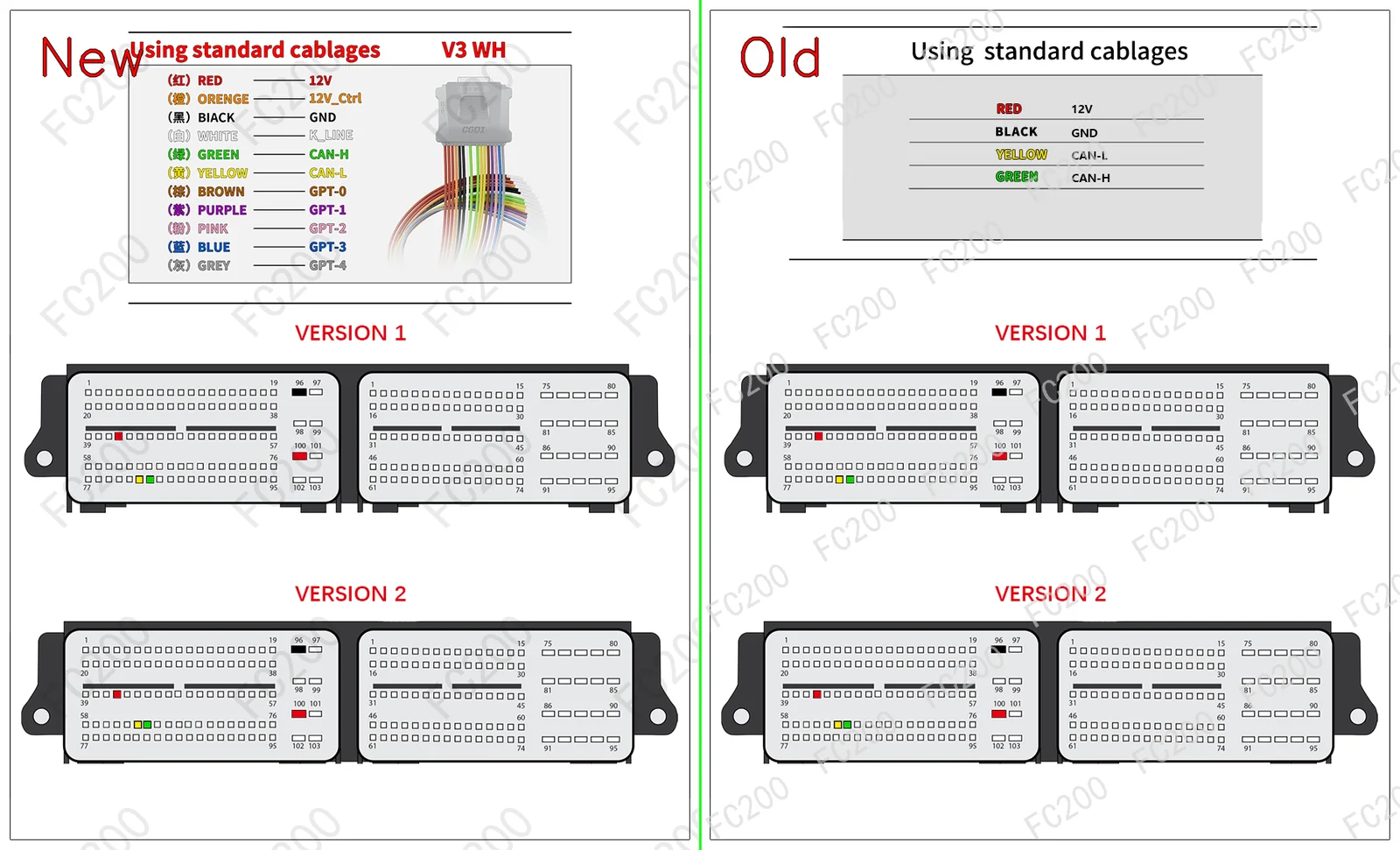

OFFICIAL PINOUT DIAGRAM: BOSCH MD1CS012.png (Platform / Bench)926,647 bytes
BOSCH MD1CS012.png

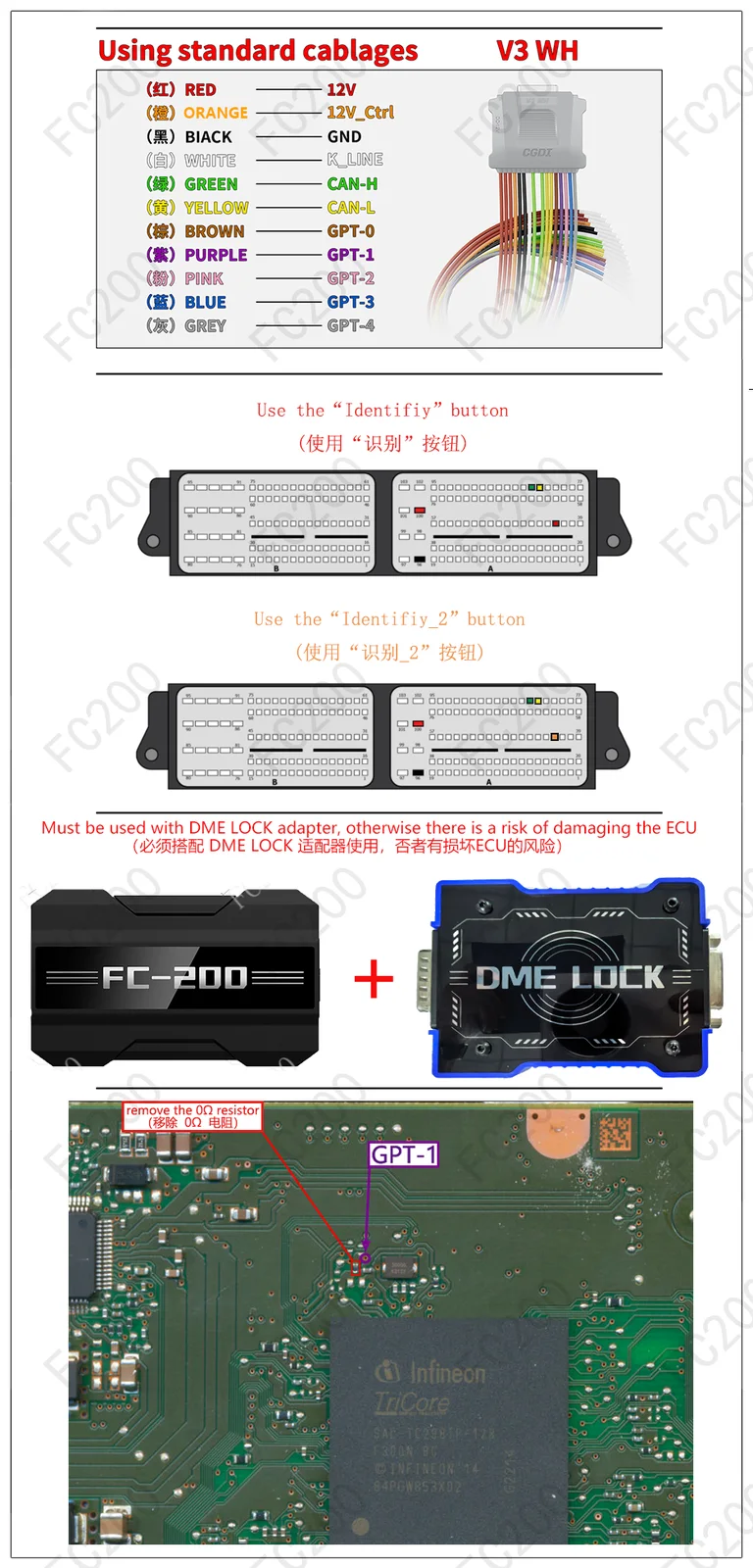

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MD1CS012.png (Locked Boot/Bench)1,276,442 bytes
Locked_BOSCH MD1CS012.png

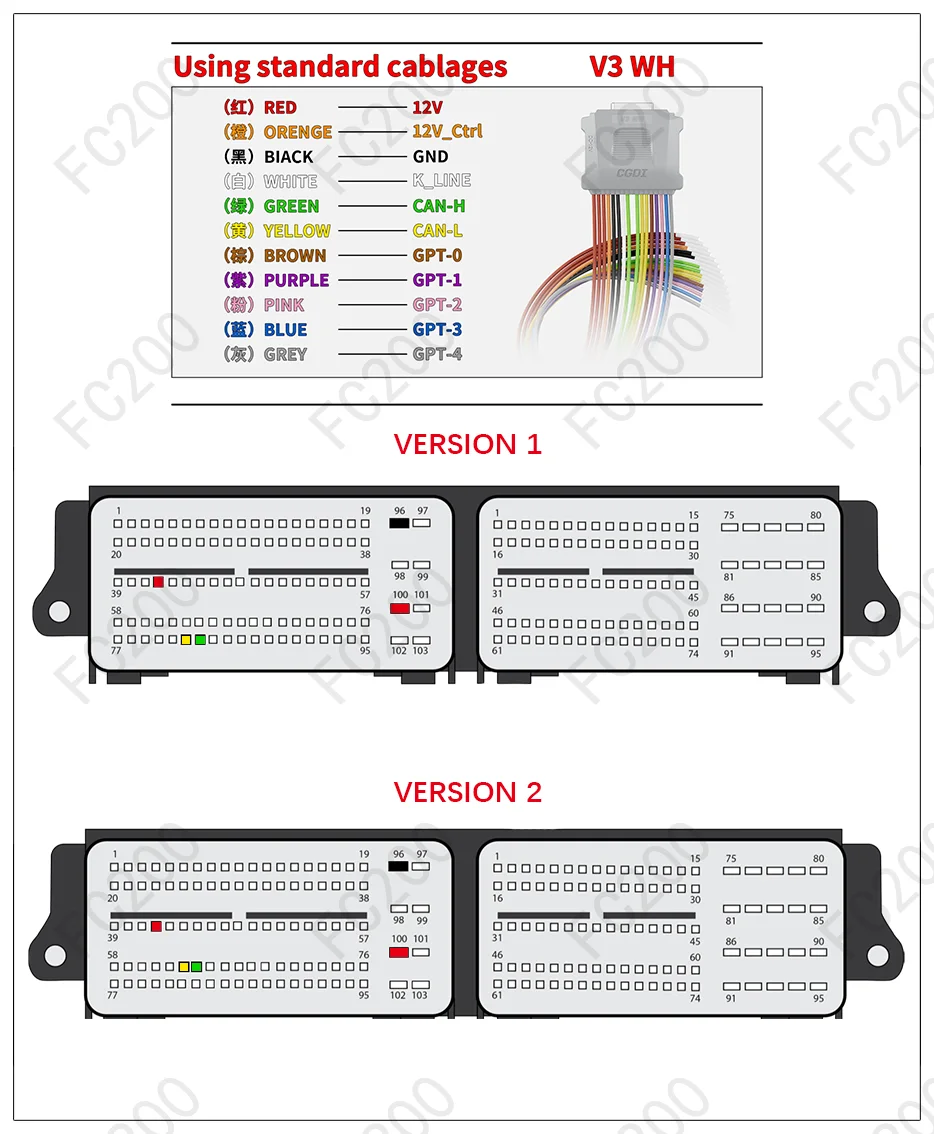

OFFICIAL PINOUT DIAGRAM: Locked_Bench BOSCH MD1CS012.png (Locked Boot/Bench)326,014 bytes
Locked_Bench BOSCH MD1CS012.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CS012 (23)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Genesis G70CRDI (2200 • 205) BOSCH MD1CS012 (TC298TP) Open Vehicle →
Genesis G70(I) IK (2199 D4HC 202) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Genesis G80(II) RG3 (2151 D4HF 209) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Genesis GV70(I) JK1 (2151 D4HF 209) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Genesis GV80(I) JX1 (2996 D6JA 273) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Hyundai GV80 (3000 e-VGT 273) BOSCH MD1CS012 (TC298TP) Open Vehicle →
Hyundai porter2 (2000 0 131) BOSCH MD1CS012 (TC298TP) Open Vehicle →
Hyundai Palisade(I) LX2 (2199 D4HB 193) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Hyundai Palisade(I) LX2 (2199 D4HB 204) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Hyundai Starex(II) (2497 D4CB 172) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Hyundai Staria(I) US4 (2199 D4HB 177) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Kia New Bongo3 (2500 A 170) BOSCH MD1CS012 (TC298TP) Open Vehicle →
Kia New Bongo(I) (2497 D4CB 131) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Kia Sorento(IV) MQ4 (2151 D4HE 203) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Kia Tasman(I) TK (2151 D4HF 209) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Genesis All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum, Unlock) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Genesis All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MD1CS012 (TC298TP) Open Vehicle →
Hyundai All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum, Unlock) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Hyundai All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MD1CS012 (TC298TP) Open Vehicle →
Kia All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum, Unlock) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Kia All Brand Models (Direct ECU Label Lookup) (Read/Write EEPROM/FLASH, CheckSum) BOSCH MD1CS012 (TC298TP) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 na stole (DME Unlock Bench) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 so vskrytiem (DME Unlock Boot) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CS012 TC298 (test) Open Vehicle →
