ECU Pinout MD1CP032 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MD1CP032 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

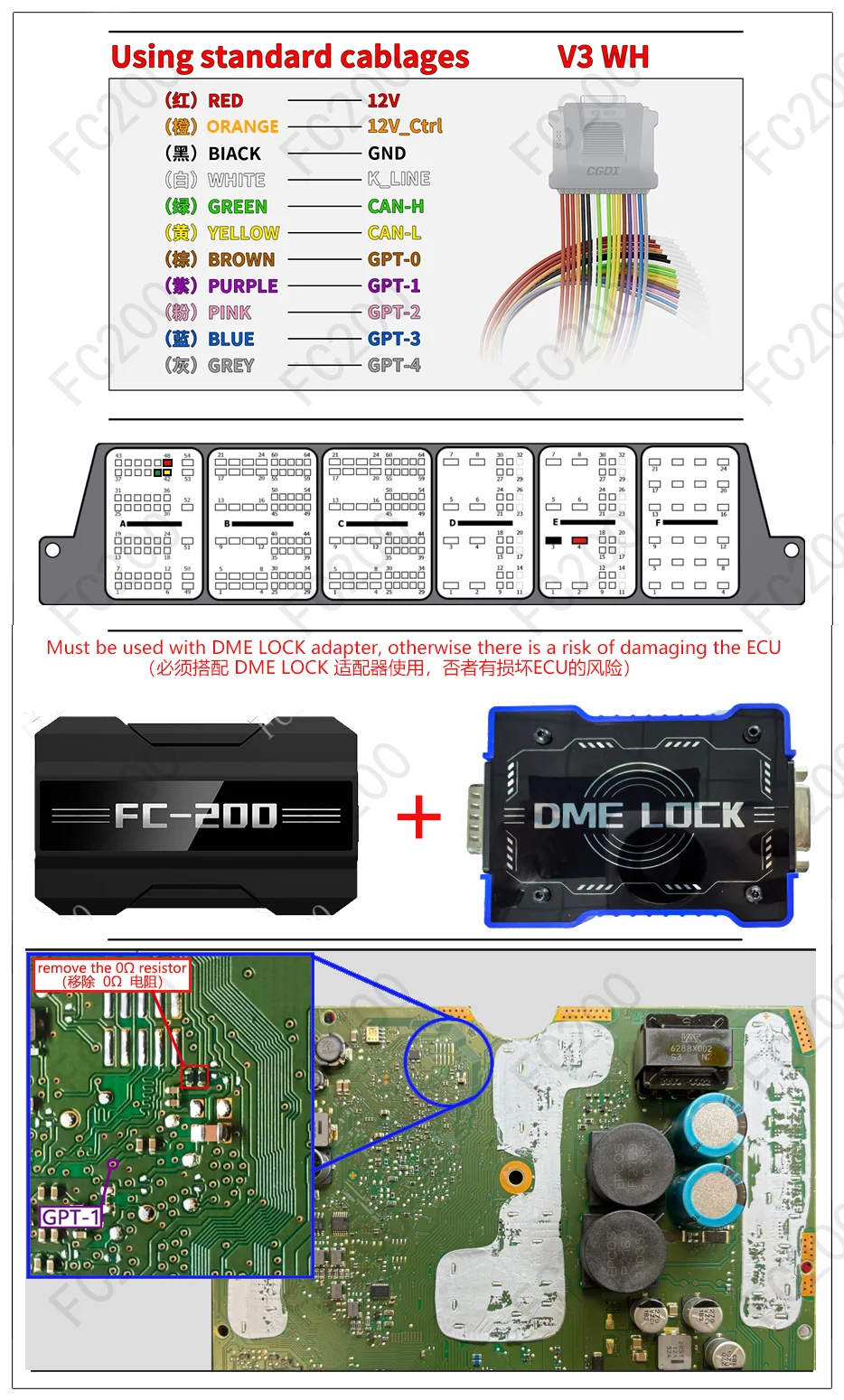

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MD1CP032.png (Locked Boot/Bench)1,292,232 bytes
Locked_BOSCH MD1CP032.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CP032 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Alpina XD3(II) G01 (2993 B57D30 387) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
Alpina XD4(I) (2993 B57D30 387) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW 3-Series(G20/G21) (2993 B57D30O2 286) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW 3-Series(G20/G21) (2993 B57D30T2 340) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW 4-Series(G22/G23) (2993 B57D30 345) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW 4-Series(G22/G23) (2993 B57D30 231) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW 5-Series(G30/G31) (2993 B57D30M0 286) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW 5-Series(G31) (2993 B57D30 340) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW 6-Series GT(G32) (2993 B57D30 286) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW 6-Series GT(G32) (2993 B57D30 340) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW 8-Series(G14/G15/G16) (2993 B57D30 340) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X1-Series(F48) (1995 B47C20B 231) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X2-Series(I) F39 (1995 B47C20 231) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X3-Series(III) G01 (2993 B47D20A 286) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X3-Series(III) G01 (1995 B47C20 231) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X4-Series(II) G02 (1995 B47D20 231) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X4-Series(II) G02 (2993 B57D30B 340) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X4-Series(II) G02 (1995 B47C20B 190) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X5-Series(G05) (2993 B57D30A 352) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X5-Series(G05) (2993 B57D30A 286) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X5-Series(G05) (2993 B57D30A 340) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X5-Series(G05) (2993 B57D30A 265) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X5-Series(G05) (2993 B57D30A 249) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
BMW X6-Series(G06) (2993 B57D30A 286) Locked_BOSCH MD1CP032 TC299 (test) Open Vehicle →
