ECU Pinout MD1CP017 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MD1CP017 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

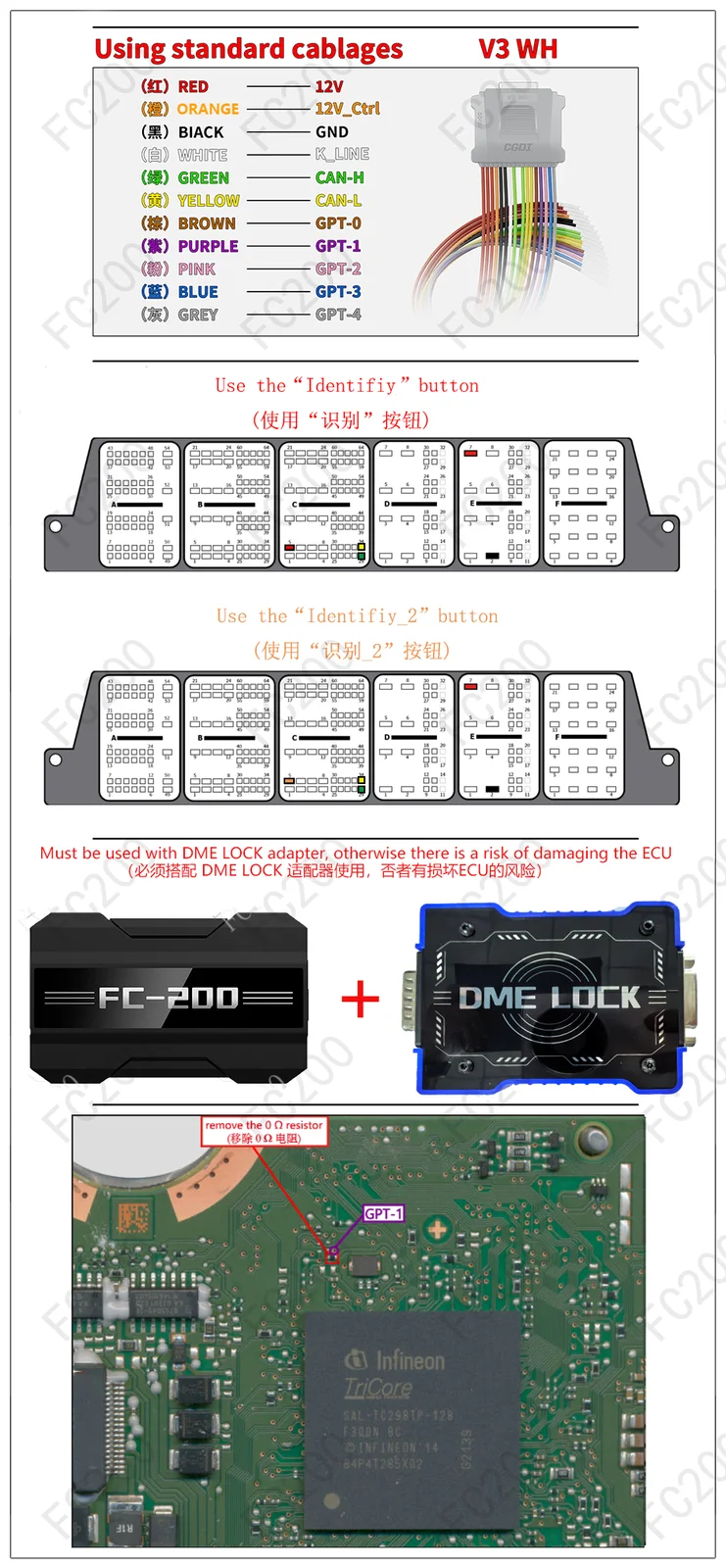

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MD1CP017.png (Locked Boot/Bench)1,286,721 bytes
Locked_BOSCH MD1CP017.png

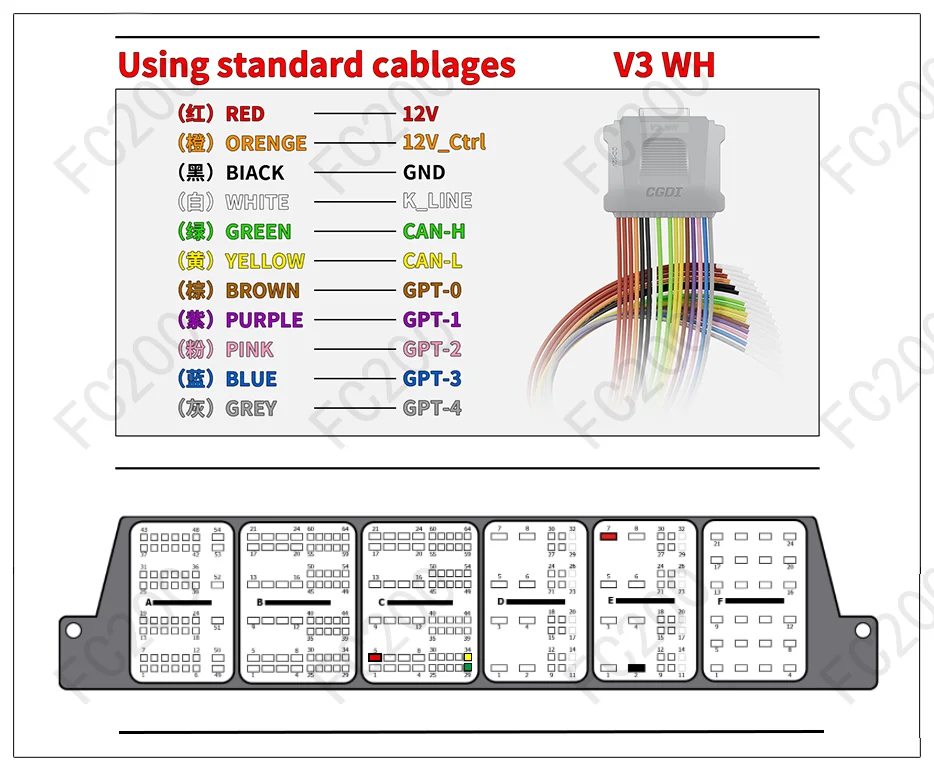

OFFICIAL PINOUT DIAGRAM: Locked_Bench BOSCH MD1CP017.png (Locked Boot/Bench)257,255 bytes
Locked_Bench BOSCH MD1CP017.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CP017 (15)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Jaguar E-Pace(I) X540 (1997 AJ200D 204) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Jaguar E-Pace(I) X540 (1997 AJ200D 163) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Jaguar F-Pace(I) X761 (1997 AJ200D 204) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Jaguar F-Pace(I) X761 (1997 AJ200D 163) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Jaguar XE(I) X760 (1997 AJ200D 204) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Jaguar XF(II) X260 (1997 AJ200D 204) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Land Rover Discovery Sport(I) L550 (1997 AJ200D 204) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Land Rover Discovery Sport(I) L550 (1997 AJ200D 163) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Land Rover Range Rover Evoque(II) L551 (1997 AJ200D 204) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Land Rover Range Rover Evoque(II) L551 (1997 AJ200D 163) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Land Rover Range Rover Velar(I) L560 (1997 AJ200D 204) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Jaguar All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum, Unlock) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Land Rover All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH,CheckSum, Unlock) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 na stole (DME Unlock Bench) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
Universal ECU Protocol Razblokirovka zakrytykh ECU Bosch MG1/MD1 so vskrytiem (DME Unlock Boot) (Direct Bench / Boot ECU Connector Pinout) Locked_BOSCH MD1CP017 TC298 (test) Open Vehicle →
