ECU Pinout MD1CP004 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MD1CP004 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

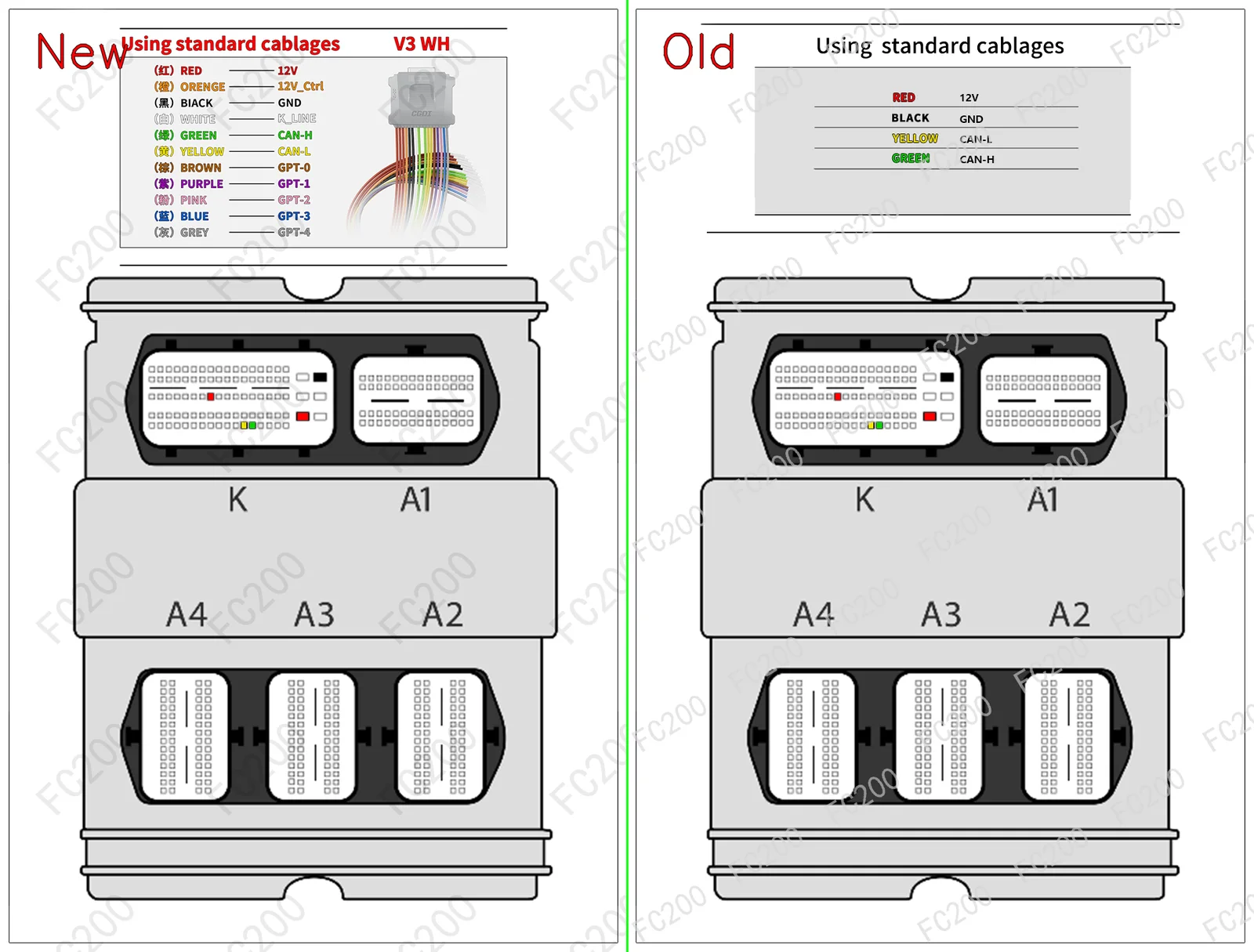

OFFICIAL PINOUT DIAGRAM: BOSCH MD1CP004.png (Platform / Bench)1,049,461 bytes
BOSCH MD1CP004.png

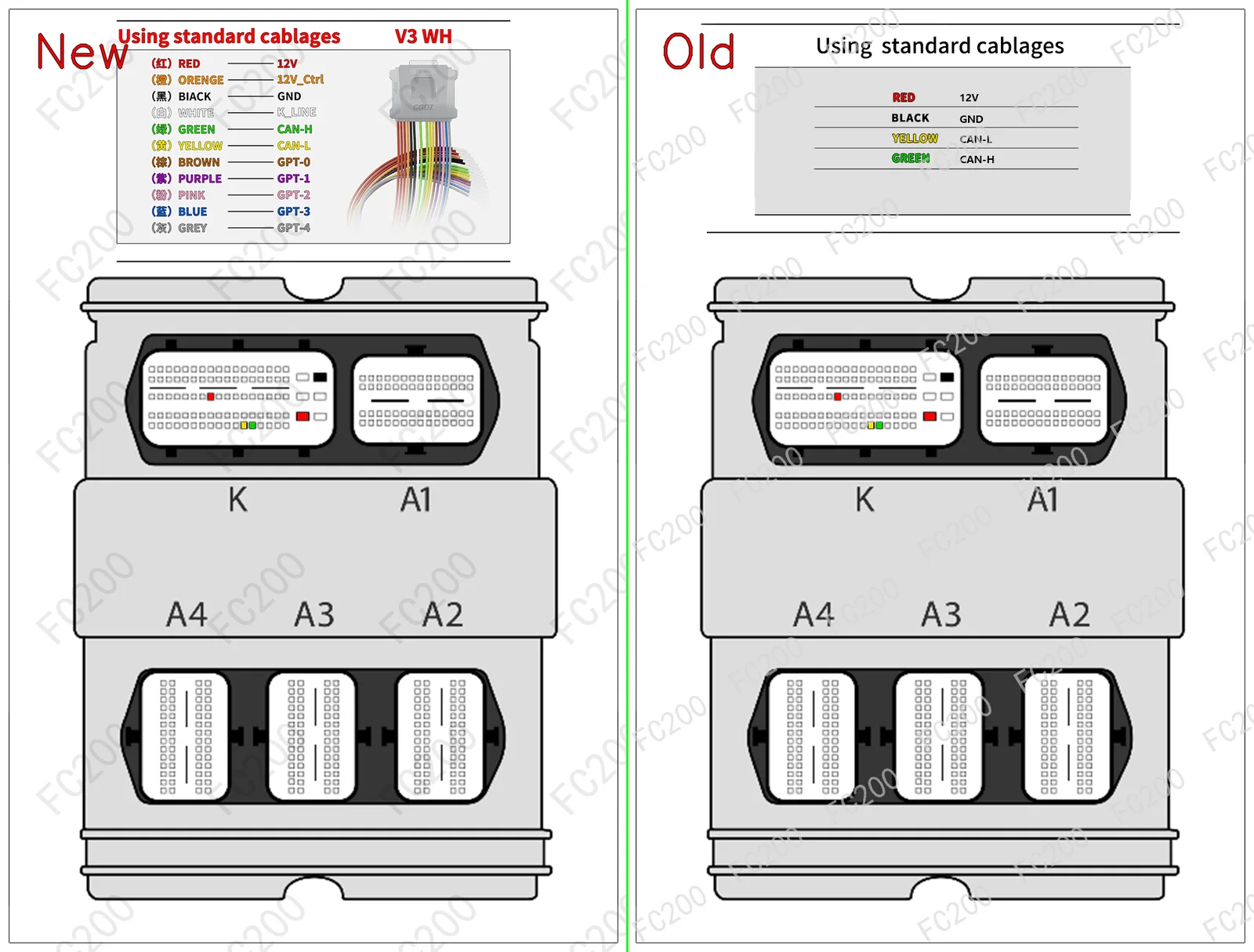

OFFICIAL PINOUT DIAGRAM: BOSCH MD1CP004_.png (Platform / Bench)1,055,260 bytes
BOSCH MD1CP004_.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CP004 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Audi A3(8V) (1598 DGTE 116) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A3(8V) (1968 DCYA 150) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A3(8V) (1968 DGCA 184) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A4(B9) (2967 CRTC 272) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A4(B9) (1984 • 150) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A4(B9) (1968 • 190) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A4(B9) (2967 DDVE 234) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A4(B9) (2967 DEND 231) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A4(B9) (2967 • 286) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A4(B9) (3000 TDI CSWB 218) BOSCH MD1CP004_ (TC298TP) Open Vehicle →
Audi A5(F5) (1984 • 150) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A5(F5) (1968 • 190) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A5(F5) (2967 • 286) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A6(C7)- (3000 TDI quattro • 218) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A6(C8) (1968 • 190) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A6(C8) (2967 DEND 231) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A6(C8) (2967 • 286) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A6(C8) (2967 DDVE 234) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A7(C8) (1968 • 204) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi A7(C8) (2967 DEND 231) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi Q2(GA) (1598 DGTE 116) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi Q3(F3) (1984 • 150) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi Q3(F3) (1968 • 190) BOSCH MD1CP004 (SPC5777) Open Vehicle →
Audi Q5(FYB) (1984 • 150) BOSCH MD1CP004 (SPC5777) Open Vehicle →
