ECU Pinout MD1CE101 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU MD1CE101 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

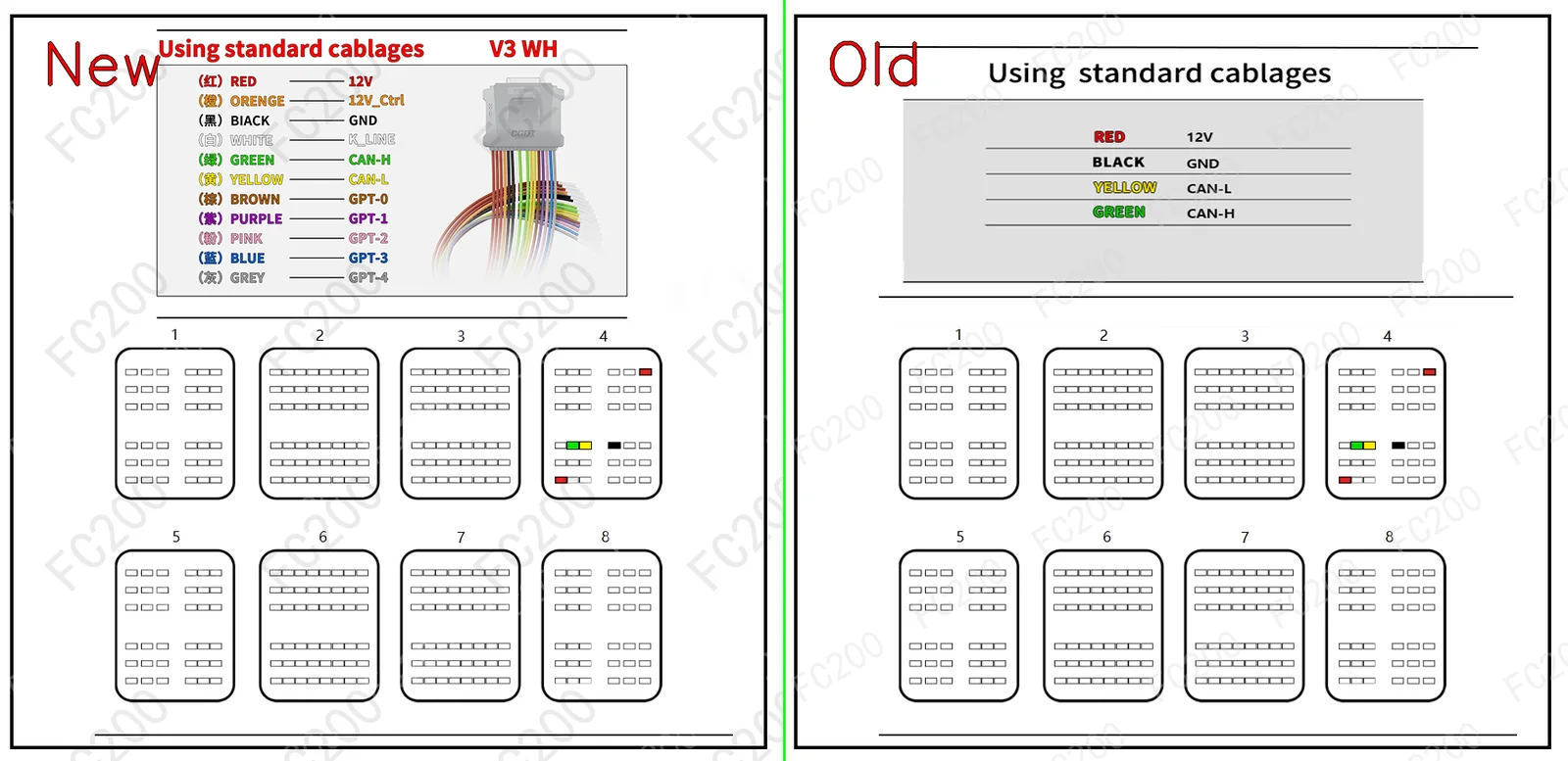

OFFICIAL PINOUT DIAGRAM: BOSCH MD1CE101.png (Platform / Bench)613,545 bytes
BOSCH MD1CE101.png

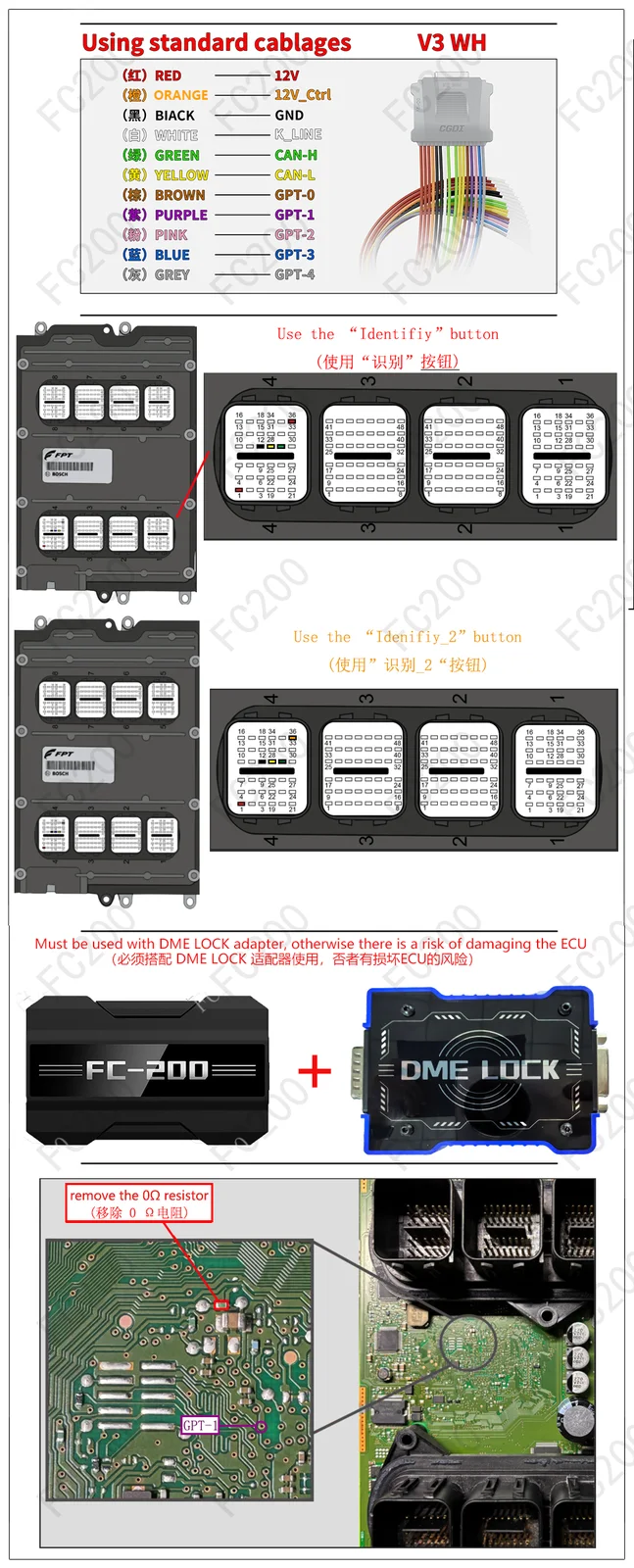

OFFICIAL PINOUT DIAGRAM: Locked_BOSCH MD1CE101.png (Locked Boot/Bench)1,522,247 bytes
Locked_BOSCH MD1CE101.png

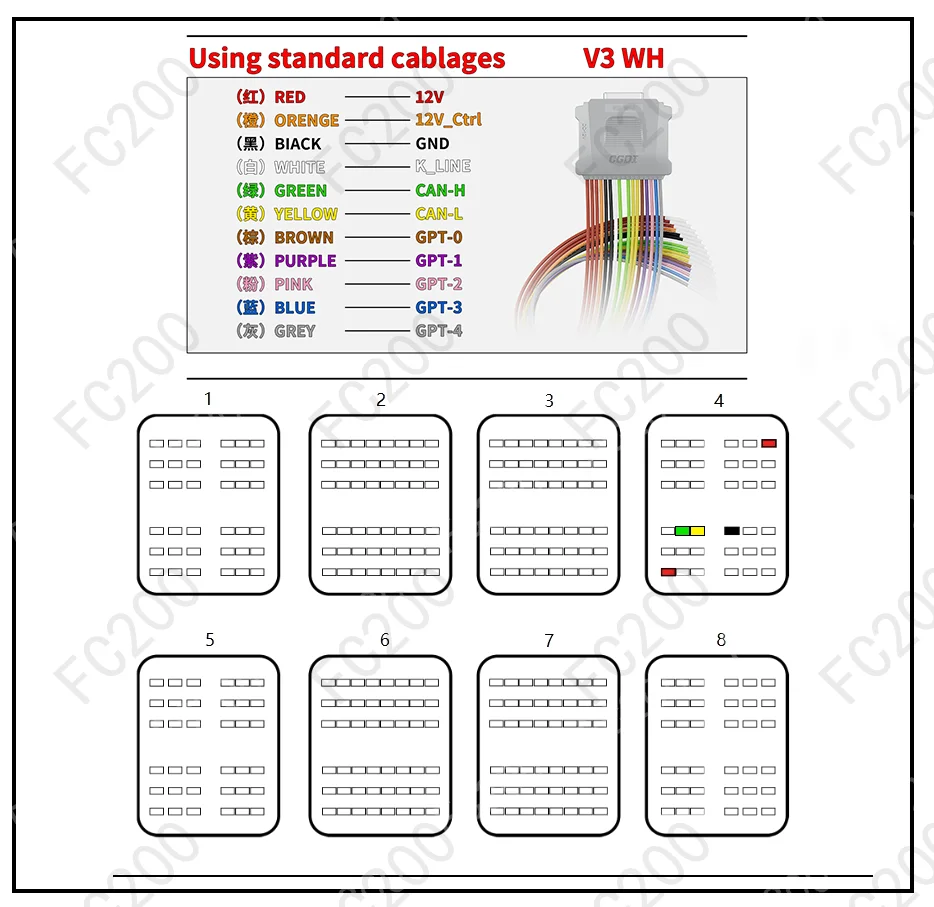

OFFICIAL PINOUT DIAGRAM: Locked_Bench BOSCH MD1CE101.png (Locked Boot/Bench)203,830 bytes
Locked_Bench BOSCH MD1CE101.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU MD1CE101 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
CASE Puma-- (6871 • 284) BOSCH MD1CE101 (TC299TP) Open Vehicle →
Case Construction D-Series Grader(836) (6728 N67 156) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case Construction D-Series Grader(856) (6700 N67 190) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case Construction G-Series Wheel Loader(721) (6728 N67 197) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case Construction G-Series Wheel Loader(821) (6728 N67 234) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case Construction G-Series Wheel Loader(921) (6728 N67 258) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case Construction G-Series Wheel Loader(1021) (8700 F2C 325) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case Construction G-Series Wheel Loader(1121) (8700 F2C 340) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Axial-Flow Combines(5150) (4485 N67 314) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Axial-Flow Combines(6150) (8700 F2C 415) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Axial-Flow Combines(7150) (8700 F2C 435) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Axial-Flow Combines(7250) (11100 F3G 475) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Axial-Flow Combines(8250) (12900 F3H 563) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Axial-Flow Combines(9250) (15927 F2FC 634) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Farmlift(636) (4485 N45 131) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Farmlift(742) (4485 N45 131) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Farmlift(633) (4485 N45 121) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Farmlift(737) (4485 N45 121) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Farmlift(935) (4485 N45 121) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Magnum AFS Connect(310) (8700 F2C 382) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Magnum AFS Connect(340) (8700 F2C 415) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Magnum AFS Connect(400) (8700 F2C 435) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Maxxum Series(115) (4485 N45 116) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
Case IH Maxxum Series(125) (4485 N45 125) Locked_BOSCH MD1CE101 TC299 (test) Open Vehicle →
