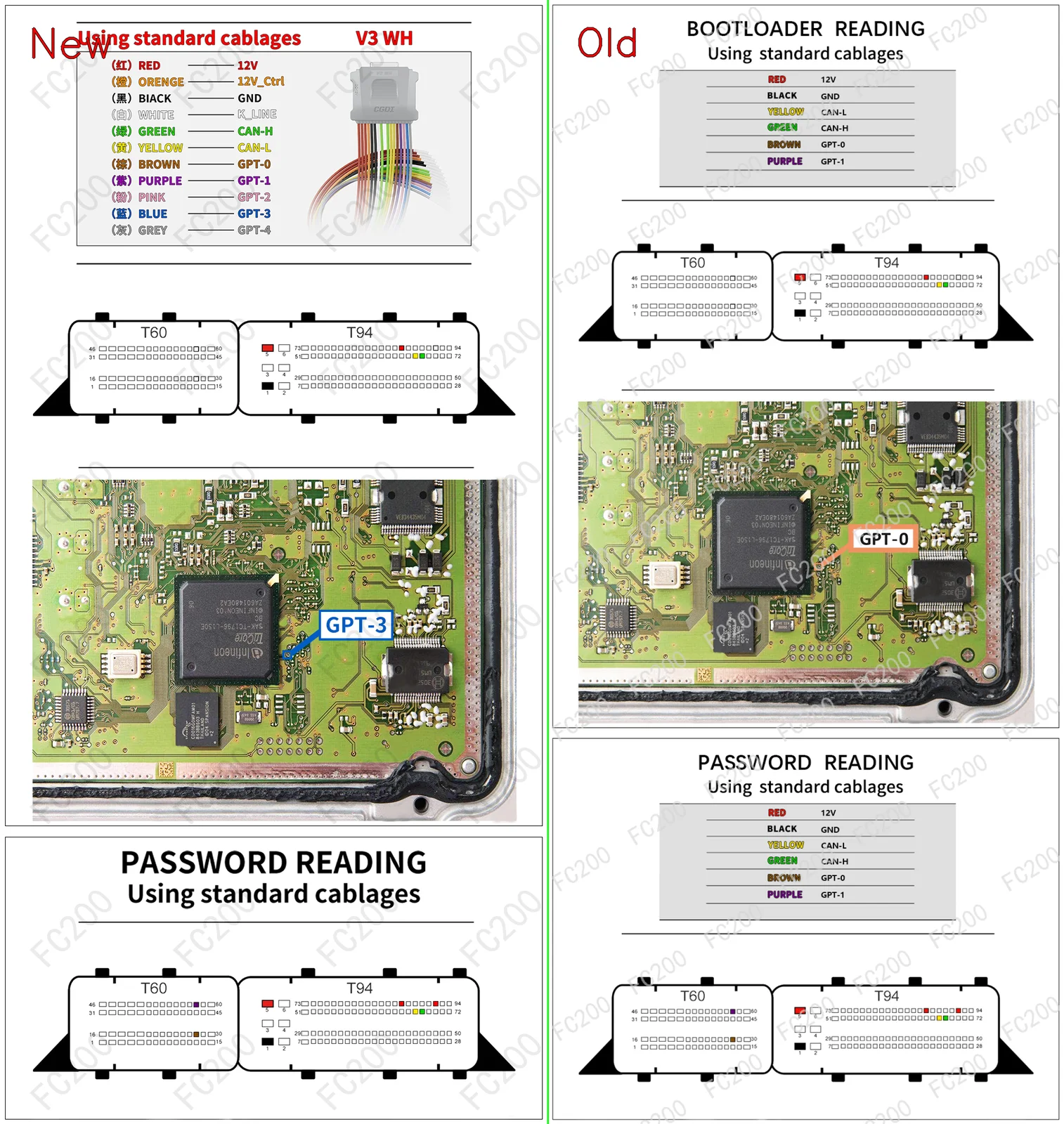

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17U05.png (Boot)3,466,570 bytes

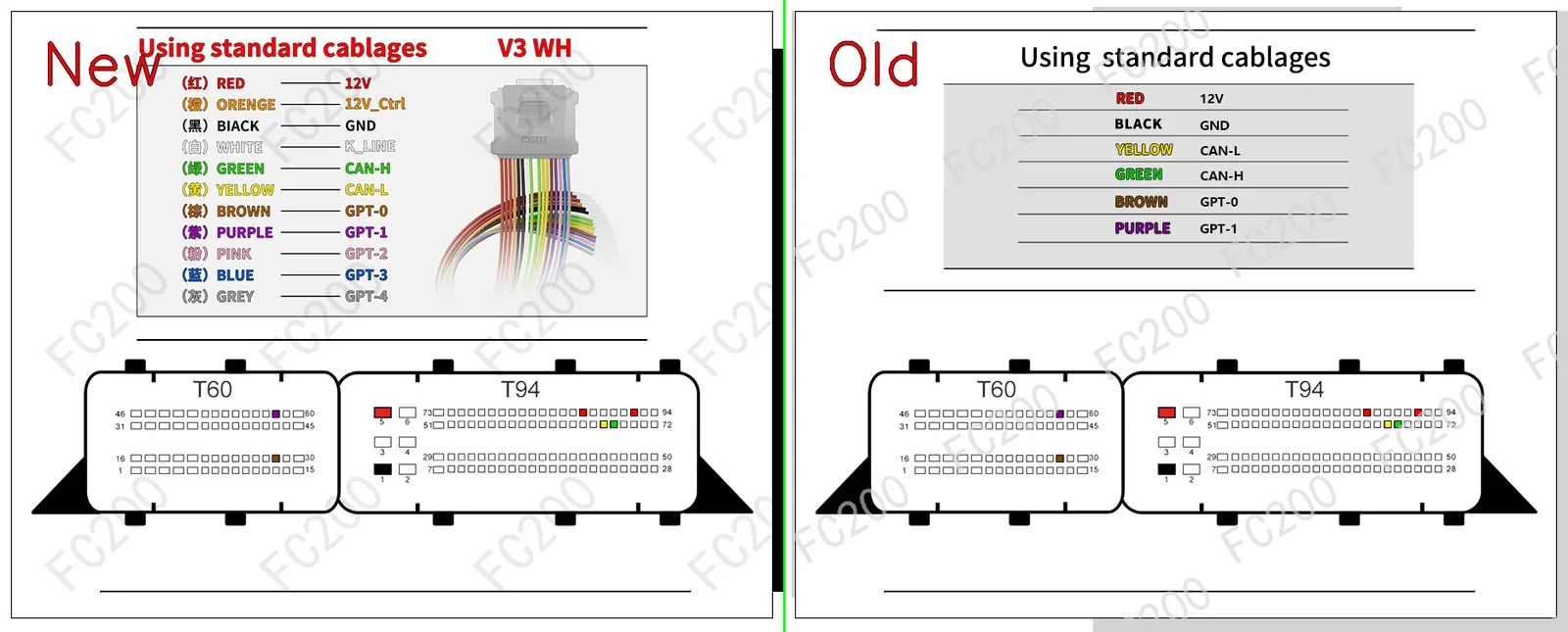

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17U05.png (Platform / Bench)495,569 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17U05 (8)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Seat | Ibiza(6J) (1400 • 81) | BOSCH EDC17U05 (TC1796) |
Open Vehicle → |
| Skoda | Fabia(NJ) (1400 TDI CUTA 110) | BOSCH EDC17U05 (TC1796) |
Open Vehicle → |
| Volkswagen (VW) | Derby (1400 TDI • 80) | BOSCH EDC17U05 (TC1796) |
Open Vehicle → |
| Volkswagen (VW) | Polo(IV) (1400 TDI • 80) | BOSCH EDC17U05 (TC1796) |
Open Vehicle → |
| Volkswagen (VW) | Vento(A6) (1400 TDI • 80) | BOSCH EDC17U05 (TC1796) |
Open Vehicle → |
| Seat | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) | BOSCH EDC17U05 (TC1796) |
Open Vehicle → |
| Skoda | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) | BOSCH EDC17U05 (TC1796) |
Open Vehicle → |
| Volkswagen (VW) | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) | BOSCH EDC17U05 (TC1796) |
Open Vehicle → |
