ECU Pinout EDC17CV52 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17CV52 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

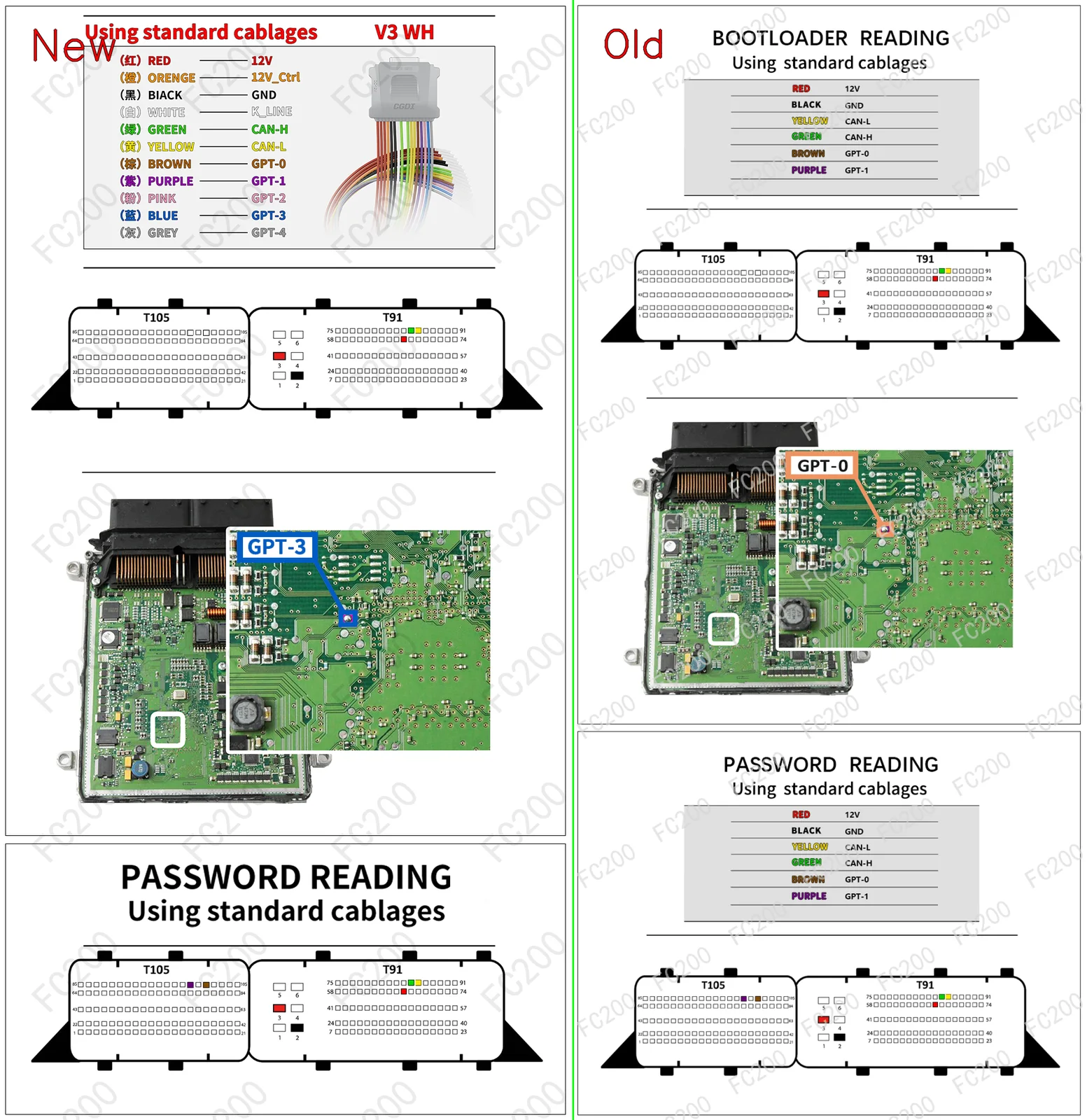

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17CV52.png (Boot)2,531,918 bytes
BOOT_BOSCH EDC17CV52.png

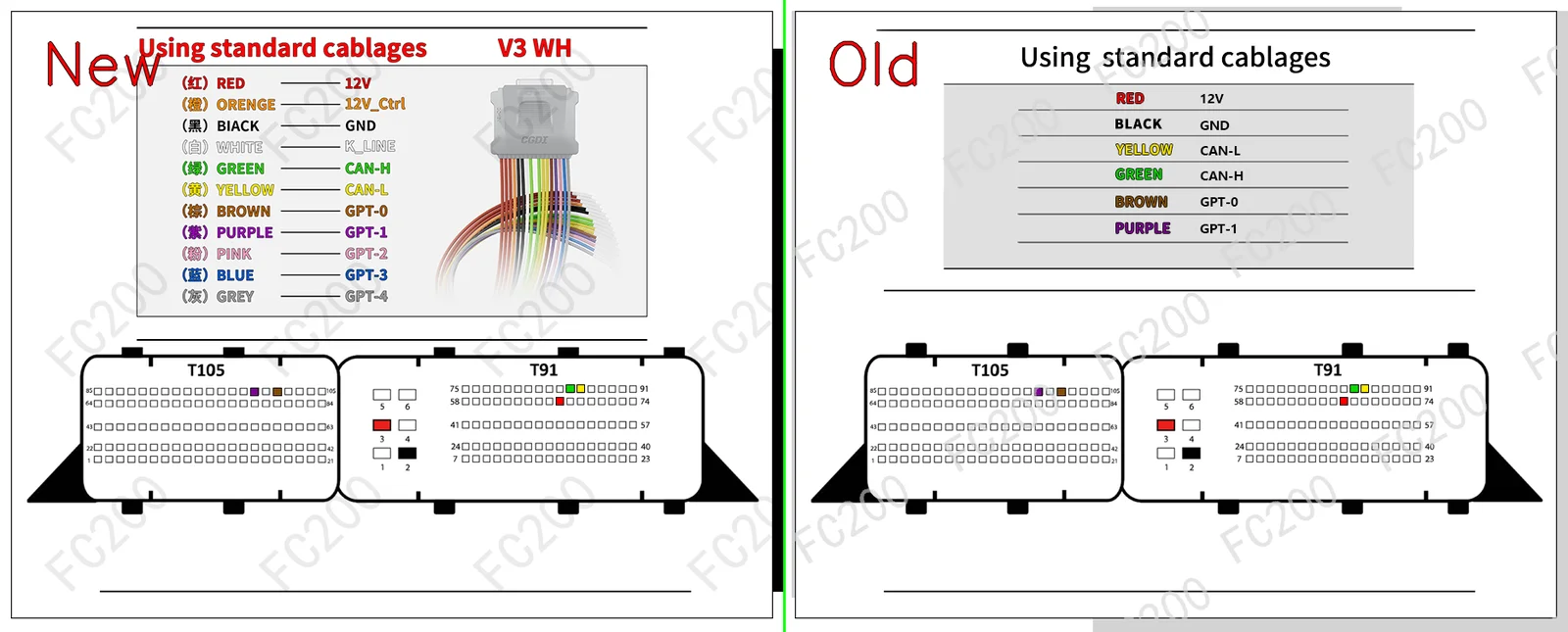

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CV52.png (Platform / Bench)517,072 bytes
BOSCH EDC17CV52.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17CV52 (22)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Artec Sprayers RS20 4100 (-- • 154) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Deutz All Brand Models (Universal ECU Protocol) (4100 TCD) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Deutz All Brand Models (Universal ECU Protocol) (6100 TCD) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Deutz All Brand Models (Universal ECU Protocol) (3600 TCD) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Deutz All Brand Models (Universal ECU Protocol) (7800 TCD) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Deutz All Brand Models (Universal ECU Protocol) (12000 TCD) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Deutz All Brand Models (Universal ECU Protocol) (16000 TCD 697) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt 200 Vario (210 3.3L I3 33CTA SCR 104) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt 200 Vario (209 3.3L I3 33CTA SCR 95) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt 200 Vario (208 3.3L I3 33CTA SCR 85) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt 200 Vario (207 3.3L I3 33CTA SCR 75) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt 800 Vario (822 VARIO • 217) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt 800 Vario (824 VARIO • 236) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt 800 Vario (826 VARIO • 256) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt 800 Vario (828 VARIO • 276) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt 800 Vario (830 VARIO • 296) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt 900 Vario (939 VARIO • 384) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Massey Ferguson MF 7616 (6600 • 158) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Artec All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Deutz All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Fendt All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH EDC17CV52 (TC1797) Open Vehicle →
Massey Ferguson All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH EDC17CV52 (TC1797) Open Vehicle →
