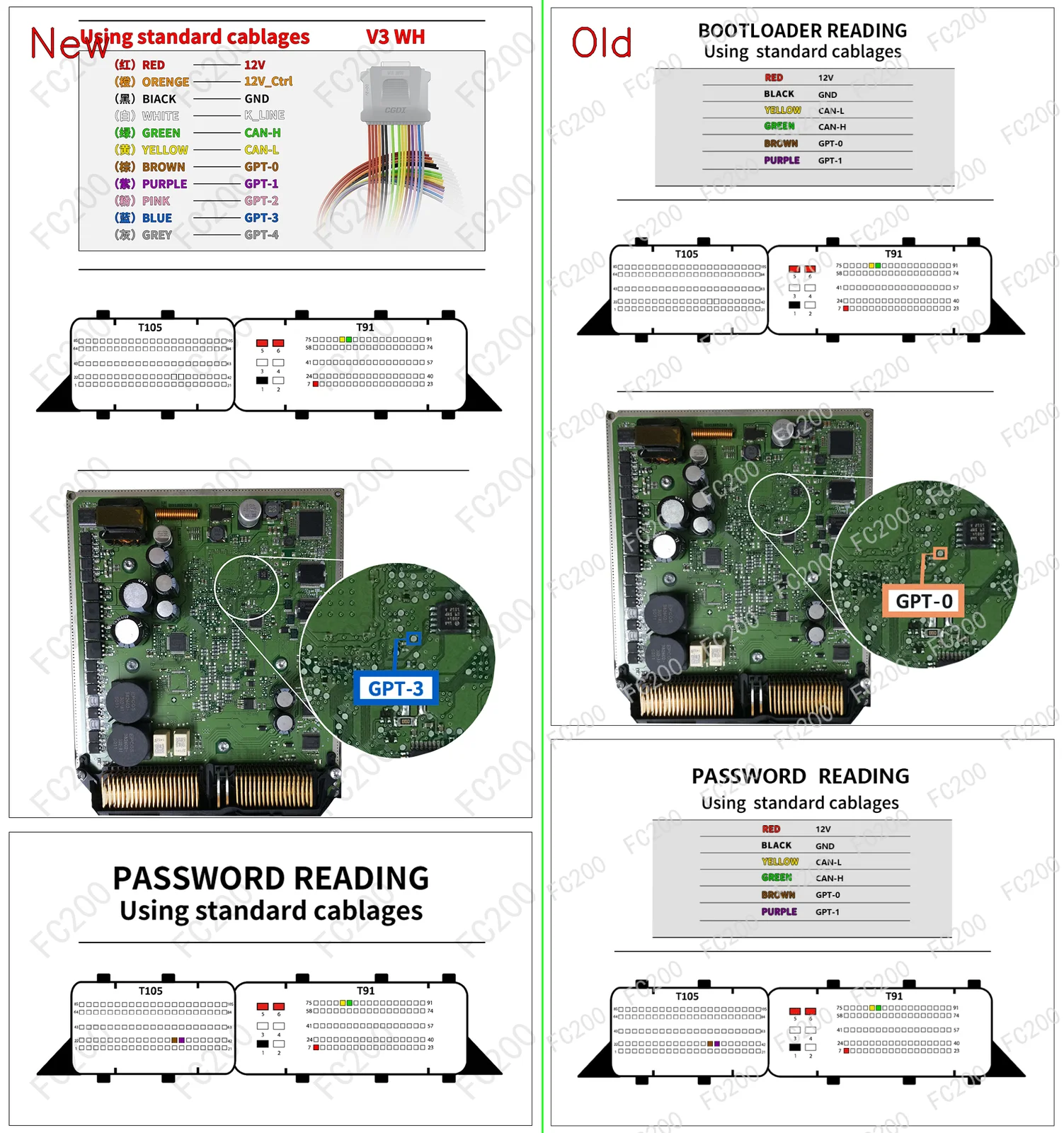

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17CP55.png (Boot)2,885,473 bytes

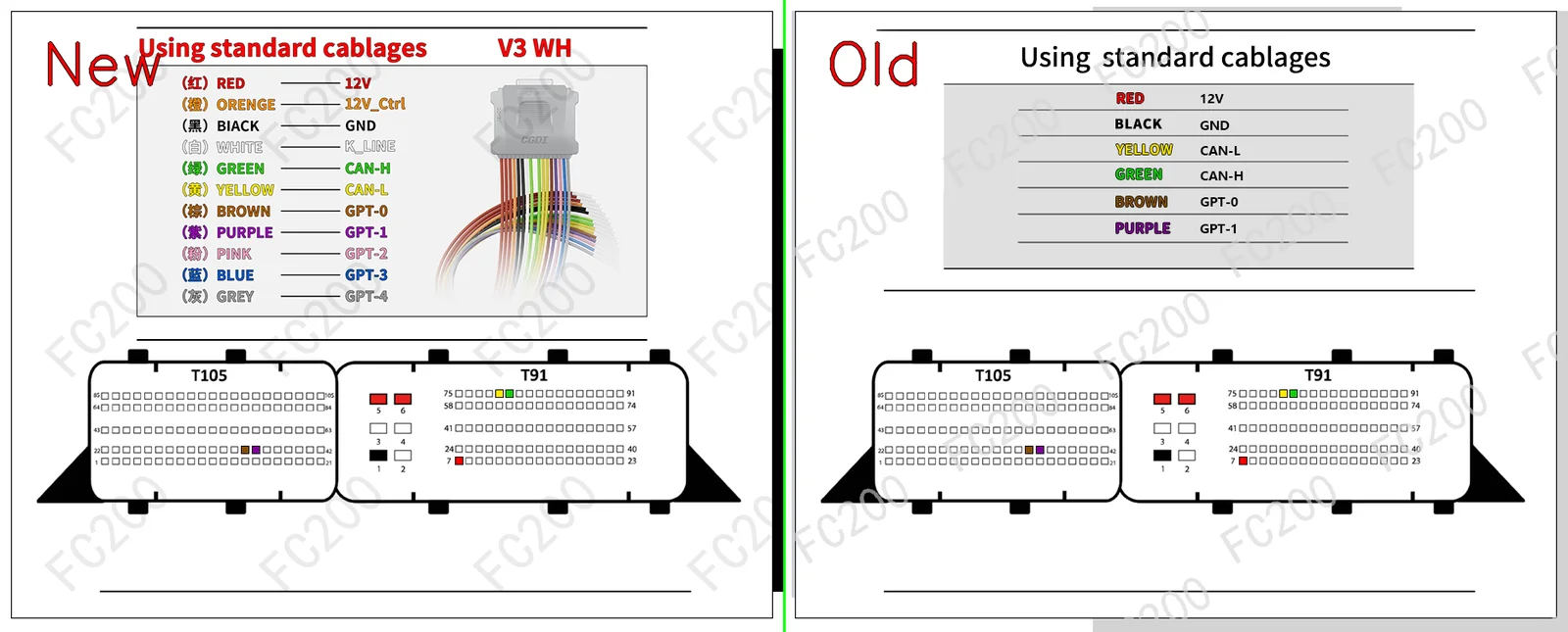

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CP55.png (Platform / Bench)515,614 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17CP55 (10)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Jaguar | XE(X260) (2000 • 163) | BOSCH EDC17CP55 (TC1793) |
Open Vehicle → |
| Jaguar | XE(X260) (2000 • 185) | BOSCH EDC17CP55 (TC1793) |
Open Vehicle → |
| Land Rover | Freelander(II) (3000 TDV6 Euro5 258) | BOSCH EDC17CP55 (TC1793) |
Open Vehicle → |
| Land Rover | Range Rover(IV) (3000 TDV6 255) | BOSCH EDC17CP55 (TC1793) |
Open Vehicle → |
| Land Rover | Range Rover(IV) (3000 TDV6 245) | BOSCH EDC17CP55 (TC1793) |
Open Vehicle → |
| Land Rover | Range Rover(IV) (4400 SDV8 334) | BOSCH EDC17CP55 (TC1793) |
Open Vehicle → |
| Land Rover | Range Rover(Sport) (3000 TDV6 Euro5 258) | BOSCH EDC17CP55 (TC1793) |
Open Vehicle → |
| Mahindra | Xuv500 (2.2 16v CRD) | BOSCH EDC17CP55 (TC1793) |
Open Vehicle → |
| Jaguar | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) | BOSCH EDC17CP55 (TC1793) |
Open Vehicle → |
| Land Rover | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) | BOSCH EDC17CP55 (TC1793) |
Open Vehicle → |
