ECU Pinout EDC17CP46 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17CP46 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

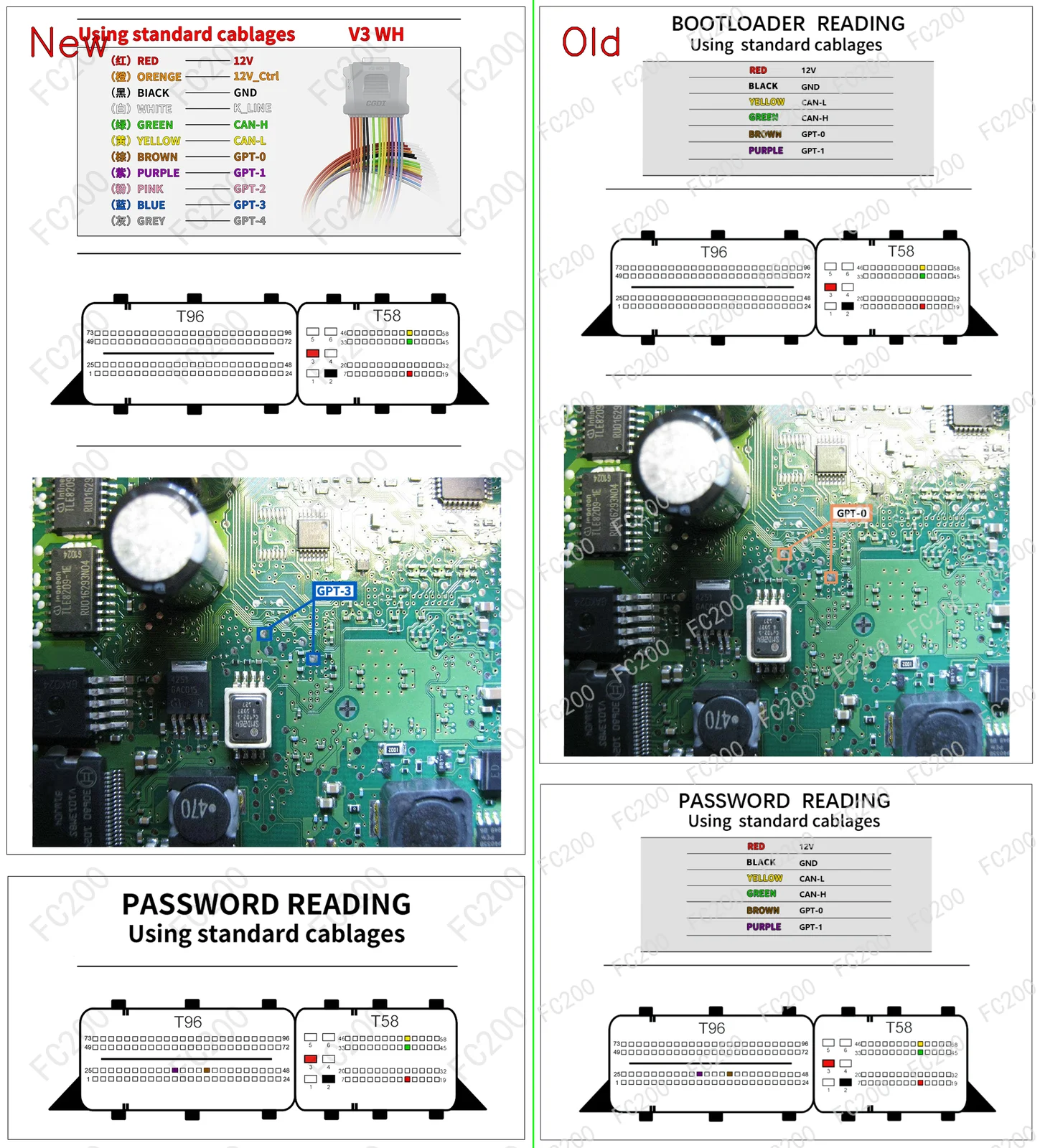

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17CP46.png (Boot)3,646,575 bytes
BOOT_BOSCH EDC17CP46.png

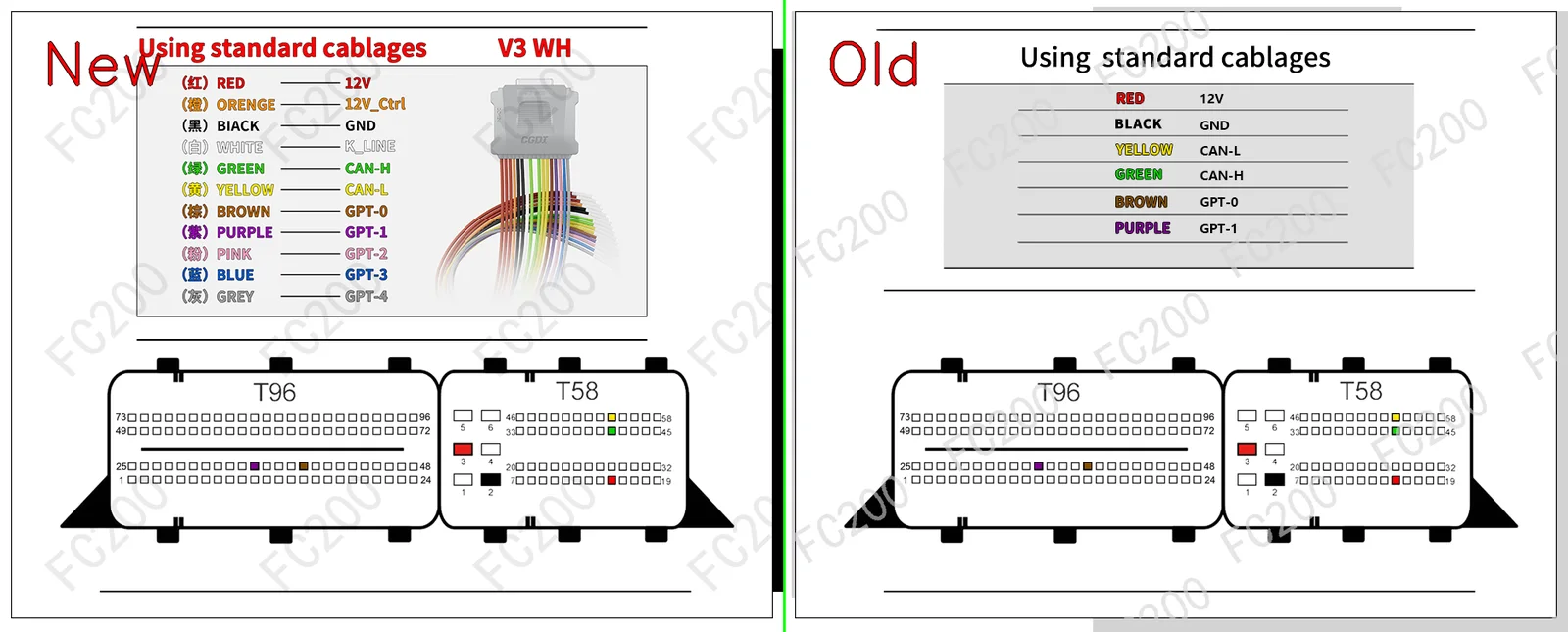

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CP46.png (Platform / Bench)515,225 bytes
BOSCH EDC17CP46.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17CP46 (23)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Dodge Sprinter(VB) (2500 3000 CDI • 190) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Dodge Sprinter(VB) (3500 3000 CDI • 190) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Freightliner Sprinter(VB) (2500 3000 CDI • 190) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz C(W204) (350 3000 CDI Blue OM642LSDE30LA 262) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz CLS(W218) (350 CDI OM642.853 265) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz CLS(W218) (350 3000 CDI • 262) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz CLS(W218) (350 CDI 4MATIC OM642.854 258) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz E(W212) (350 3000 CDI • 228) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz GL(W166) (350 3000 CDI • 265) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz GLK(X204) (220 2200 CDI OM 651.912 170) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz GLK(X204) (350 3000 CDI • 221) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz M(W166) (350 3000 CDI • 255) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz ML(W166) (350 BlueTec 4MATIC OM642.826 258) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz ML(W166) (250 BlueTec 4MATIC OM651.960 204) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz S(W221) (350 3000 BlueTec OM642.862 258) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz S(W221) (350 3000 BlueTec 4MATIC OM642.868 258) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz S(W221) (350 3000 CDI • 254) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz Sprinter(W906) (519 3000 CDI OM 642.896 190) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz Sprinter(W906) (519 3000 CDI OM 642.898 190) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz Sprinter(W906) (519 3000 CDI OM 642.992 190) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Dodge All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Freightliner All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP46 (TC1797) Open Vehicle →
Mercedes-Benz All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CP46 (TC1797) Open Vehicle →
