ECU Pinout EDC17C69 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C69 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

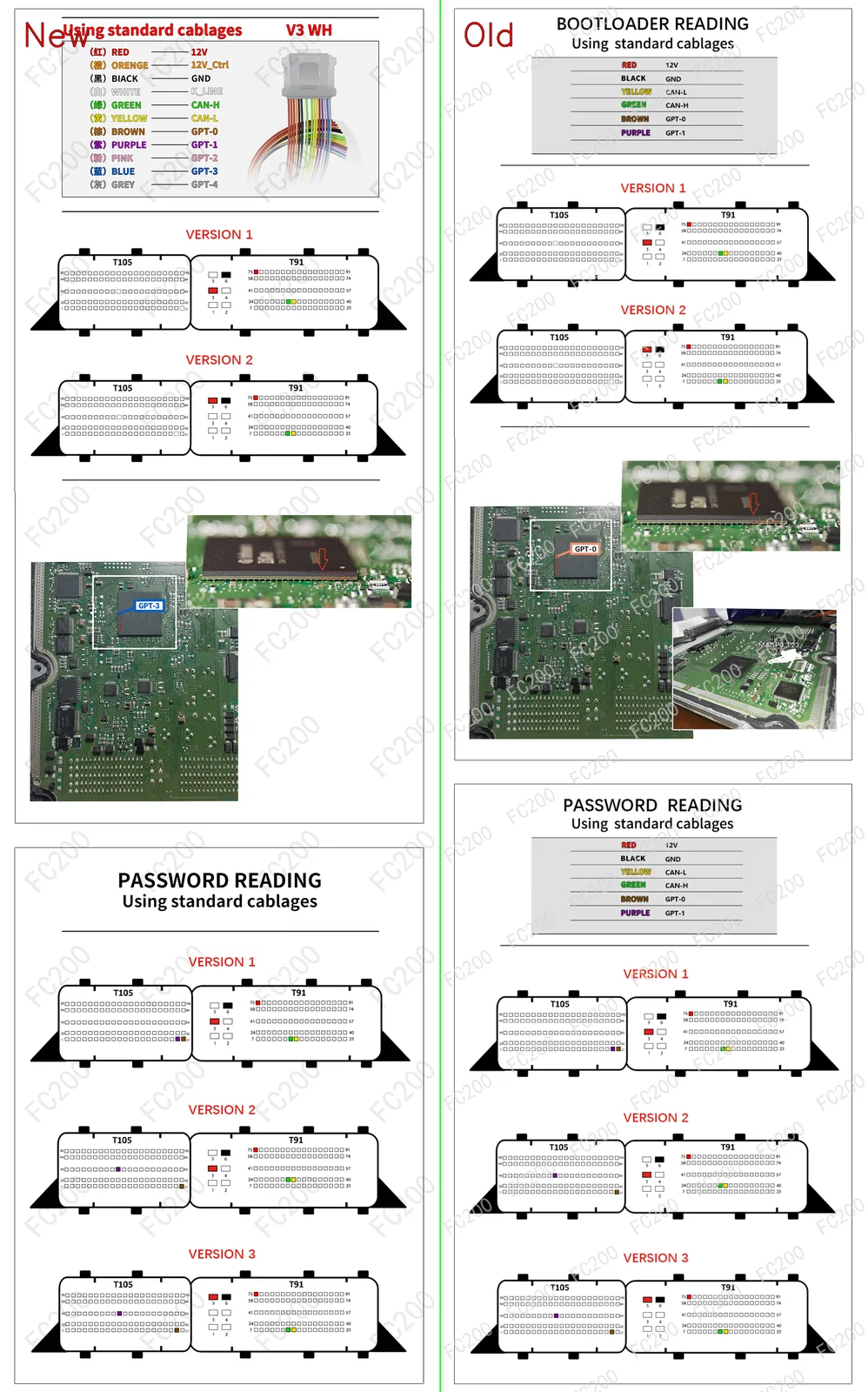

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C69.png (Boot)3,649,493 bytes
BOOT_BOSCH EDC17C69.png

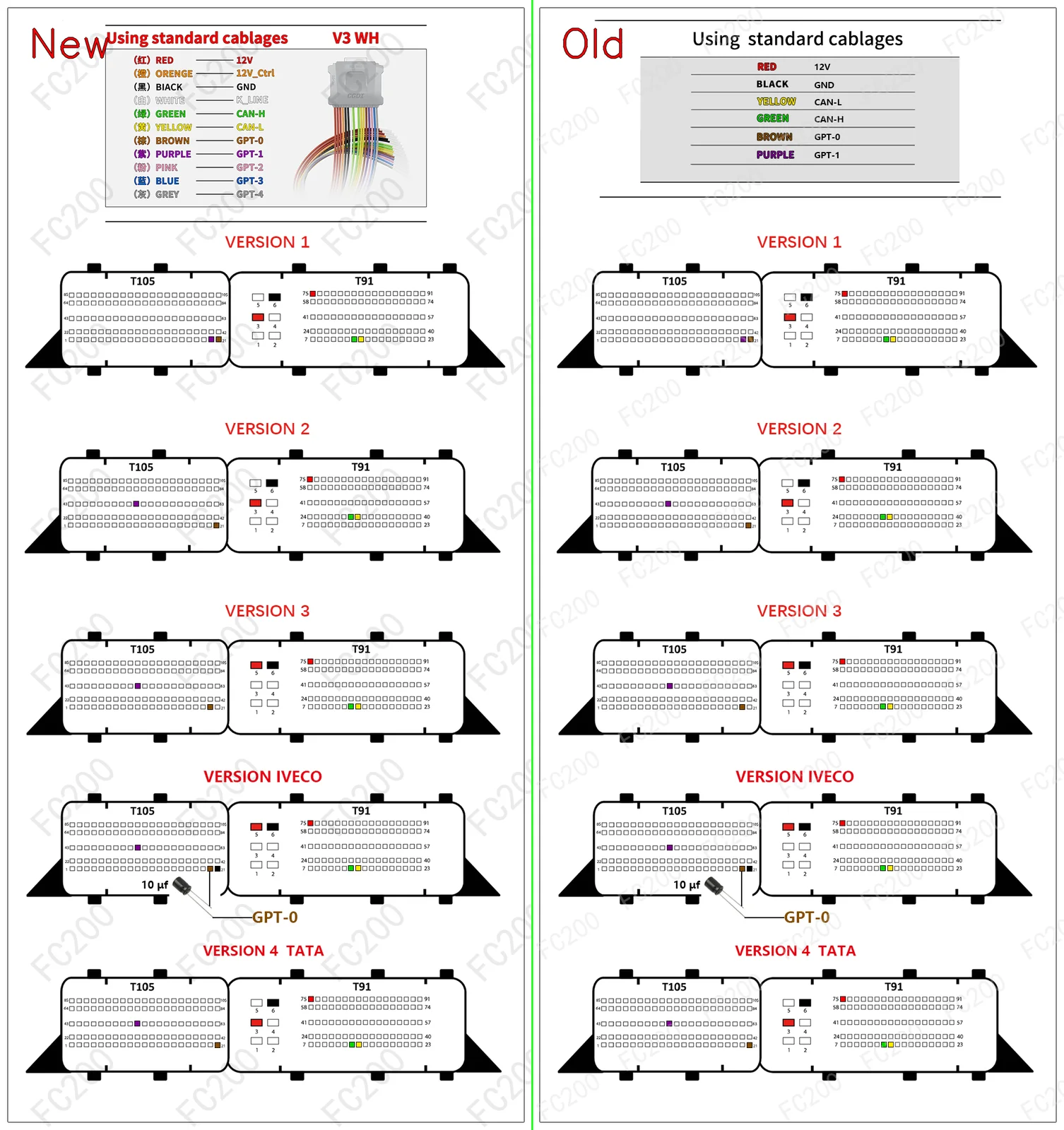

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C69.png (Platform / Bench)1,410,638 bytes
BOSCH EDC17C69.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C69 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Alfa Romeo Giulietta(940) (2000 JTDM 2 940.B4.000 175) BOSCH EDC17C69 (TC1793) Open Vehicle →
Alfa Romeo Giulietta(940) (1598 940 C1.000 120) BOSCH EDC17C69 (TC1793) Open Vehicle →
Alfa Romeo Giulia(952) (2200 Multijet 55266388 150) BOSCH EDC17C69 (TC1793) Open Vehicle →
Alfa Romeo Giulia(952) (2200 Multijet 55266388 136) BOSCH EDC17C69 (TC1793) Open Vehicle →
Alfa Romeo Giulia(952) (2200 Multijet 55266388 209) BOSCH EDC17C69 (TC1793) Open Vehicle →
Alfa Romeo Stelvio (2143 55271838 209) BOSCH EDC17C69 (TC1793) Open Vehicle →
Fiat 500 X(334) (1600 Multijet 2 • 120) BOSCH EDC17C69 (TC1793) Open Vehicle →
Fiat 500 X(334) (1598 55260384 120) BOSCH EDC17C69 (TC1793) Open Vehicle →
Fiat Toro(334) (2000 16v MJET 4x4 ECD 170) BOSCH EDC17C69 (TC1793) Open Vehicle →
Fiat Toro(334) (2000 Multijet ECD 170) BOSCH EDC17C69 (TC1793) Open Vehicle →
Fiat Doblo(334) (1600 Multijet 2 263.A8.000 105) BOSCH EDC17C69 (TC1793) Open Vehicle →
Iveco Daily(35C) (2287 F1AGL411G 150) BOSCH EDC17C69 (TC1793) Open Vehicle →
Iveco Daily(35C) (2287 F1AGL411J 136) BOSCH EDC17C69 (TC1793) Open Vehicle →
Iveco Daily(35C) (2287 F1AGL411H 116) BOSCH EDC17C69 (TC1793) Open Vehicle →
Iveco Daily(35S) (2287 F1AGL411G 150) BOSCH EDC17C69 (TC1793) Open Vehicle →
Iveco Daily(35S) (2287 F1AGL411J 136) BOSCH EDC17C69 (TC1793) Open Vehicle →
Iveco Daily(35S) (2287 F1AGL411H 116) BOSCH EDC17C69 (TC1793) Open Vehicle →
Jeep Cherokee(KL) (2200 CRD 4x4 • 185) BOSCH EDC17C69 (TC1793) Open Vehicle →
Jeep Cherokee(KL) (2200 CRD 4x4 • 200) BOSCH EDC17C69 (TC1793) Open Vehicle →
Jeep Compass(II) (1995 EC3 270) BOSCH EDC17C69 (TC1793) Open Vehicle →
Jeep Renegade(BU/520) (2000 CRD 4x4 • 170) BOSCH EDC17C69 (TC1793) Open Vehicle →
Jeep Renegade(BU/520) (1598 55260384 120) BOSCH EDC17C69 (TC1793) Open Vehicle →
Jeep Wrangler(JK) (2800 CRD 200) BOSCH EDC17C69 (TC1793) Open Vehicle →
Jeep Wrangler(Sahara) (2800 CRD • 200) BOSCH EDC17C69 (TC1793) Open Vehicle →
