ECU Pinout EDC17C64 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C64 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

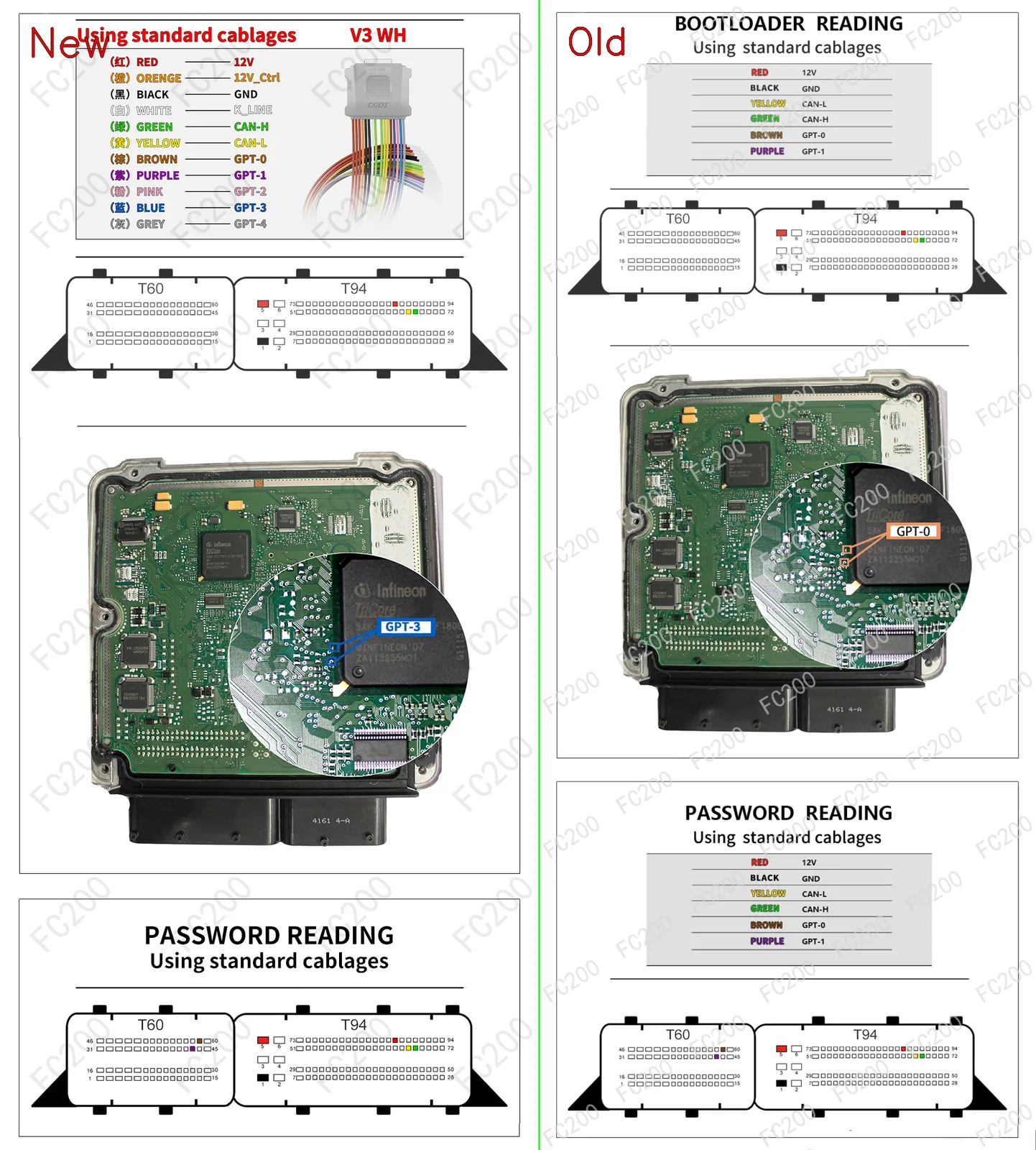

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C64.png (Boot)3,019,993 bytes
BOOT_BOSCH EDC17C64.png

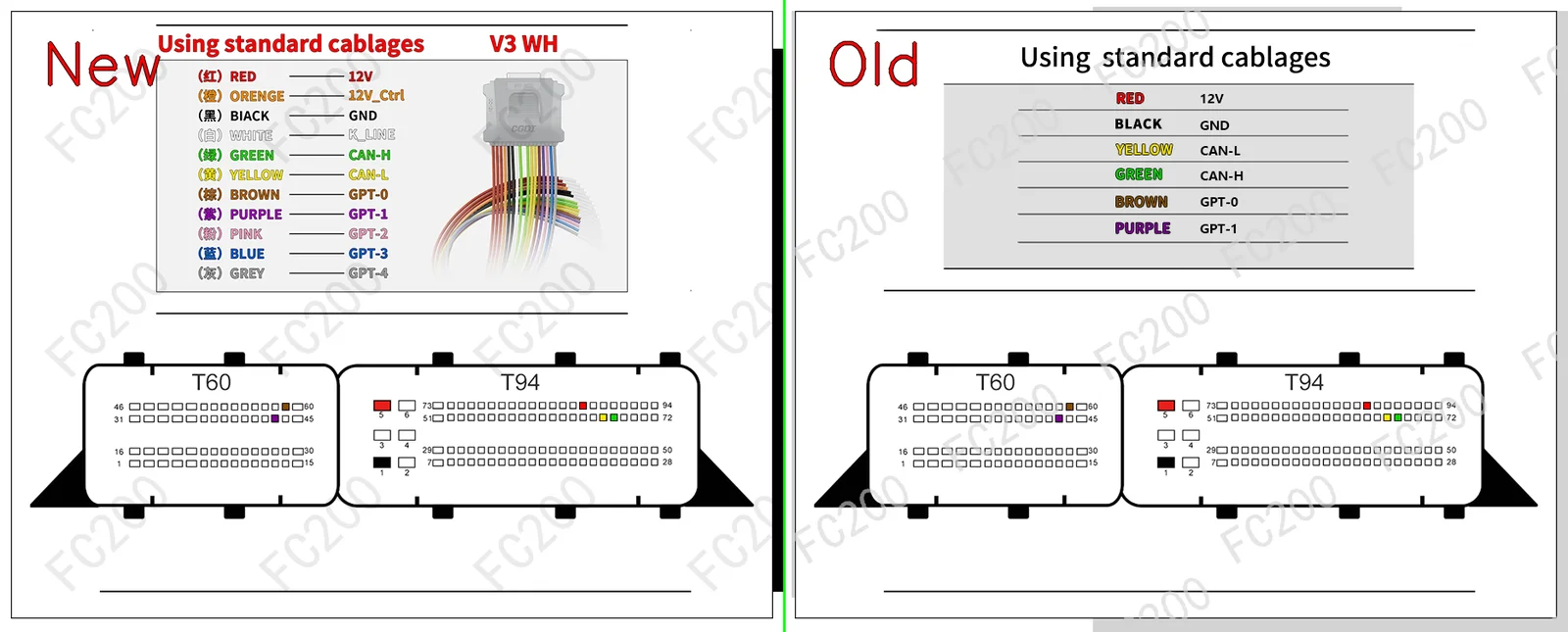

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C64.png (Platform / Bench)478,869 bytes
BOSCH EDC17C64.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C64 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Audi A3(8P) (1600 TDI CLHA 105) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A3(8P) (2000 16v TDI<CR>CRBC 150) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A3(8P) (2000 16v TDI<CR>CRBC 136) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A3(8P) (1600 TDI CRKB 110) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A3(8P) (2000 16v TDI <CR> CRBC 150) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A3(8P) (2000 16v TDI <CR> CRBD 136) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A3(8V) (2000 16v TDI <CR> CRBD 136) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A3(8V) (1600 TDI CRKB 110) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A3(8V) (2000 16v TDI <CR> CUNA 184) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A4(B8) (2000 TDI CNHA 190) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A5(8F / 8T) (2000 TDI quattro CSUB 136) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A6(C7) (2000 TDI quattro CNHA 190) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A6(C7) (2000 TDI quattro CSUB 136) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A6(C7) (2000 TDI DDDA 190) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi A6(C7) (2000 TDI quattro DDDA 190) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi Q3(8U) (2000 16v TDI <CR> • 150) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi Q5(8RB) (2000 TDI quattro CNHA 190) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi S3(8V) (2000 16v TDI <CR> CRBC 110) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi S3(8V) (1600 TDI CRKB 110) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi S3(8V) (2000 16v TDI <CR> CRVA 110) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi S3(8V) (2000 16v TDI <CR> CRVC 143) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi S3(8V) (2000 16v TDI <CR> CUNA 184) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi TT(8J) (2000 16v TDI <CR> CFGB 184) BOSCH EDC17C64 (TC1797) Open Vehicle →
Audi TT(FV) (2000 16v TDI <CR> CUNA 184) BOSCH EDC17C64 (TC1797) Open Vehicle →
