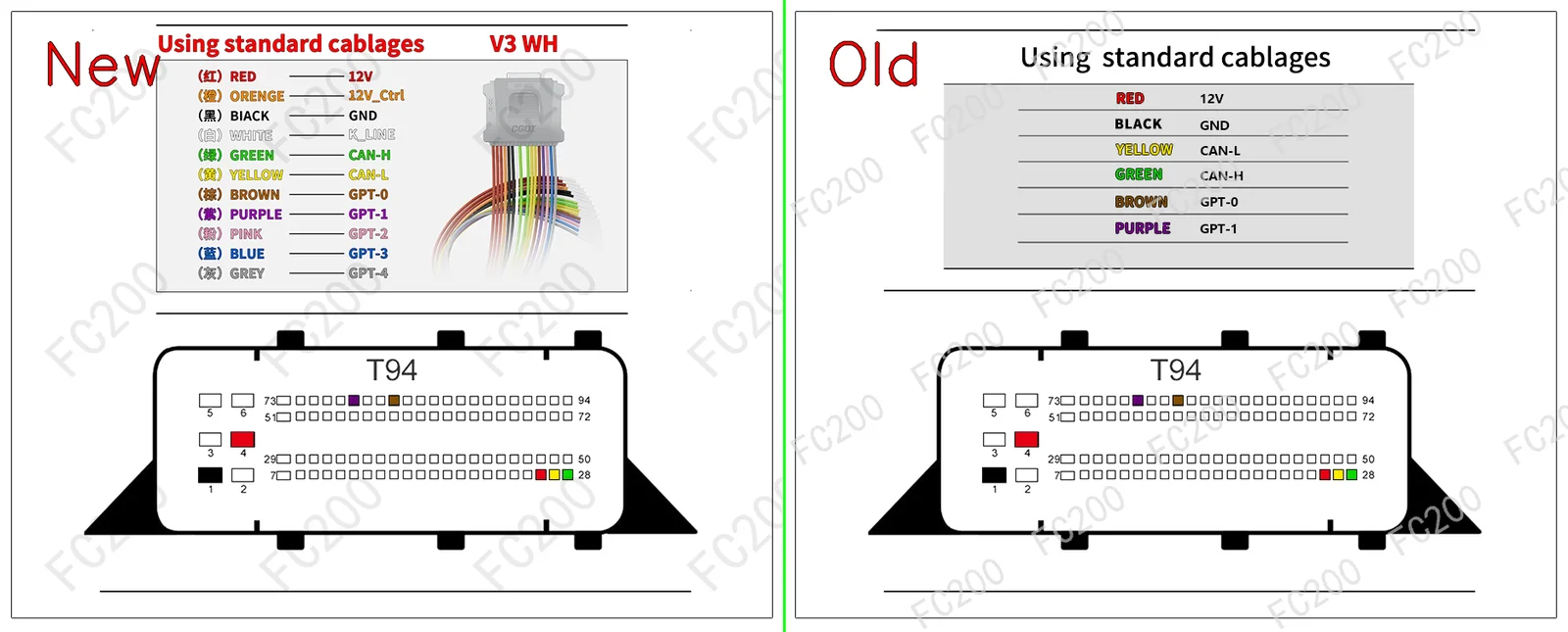

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C61.png (Platform / Bench)468,190 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C61 (7)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Mahindra | BoleroII (2499 - 64) | BOSCH EDC17C61 (TC1724) |
Open Vehicle → |
| Mahindra | GenioI (2499 - 76) | BOSCH EDC17C61 (TC1724) |
Open Vehicle → |
| Mahindra | ImperioI (2499 - 76) | BOSCH EDC17C61 (TC1724) |
Open Vehicle → |
| Mahindra | QuantoI (1499 - 101) | BOSCH EDC17C61 (TC1724) |
Open Vehicle → |
| Mahindra | XyloI (2499 - 96) | BOSCH EDC17C61 (TC1724) |
Open Vehicle → |
| Mahindra | All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) | BOSCH EDC17C61 (TC1724) |
Open Vehicle → |
| Universal ECU Protocol | Pryamoy protokol chteniya ECU na stole (Platform Bench Mode 2) (Direct Bench / Boot ECU Connector Pinout) | BOSCH EDC17C61 (TC1724) |
Open Vehicle → |
