ECU Pinout EDC17C60 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C60 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

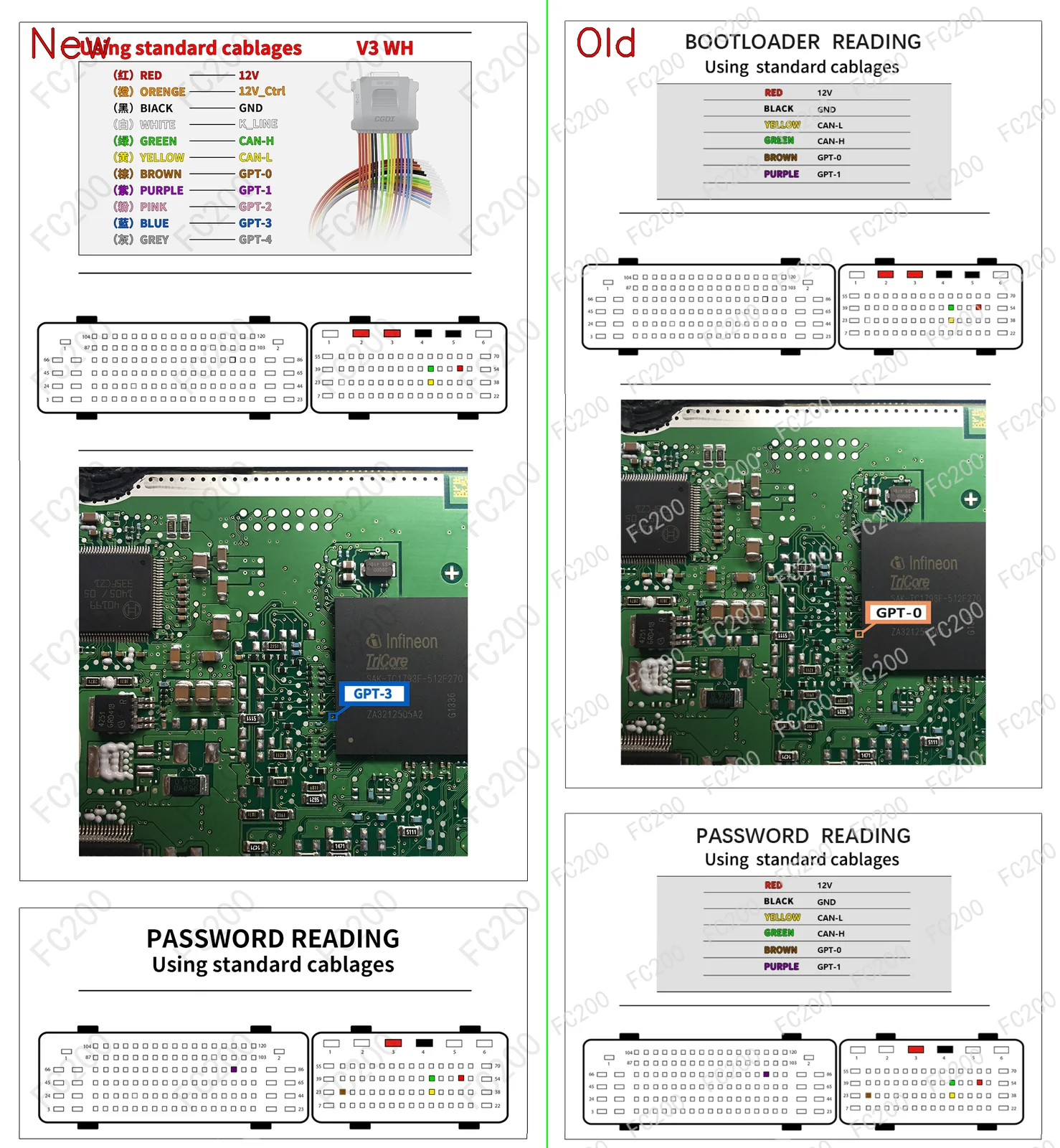

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C60.png (Boot)3,170,521 bytes
BOOT_BOSCH EDC17C60.png

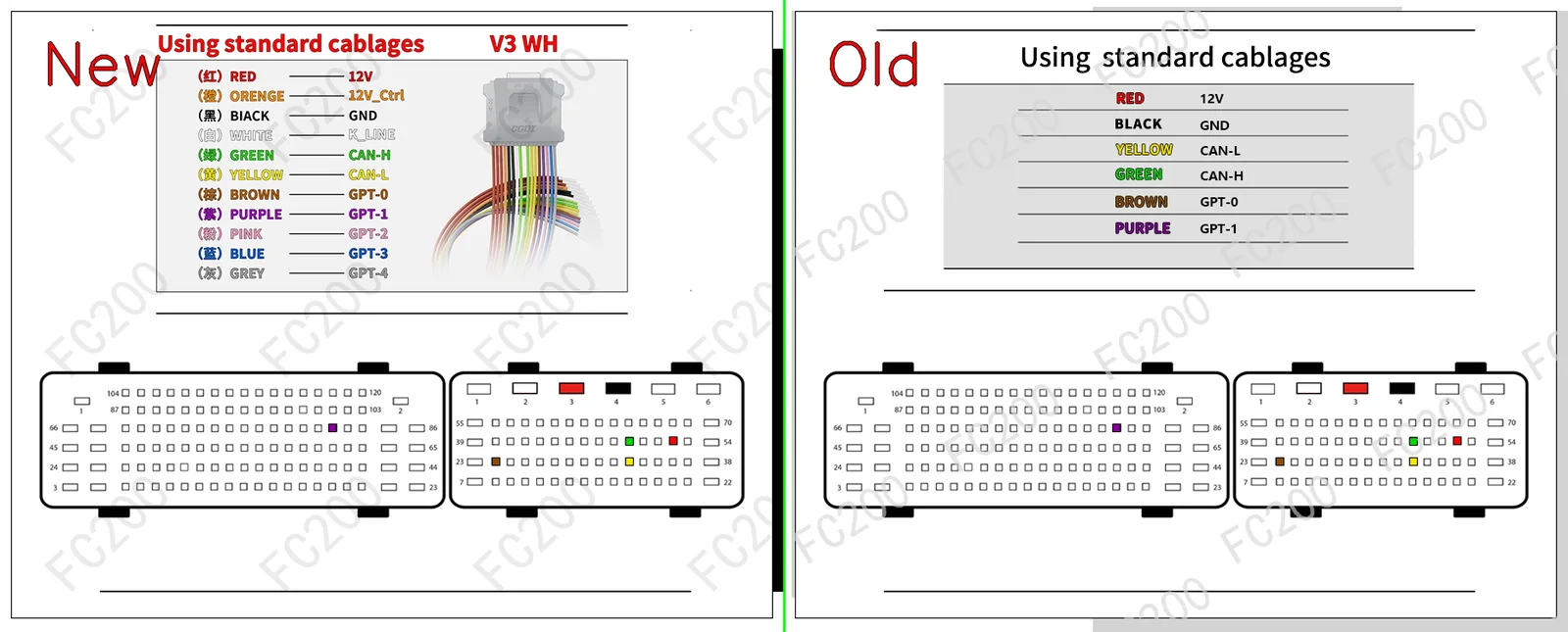

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C60.png (Platform / Bench)506,779 bytes
BOSCH EDC17C60.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C60 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Citroen Berlingo(B9) (1600 BHW<DV6FE> 75) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen C3 Picasso(BH02) (1600 BlueHDi BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen C4(B71) (1600 BlueHDi BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen C4 Cactus(I) (1600 HDi • 110) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen C4 Grand Picasso(B58) (1560 BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen C4 Picasso(B78) (1560 BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen DS3(A55) (1600 BlueHDi BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen DS3(A56) (1600 BlueHDi BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen DS4(B75) (1600 BlueHDi BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen DS4(B75) (1600 HDi • 90) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen DS4(B75) (1600 HDi • 110) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen DS5(B81) (1600 BlueHDi BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen DS5(B81) (1600 HDi • 90) BOSCH EDC17C60 (TC1793) Open Vehicle →
Citroen DS5(B81) (1600 HDi • 110) BOSCH EDC17C60 (TC1793) Open Vehicle →
DS DS3(A55) (1600 BlueHDi BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
DS DS4(B75) (1600 BlueHDi BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
DS DS5(B81) (1600 BlueHDi BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Mercedes-Benz GLE(W166) (250d OM 651.960 204) BOSCH EDC17C60 (TC1793) Open Vehicle →
Opel ComboE (1560 DV6FD 99) BOSCH EDC17C60 (TC1793) Open Vehicle →
Opel Crossland X(I) (1560 DV6FD 99) BOSCH EDC17C60 (TC1793) Open Vehicle →
Peugeot 208(A9) (1560 BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Peugeot 2008(A94) (1560 BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Peugeot 3008(T8) (1560 BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
Peugeot 308(T9) (1600 BlueHDi BHZ 120) BOSCH EDC17C60 (TC1793) Open Vehicle →
