ECU Pinout EDC17C55 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C55 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

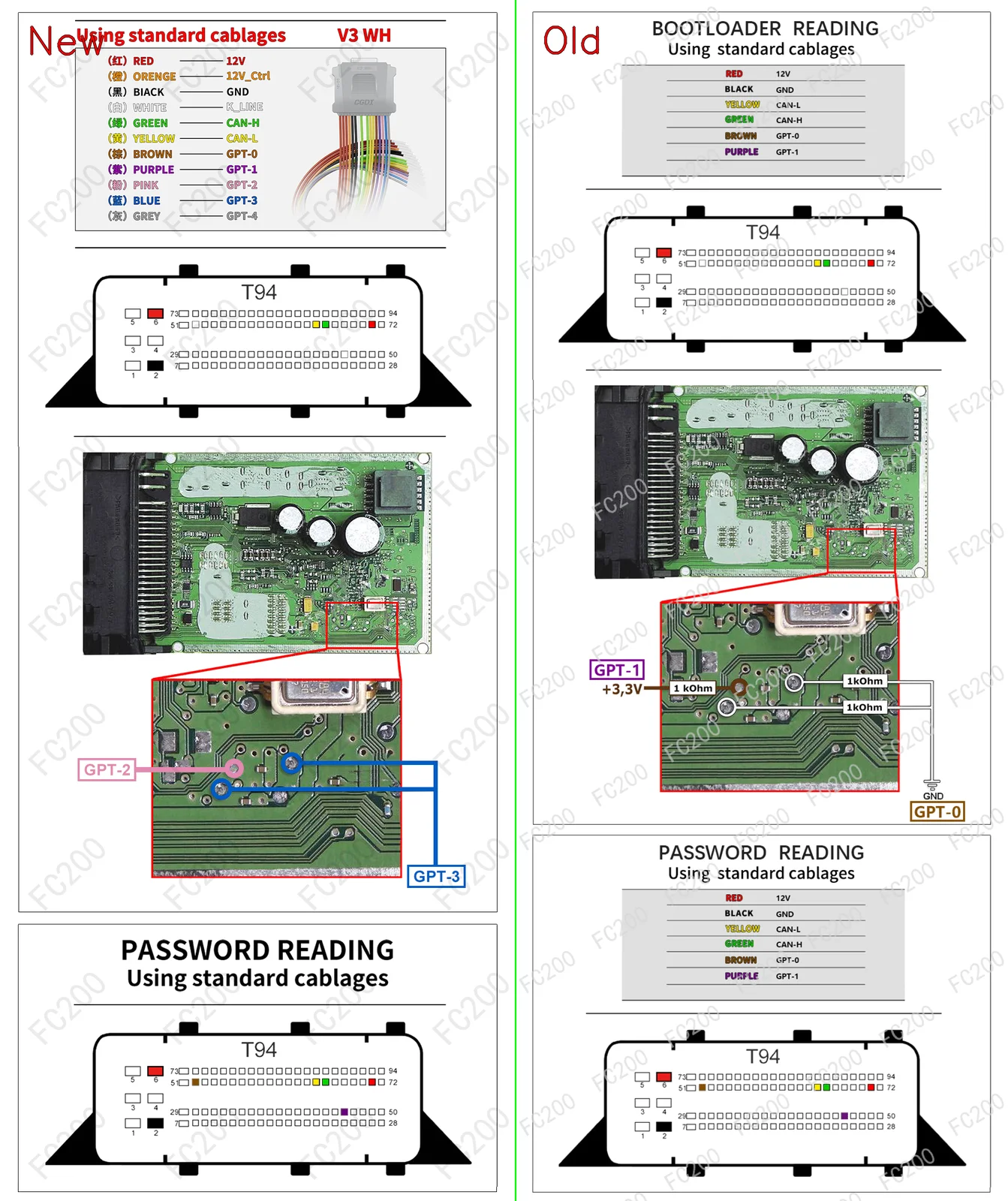

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C55.png (Boot)3,170,830 bytes
BOOT_BOSCH EDC17C55.png

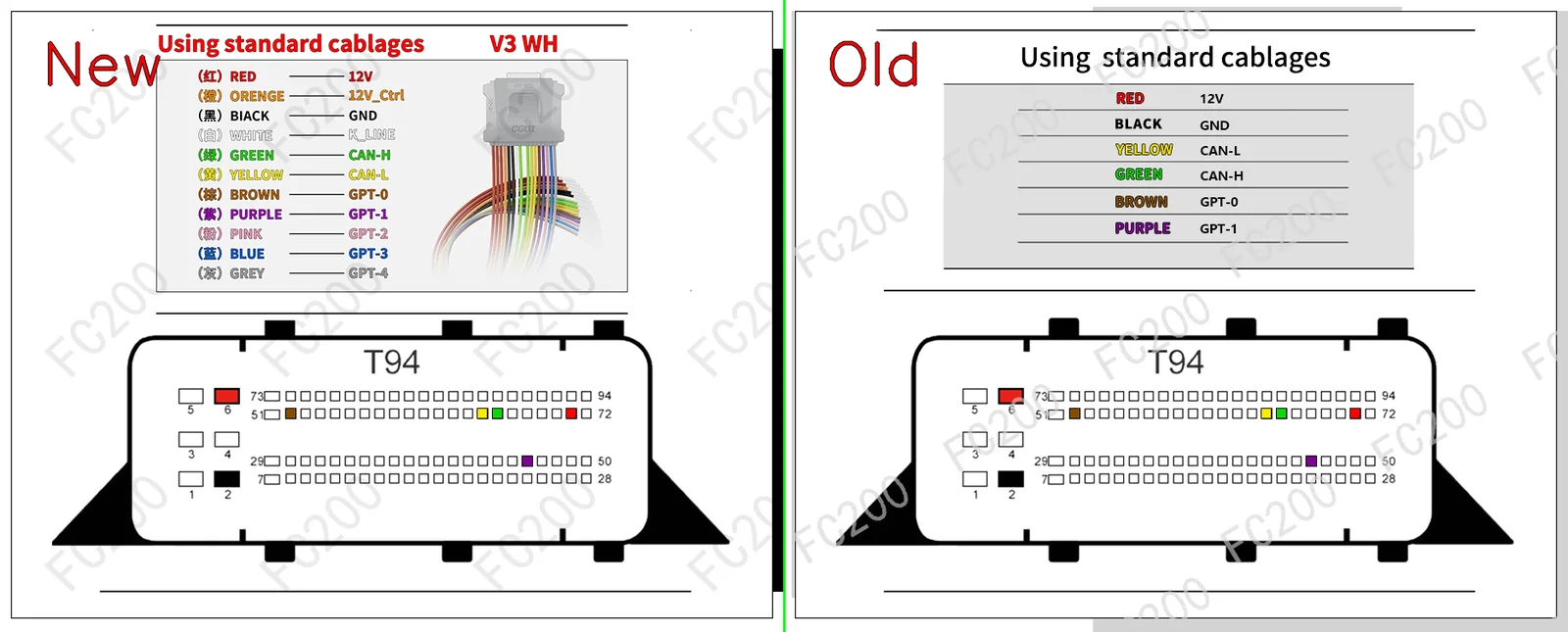

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C55.png (Platform / Bench)490,312 bytes
BOSCH EDC17C55.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C55 (23)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Foton All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17C55 (TC1767) Open Vehicle →
Great Wall / Haval / Tank All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17C55 (TC1767) Open Vehicle →
JMC Bao Dian(I) (2400 TD JX4D24A4L 122) BOSCH EDC17C55 (TC1767) Open Vehicle →
JMC Jiang Ling(I) (2400 TD JX4D24A4L 122) BOSCH EDC17C55 (TC1767) Open Vehicle →
JMC Transit(VIII) (2800 TD • 105) BOSCH EDC17C55 (TC1767) Open Vehicle →
JMC Yusheng(I) (2400 TD JX4D24A4L 122) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota L(40) (L5040 V2403-T 52) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota L(40) (L5240 V2403-T 54) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota L(40) (L5740 V2403-T 58) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota L(60) (L5060 V2403-T 52) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota L(60) (L5460 V2403-T 56) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota L(60) (L6060 V2403-T 63) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota M(X) (M5640SU V2403-T 56) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota M(X) (MX5100 V2403-T 50) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota M(X) (MX5200 V2403-T 54) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota M(X) (MX5800 V2403-T 64) BOSCH EDC17C55 (TC1767) Open Vehicle →
Mahindra Goa (2200 TD m-Hawk 120) BOSCH EDC17C55 (TC1767) Open Vehicle →
Mahindra Scorpio (2200 TD m-Hawk 120) BOSCH EDC17C55 (TC1767) Open Vehicle →
Mahindra XUV500 (2000 TD m-Hawk 140) BOSCH EDC17C55 (TC1767) Open Vehicle →
Great Wall / Haval / Tank All Brand Models (Direct ECU Label Lookup) (Read/WriteDFLASH/PFLASH, Recover VIN, Fixing the unready stateRecover CALID) BOSCH EDC17C55 (TC1767) Open Vehicle →
JMC All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSumRecover CALID) BOSCH EDC17C55 (TC1767) Open Vehicle →
Kubota All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSumRecover CALID) BOSCH EDC17C55 (TC1767) Open Vehicle →
Mahindra All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSumRecover CALID) BOSCH EDC17C55 (TC1767) Open Vehicle →
