ECU Pinout EDC17C49 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C49 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

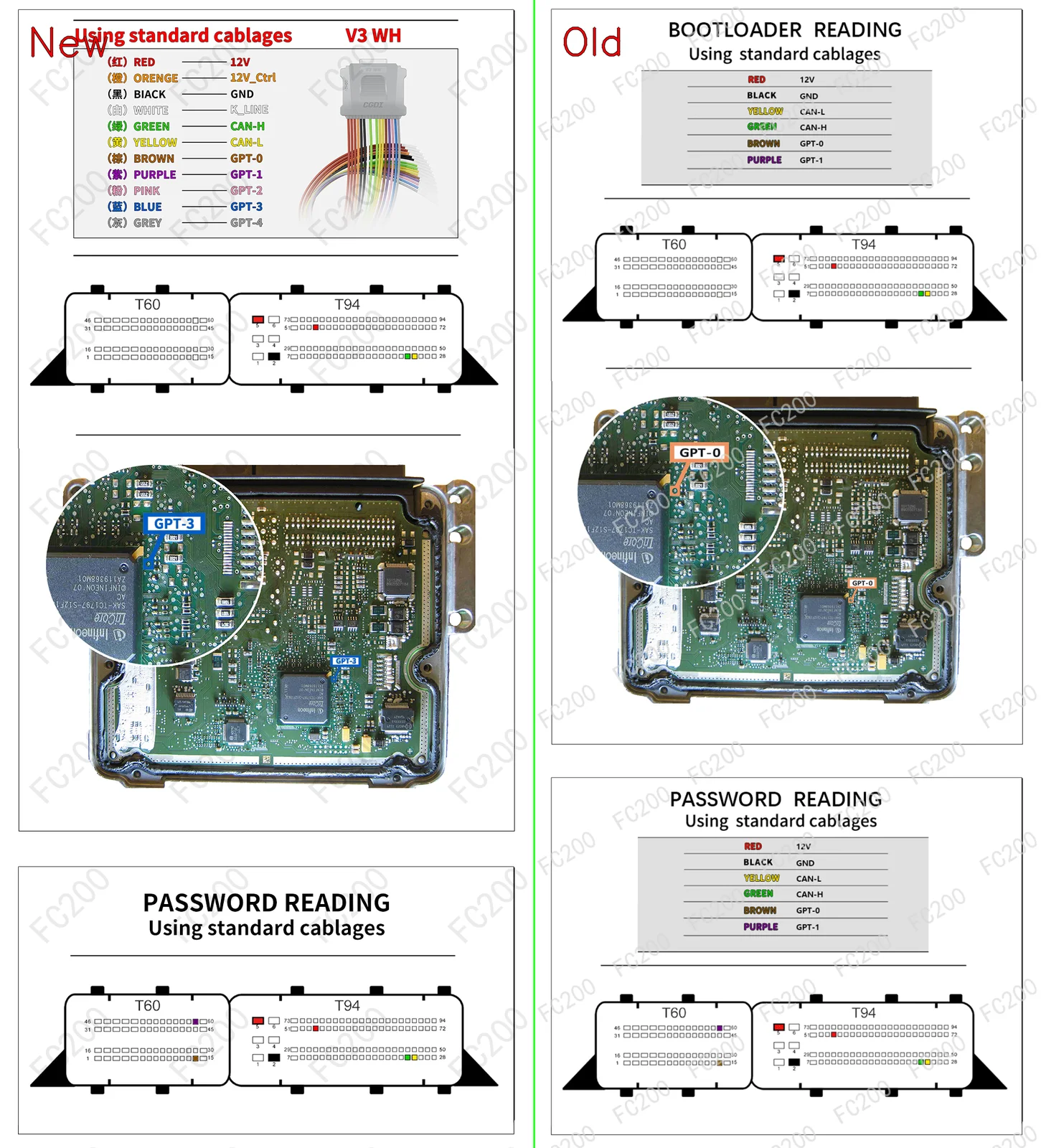

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C49.png (Boot)3,114,382 bytes
BOOT_BOSCH EDC17C49.png

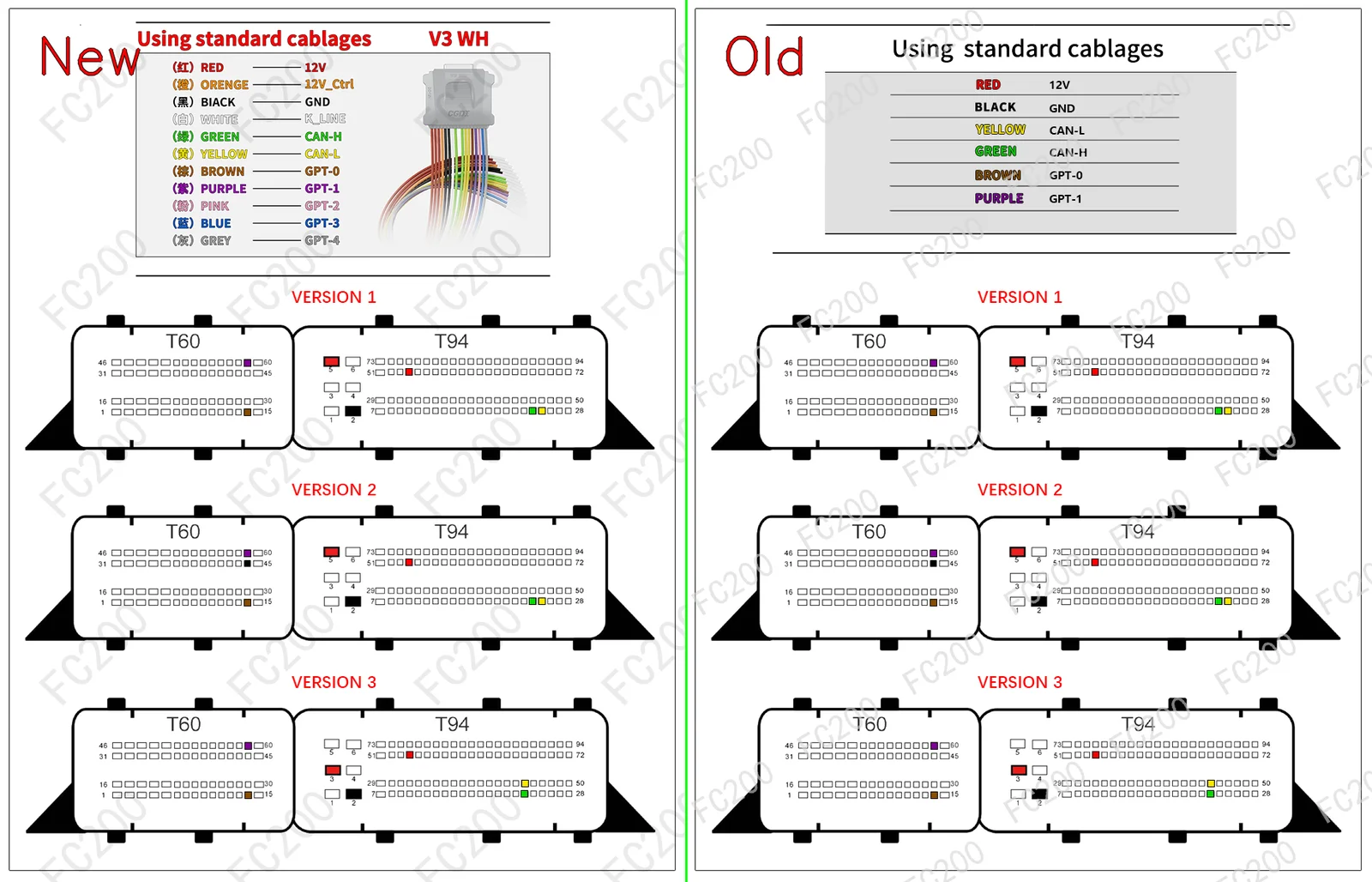

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C49.png (Platform / Bench)901,047 bytes
BOSCH EDC17C49.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C49 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Aebi Schmidt VT 450 Vario (3000 R754EU6 109) BOSCH EDC17C49 (TC1797) Open Vehicle →
Alfa Romeo Giulietta(940) (1600 JTDM 940.A3.000 105) BOSCH EDC17C49 (TC1797) Open Vehicle →
Alfa Romeo Giulietta(940) (2000 JTDM 940.A5.000 140) BOSCH EDC17C49 (TC1797) Open Vehicle →
CASE Farmall 105C (3400 D • 106) BOSCH EDC17C49 (TC1797) Open Vehicle →
CASE Farmall 105U Pro (3400 D • 106) BOSCH EDC17C49 (TC1797) Open Vehicle →
CASE Farmall 115C (3400 D • 94) BOSCH EDC17C49 (TC1797) Open Vehicle →
CASE Farmall 115C (3400 D • 115) BOSCH EDC17C49 (TC1797) Open Vehicle →
CASE Farmall 115U Pro (3400 D • 113) BOSCH EDC17C49 (TC1797) Open Vehicle →
CASE Farmall 75C (3400 D • 74) BOSCH EDC17C49 (TC1797) Open Vehicle →
CASE Farmall 85C (3400 D • 87) BOSCH EDC17C49 (TC1797) Open Vehicle →
CASE Farmall 95U Pro (3400 D • 98) BOSCH EDC17C49 (TC1797) Open Vehicle →
CASE Luxxum(120) (3400 • 117) BOSCH EDC17C49 (TC1797) Open Vehicle →
Caterpillar Excavators (311F RR C3.4B 75) BOSCH EDC17C49 (TC1797) Open Vehicle →
Caterpillar Excavators (313F RR C3.4B 75) BOSCH EDC17C49 (TC1797) Open Vehicle →
Chrysler 300C(II) (2987 EXF 237) BOSCH EDC17C49 (TC1797) Open Vehicle →
Fiat 500 L(199) (1600 Multijet • ) BOSCH EDC17C49 (TC1797) Open Vehicle →
Fiat Bravo (1598 844a3000 105) BOSCH EDC17C49 (TC1797) Open Vehicle →
Fiat Doblo(263) (1600 Multijet 198.A3.000 105) BOSCH EDC17C49 (TC1797) Open Vehicle →
Fiat Doblo(263) (2000 Multijet 263.A1.000 135) BOSCH EDC17C49 (TC1797) Open Vehicle →
Fiat Ducato(250) (2000 Multijet • 114) BOSCH EDC17C49 (TC1797) Open Vehicle →
Fiat Freemont(345) (2000 16v MJET AWD • 170) BOSCH EDC17C49 (TC1797) Open Vehicle →
Fiat Freemont(345) (2000 Multijet • 140) BOSCH EDC17C49 (TC1797) Open Vehicle →
Fiat Freemont(345) (2000 Multijet 2WD • 170) BOSCH EDC17C49 (TC1797) Open Vehicle →
Iveco Daily (35 S 15 2300 • 148) BOSCH EDC17C49 (TC1797) Open Vehicle →
