ECU Pinout EDC17C18 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C18 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

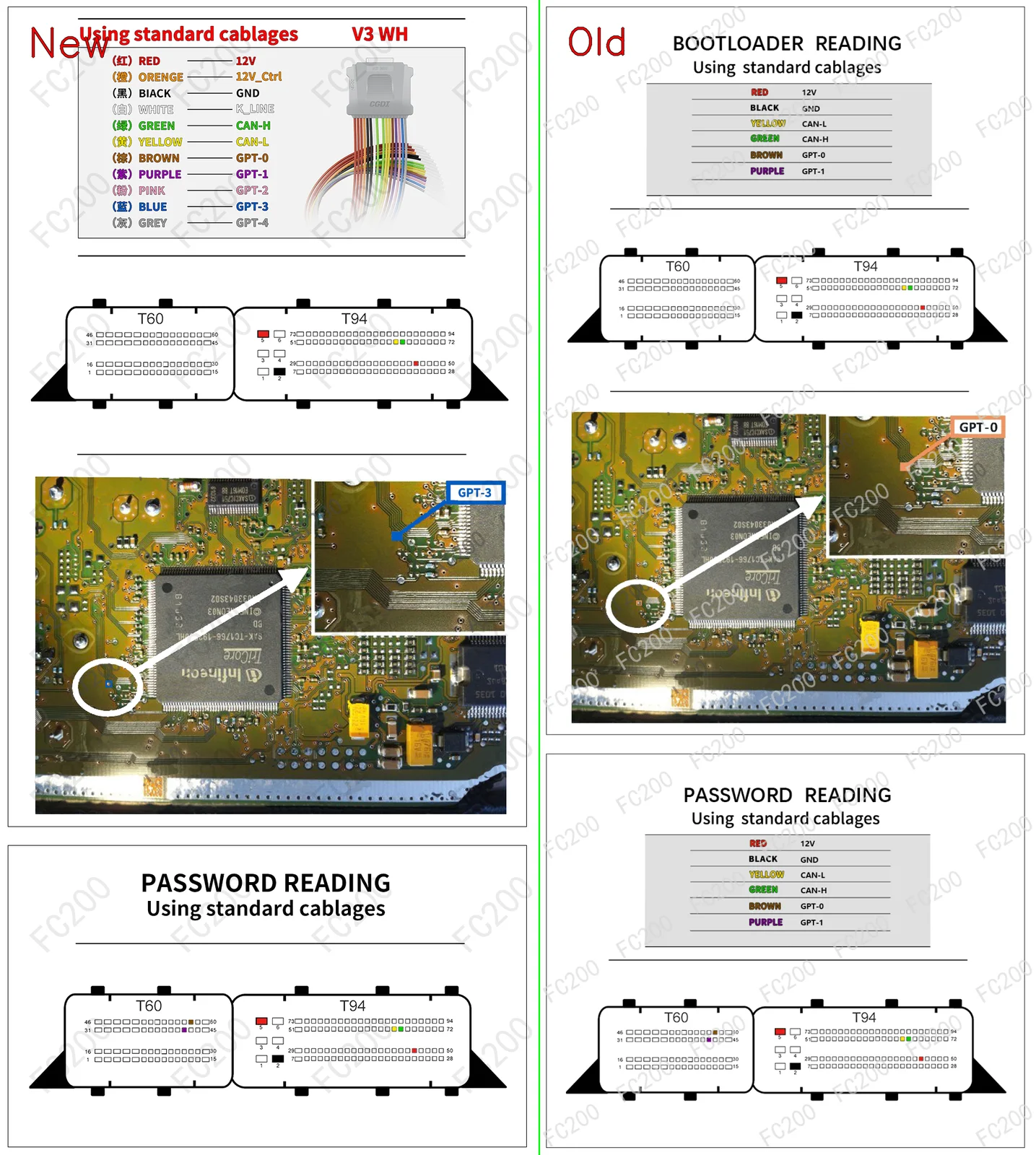

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C18.png (Boot)3,070,942 bytes
BOOT_BOSCH EDC17C18.png

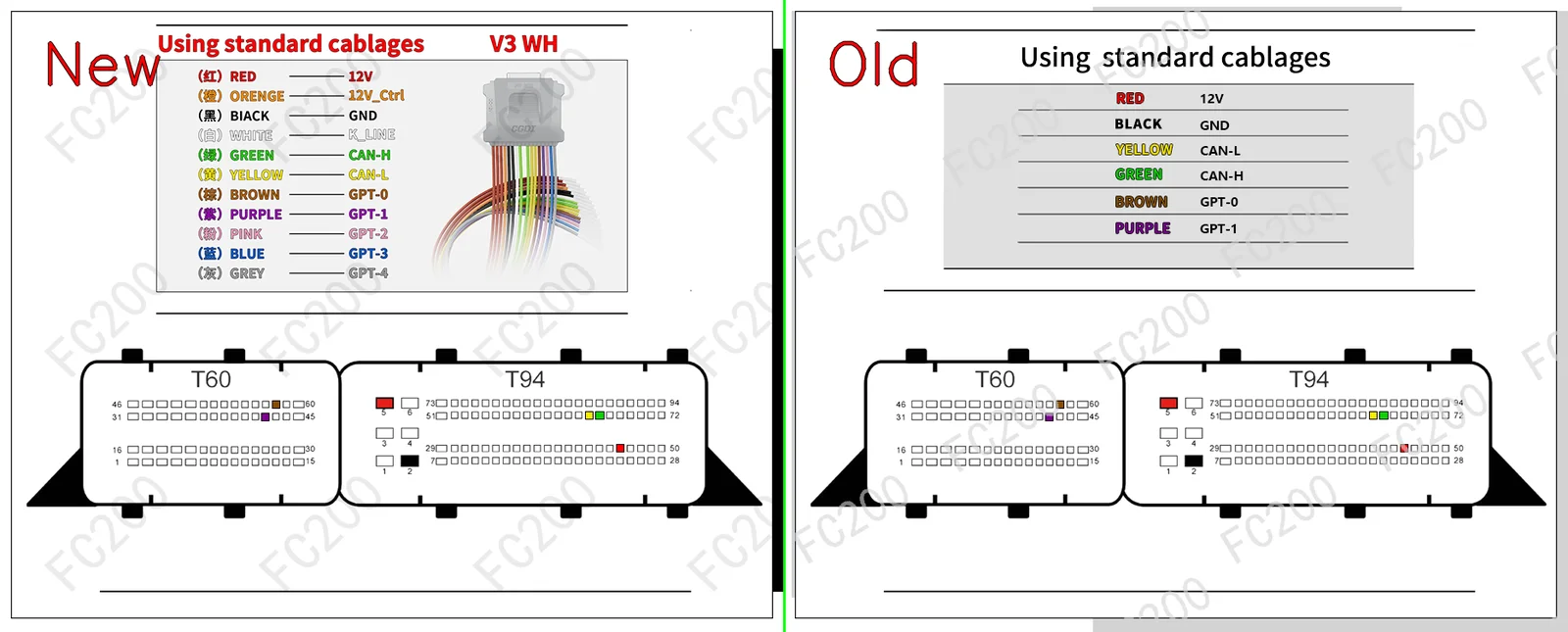

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C18.png (Platform / Bench)474,005 bytes
BOSCH EDC17C18.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C18 (22)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Opel Astra(J) (1300 CDTI A13DTE 95) BOSCH EDC17C18 (TC1766) Open Vehicle →
Opel Astra(J) (2000 CDTI A20DTH 160) BOSCH EDC17C18 (TC1766) Open Vehicle →
Opel Corsa(D) (1300 CDTI A13DTC 75) BOSCH EDC17C18 (TC1766) Open Vehicle →
Opel Corsa(D) (1300 CDTI A13DTE 95) BOSCH EDC17C18 (TC1766) Open Vehicle →
Opel Corsa(D) (1300 CDTI Z13DTE 95) BOSCH EDC17C18 (TC1766) Open Vehicle →
Opel Insignia(I) (2000 CDTI 4x4 A20DTH 160) BOSCH EDC17C18 (TC1766) Open Vehicle →
Opel Insignia(I) (2000 CDTI A20DT 110) BOSCH EDC17C18 (TC1766) Open Vehicle →
Opel Insignia(I) (2000 CDTI A20DT 131) BOSCH EDC17C18 (TC1766) Open Vehicle →
Opel Insignia(I) (2000 CDTI A20DTH 160) BOSCH EDC17C18 (TC1766) Open Vehicle →
Opel Meriva(B) (1300 CDTI A13DTE 95) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall Astra(J) (1300 CDTI A13DTE 95) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall Astra(J) (2000 CDTI A20DTH 160) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall Corsa(D) (1300 CDTI A13DTC 75) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall Corsa(D) (1300 CDTI A13DTE 95) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall Corsa(D) (1300 CDTI Z13DTE 95) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall Insignia(I) (2000 CDTI A20DT 110) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall Insignia(I) (2000 CDTI A20DT 131) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall Insignia(I) (2000 CDTI A20DTH 160) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall Insignia(I) (2000 CDTI 4x4 A20DTH 160) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall Meriva(B) (1300 CDTI A13DTE 95) BOSCH EDC17C18 (TC1766) Open Vehicle →
Opel All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17C18 (TC1766) Open Vehicle →
Vauxhall All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17C18 (TC1766) Open Vehicle →
