ECU Pinout EDC17C10 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C10 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

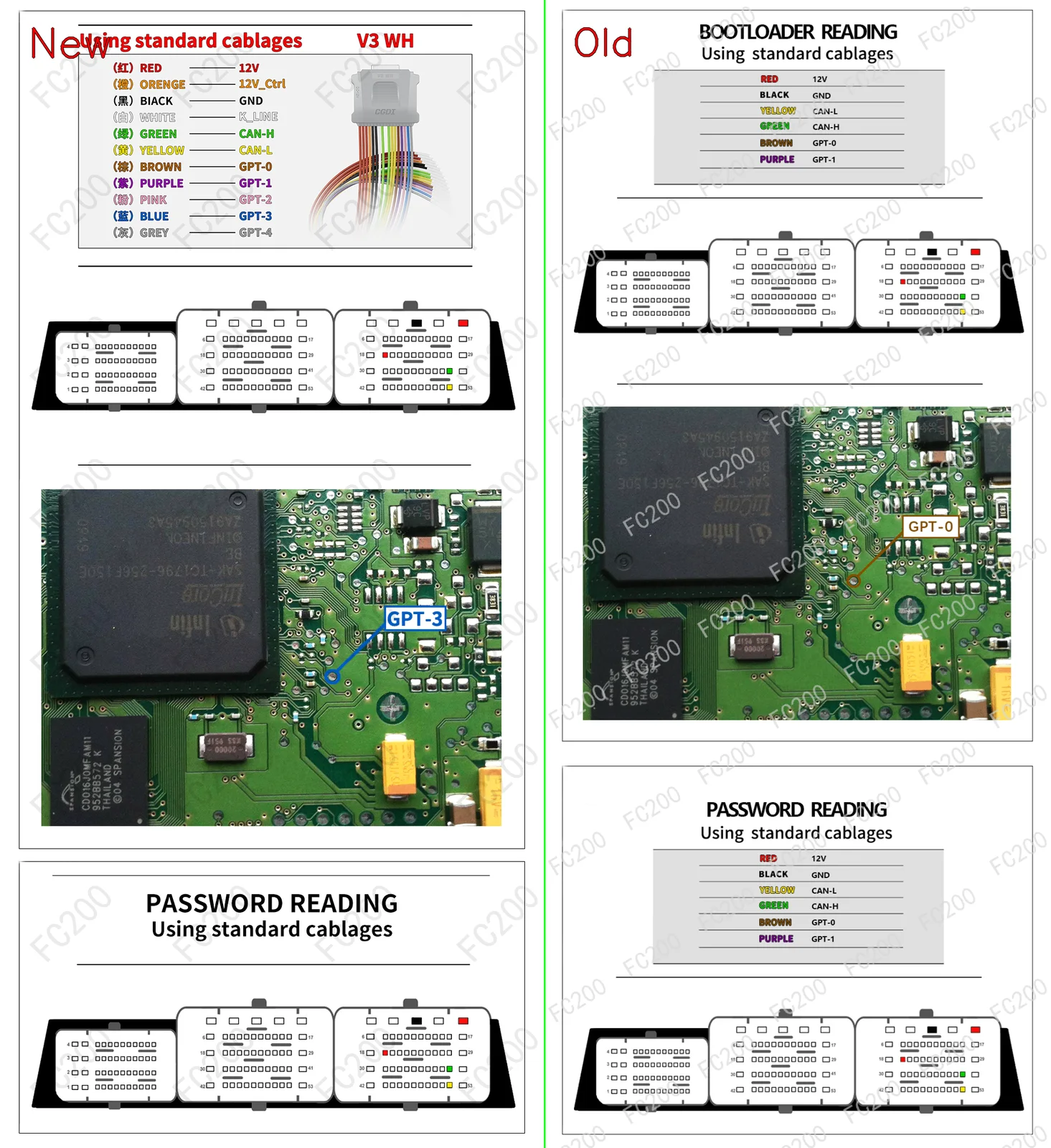

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C10.png (Boot)3,126,603 bytes
BOOT_BOSCH EDC17C10.png

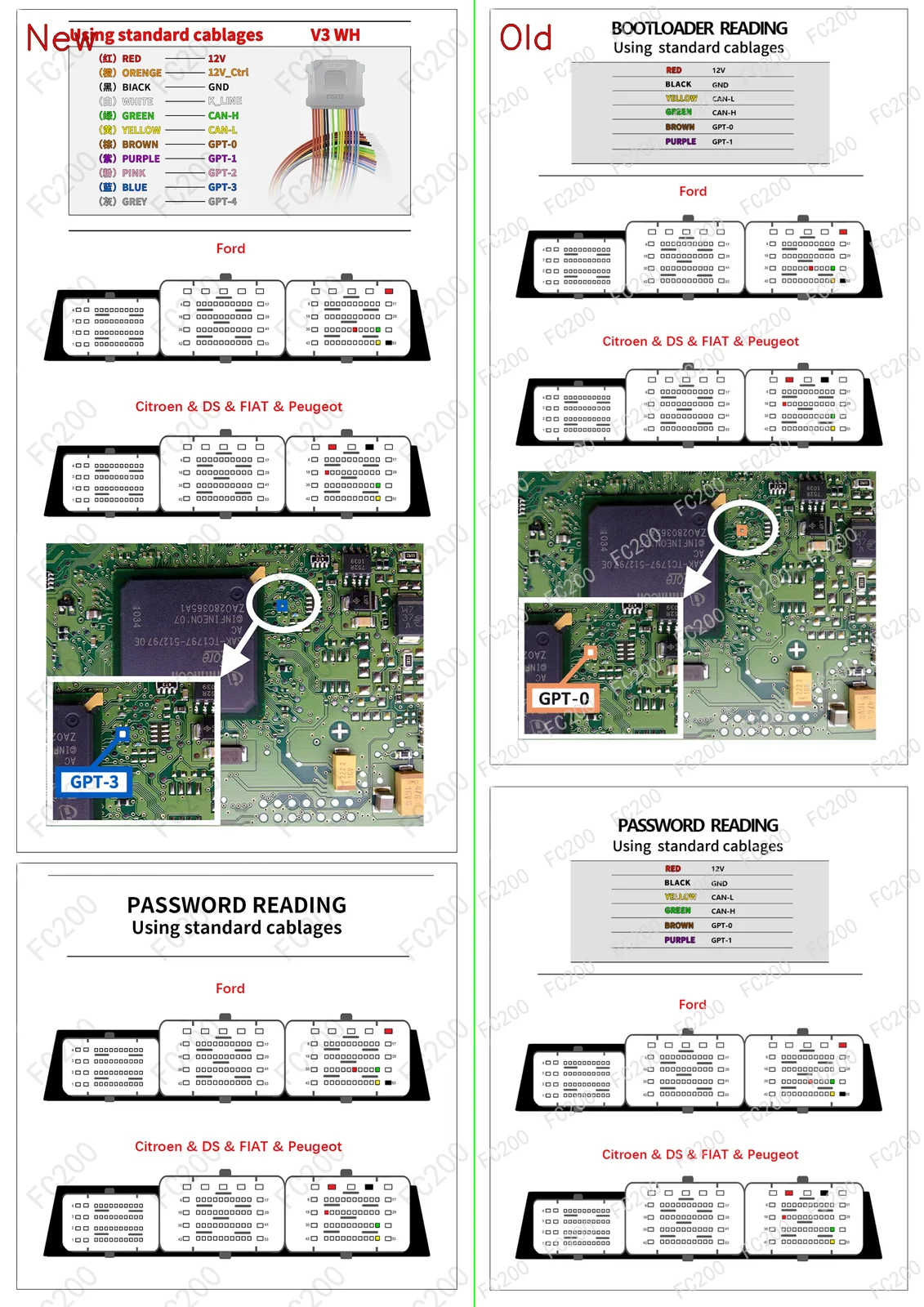

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C10_.png (Boot)3,625,455 bytes
BOOT_BOSCH EDC17C10_.png

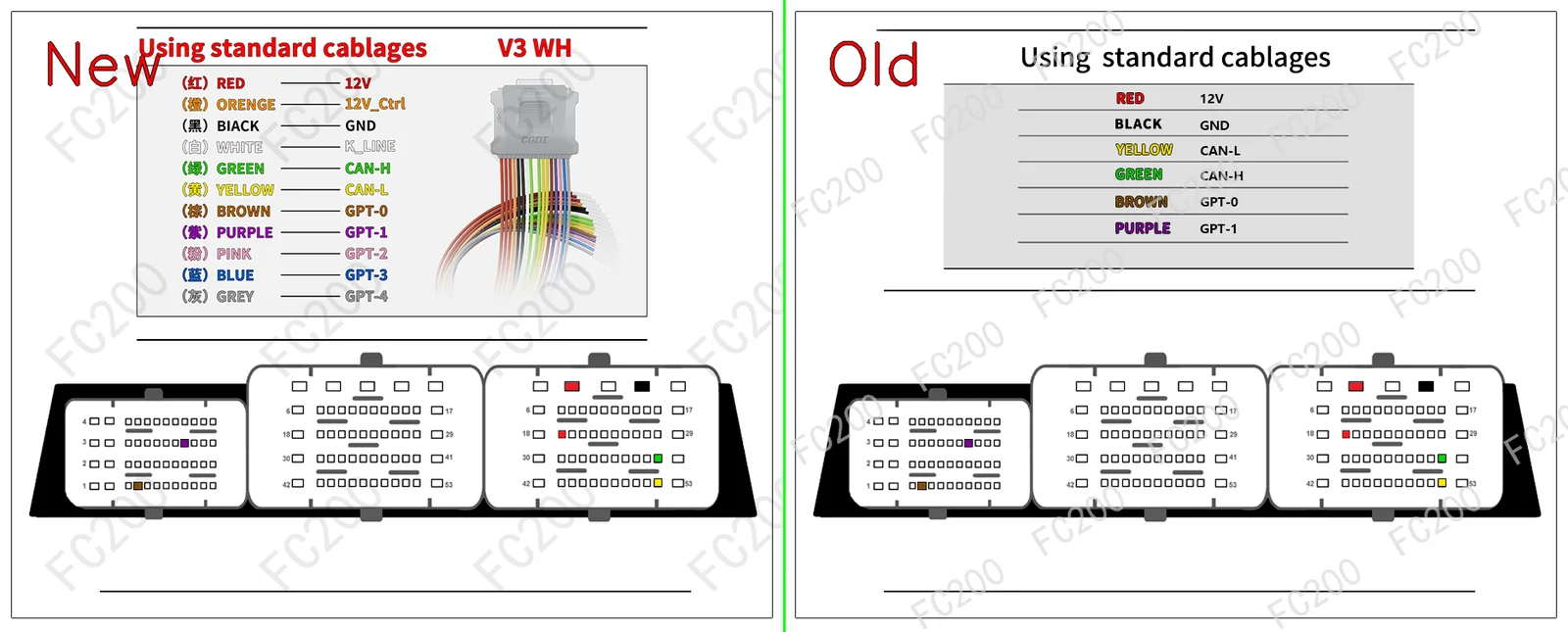

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C10.png (Platform / Bench)540,968 bytes
BOSCH EDC17C10.png

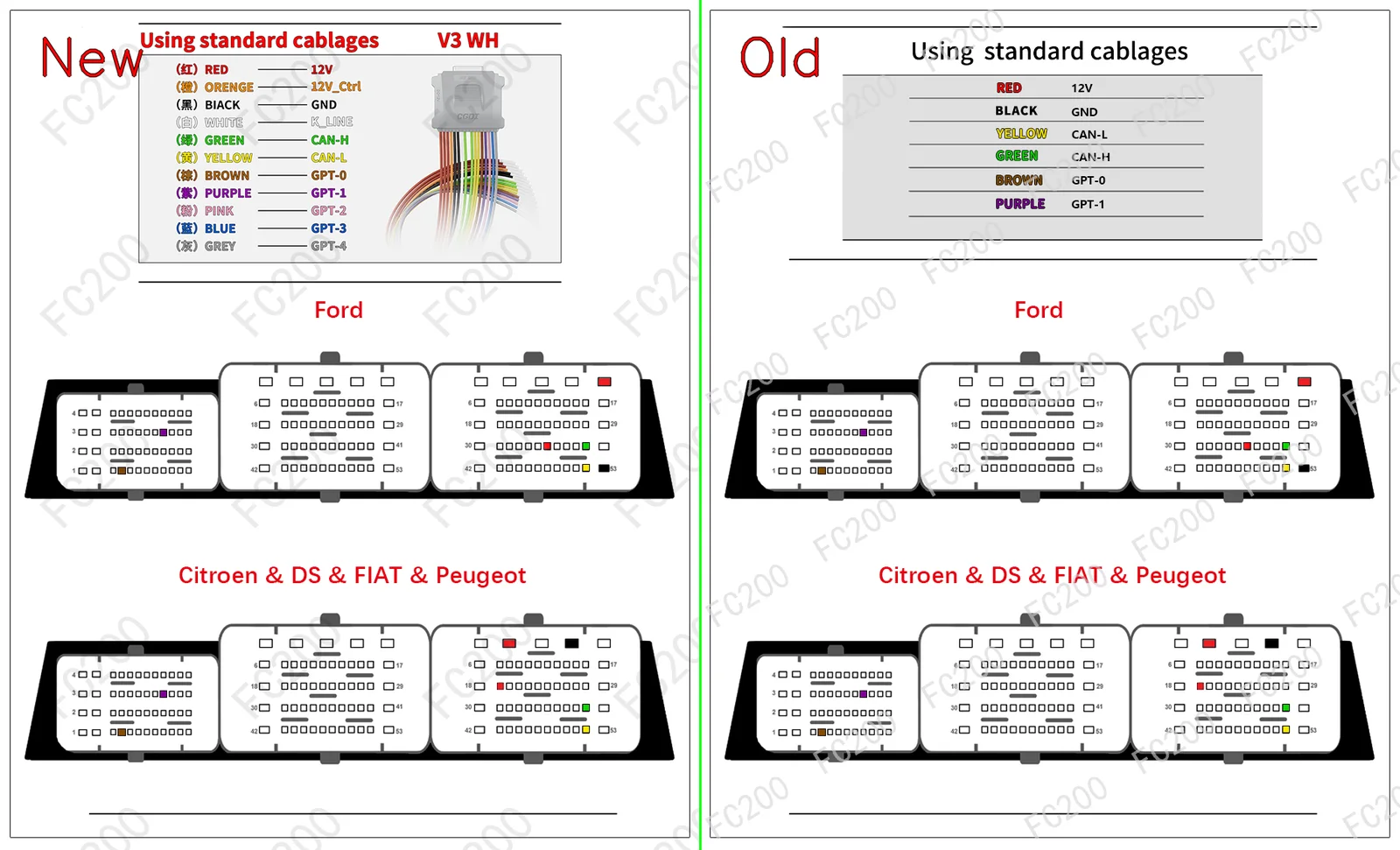

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C10_.png (Platform / Bench)785,929 bytes
BOSCH EDC17C10_.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C10 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Citroen Berlingo(B9) (1600 HDi 9HL 114) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi 9HN <DV6ETED> 75) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi 9HP 92) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi 9HP <DV6DTED> 110) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi 9HR 112) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen Berlingo(B9) (1400 HDi • 73) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi • 88) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi 9HP <DV6DTED> 90) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi 9HL 114) BOSCH EDC17C10 (TC1796) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi 9HN <DV6ETED> 75) BOSCH EDC17C10 (TC1796) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi 9HP 92) BOSCH EDC17C10 (TC1796) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi 9HP <DV6DTED> 110) BOSCH EDC17C10 (TC1796) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi 9HR 112) BOSCH EDC17C10 (TC1796) Open Vehicle →
Citroen Berlingo(B9) (1400 HDi • 73) BOSCH EDC17C10 (TC1796) Open Vehicle →
Citroen Berlingo(B9) (1600 HDi • 88) BOSCH EDC17C10 (TC1796) Open Vehicle →
Citroen C-Elysee(I) (1600 HDi 9HP 92) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen C-Elysee(I) (1600 HDi 9HP 92) BOSCH EDC17C10 (TC1796) Open Vehicle →
Citroen C3(A51) (1400 HDi 8HR 68) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen C3(A51) (1600 HDi 9HD 114) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen C3(A51) (1600 HDi 9HP 92) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen C3(A51) (1600 HDi 9HP <DV6DTED> 90) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen C3(A51) (1600 HDi 9HR 112) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen C3(A51) (1400 HDi • 67) BOSCH EDC17C10_ (TC1797) Open Vehicle →
Citroen C3(A51) (1600 HDi • 90) BOSCH EDC17C10_ (TC1797) Open Vehicle →
