ECU Pinout EDC17C06 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU EDC17C06 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

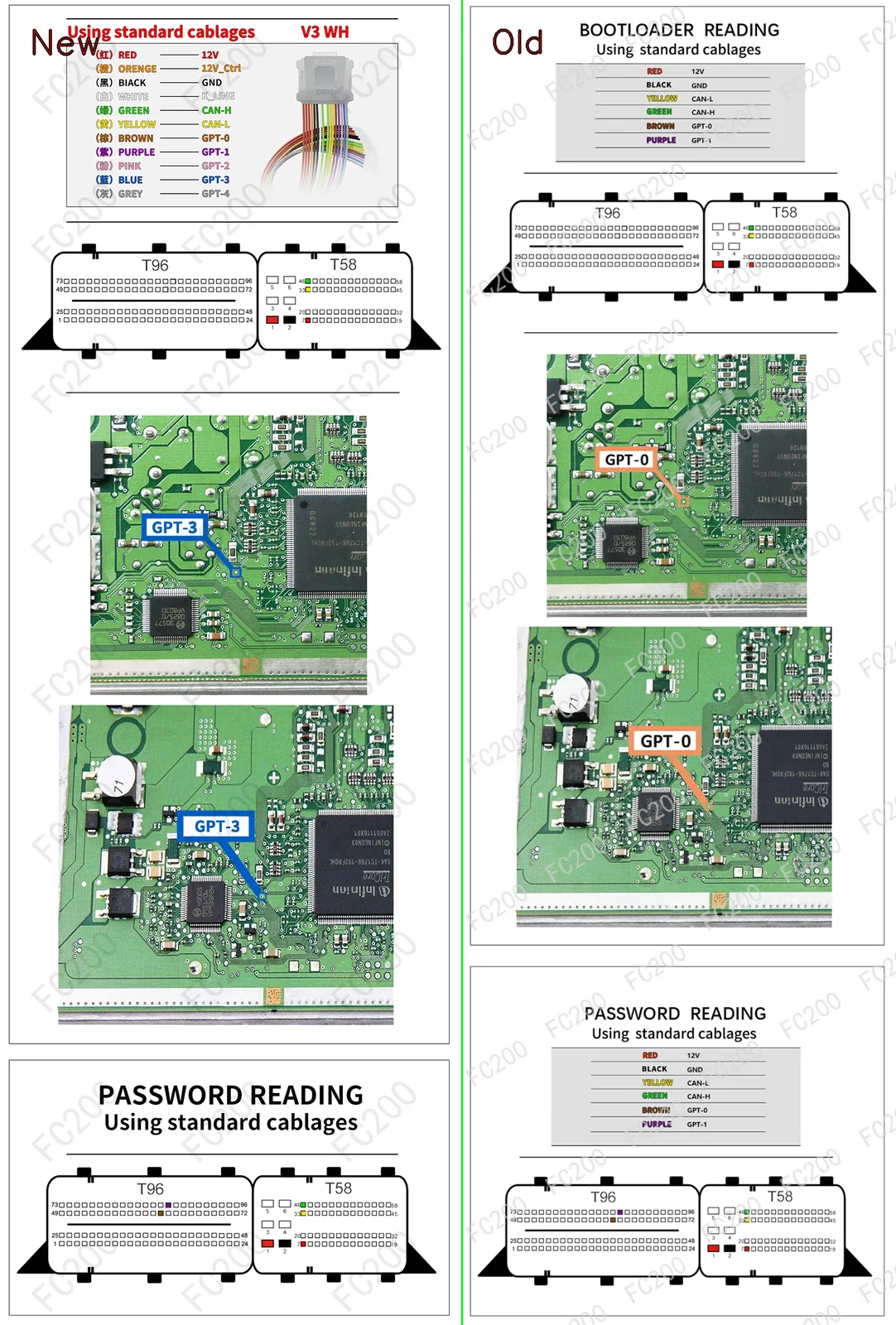

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17C06.png (Boot)3,400,952 bytes
BOOT_BOSCH EDC17C06.png

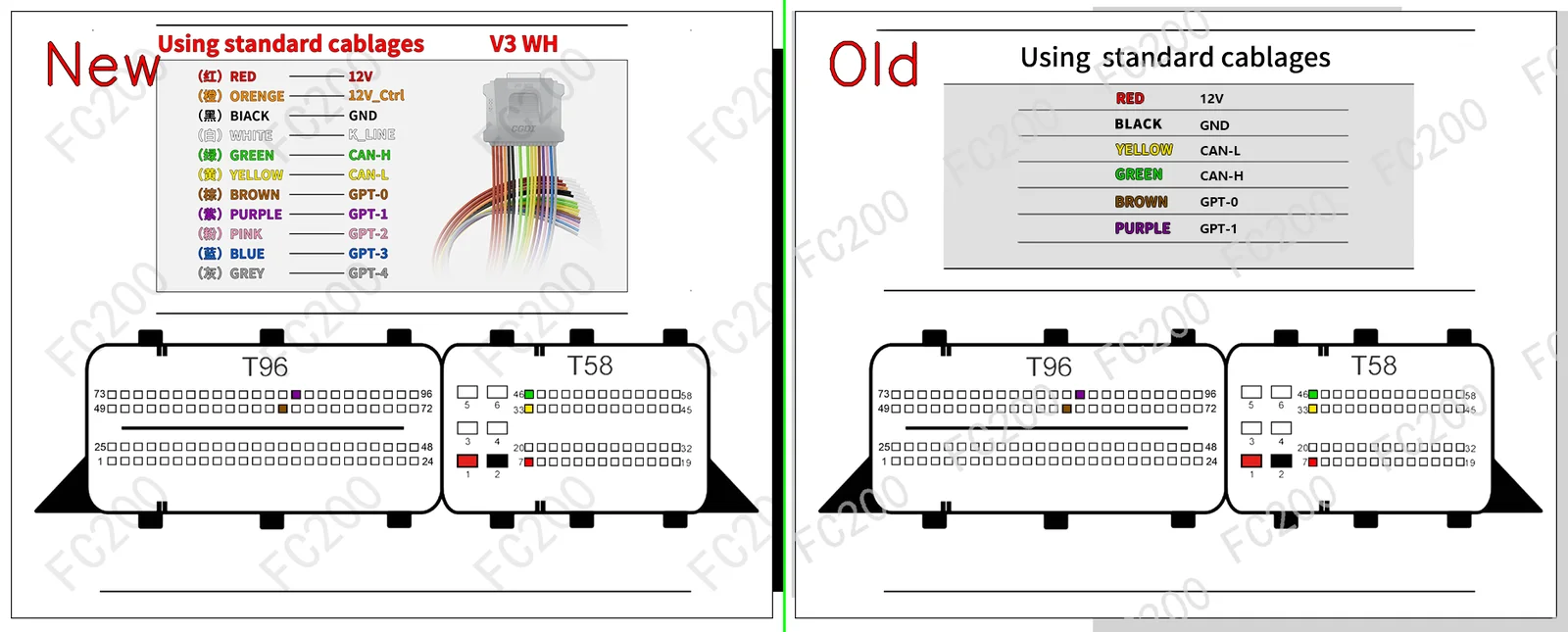

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17C06.png (Platform / Bench)504,007 bytes
BOSCH EDC17C06.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC17C06 (19)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
BMW 1 Series(E81) (116d 2000 N47D20 115) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 1 Series(E81) (118d N47D20U0 143) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 1 Series(E82) (118d N47D20U0 143) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 1 Series(E87) (116d 2000 N47D20 115) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 1 Series(E87) (118d N47D20U0 143) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 1 Series(E88) (118d N47D20U0 143) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 3 Series(E90) (316d 2000 N47D20 115) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 3 Series(E90) (318d 2000 N47D20 143) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 3 Series(E91) (316d 2000 N47D20 115) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 3 Series(E91) (318d 2000 N47D20 143) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 5 Series(E60) (520d N47D20 177) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW 5 Series(E61) (520d N47D20 177) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW X1 Series(E84) (18d sDrive N47D20 143) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW X1 Series(E84) (18d xDrive N47D20 143) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW X3 Series(E83) (18d sDrive N47D20 143) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW X3 Series(E83) (18d xDrive N47D20 143) BOSCH EDC17C06 (TC1766) Open Vehicle →
Mini Cooper(R56) (1995 B47C20 150) BOSCH EDC17C06 (TC1766) Open Vehicle →
BMW All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Read/Write ISN, Recover VIN, CheckSum) BOSCH EDC17C06 (TC1766) Open Vehicle →
Mini All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Read/Write ISN, CheckSum) BOSCH EDC17C06 (TC1766) Open Vehicle →
