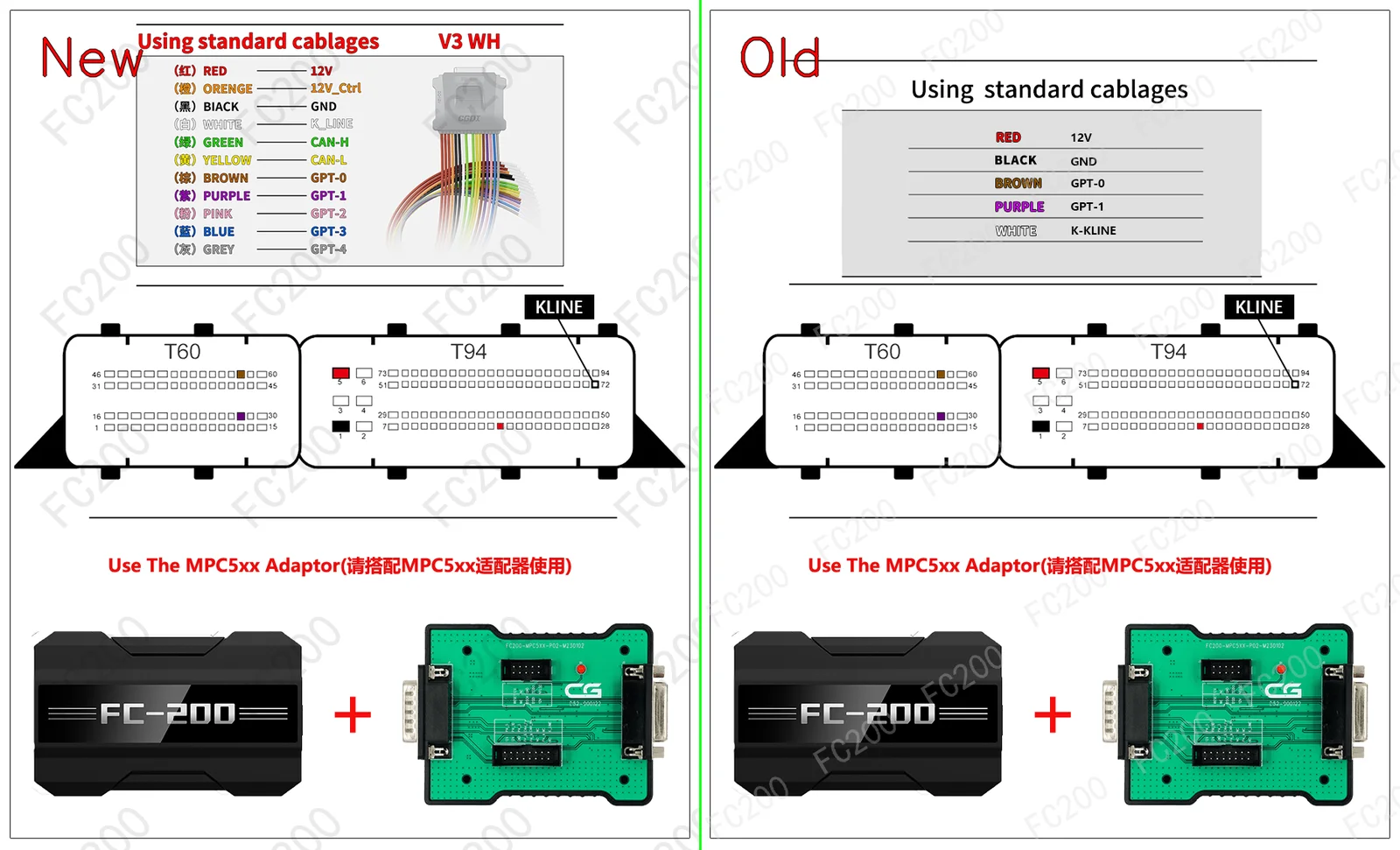

OFFICIAL PINOUT DIAGRAM: BOSCH EDC16U34 MPC561_2.png (Platform / Bench)1,024,679 bytes
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
- Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power
13.5V — 13.8Vto constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above. - Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect
CAN-H&CAN-L, along with signal leadsGPT0 (S1)&GPT1 (S2)to enter bench service mode without opening the ECU housing. - Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (
PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU EDC16U34 (24)VEHICLE COMPATIBILITY
| Make | Model & Engine | ECU & MCU | Action |
|---|---|---|---|
| Audi | A3(8P) (1968 BKD 140) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Audi | A3(8P) (2000 TDI quattro AZV 136) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Audi | A3(8P) (1896 BLS 105) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Audi | A3(8P) (1896 BXE 105) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Audi | A3(8P) (1968 BMM 140) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Seat | Altea(5P) (1896 BXE 105) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Seat | Altea(5P) (1896 BLS 104) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Seat | Altea(5P1) (1896 BXF 90) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Seat | Altea XL(5P) (1896 BLS 104) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Seat | Altea XL(5P) (1896 BXE 104) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Seat | Altea XL(5P) (1896 BXF 90) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Skoda | Octavia(1Z) (1900 TDI • ) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Caddy2K (1896 BLS 105) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Caddy2K (1896 BSU 75) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Caddy2K (1968 BMM 140) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Crafter(2E) (2500 TDI • 129) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Eos1F7 (1968 BMM 140) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1968 AZV 136) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Golf(1K1) (1968 BKD 140) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Golf(V) (1900 TDI • 90) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1896 BLS 105) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1968 BMM 140) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1896 BXF 90) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
| Volkswagen (VW) | Golf1K1 (1896 BXE 105) | BOSCH EDC16U34 MPC561/2 (test) |
Open Vehicle → |
