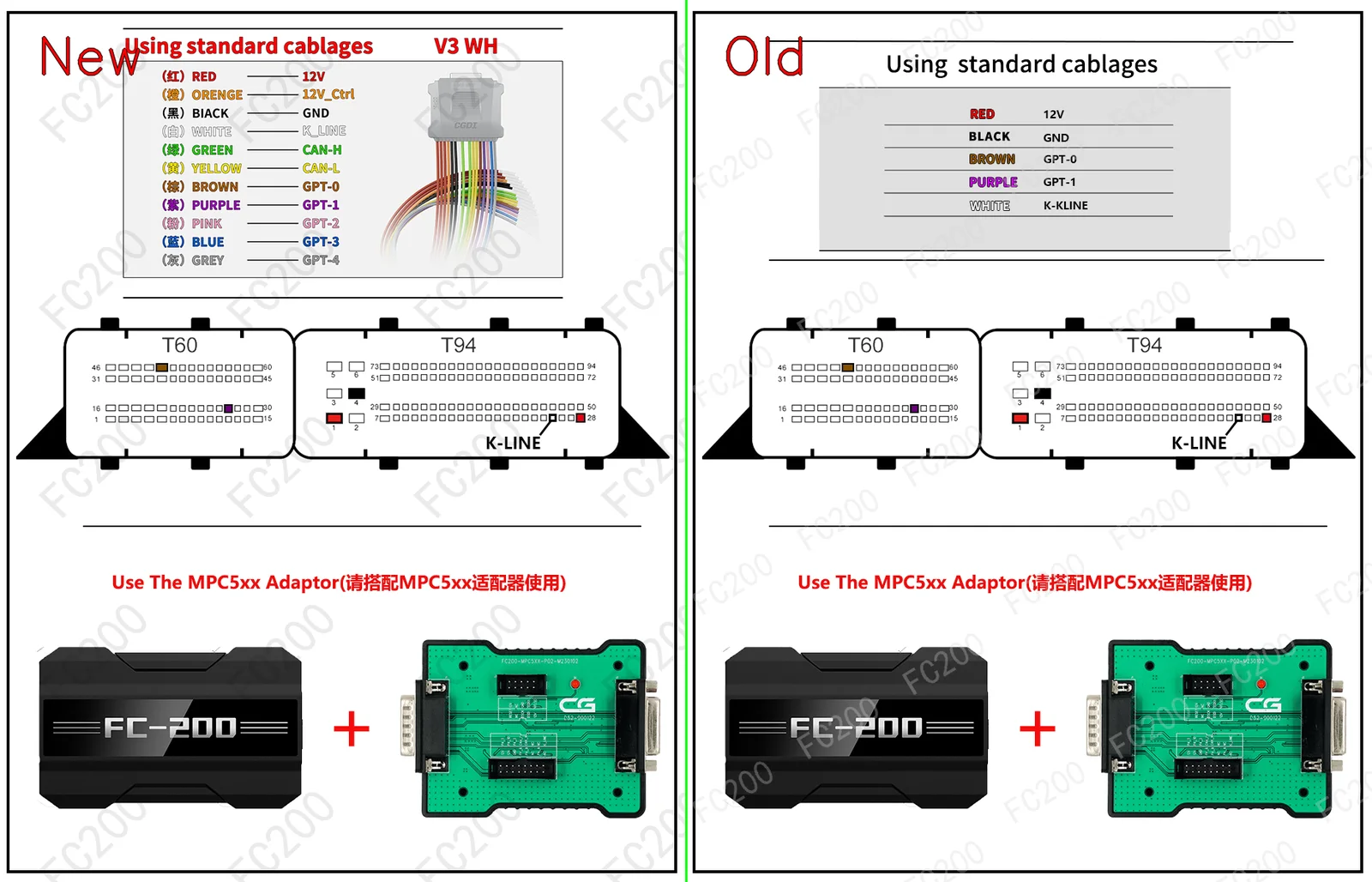

OFFICIAL PINOUT DIAGRAM: BOSCH EDC16C9 MPC555_6.png (Platform / Bench)1,031,238 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU EDC16C9 (24)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Chevrolet	Vectra(C) (1900 CDTI Z19DT 120)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Chevrolet	Vectra(C) (1900 CDTI Z19DTH 150)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Chevrolet	Vectra(C) (1900 CDTI Z19DTL 100)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Fiat	Idea(350) (1.9 JTD 188 B2.000 100)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Holden	Astra(H) (1700 CDTI Z17DTH 101)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Holden	Astra(H) (1900 CDTI Z19DTJ 120)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Holden	Vectra(C) (1900 CDTI Z19DTL 100)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Holden	Vectra(C) (1900 CDTI Z19DTH 150)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Holden	Vectra(C) (1900 CDTI Z19DT 120)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Holden	Zafira(B) (1900 CDTI Z19DTL 100)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Lancia	Musa-- (1.9 16v Mjet TwinTurbo 191)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1700 CDTI Z17DTL 59)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1.7 CDTI Z17DTL 80)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1.9 CDTI Z19DTJ 120)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1900 CDTI Z19DTH 110)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1900 CDTI Z19DTL 74)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1900 CDTI Z19DTJ 88)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1900 CDTI Z19DT 88)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1.9 CDTI Ecotec Z19DTH - LL17126571 150)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1.9 CDTI Ecotec Z19DTH - RL17129339 150)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1.9 CDTI Z19DTL - LL17126571 100)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1.9 CDTI Z19DTL - RL17129339 100)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1.9 CDTI Z19DT - LL17126571 120)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →
Opel	Astra(H) (1.9 CDTI Z19DT - RL17129339 120)	`BOSCH EDC16C9 MPC555/6` (test)	Open Vehicle →

ECU Pinout EDC16C9 Bench / Boot / GPT Pinout — Wiring Diagram
