ECU Pinout DCU17CV51 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU DCU17CV51 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

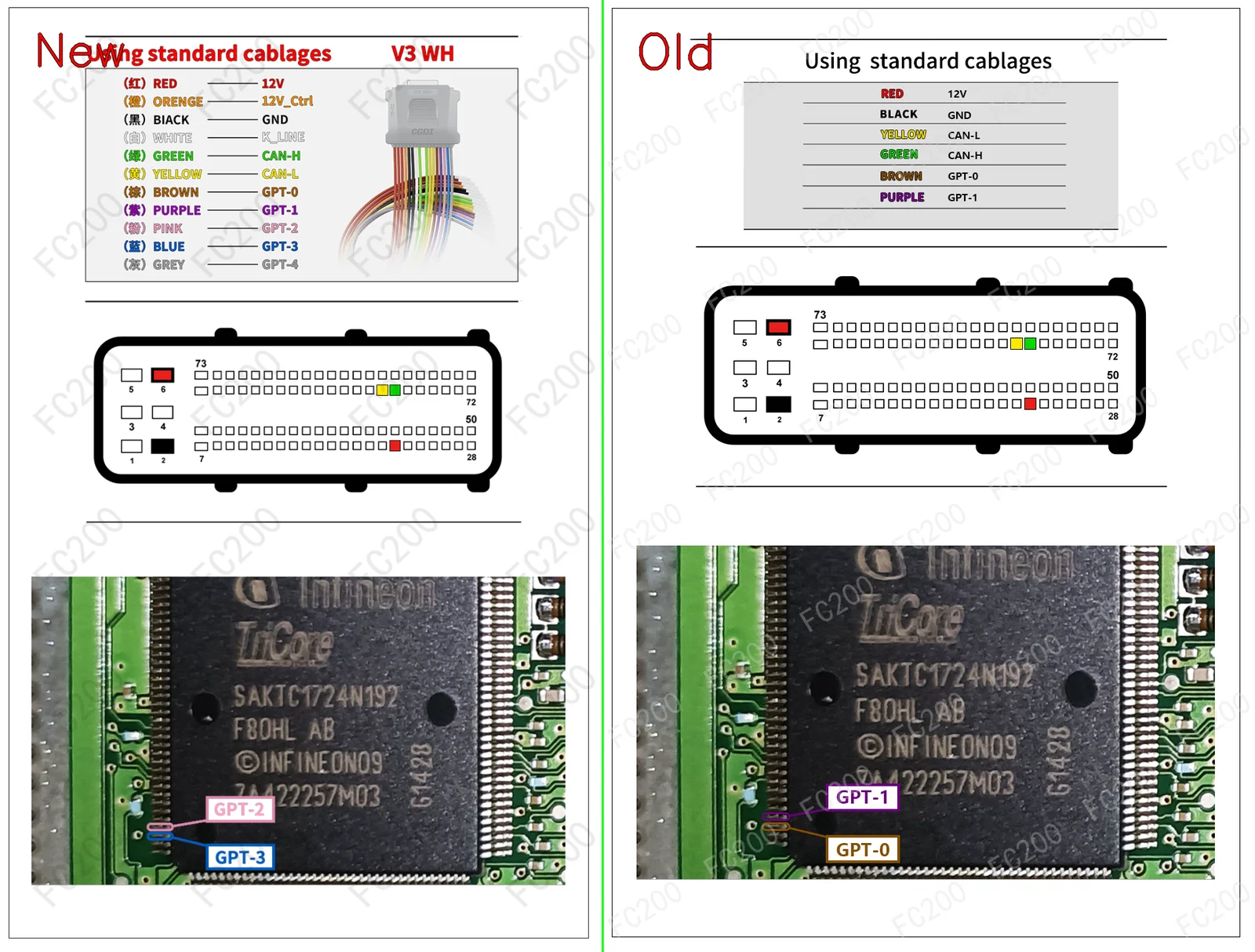

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH DCU17CV51.png (Boot)2,189,116 bytes
BOOT_BOSCH DCU17CV51.png

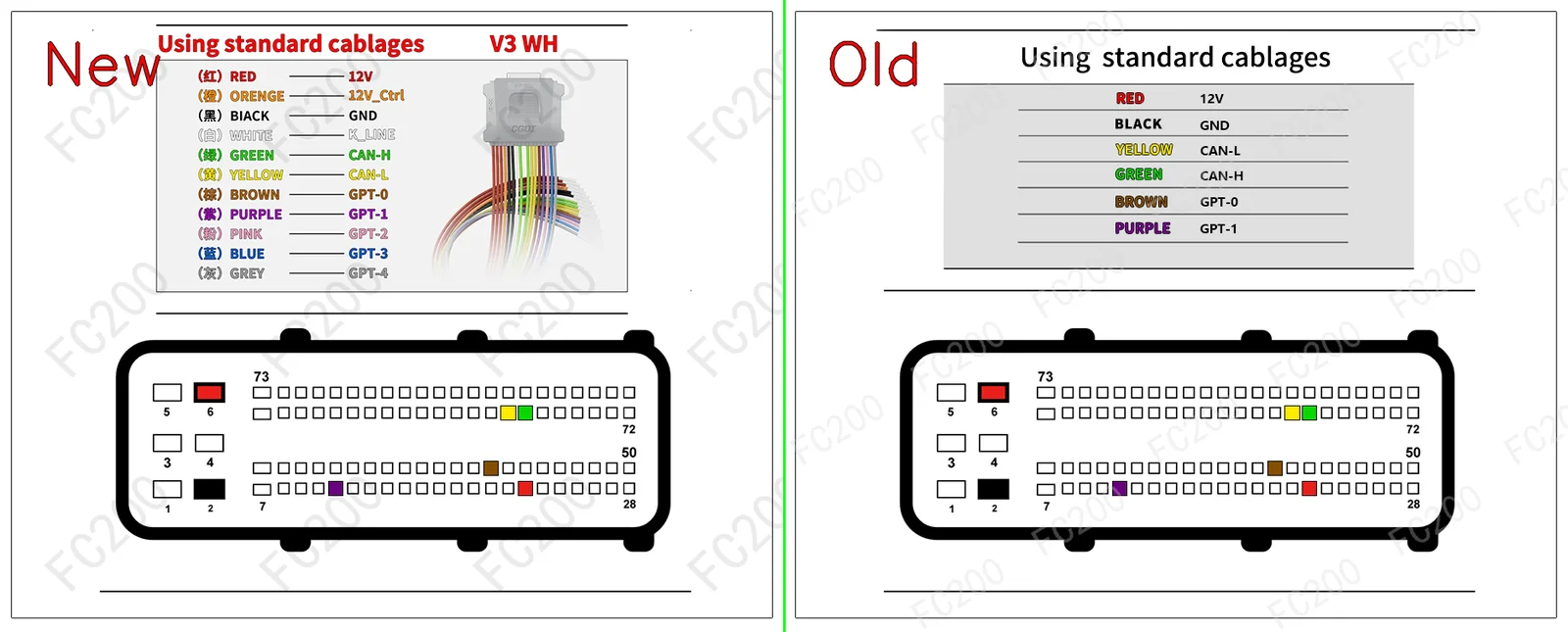

OFFICIAL PINOUT DIAGRAM: BOSCH DCU17CV51.png (Platform / Bench)454,874 bytes
BOSCH DCU17CV51.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU DCU17CV51 (20)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
JCB Backhoe Loader(3CX) (4400 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Backhoe Loader(4CX) (4400 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Crawler Excavator(JS130) (3000 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Crawler Excavator(J160) (3000 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Crawler Excavator(J145) (3000 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Crawler Excavator(JS200) (5200 • 1) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Crawler Excavator(JS220) (5200 • 1) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Crawler Excavator(JS240) (5200 • 1) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Telescopic Loader(531-70) (4400 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Telescopic Loader(536-60) (4400 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Telescopic Loader(540-140) (4400 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Telescopic Loader(540-170) (4400 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Telescopic Loader(541-70) (4400 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Telescopic Loader(550-80) (4400 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Wheeled Excavator(J145W) (3000 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Wheeled Excavator(J160W) (3000 • 75) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Wheeled Excavator(JS200W) (5200 • 1) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Wheeled Excavator(JS220W) (5200 • 1) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB Wheeled Excavator(JS240W) (5200 • 1) BOSCH DCU17CV51 (TC1724) Open Vehicle →
JCB All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, CheckSum) BOSCH DCU17CV51 (TC1724) Open Vehicle →
