ECU Pinout DCM6.2 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU DCM6.2 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI DCM6.2AP.png (Boot)1,792,665 bytes
BOOT_DELPHI DCM6.2AP.png

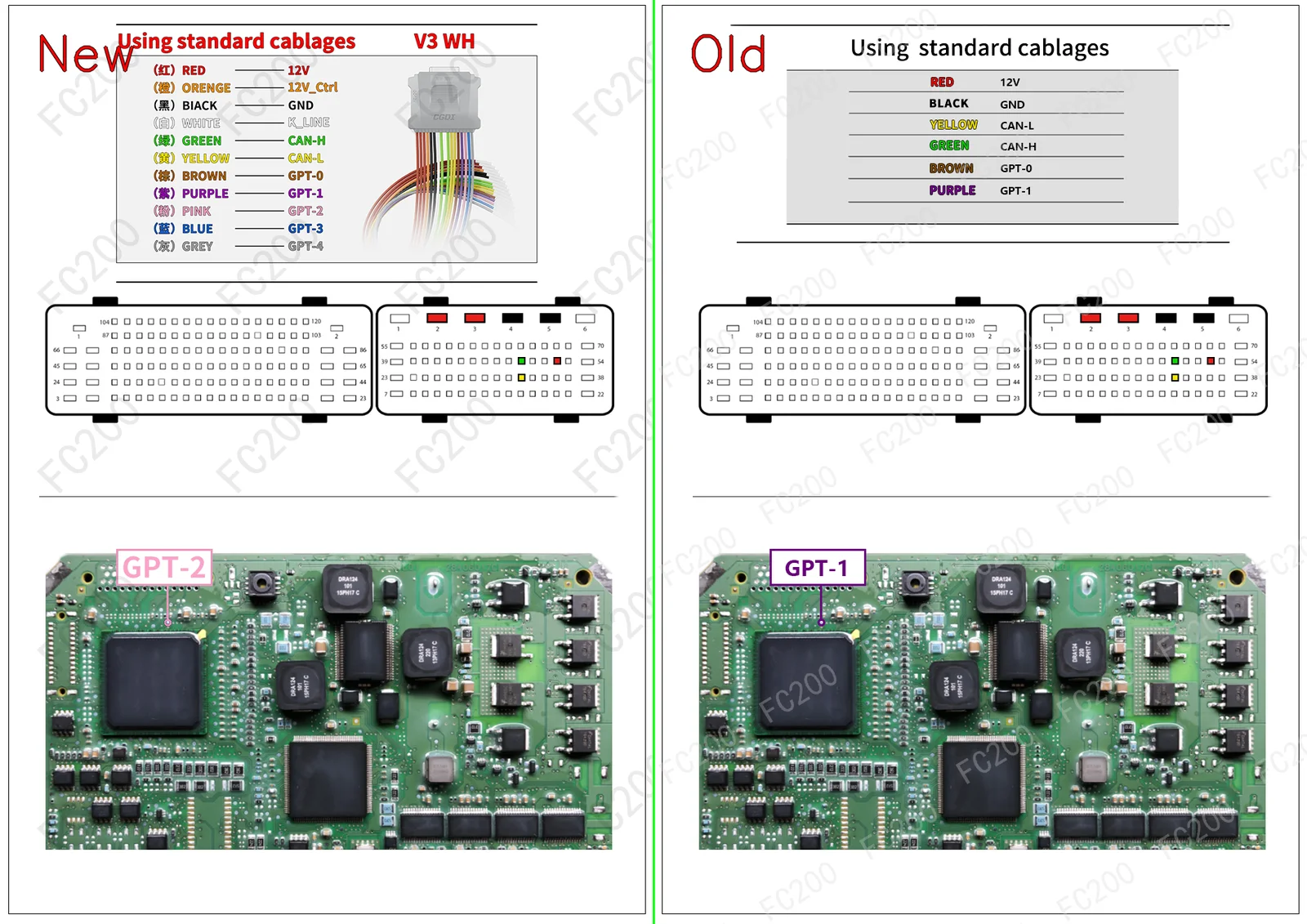

OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI DCM6.2C.png (Boot)1,890,707 bytes
BOOT_DELPHI DCM6.2C.png

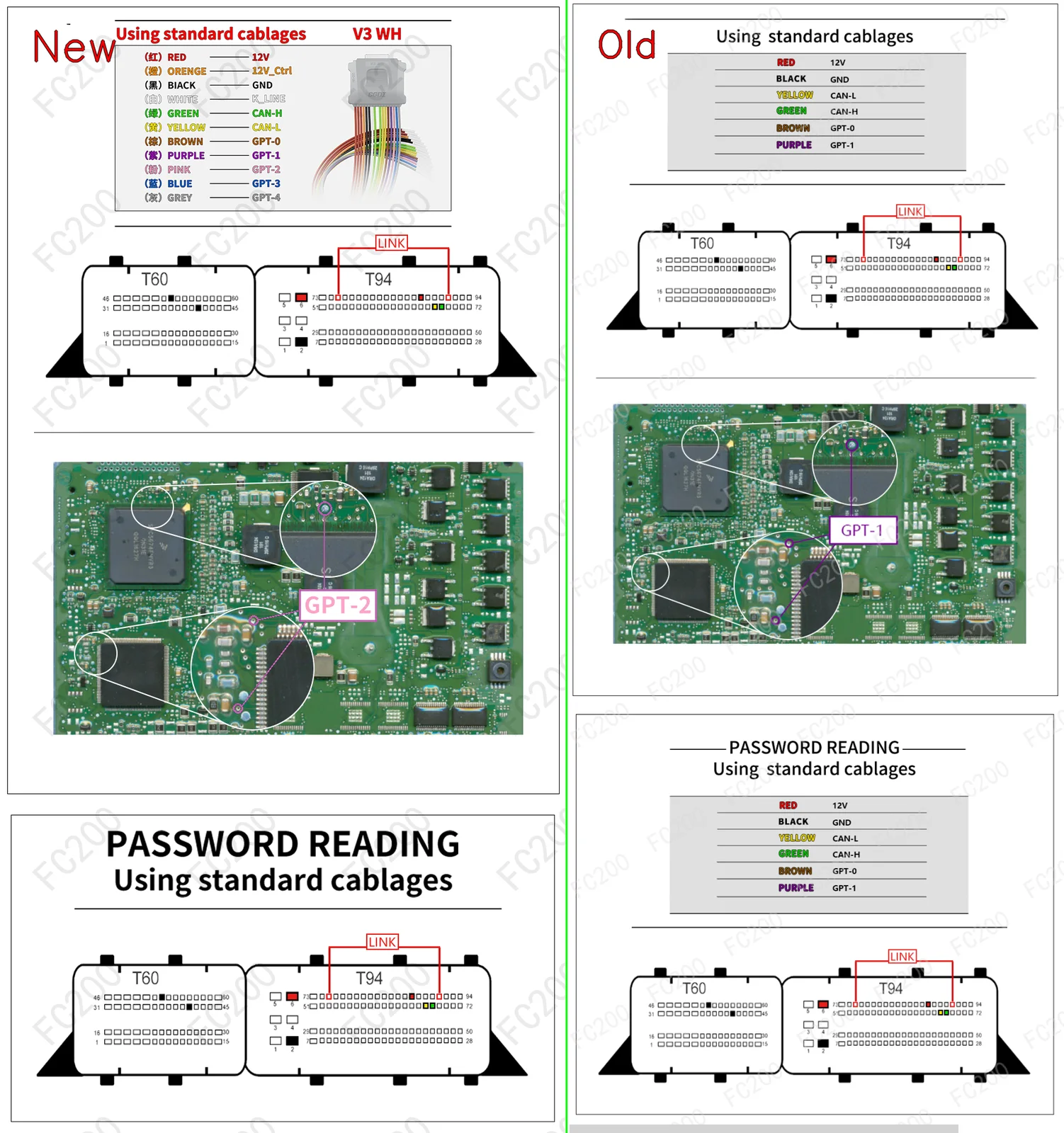

OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI DCM6.2V.png (Boot)2,212,850 bytes
BOOT_DELPHI DCM6.2V.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU DCM6.2 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Audi A1(8X) (1600 TDI CXMA 116) DELPHI DCM6.2V (MPC5674) Open Vehicle →
Audi A1(8X) (1399 CUSB 90) DELPHI DCM6.2V (MPC5674) Open Vehicle →
Audi A3(8V) (1598 DBKA 110) DELPHI DCM6.2V (MPC5674) Open Vehicle →
Audi A3(8V) (1600 TDI CXXB 110) DELPHI DCM6.2V (MPC5674) Open Vehicle →
Audi A3(8V) (1598 DGT 110) DELPHI DCM6.2V (MPC5674) Open Vehicle →
Audi Q2(GAB) (2000 TDI quattro DFHA 190) DELPHI DCM6.2V (MPC5674) Open Vehicle →
Audi Q2(GAB) (1598 DDYA 116) DELPHI DCM6.2V (MPC5674) Open Vehicle →
Audi Q2(GAB) (1968 DCYA 150) DELPHI DCM6.2V (MPC5674) Open Vehicle →
Audi Q5(8R) (2000 TDI quattro • ) DELPHI DCM6.2V (MPC5674) Open Vehicle →
BYD All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) DELPHI DCM6.2AP (MPC5674) Open Vehicle →
BAIC All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) DELPHI DCM6.2AP (MPC5674) Open Vehicle →
Chery All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) DELPHI DCM6.2AP (MPC5674) Open Vehicle →
Citroen C4(B71) (2000 BlueHDI AHX 150) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen C4 Grand Picasso(B78) (2000 BlueHDI AHV 136) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen C4 Grand Picasso(B78) (2000 BlueHDI AHX 150) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen C4 Picasso(B78) (2000 BlueHDI AHV 136) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen C4 Picasso(B78) (2000 BlueHDI AHX 150) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen C5(X7) (2000 BlueHDI AHW 180) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen C5(X7) (2000 BlueHDI AHX 150) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen DS5 (2000 AH01 150) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen Dispatch(I) (2000 AH01 150) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen JumpyM (2000 AH01 150) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen JumpyIII (1997 AHH <DW10FC> 180) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
Citroen SpaceTourer(I) (2000 AH01 150) DELPHI DCM6.2A MPC5674 (test) Open Vehicle →
