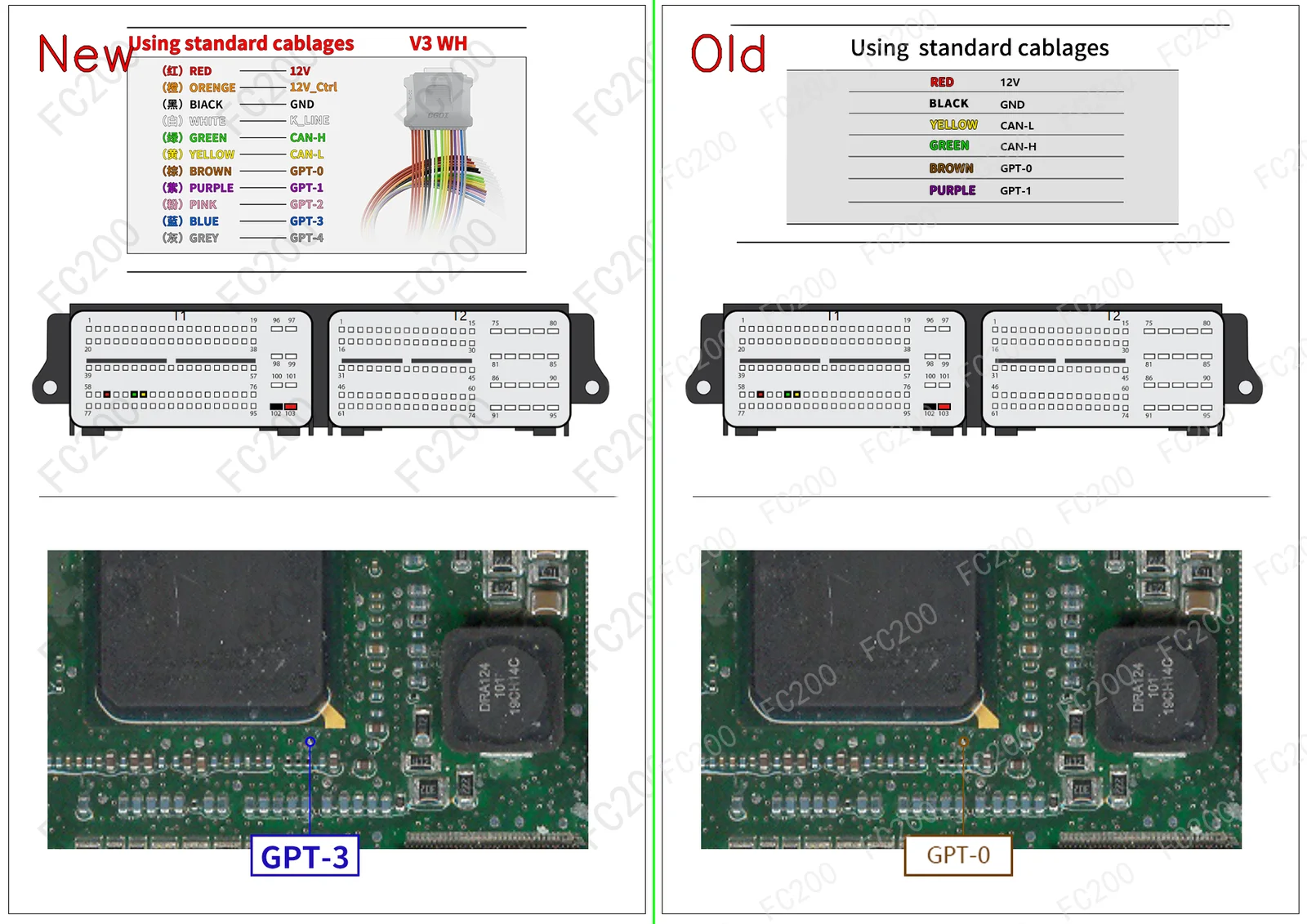

OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI DCM6.1.png (Boot)1,788,815 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU DCM6.1 (24)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Ford	C-Max(DXA) (1997 T8DE 170)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	C-Max(DXA) (1997 T7DB 150)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	C-Max(DXA) (2000 TDCi T8D 170)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	C-Max(DXA) (2000 TDCi T7D 150)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Edge(II) (1997 T8CM 180)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Edge(II) (2000 TDCi Biturbo T9CE 211)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Edge(I) (1997 T8CM 180)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Edge(I) (1997 T9CF 210)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Focus(DNW) (1997 T7DB 150)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Focus(DY) (2000 TDCi ST T8DA 185)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Focus(DY) (2000 TDCi T7D 150)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Focus ST(DM2) (2000 TDCi ST T8DA 185)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Galaxy(WGR) (1997 UFC 120)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Galaxy(WGR) (1997 T9C 210)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Galaxy(WGR) (1997 T8C 180)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Galaxy(WGR) (1997 T7C 150)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Galaxy(WA6) (1997 UFC 120)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Galaxy(WA6) (1997 T9C 210)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Galaxy(WA6) (1997 T8C 180)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Galaxy(WA6) (2000 TDCi T7D 150)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Kuga(l) (1997 XRMA 120)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Kuga(l) (1997 T8M 180)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Kuga(l) (1997 T7M 150)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →
Ford	Kuga(DM2) (1997 T8M 180)	`DELPHI DCM6.1 TC1797` (test)	Open Vehicle →

ECU Pinout DCM6.1 Bench / Boot / GPT Pinout — Wiring Diagram
