ECU Pinout DCM3.7AP Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU DCM3.7AP (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

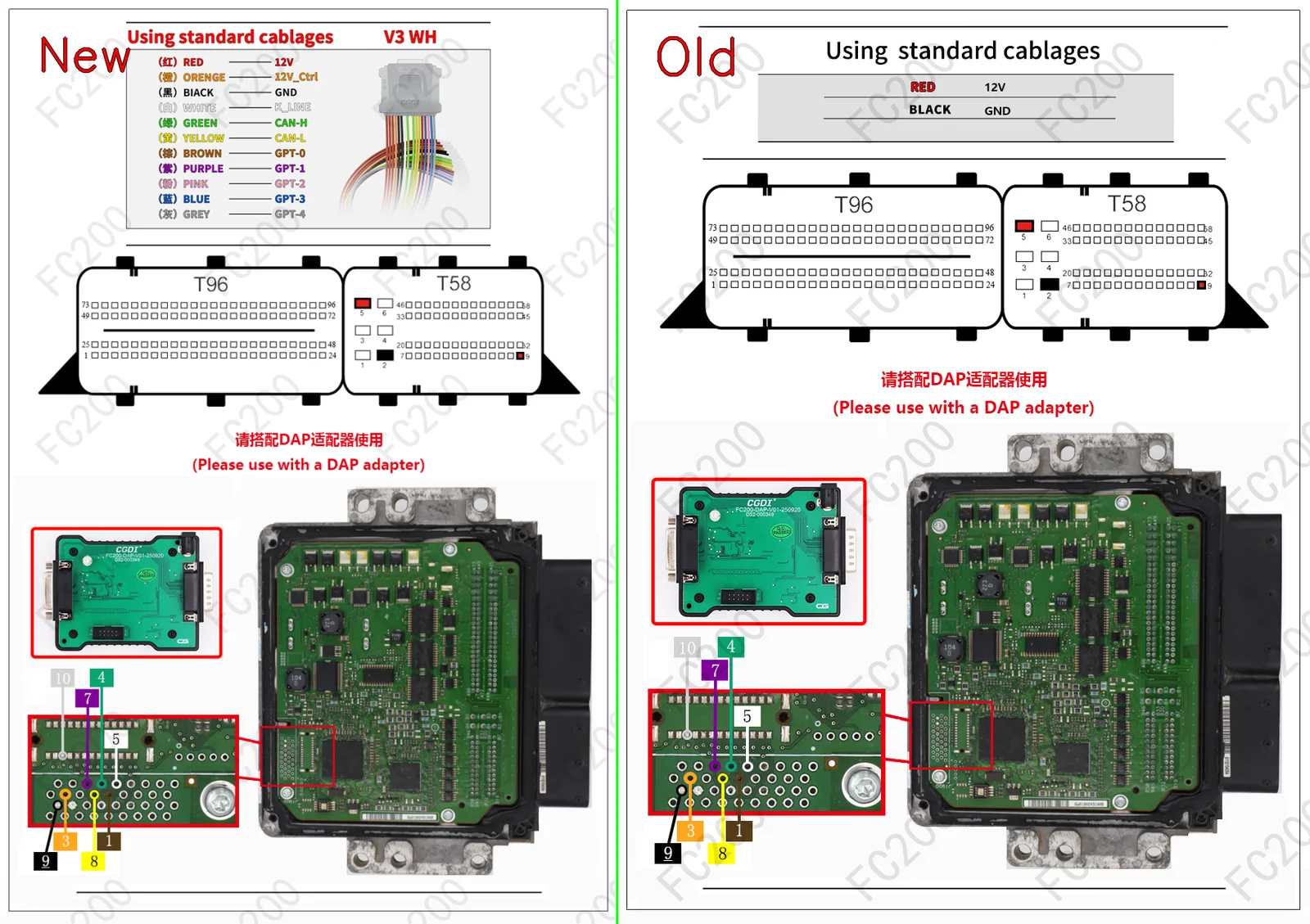

OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI DCM3.7AP R5F72544R.png (Boot)1,866,727 bytes
BOOT_DELPHI DCM3.7AP R5F72544R.png

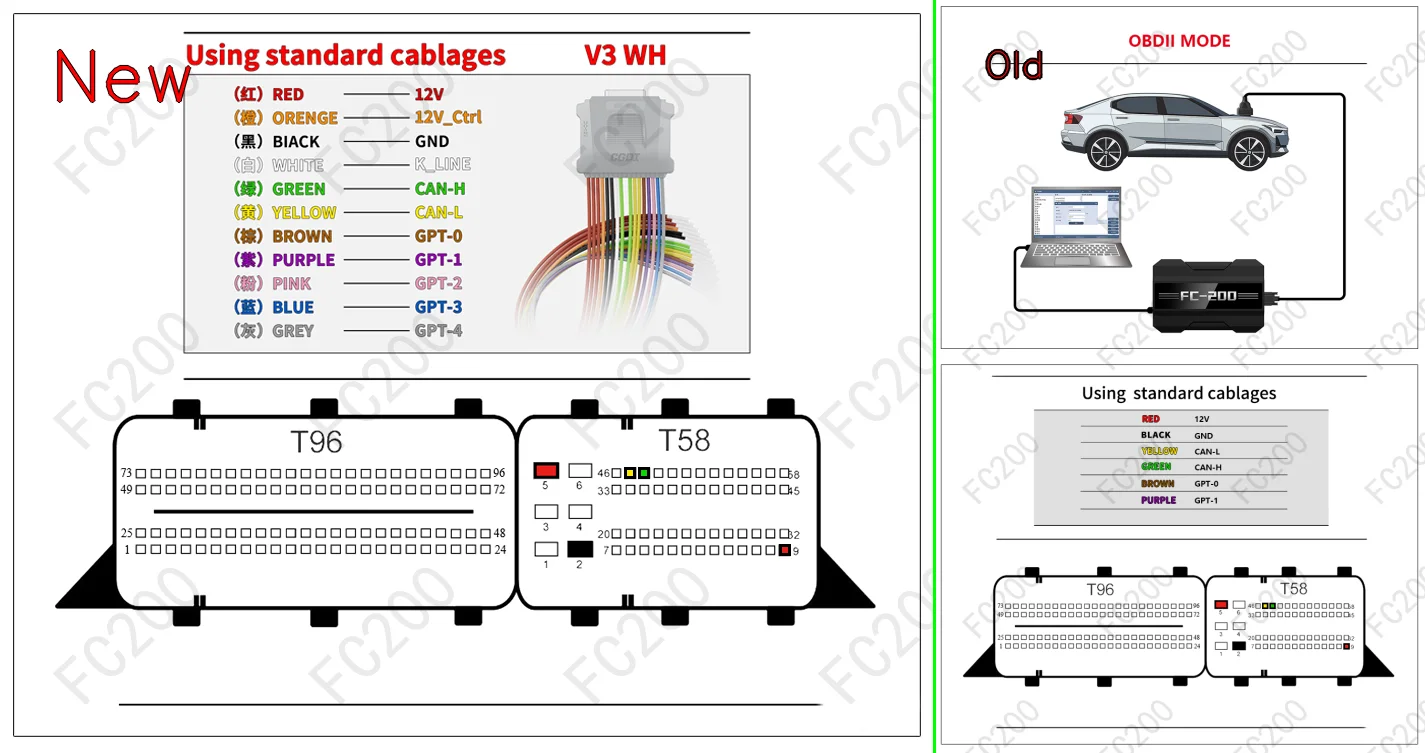

OFFICIAL PINOUT DIAGRAM: DELPHI DCM3.7AP.png (Platform / Bench)510,016 bytes
DELPHI DCM3.7AP.png

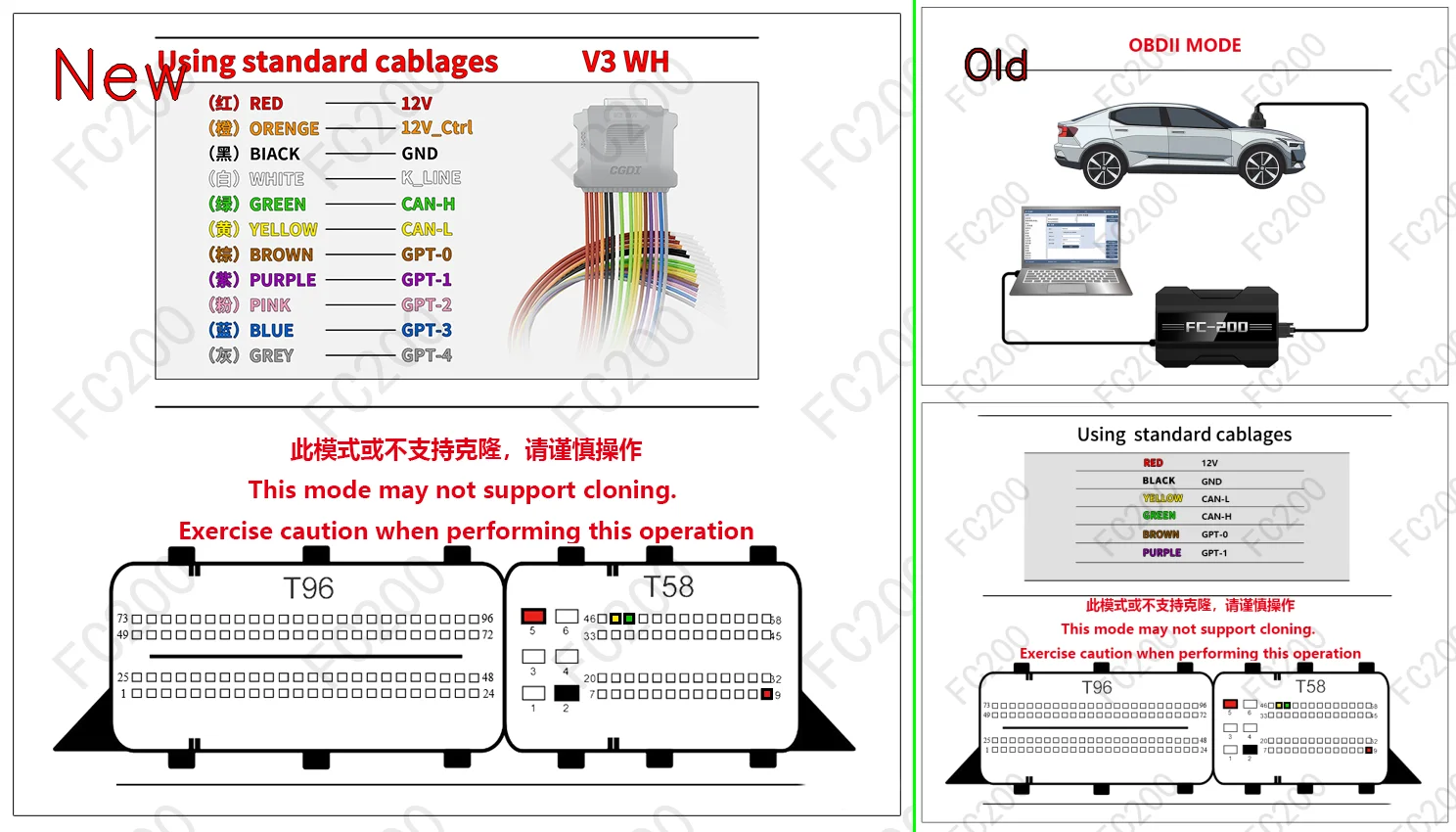

OFFICIAL PINOUT DIAGRAM: DELPHI DCM3.7AP_China.png (Platform / Bench)619,726 bytes
DELPHI DCM3.7AP_China.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU DCM3.7AP (21)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Chevrolet Captiva (2.2 16v D 184 4WD Z22D1 184) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Chevrolet Captiva (2.2 16v D 163 2WD Z22D1 163) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Chevrolet Cruze (2.0 16v VCDi Z20D1 163) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Chevrolet Orlando(J309) (2.0 16v VCDi Z20D1 163) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Chevrolet Orlando(J309) (2.0 16v VCDi 130 Z20D1 131) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Great Wall / Haval / Tank All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) DELPHI DCM3.7AP_China (SH72544) Open Vehicle →
Holden Captiva (2.2 16v D 184 4WD Z22D1 184) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Holden Captiva (2.2 16v D 163 2WD Z22D1 163) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Hyundai All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) DELPHI DCM3.7AP (R5F72544R) Open Vehicle →
JMC All Models with Delphi System (Universal Protocol) (All Engine Variants with This ECU) DELPHI DCM3.7AP_China (SH72544) Open Vehicle →
Opel Antara(A) (2.2 VCDi Z22DMH 184) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Opel Antara(A) (2.2 VCDi Z22DM 163) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Chevrolet All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Great Wall / Haval / Tank All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH) DELPHI DCM3.7AP_CHINA (SH72544) Open Vehicle →
Holden All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) DELPHI DCM3.7AP (SH72544) Open Vehicle →
JMC All Brand Models (Direct ECU Label Lookup) (Read/Write PFLASH) DELPHI DCM3.7AP_China (SH72544) Open Vehicle →
Opel All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH, CheckSum) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Universal ECU Protocol Protokol programmirovaniya so vskrytiem (Boot / BDM / JTAG / Renesas) (Direct Bench / Boot ECU Connector Pinout) DELPHI DCM3.7AP (R5F72544R) Open Vehicle →
Universal ECU Protocol Protokol programmirovaniya so vskrytiem (Boot / BDM / JTAG / Renesas) (Direct Bench / Boot ECU Connector Pinout) DELPHI DCM3.7AP_China (SH72544) Open Vehicle →
Universal ECU Protocol Aziatskie ECU Denso / Mitsubishi Melco / Delphi DCM (Platform / Bench) (Direct Bench / Boot ECU Connector Pinout) DELPHI DCM3.7AP (SH72544) Open Vehicle →
Universal ECU Protocol Aziatskie ECU Denso / Mitsubishi Melco / Delphi DCM (Platform / Bench) (Direct Bench / Boot ECU Connector Pinout) DELPHI DCM3.7AP_China (SH72544) Open Vehicle →
