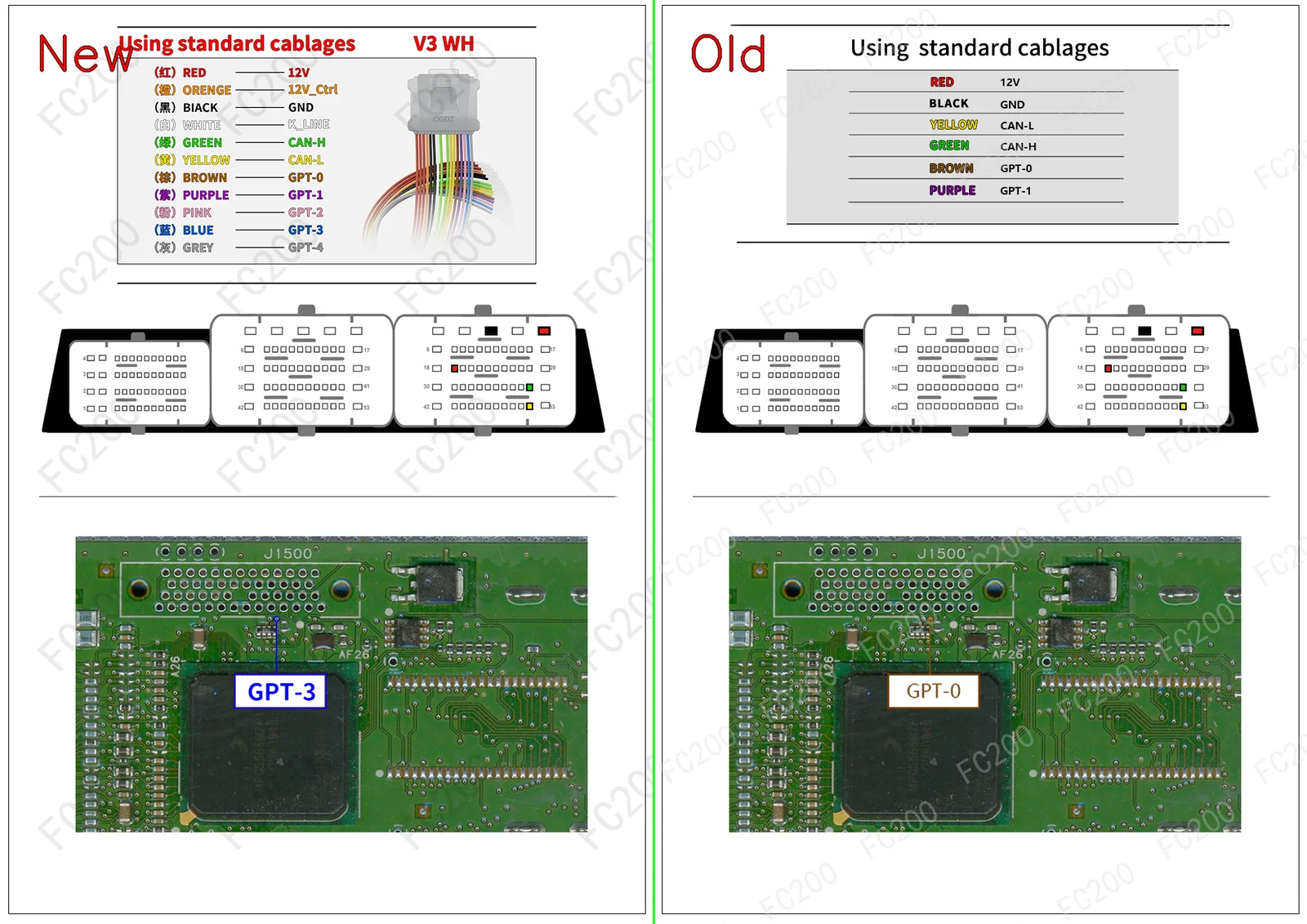

OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI DCM3.5.png (Boot)1,821,588 bytes

OFFICIAL PINOUT DIAGRAM: BOOT_DELPHI DCM3.7AP R5F72544R.png (Boot)1,866,727 bytes

STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT

Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).

VEHICLES EQUIPPED WITH ECU DCM3.5 (24)VEHICLE COMPATIBILITY

Make	Model & Engine	ECU & MCU	Action
Citroen	C4 Grand Picasso(B58) (2000 HDI RHH <DW10CTED4> 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Citroen	C4 Picasso(B58) (2000 HDI RHH <DW10CTED4> 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Citroen	C5(R) (1997 RHH 163)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Citroen	C5(X7) (2000 HDI RHH <DW10CTED4> 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Citroen	C8(V3) (2000 HDI RHD 136)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Citroen	DS4(B75) (2000 HDI RHH <DW10CTED4> 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Citroen	DS5(B81) (2000 HDI RHH <DW10CTED4> 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Citroen	DS5(B81) (1600 HDi • 110)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Citroen	Jumpy(G9) (2000 HDI RHH <DW10CTED4> 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
DS	DS4(B75) (2000 • 138)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Fiat	Scudo(270) (2000 Multijet RHH 163)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Fiat	Scudo(270) (2000 Multijet RH02 127)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	C-Max(DXA) (1997 TYDA 116)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	C-Max(DXA) (1997 UFDB 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	C-Max(DXA) (1997 TXDB 163)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	Focus(DNW) (1997 TXDB 163)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	Focus(DNW) (1997 UFDB 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	Focus(DNW) (1997 TYDA 116)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	Galaxy(WGR) (1997 QXW 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	Galaxy(WGR) (1997 TXWA 163)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	Galaxy(WA6) (1997 TXWA 163)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	Galaxy(WA6) (2000 TDCi • 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	Kuga(l) (2000 TDCi TXDA 163)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →
Ford	Kuga(l) (1997 UFDA 140)	`DELPHI DCM3.5 MPC5565` (test)	Open Vehicle →

ECU Pinout DCM3.5 Bench / Boot / GPT Pinout — Wiring Diagram
