ECU Pinout 17CV44 Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU 17CV44 (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

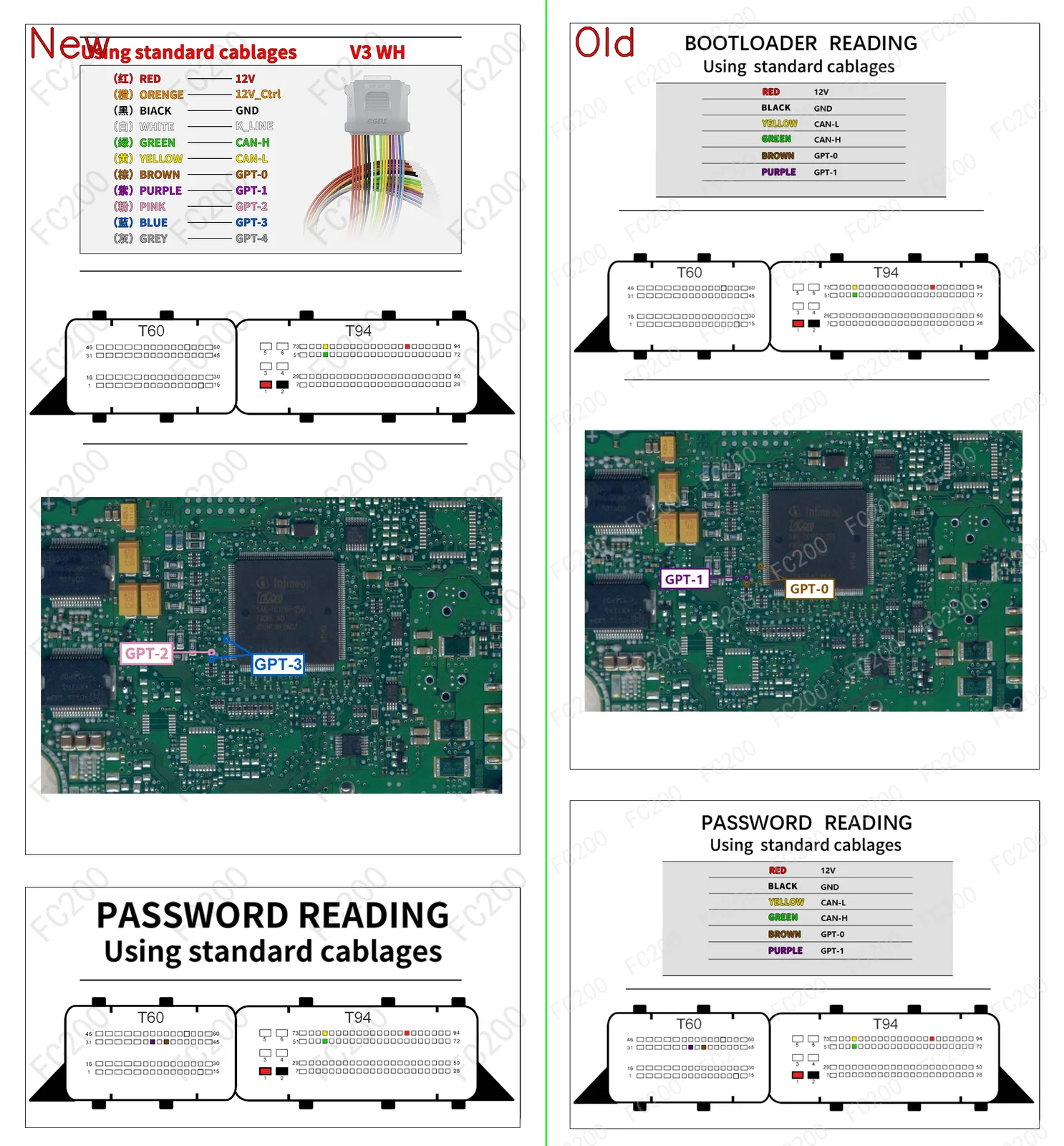

OFFICIAL PINOUT DIAGRAM: BOOT_BOSCH EDC17CV44.png (Boot)2,862,105 bytes
BOOT_BOSCH EDC17CV44.png

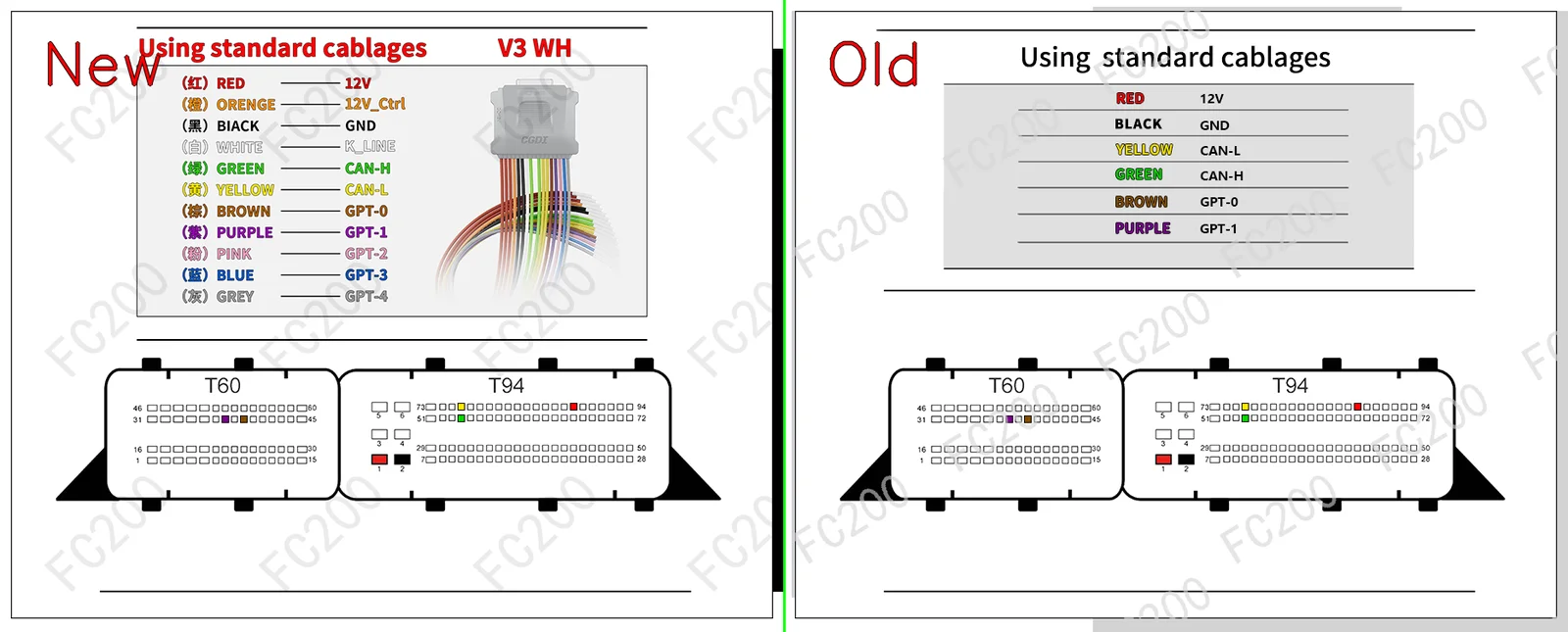

OFFICIAL PINOUT DIAGRAM: BOSCH EDC17CV44.png (Platform / Bench)475,576 bytes
BOSCH EDC17CV44.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU 17CV44 (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
Dongfeng All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Dongfanghong harvester (All Engine Variants with This ECU) BOSCH EDC17CV44 (TC1767) Open Vehicle →
FAW / Jiefang / Xichai All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Lovol harvester (All Engine Variants with This ECU) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson MF 7619 (6600 66CWA 185) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson MF 7620 (6600 66CWA 200) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson MF 7624 (7400 74CWA 235) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson MF 8650 (8400 84CTA 270) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson MF 8660 (8400 84CTA 295) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson MF 8670 (8400 84CTA 320) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson MF 8680 (8400 84CTA 350) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson MF 8690 (8400 84CTA 370) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson MF5610(5600) (3300 • 105) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson Mf 7622(Dyna-VT) (6600 66CWA 215) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson Mf 7622(Dyna-6) (7400 74CWA 215) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Sinotruk / Howo / Sitrak All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Shacman All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17CV44 (TC1767) Open Vehicle →
ZOOMLION All Brand Models (Universal ECU Protocol) (All Engine Variants with This ECU) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Lovol All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Massey Ferguson All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Shacman All Brand Models (Direct ECU Label Lookup) (Read/Write DFLASH/PFLASH/Ext FLASH, Read Password, Recover VIN, CheckSum) BOSCH EDC17CV44 (TC1767) Open Vehicle →
Cummins Inzhenernyy paket proshivok & kart Damos (17C53) (OEM Engine / System) Bosch Bosch EDC17CV44 / EDC17CV54 / EDC17C81 / EDC17C53 (Infineon TriCore TC1767 / TC1797) Open Vehicle →
Weichai Inzhenernyy paket proshivok & kart Damos (17C53) (OEM Engine / System) Bosch Bosch EDC17CV44 / EDC17CV54 / EDC17C81 / EDC17C53 (Infineon TriCore TC1767 / TC1797) Open Vehicle →
Weichai P1499 (CN5 / Euro-5) Bosch Bosch EDC17CV44 / EDC17CV54 / EDC17C81 / EDC17C53 (Infineon TriCore TC1767 / TC1797) Open Vehicle →
