ECU Pinout 15CP Bench / Boot / GPT Pinout — Wiring Diagram

Step-by-step bench connection diagram for ECU 15CP (non-invasive Platform Bench & Boot Mode): T30/T15 power supply, twisted-pair CAN-H/CAN-L, and GPT0/GPT1 signal pinout.

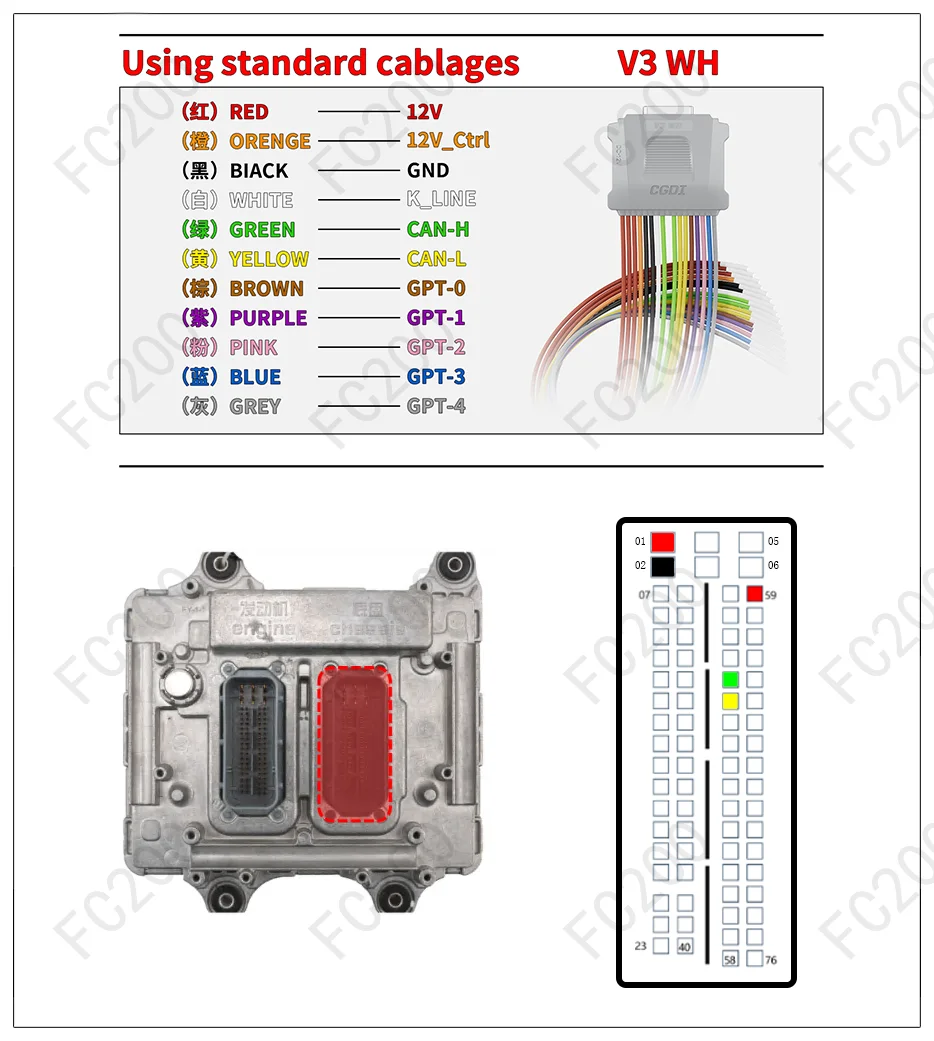

OFFICIAL PINOUT DIAGRAM: Diesel WISE15_15C.png (Platform / Bench)413,060 bytes
Diesel WISE15_15C.png

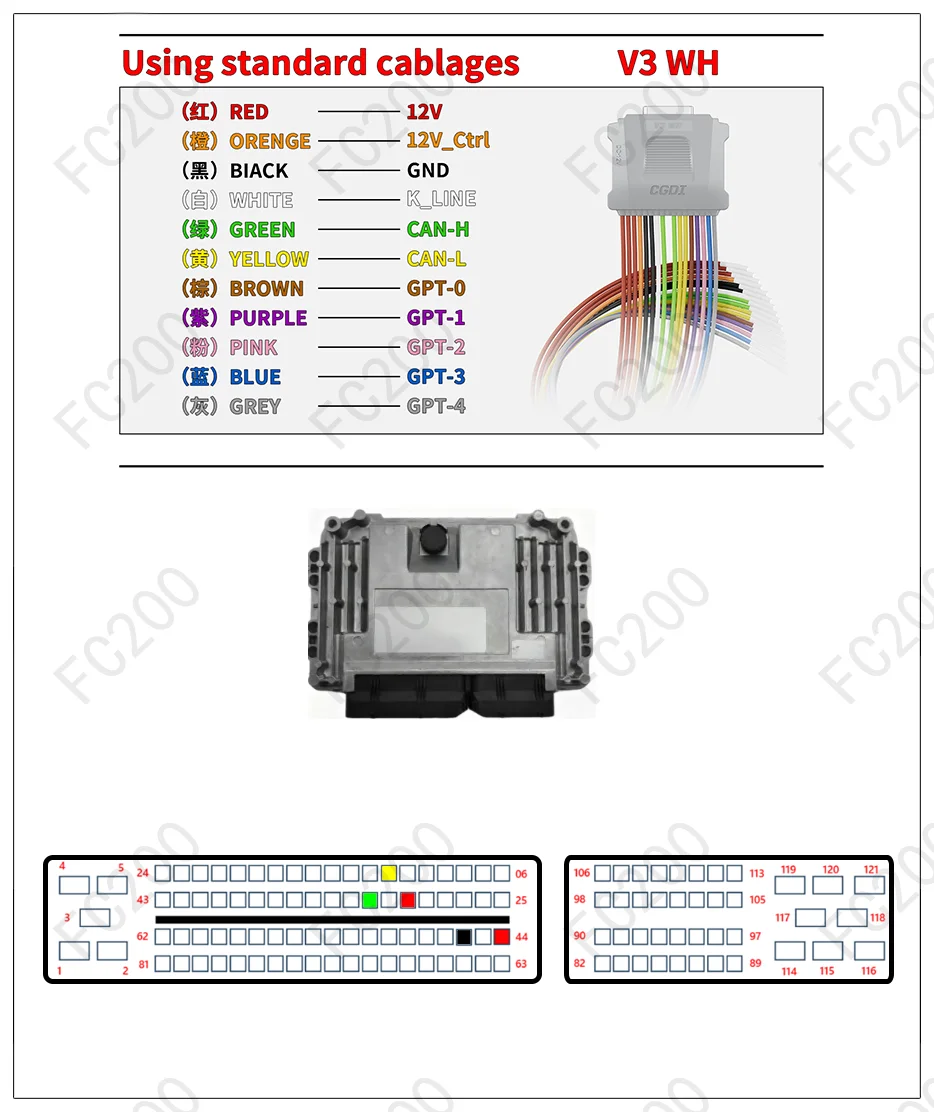

OFFICIAL PINOUT DIAGRAM: Diesel XINFENG13_15 WISE12B.png (Platform / Bench)314,153 bytes
Diesel XINFENG13_15 WISE12B.png
STEP-BY-STEP BENCH CONNECTION PROCEDURE (HOWTO PROTOCOL)BENCH / BOOT
  1. Step 1 (Terminal 30 & Terminal 15 Power): Apply regulated bench power 13.5V — 13.8V to constant battery (T30), switched ignition (T15), and ground (GND) pins according to the harness color code above.
  2. Step 2 (CAN Bus & GPT0 / GPT1 Signals): Connect CAN-H & CAN-L, along with signal leads GPT0 (S1) & GPT1 (S2) to enter bench service mode without opening the ECU housing.
  3. Step 3 (Full PFLASH + DFLASH Backup Read): Before writing any calibration, read and archive a full backup of internal Program Flash (PFLASH) and Data Flash / EEPROM (DFLASH).
VEHICLES EQUIPPED WITH ECU 15CP (24)VEHICLE COMPATIBILITY
MakeModel & EngineECU & MCUAction
DieselEngine Weichai (All Engine Variants with This ECU) Diesel WISE 15 (SPC564A80L7) Open Vehicle →
DieselEngine Weichai (All Engine Variants with This ECU) Diesel WISE 12B (SPC5634MMLQ80) Open Vehicle →
DieselEngine Weichai (All Engine Variants with This ECU) Diesel WISE 15C (SPC564A80L7) Open Vehicle →
Diesel Truck / Weichai / Cummins Kommercheskie dizeli & gruzoviki (Weichai WISE / Cummins / FAW / Sinotruk) (Direct Bench / Boot ECU Connector Pinout) Diesel WISE 15 (SPC564A80L7) Open Vehicle →
Diesel Truck / Weichai / Cummins Kommercheskie dizeli & gruzoviki (Weichai WISE / Cummins / FAW / Sinotruk) (Direct Bench / Boot ECU Connector Pinout) Diesel WISE 12B (SPC5634MMLQ80) Open Vehicle →
Diesel Truck / Weichai / Cummins Kommercheskie dizeli & gruzoviki (Weichai WISE / Cummins / FAW / Sinotruk) (Direct Bench / Boot ECU Connector Pinout) Diesel WISE 15C (SPC564A80L7) Open Vehicle →
Weichai Inzhenernyy paket proshivok & kart Damos (15CP) (OEM Engine / System) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P201 (CN6 / Euro-6) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P200 (CN6 / Euro-6) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P100 (OEM Engine / System) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye ECU (CN6 / Euro-6) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P230 (OEM Engine / System) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P270 (OEM Engine / System) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P201 (OEM Engine / System) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P200 (OEM Engine / System) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P270 (CN5 / Euro-5) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P100 (CN5 / Euro-5) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P270 (CN6 / Euro-6) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P160 (OEM Engine / System) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai A2L+KP (CN6 / Euro-6) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P230 (CN6 / Euro-6) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Sinotruk / Howo / Sitrak P201 (CN6 / Euro-6) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P210 (CN6 / Euro-6) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
Weichai P100 (CN6 / Euro-6) Weichai Weichai / Bosch WISE15 / WISEC10 / WISEC15 / Gazovye EBU (SPC564A / MPC55xx) Open Vehicle →
VERIFIED FIRMWARE (.BIN) & DAMOS MAPS (.A2L / .KP) FOR 15CPFILE CATALOG
FormatEngineering File NamePrice / Action
.KP?
.KP — Automotive ECU Engineering FileVerified binary firmware, WinOLS calibration map pack, or dealer technical schematic for ECU programming and diagnostics.
 Weichai 15CP270V135.kp $145 • Open File →
.KP?
.KP — Automotive ECU Engineering FileVerified binary firmware, WinOLS calibration map pack, or dealer technical schematic for ECU programming and diagnostics.
 15CP271V110 Selective DTC Fault Code Off .KP $145 • Open File →
.KP?
.KP — Automotive ECU Engineering FileVerified binary firmware, WinOLS calibration map pack, or dealer technical schematic for ECU programming and diagnostics.
 15cP270V110 motive power .KP $145 • Open File →
.OLS?
.OLS — Automotive ECU Engineering FileVerified binary firmware, WinOLS calibration map pack, or dealer technical schematic for ECU programming and diagnostics.
 15CP270V103 Precision Map Definition .ols $165 • Open File →
.OLS?
.OLS — Automotive ECU Engineering FileVerified binary firmware, WinOLS calibration map pack, or dealer technical schematic for ECU programming and diagnostics.
 15CP270V110 SCR / DPF Aftertreatment .OLS $165 • Open File →
.OLS?
.OLS — Automotive ECU Engineering FileVerified binary firmware, WinOLS calibration map pack, or dealer technical schematic for ECU programming and diagnostics.
 15CP270V135 alone close malfunction .OLS $165 • Open File →
.OLS?
.OLS — Automotive ECU Engineering FileVerified binary firmware, WinOLS calibration map pack, or dealer technical schematic for ECU programming and diagnostics.
 15CP100V135 SCR / DPF Aftertreatment .ols $165 • Open File →
.OLS?
.OLS — Automotive ECU Engineering FileVerified binary firmware, WinOLS calibration map pack, or dealer technical schematic for ECU programming and diagnostics.
 15CP271V110 Selective DTC Fault Code Off .ols $165 • Open File →
.OLS?
.OLS — Automotive ECU Engineering FileVerified binary firmware, WinOLS calibration map pack, or dealer technical schematic for ECU programming and diagnostics.
 15cP270V110 motive power .ols $165 • Open File →
