1. FACTORY ECU & MICROCONTROLLER INSTALLED ON THIS VEHICLEBENCH / BOOT / OBD VERIFIED
| Make & Model (Chassis) | ROEWE — All Brand Models (Universal ECU Protocol) |
|---|---|
| Engine & Power Spec | All Engine Variants with This ECU |
| Engine Control Unit (ECU) | BOSCH ECU6.1_Black |
| Internal Microcontroller (MCU) | TC1728 |
| Read / Write Connection Mode | OBD |
| Supported Programmer Functions | Full PFLASH + DFLASH Backup Read/Write (1:1 ECU Cloning) + Auto Checksum Correction |
| Available Files in 800 TB Vault | Exact ECU Maps: 0 (.A2L/.KP/.OLS) | Family Maps: 0 | ROMs: 0 |
2. OFFICIAL BENCH / BOOT ECU CONNECTOR PINOUT DIAGRAM1 DIAGRAMS

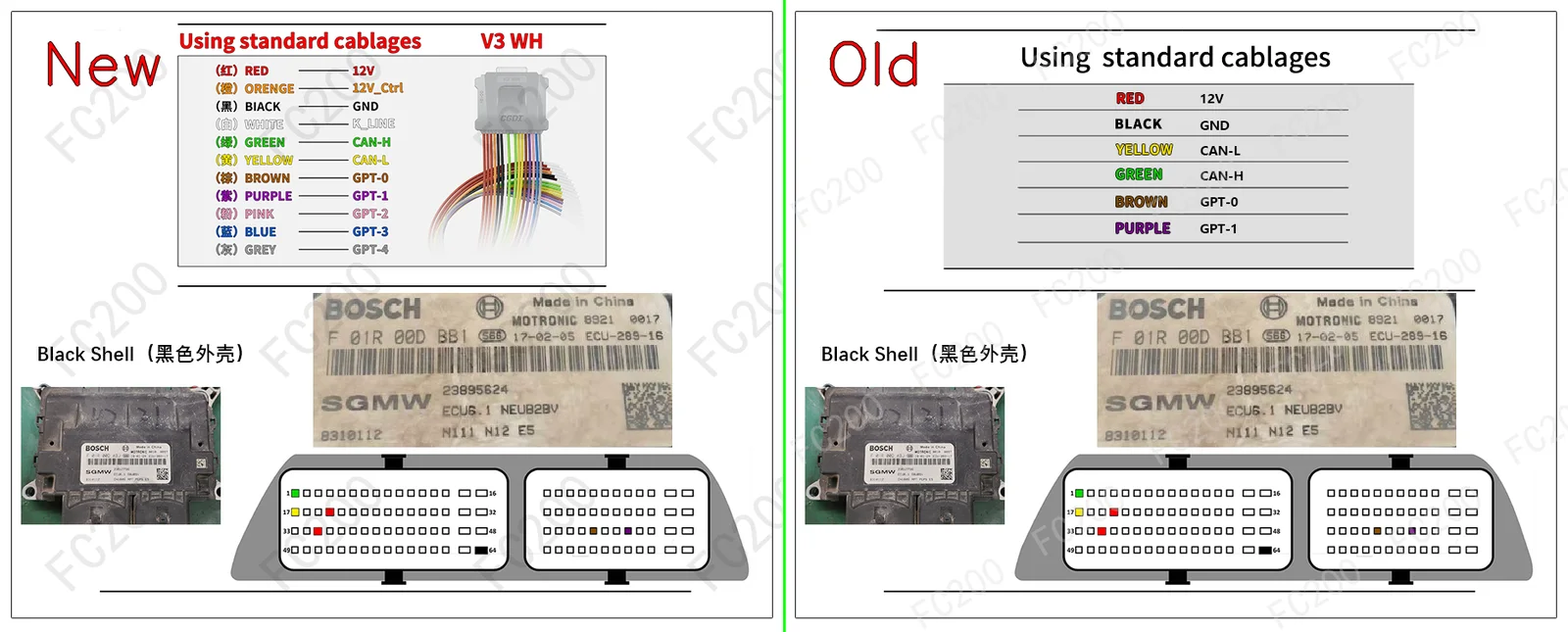

OFFICIAL BENCH / BOOT ECU PINOUT DIAGRAM: BOSCH ECU6.1_Black TC1728.png
